TYVA ENERGIE The ultra light, modular and affordable Lithium- ion battery for automotive and home storage applications TYVA Energie - Julie BADIN 188 Avenue Ferdinand Janvier 07100 Annonay France + 33(0)4 26 30 80 79 info@tyva-energie.com

slide-1
SLIDE 1

1

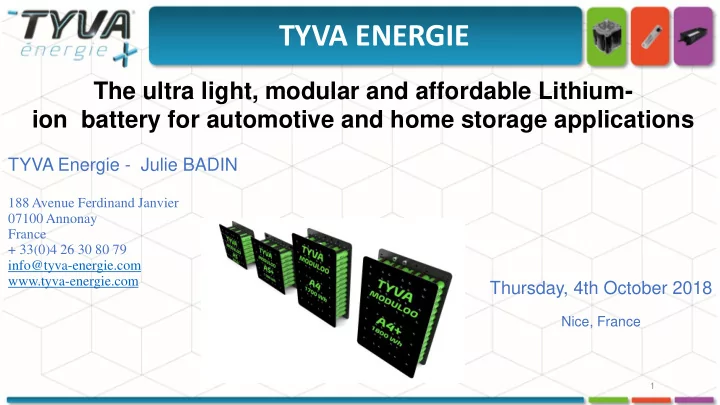

The ultra light, modular and affordable Lithium- ion battery for automotive and home storage applications

TYVA Energie - Julie BADIN

188 Avenue Ferdinand Janvier 07100 Annonay France + 33(0)4 26 30 80 79 info@tyva-energie.com www.tyva-energie.com

TYVA ENERGIE

Thursday, 4th October 2018

Nice, France

slide-2
SLIDE 2

2

Agenda

Introduction TYVA ENERGIE

  • History & products
  • Battery module concept

iModBatt project

  • Introduction
  • Road map
  • Objectives
  • Targets
  • Achievements
slide-3
SLIDE 3

TYVA ENERGIE Group

The energy solution for all your projects

Customized Lithium Battery 1 to 500 Wh

3D Li-Ion Modular Battery > 500 Wh

3

BMS and PDU solutions Lithium Battery Chargers

slide-4
SLIDE 4

4

TYVA MODULOO

  • Head Office + R/D (Annonay) in France
  • 2 plants qualified for manufacturing

TYVA LITHIUM

  • 3 plants qualified for the assembly in France and Poland
  • ISO 9001 certification

TYVA ENERGIE Group

slide-5
SLIDE 5

We created TYVA Moduloo The first 3D Battery

5

TYVA MODULOO Gen 1

3D Modular battery

Multi-chemistry module for 18650 cells integration : LiFePO4, NMC, NCA, LMO, LTO Power and energy products range Multi-voltage platform : 3.6 V, 12 V and 24 V Plug and Play solution Safe construction with easy mechanical assembly No development and certifications fees Eco-friendly battery 1 week delivery Fast and affordable construction Made in France Worldwide patents

slide-6
SLIDE 6

6

NEXT STEP TYVA MODULO Gen Ax

slide-7
SLIDE 7

7

Main Technical advantages

  • Modular plateform for 18650 and 21700 cells
  • The lightest battery on the market : 258 Wh /kg
  • Competitive price : 0,35 € / Wh
  • Module voltage : 3,7 to 51,8 V
  • Battery voltage : 25,9 to 820 V
  • Integrated cooling system
  • IP65 waterproof
  • Core pack or aluminium casing
  • Smart integration for BMS and PDU boards
  • Capability for cells replacement thanks

to Tyva Refill technology

  • Made in France

Aluminium casing Mountable casing Core pack

TYVA MODULOO Gen Ax

slide-8
SLIDE 8

8

TYVA MODULOO Gen Ax

TYVA MODULOO MODULES A4 and A5 (CORE PACK EDITION)

TYREC_A5B_X A5 75 x 183 x 210 3,5 3,7 to 51,8 906 258 TYREC_A5P_X A5+ 75 x 202 x 210 4,1 1036 TYREC_A4B_X A4 75 x 298 x 210 6,6 1683 TYREC_A4P_X A4+ 75 x 318 x 210 7,1 1813

slide-9
SLIDE 9

9

TYVA MODULOO Gen Ax

TYVA MODULOO MODULES A4 and A5 (ALU BOX EDITION)

TYREB_A5B_X A5 77 x 220 x 194 3,9 3,7 to 51,8 906 232 TYREB_A5P_X A5+ 77 x 220 x 213 4,5 1036 TYREB_A4B_X A4 77 x 220 x 310 7,3 1683 TYREB_A4P_X A4+ 7 x 220 x 329 7,9 1813

slide-10
SLIDE 10

Modules in serial:

  • Core pack version
  • Aluminium box version

10

TYVA MODULOO Gen Ax

slide-11
SLIDE 11

11

June 2017 First prototypes Production phase N°1 March 2018 Sept 2019 Production phase N°2

Production Road Map

TYVA MODULOO Gen Ax

PROJECT

slide-12
SLIDE 12

12

H2020 - iModBatt

ImodBatt : Industrial Modular Battery pack concept for automotive applications

The aim of iModBatt is to design and manufacture, with the minimum environmental impact, a high energy density modular BP, which is flexible enough to be used in automotive and small stationary applications. This BP will be suitable for industrial automated assembly with an easy disassembly design, to make possible the shift from primary applications to secondary ones, and to facilitate the BP recyclability or parts replacement if necessary.

14 partners, 5 countries

slide-13
SLIDE 13

13

Nov 2017 Start Design-freeze Dec 2018 June 2019 Battery Pack testing

iModBatt Road Map

March 2020 Industrialization Cell Selection Oct 2018

H2020 – iModBatt

Road Map

slide-14
SLIDE 14

14

H2020 – iModBatt

Objectives

✓ Increase in BP energy density ✓ Reduction of the BP integration cost by the introduction of an automated smart manufacturing unit and

  • ptimization of recyclability during manufacturing.

✓ Enhance the value of European SMEs and large industries by their leadership in the project activities. ✓ Contribute to climate action by ruling the whole BP design and BP manufacturing definition by eco-design recommendations and defining a smart recycling methodology. ✓ Create the BP design and manufacturing conditions so that a second life and/or reuse of BPs is feasible

slide-15
SLIDE 15

15

H2020 – iModBatt

Targets

REN Zoe EV e.GO Life EV TYVA Stationnary application Nominal Voltage /V 360 380 46 Power /kW 43 (Charge) / 80 (Discharge) 3,5 (Charge)/ 60 (Discharge) 2 (Charge) / 4 (Discharge) Capacity /kWh 41 23,9 5 T° range /°C [-30;+60] CH & DCH [-40;+60] Storage [-20;+60] DCH [-10;+45] CH [-20;+60] Storage [+5;+35] CH & DCH [+5;+35] Storage

slide-16
SLIDE 16

16

Next step :

  • A power plug connector in the 3 directions
  • An innovative modular cooling system
  • Simulation of the all battery packs

H2020 – iModBatt

Achievements

21700 7S 14P 373 x 177 x 72 7,02 25,5 70 70 1800 257 257 379 379

slide-17
SLIDE 17

17

TYVA ENERGIE Group

MANY THANKS !! Questions ?

Tyva Energie - Julie Badin
