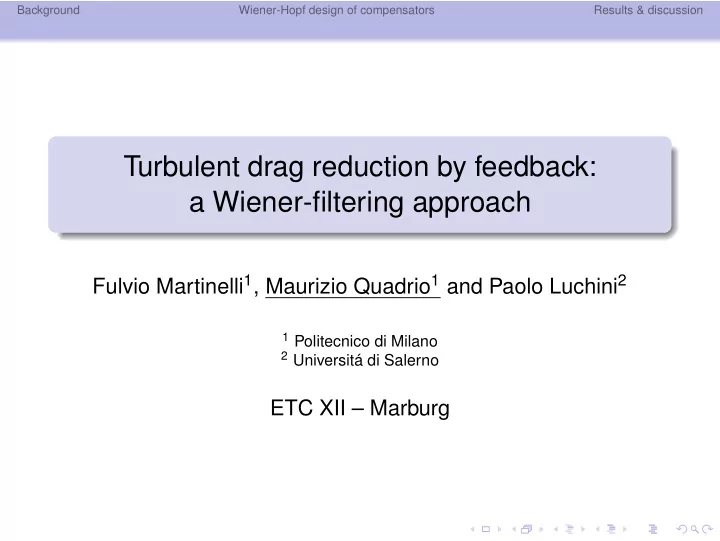

Background Wiener-Hopf design of compensators Results & discussion Turbulent drag reduction by feedback: a Wiener-filtering approach Fulvio Martinelli 1 , Maurizio Quadrio 1 and Paolo Luchini 2 1 Politecnico di Milano 2 Universit di


  1. Background Wiener-Hopf design of compensators Results & discussion Turbulent drag reduction by feedback: a Wiener-filtering approach Fulvio Martinelli 1 , Maurizio Quadrio 1 and Paolo Luchini 2 1 Politecnico di Milano 2 Universitá di Salerno ETC XII – Marburg

  2. Background Wiener-Hopf design of compensators Results & discussion Outline Background 1 Wiener-Hopf design of compensators 2 Results & discussion 3

  3. Background Wiener-Hopf design of compensators Results & discussion Outline Background 1 Wiener-Hopf design of compensators 2 Results & discussion 3

  4. Background Wiener-Hopf design of compensators Results & discussion Feedback control of wall turbulence � y ( x ′ , z ′ , t ′ ) K ( x − x ′ , z − z ′ , t − t ′ ) dx ′ dz ′ dt ′ u ( x , z , t ) = Goal: reduction of friction drag Actuators: zero-net-mass-flux wall blowing/suction Sensors: pressure and skin friction components

  5. Background Wiener-Hopf design of compensators Results & discussion The plant: turbulent plane channel flow Flow is spatially invariant in x and z Efficient DNS at moderate Re (and ≈ 10 8 d.o.f.s) State variables: v - η

  6. Background Wiener-Hopf design of compensators Results & discussion State of the art A young field Hope for linear control (Kim & Lim, 2000) Modern Optimal Control Theory, state-space formulation Kalman-filter-based estimators: very poor performance Additional challenge: billions of d.o.f.

  7. Background Wiener-Hopf design of compensators Results & discussion A recent step ahead? Luchini & Quadrio, PoF 2006 Problem Solution Poor system model: NS Enrich the model: the equations linearized about average turbulent linear the mean velocity profile response function H Turbulence dynamics is More physics: turbulent missing diffusion is accounted for (on average) H is measured by cross-correlating small space-time white noise wall forcing with the perturbed flow

  8. Background Wiener-Hopf design of compensators Results & discussion Goal of the present work Devise a strategy for using an impulse response to design the control kernel Lay down a computationally-efficient procedure Test the procedure with the average impulse response in the full nonlinear problem Hope it works...

  9. Background Wiener-Hopf design of compensators Results & discussion The feedback control problem d n y x u + H C + K H is the average relation between boundary input and (inner) state variables n : turbulent fluctuations in the uncontrolled flow Aim: design K to minimize J = E { x H Qx + u H Ru }

  10. Background Wiener-Hopf design of compensators Results & discussion Outline Background 1 Wiener-Hopf design of compensators 2 Results & discussion 3

  11. Background Wiener-Hopf design of compensators Results & discussion Switch to frequency domain! F.Martinelli, PhD thesis, PoliMi 2009 A state-space realization of H is unaffordable Rewrite the objective functional in frequency: � + ∞ J ( f ) = Tr [ Q φ xx ( f )] + Tr [ R φ uu ( f )] df . −∞ with φ xx ( f ) psd of state. Substituting, J is not quadratic in K . Minimization w.r.t. K does not lead to a linear problem

  12. Background Wiener-Hopf design of compensators Results & discussion Obtaining a quadratic form J may be written as a quadratic form of the Youla parameter K = ( I − KCH ) − 1 K as: � + ∞ � H H H + . . . Q φ nn + QHKC φ nn + Q φ nn C H K J = Tr −∞ H H H � H H H + QHK φ dd K . . . + QHKC φ nn C H K + . . . � H � H + RK φ dd K RKC φ nn C H K . . . + Tr df . Minimization yields the best compensator (that is non-causal)

  13. Background Wiener-Hopf design of compensators Results & discussion Enforcing causality Introduce a Lagrange multiplier Λ : � + ∞ � H + H H . . . Q φ nn + QHK + C φ nn + Q φ nn C H K J = Tr −∞ + H H � + H H + QHK + φ dd K H H . . . + QHK + C φ nn C H K + . . . � � H H H RK + C φ nn C H K . . . + Tr + + RK + φ dd K + Tr [Λ − K + ] df . +

  14. Background Wiener-Hopf design of compensators Results & discussion A Wiener-Hopf problem Minimization leads to the (linear) Wiener-Hopf problem: ( H H QH + R ) K + ( C φ nn C H + φ dd ) + Λ − = − H H Q φ nn C H

  15. Background Wiener-Hopf design of compensators Results & discussion A Wiener-Hopf problem Minimization leads to the (linear) Wiener-Hopf problem: ( H H QH + R ) K + ( C φ nn C H + φ dd ) + Λ − = − H H Q φ nn C H φ nn appears in functional form: full space-time structure of 1 the noise easily accounted for

  16. Background Wiener-Hopf design of compensators Results & discussion A Wiener-Hopf problem Minimization leads to the (linear) Wiener-Hopf problem: ( H H QH + R ) K + ( C φ nn C H + φ dd ) + Λ − = − H H Q φ nn C H φ nn appears in functional form: full space-time structure of 1 the noise easily accounted for Solution yields directly the compensator’s frequency 2 response (no separation theorem required)

  17. Background Wiener-Hopf design of compensators Results & discussion A Wiener-Hopf problem Minimization leads to the (linear) Wiener-Hopf problem: ( H H QH + R ) K + ( C φ nn C H + φ dd ) + Λ − = − H H Q φ nn C H φ nn appears in functional form: full space-time structure of 1 the noise easily accounted for Solution yields directly the compensator’s frequency 2 response (no separation theorem required) Scalar equation for the SISO case: superfast FFT-based 3 solution

  18. Background Wiener-Hopf design of compensators Results & discussion Outline Background 1 Wiener-Hopf design of compensators 2 Results & discussion 3

  19. Background Wiener-Hopf design of compensators Results & discussion The procedure Measure ⇒ design ⇒ test Response function and noise spectral densities are measured via DNS Compensator is designed wavenumber-wise by solving a scalar Wiener-Hopf problem Compensators are tested in a full nonlinear DNS Parametric study, more than 300 DNS ( ≈ 40 years of CPU time)

  20. Background Wiener-Hopf design of compensators Results & discussion Results Measured friction drag reduction J =energy J =dissipation Re τ τ x τ z p τ x τ z p 100 0 % 0 % 0 % 2 % 0 % 0 % 180 0 % 0 % 0 % 8 % 6 % 0 %

  21. Background Wiener-Hopf design of compensators Results & discussion Results Measured friction drag reduction J =energy J =dissipation Re τ τ x τ z p τ x τ z p 100 0 % 0 % 0 % 2 % 0 % 0 % 180 0 % 0 % 0 % 8 % 6 % 0 % Energy norm is not effective

  22. Background Wiener-Hopf design of compensators Results & discussion Results Measured friction drag reduction J =energy J =dissipation Re τ τ x τ z p τ x τ z p 100 0 % 0 % 0 % 2 % 0 % 0 % 180 0 % 0 % 0 % 8 % 6 % 0 % Dissipation norm is effective

  23. Background Wiener-Hopf design of compensators Results & discussion Results Measured friction drag reduction J =energy J =dissipation Re τ τ x τ z p τ x τ z p 100 0 % 0 % 0 % 2 % 0 % 0 % 180 0 % 0 % 0 % 8 % 6 % 0 % Dissipation norm is effective Pressure measurement alone is not effective

  24. Background Wiener-Hopf design of compensators Results & discussion Results Measured friction drag reduction J =energy J =dissipation Re τ τ x τ z p τ x τ z p 100 0 % 0 % 0 % 2 % 0 % 0 % 180 0 % 0 % 0 % 8 % 6 % 0 % Performance improves with Re

  25. Background Wiener-Hopf design of compensators Results & discussion “Inverse” Re -effect � 1 � 1 � ∂ ˆ � ∂ ˆ � d � U � w = − 1 U � U � ∗ � � � ( 0 , 0 ) dy + D ( α, β ) � dy U B 2 ∂ y ∂ y ( 0 , 0 ) − 1 ( α,β ) � =( 0 , 0 ) � �� � � �� � D mean D turb D mean is affected indirectly via nonlinear interactions between fluctuations and the mean flow D turb is affected directly by zero net mass flux wall blowing/suction

  26. Background Wiener-Hopf design of compensators Results & discussion “Inverse” Re -effect Laadhari, PoF 2007 The relative contribution of D turb to the total dissipation increases with Re ! Re τ D turb D mean 100 26 . 8 % 73 . 2 % 180 39 . 5 % 60 . 5 %

  27. Background Wiener-Hopf design of compensators Results & discussion Critical discussion Good news Bad news Present compensators are the Their performance is rather best possible for LTI systems poor

  28. Background Wiener-Hopf design of compensators Results & discussion Critical discussion Good news Bad news Present compensators are the Their performance is rather best possible for LTI systems poor Should we blame the cost function?

  29. Background Wiener-Hopf design of compensators Results & discussion Critical discussion Good news Bad news Present compensators are the Their performance is rather best possible for LTI systems poor Should we blame the cost function? Should we blame the linear, time-invariant framework?

  30. Background Wiener-Hopf design of compensators Results & discussion Conclusions Novel formulation for designing the compensator in frequency domain Extremely efficient Can exploit a measured linear model of the turbulent channel flow The time-space structure of the state noise (turbulence) is accounted for
