PLEASANT RIDGE EXHIBIT 26 Pleasant Ridge Turbine Technical Information J. Baker Regional O&M Manager Background p Jacob Baker n Regional O&M Manager for the following sites: Grand Ridge (LaSalle County, IL) p 140 GE 1.5 SLE

SLIDE 1

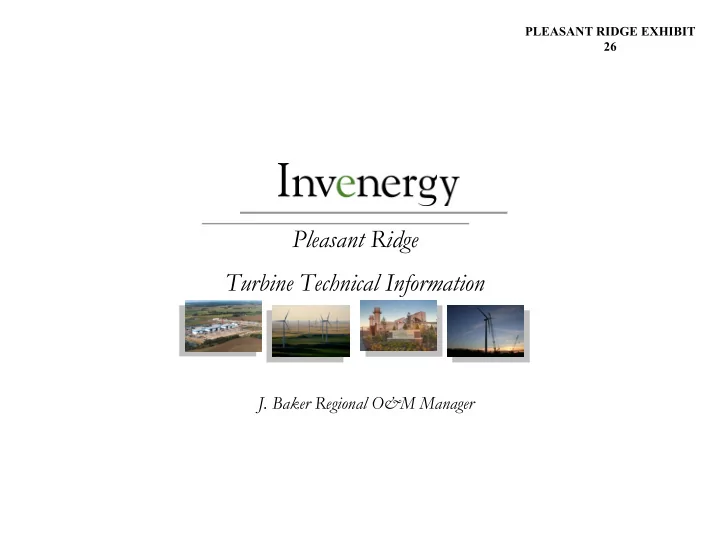

Pleasant Ridge Turbine Technical Information

J. Baker Regional O&M Manager

PLEASANT RIDGE EXHIBIT 26

SLIDE 2

Background

p Jacob Baker

n Regional O&M Manager for the following sites:

p

Grand Ridge (LaSalle County, IL)

§ 140 GE 1.5 SLE § 20 MW of Solar § 33.5 MW of Battery Storage

p

Bishop Hill (Henry and Stark Counties, IL)

§ 133 GE 1.6 SLE and 1.6-100

p

California Ridge (Vermilion and Champaign Counties, IL)

§ 133 GE 1.6-100

p

Forward Energy (Brownsville, WI)

§ 86 GE 1.5 SLE

p

Prairie Breeze (Elgin, NE)

§ 118 GE 1.7-100

n Started with Invenergy in 2008

p

Worked in Wind since 2006

SLIDE 3

Pleasant Ridge (Project Overview)

p The site will potentially consist of a mix of units each

having a hub height of 80 Meters (262 Feet) and one of two rotor diameters:

n

100-meter (328-foot) 130 meters (426.5 feet) for the 1.79-100 turbine

n

103-meter (338-foot) 131.5 meters (431 feet) for the 1.72-103 turbine.

3 1.7-100

p

Rated power: 1790 kW

p

Diameter 100 m (328 ft.)

p

Number of blades 3

p

Swept area 7,854 m2 (84,518 ft.2)

p

Rotor speed range 9.65 to 17.9 rpm

p

Rotational direction Clockwise looking downwind

p

Maximum tip speed 86.0 m/s (192 MPH)

p

Orientation Upwind

p

Speed regulation Pitch control

p

Aerodynamic brakes Full feathering

p

Pitch System

p

Principle Independent blade pitch control

p

Actuation Individual electric drive

p

Yaw System

p

Yaw rate 0.5 degree/s 1.7-103

p

Rated power: 1720 kW

p

Diameter 103 m (338 ft.)

p

Number of blades 3

p

Swept area 8,332 m2 (89,685 ft.2)

p

Rotor speed range 10 to 17.14 rpm

p

Rotational direction Clockwise looking downwind

p

Maximum tip speed 84.8 m/s (189 MPH)

p

Orientation Upwind

p

Speed regulation Pitch control

p

Aerodynamic brakes Full feathering

p

Pitch System

p

Principle Independent blade pitch control

p

Actuation Individual electric drive

p

Yaw System

p

Yaw rate 0.5 degree/s

SLIDE 4

Pleasant Ridge (Turbine Operations)

p The units operate when wind is available and shut down to

conserve energy when the winds are low

p Other reason for units to be stopped:

n

Preventative maintenance activities

n

Repair of a fault

n

Line constraints on the main transmission line p Types of fluids within the turbine:

n

Gearbox oil – 70-105 gallons per unit, depending on Gearbox type

n

Hydraulic oil - ~1 gallon

n

Grease – two main types (no auto lubrication)

n

Coolant – 50/50 Glycol / Water (base of tower in the control cabinet)

SLIDE 5

Pleasant Ridge (LNTE)

p Some turbines will have low noise trailing edge (LNTE)

blades:

p

For the 100 meter blades, WTGs 4, 10, 22, 49, 68, 73, 76, 109, 126, 129, 136

p

For the 103 meter blades, WTGs 68, 73, 126, 129

SLIDE 6

Pleasant Ridge (LNTE cont.)

SLIDE 7

Pleasant Ridge (LNTE cont.)

p Zoomed in view

SLIDE 8

Pleasant Ridge (Turbine Operations)

p The primary breaking

system of the turbine is the pitch of the blades.

p There is a secondary

braking system on the high speed shaft of the gearbox.

SLIDE 9

Pleasant Ridge (Turbine Design)

p

The electrical design of the tower conforms to the International Electrotechnical Commission (IEC) standard 60364-5-52 and with the National Fire Protection Association (NFPA) standard 70E.

p

NFPA’s process of development has been approved by the American National Standards Institute (ANSI)

SLIDE 10

Pleasant Ridge (Transformers)

p

The project will have two main Generation Step Up (GSU) transformers that increase the voltage from 34,500-VAC to 345,000-VAC for the point of interconnection with the utility.

n

Each will contain approximately 8 to 10 thousand gallons of cooling/insulating oil (Mineral)

n

They will be housed in our collection substation in the Northwest part of the project p

Each wind turbine will have a Pad Mount Transformer (PMT) that increases the voltage from the generator from 690-VAC to 34,500-VAC.

SLIDE 11

Pleasant Ridge (FAA Lightning Plan)

p The application for No Hazard Determinations has been

made with the Federal Aviation Administration (FAA).

SLIDE 12

Pleasant Ridge (Obstruction Light Failure Reporting)

p Invenergy has an established policy for reporting

Obstruction (FAA) light failures with the fleet

p Failures are detected by:

n

Electronically from the wind turbine computer system

n

Functional testing during our routine maintenances

n

Visually once a month to ensure all lights are synced together 12

SLIDE 13

Pleasant Ridge (Transmission Line)

Invenergy

TRANSMISSION LINE DETAILS

SLIDE 14

Pleasant Ridge (Transmission Line)

TRANSMISSION LINE LOCATION

! = ! = ! = ! = ! = ! = ! = ! = ! = ! = ! = ! = ! = ! = ! = ! =

! < # V

" S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S " S 35 1 3 8 7 12 13 15 17 19 21 20 19 25 26 27 25 18 14 24 23 28 36 34 31 12 11 9 16 35 32 7 18 30 30 26 6 2 4 1 2 10 11 13 23 24 31 33 36 5 6 14 22 29 1 2 7 8 9 14 15 16 17 18 19 133 134 135 136 137 8070 GROSSHANS LYDIA TRUST U/W 2112100003 TUCKER HUBERT H TRUST 2113200006 HAAS JERROLD HAAS SALLY 2318300006 FREESTAR BANK 1535300001 F R I T Z G L E N N E U G E N E S R F R I T Z G A R Y E 1 5 3 5 3 4 METZ JAMES I METZ WILLIAM L 1535300005 TESKE MARK W TESKE PAMELA S 1535300006 LEDFORD FAY NINETTE 1535400003 HAMMOND WILLIAM E HAMMO ND LISA K 1535400005 F R I T Z G L E N N E U G E N E S R F R I T Z G A R Y E 1 5 3 5 4 6 WARMKE JOSEPH F JR WARMKE LAWRENCE M 1536300006 WALTERS STEVEN R 1536400003 ALLISON JOHN R 1536400006 WALTERS STEVEN R WALTERS SARAH J 1631300001 HAUDER CEMETERY 1631300002 BRUER WILLIAM C BRUER JARI 1631300004 POPP ROGER A 1631300007 TIBBS JOHN A TIBBS TERESA K 1631300015 SLAGEL JOHN A SLAGEL DEBORAH J 1631300016 BEVERS DONALD W & MARY LOU TRUST 1631300018 BRUER WILLIAM C MCQUIRE MARY BRUER 1631400002 B R U E R W I L L I A M C M C Q U I R E M A R Y B R U E R 1 6 3 1 4 3 PATTY CEMETERY 1631400005 B R U E R W I L L I A M C B R U E R D A V I D C 1 6 3 1 4 6 BANK OF PONTIAC 1631400008 BRUER HARLAN E 1631400009 HOLLEY FRIEDA ANN KOSTER TRUST 1632300001 GOLLIDAY JANICE GOLLIDAY JOHN 1632400002 HANSEN KATHARINE 1632400003 SCHULZ EUGENE F SCHULZ SHIRLEY L 1633300001 BECKER MARY G SWAGER WILLIAM R ESTATE TR 1633300003 DORAN GARY L DORAN DANA L 1633300004 LEISTER ALICE M LEISTER FRANCIS E TRUST 1633400003 RICH CAROL M 1633400004 STEFFENS DONNA J NOLAN FRANCIS J 1633400005 WOODBURN DELORES A WOODBURN JOHN A 1633400006 CARROLL MARTIN BILL 1634100004 CARROLL MARTIN BILL CARROLL SHARON K 1634300002 CARROLL DIANA KAY SCHWAHN MARK E 1634300003 CARROLL MARTIN BILL 1634400001 JAROS THOMAS P TRUST 1634400006 TELFORD JOHN V TELFORD BETTY M 1635100002 STATE BANK OF GRAYMONT 1635300004 KOHLMEIR CASEY 1635300005 WARMKE JOSEPH F JR WARMKE LAWRENCE M 1635400003 RICH CAROL M 1635400004 RICH CAROL M 1635400005 SANCKEN MARIETTA A TRUST 1636300002 TRONC JANEEN L TRONC JAMES A 1636300007 SCHROEDER KENNETH L SCHROEDER NANCY J 1636300008 W A R M K E J O S E P H F J R W A R M K E L A W R E N C E M 1 6 3 6 4 1 IMMKE ALVIN HENRY JR 1731100001 IMMKE FLOYD F JR & BARBARA L TRUST 1731300001 COMMONWEALTH EDISON COMPANY 2101100003 COMMONWEALTH EDISON COMPANY 2101100004 COMMONWEALTH EDISON COMPANY 2101100005 POPP ROGER A 2101200002 GREENS QUARRY RECREATION CORP 2101200006 POPP MARSHA R POPP ROGER A 2101200007 SCHAFFER MATTHEW W SCHAFFER KAYLA J 2101300004 WILLIV0450 BLAIR LINDA J 2101300007 WILLIV0034 SCHAFFER KEVIN W SCHAFFER MARTHA S 2101300008 WILLIV0510 SCHAFFER MATTHEW W SCHAFFER KAYLA J 2101300009 WILLIV0450 POPP ANNA MAE TRUST POPP RONALD E 2101400016 POPP RONALD E 2101400020 PATE ESTHER 2101400026 BECKS SUPERIOR HYBRIDS INC 2101400031 SWARTZ GENE S SWARTZ JANET M 2101400032 RITTER PAUL A RITTER JODEE R 2101400035 POPP MARSHA R POPP ROGER A 2101400036 SWARTZ JANET M TRUST 2101400037 METZ JAMES I METZ WILLIAM L 2102100001 BRESSNER ROGER A BRESSNER DEBORAH K 2102100005 SCHAFFER KEVIN W SCHAFFER MARTHA S 2102100006 WATSON RONALD E WATSON LYNN J 2102200003 BOURGEOIS ANNE K LEDFORD SUSAN M 2102200004 COYNE DOROTHY A TRUST 2102300004 SWARTZ GENE S TRUST 2102300009 SULLIVAN TRAVIS M JAMES JACKIE S 2102400004 SCHAFFER PETER B TRUST 2102400005 SCHAFFER KEVIN W SCHAFFER MARTHA S 2102400006 WILLIV0509 BRESSNER GALE 2102400007 BRADFORD SANDRA K 2102400008 AHLEMEYER DIANE L 2102400009 AHLEMEYER DIANE L 2102400011 S CHAFFER M A TTHEW W 2102 400 012 LEDFORD FAY NINETTE 2111100002 BAUM AN R ICK L BAUM AN KAR EN E 2111100003 FITZGERALD RICHARD L TRUST 2111100005 LEDFORD THOMAS FRANCIS LEDFORD LESTER H 2111200001 BARNES LEROY W TRUST 2111200002 WILLIV0456 BAILEY DAVID L 2111300002 B A R N E S A L I C E M T R U S T 2 1 1 1 3 3 BAUMAN RICK L BAUMAN KAREN E 2111300004 FEHR RONALD E FEHR NORMA M 2111400002 WILLIV0457 KAISNER BEVERLY 2111400003 KAISNER BEVERLY 2111400004 BARNES LEROY W TRUST 2112100001 WILLIV0089 GROSSHANS LAVINA E TRUST 2112100004 WILLIV0141 DEARTH DARNA LEE 2112200003 KILGORE DONALD L JR KILGORE LAURA B 2112200005 WEBER MARILYN J TRUST 2112200009 EACRET DOROTHY F 2112200010 LEDFORD VIRGIL V 2112300001 WILLIV0090 FEHR RONALD E FEHR NORMA M 2112300002 WILLIV0457 LEDFORD STEVEN W 2112300006 FREESTAR BANK 2112400003 NABORS JIMMIE M NABORS NANCY K 2112400008 YOUNG NORMAN H YOUNG LOLA MAE 2112400009 FREESTAR BANK 2112400010 SCHICKEL W ALTER E SR SCHICKEL LINDA J 2112400011 HODGE GEORGE WILLIAM HODGE LYNN W 2113100003 WILLIV0180 BAILEY DAVID L 2113100004 WILLIV0020 RAMSEYER WILLIAM D & MARY SUE TRUST 2113200003 R A M S E Y E R R O B E R T J R A M S E Y E R D E B D 2 1 1 3 2 5 S M I T H F R E D E R I C K A 2 1 1 3 2 7 SMITH FREDERICK A 2113200009 SMITH FREDERICK A 2113200010 PFAFF JOHN L PFAFF JANEEN 2113300005 SCHAFFER EMMA A TRUST 2113300006 WILLIV0344 PFAFF JOHN L PFAFF JANEEN 2113300009 PETERSON ROBERT J PETERSON VERA S 2113300010 P ET ERS ON R OBERT J P ET ERS ON VERA S 2113300013 PEREZ JOSE R PEREZ OTILIA 2113300014 SCHULZ LYLE G TRUST U/W 2113400001 WILLIV0355 FROHLICH MARIE FANCHON 2114100006 B A N K O F P O N T I A C 2 1 1 4 1 7 SMITH FREDERICK A 2114100008 BAILEY DAVID L 2114200004 ELLIS WILLIAM ELLIS KATHY RAE 2114200005 FREESTAR BANK 2114200006 FRISBY CATHRYN L FRISBY GEORGE WILLIAM 2114200007 FRISBY CATHRYN L FRISBY GEORGE WILLIAM 2114200008 LIVINGSTON STONE COMPANY 2114300001 BAILEY JOE W 2114300002 CUNNINGHAM MARY L 2114400003 S C H A F F E R K E V I N W S C H A F F E R M A R T H A S 2 1 1 4 4 6 W I L L I V 5 9 LIVINGSTON STONE COMPANY 2123100001 FITZGERALD RICHARD L 2123200002 DILLON RICHARD D DILLON LOIS L 2123300001 FROHLICH MARIE FANCHON 2123300003 FREESTAR BANK 2123300004 FITZGERALD THOMAS B TRUST 2123400002 F I T Z G E R A L D R I C H A R D L T R U S T 2 1 2 3 4 4 BAUMAN RICK L BAUMAN KAREN E 2123400005 RAMSEYER ALFRED JAMES RAMSEYER BONNIE J 2124100006 SMITH FRANK A SMITH AMY L 2124100007 RAMSEYER RICHARD D TRUST 2124100008 COLLINS DONALD E COLLINS MAE L 2124200003 FEHR WARREN W ETAL 2124200007 SCHAFFER LYNN D SCHAFFER REBECCA L 2124200011 SCHAFFER PETER B TRUST 2124200012 HATZER RICHARD F HATZER CAROL ANN 2124300001 RAMSEYER ELFRIEDA M TRUST 2124300002 RAMSEYER ALFRED JAMES RAMSEYER BONNIE J 2124300003 HATZER RICHARD F HATZER CAROL ANN 2124300004 SCHAFFER LYNN D SCHAFFER REBECCA L 2124400002 SCHAFFER LYNN D SCHAFFER REBECCA L 2124400005 SCHAFFER LYNN D SCHAFFER REBECCA L 2124400006 SCHAFFER LYNN D SCHAFFER REBECCA L 2124400007 SCHAFFER LYNN D SCHAFFER REBECCA L 2124400008 SCHAFFER LYNN D SCHAFFER REBECCA L 2124400011 UNIONBANK 2124400012 SCHAFFER LYNN D SCHAFFER REBECCA L 2124400013 KRAFT JAMES P KRAFT MICHAEL L 2125100004 KRAFT MICHAEL L KRAFT SHARON M 2125100012 BAD FLYING FARMERS II LP 2125100013 SCHAFFER KEVIN W SCHAFFER MARTHA S 2125200001 METZ JAMES I METZ WILLIAM L 2125200003 HATZER RICHARD F 2126100004 BRUCKER DORRENCE B 2126200005 O LDF AT HER MARK A O LDF ATHER PENNY L 2201 100004 SCHROEDER KENNETH L SCHROEDER NANCY J 2201100005 MOORE JERRY J 2201100007 TRONC JANEEN L TRONC JAMES A 2201100010 WARMKE JOSEPH F JR WARMKE LAWRENCE M 2201200001 IMMKE ELAINE 2201200003 WARMKE JOSEPH F JR WARMKE LAWRENCE M 2201200004 CARROLL MARTIN BILL CARROLL SHARON K 2201300001 TRONC ROBERT P TRONC MARY LOU 2201300004 HENRICHS LUKE WILLIAM 2201400001 PRITCHARD BONNIE J TRUST 2202100001 TRONC ROBERT P TRONC MARY LOU 2202100003 PRITCHARD BONNIE J TRUST 2202200001 ENDERLI JOHN H 2202200003 ENDERLI DAVID G ENDERLI RENEE M 2202300001 E N D E R L I J O H N H E N D E R L I B E V E R L Y R 2 2 2 3 4 ENDERLI ALMA 2202300005 TRONC JANEEN L TRONC JAMES A 2202300006 ENDERLI DAVID G 2202400001 ENDERLI DAVID G ENDERLI RENEE M 2202400002 WILLIAMSON MARILYN 2202400003 HARDING DAVID R HARDING ROGER W 2203100007 IFFT ARNOLD V IFFT NANCY L 2203100008 RICH CAROL M 2203200001 POPP ROGER A 2203200002 SANCKEN WALTER J SANCKEN KATHY K 2203200004 KNAPP MATTHEW C KNAPP DANA J 2203200005 WEBER MARCIA WEBER STANLEY R 2203300004 GREEN THOMAS CHARLES 2203300007 GREEN THOMAS CHARLES 2203300008 JACOBSON MARJORIE H 2203300011 JACOBSON MARJORIE H 2203300013 SCHULTZ MARY J 2203300016 STOUT HELEN M 2203300018 STOUT HELEN M 2203300019 SCHLICKER DANNY R SCHLICKER JONNY L 2203300020 GREEN THOMAS CHARLES 2203300021 SCHULTZ MARY J 2203300022 SCHULTZ MARY J 2203300023 DRACH RAYMOND ANTHONY DRACH JOY PARR 2203300024 GREEN THOMAS CHARLES 2203300025 FREED RONALD B FREED DEBORAH J 2203400003 M E I S T E R H A R O L D L M E I S T E R J O N E L 2 2 3 4 4 TELFORD SUSAN K TELFOR D JOHN V JR 2203400006 FREED RONALD B FREED DEBORAH J 2203400007 SWAGER EUGENE SWAGER WILLIAM 2204100001 FAVET LAWRENCE F FAVET JOYCE L 2204100003 STEFFENS DONNA J NOLAN FRANCIS J 2204200007 RICH CAROL M 2204200008 WINCE ALLISON WINCE GRANT 2204200009 KAISNER BEVERLY 2204300001 LAMBERT ELLEN E LAMBERT SAMUEL J SR 2204300003 VIELEY LARRY L 2204400001 STAHLER EDWARD J 2204400002 B A N K O F P O N T I A C 2 2 5 1 5 B A N K O F P O N T I A C 2 2 5 1 6 BANK OF PONTIAC 2205100008 JOHNS DOUGLAS G JOHNS JEAN R 2205100009 KRAUSE JACOB M KRAUSE AMY 2205100010 OLTMAN R J ESTATE 2205200002 BECKER MARY G 2205200005 SWAGER EUGENE SWAGER WILLIAM 2205200006 BANK OF PONTIAC 2205200007 BANK OF PONTIAC 2205200007 PFLAGER VIRGIL K PFLAGER MARY K TRUST 2205300001 HARMS MILDRED M ET AL 2205300002 SELLMYER JOSEPHINE 2205400001 PFLAGER VIRGIL K PFLAGER MARY K TRUST 2205400002 KAISNER BEVERLY 2205400003 O L T M A N R J E S T A T E 2 2 5 4 4 POPP ROGER A 2206100001 TRAUB JOHN Y TRUST TRAUB BONITA J TRUST 2206100003 MAYS GARY L MAYS JACQUELINE K 2206100004 MAYS GARY L MAYS JACQUELINE K 2206100005 TRAUB JOHN Y TRUST TRAUB BONITA J TRUST 2206200001 BANK OF PONTIAC 2206200002 OLTMAN GLADYS B 2206200005 BANK OF PONTIAC 2206200007 BANK OF PONTIAC 2206200008 O L T M A N G L A D Y S B 2 2 6 2 9 POPP SHEILA I POPP DAVID E 2206301002 B ECKS S UPERIOR HY BRIDS INC 2206 351 007 BANK OF PONTIAC 2206400006 BANK OF PONTIAC 2206400007 P F L A G E R J A M E S D P F L A G E R D E A N N A M 2 2 6 4 9 BANK OF PONTIAC 2206400010 BANK OF PONTIAC 2206400011 PFLAGER VIRGIL K PFLAGER MARY K TRUST 2206400012 PFLAGER VIRGIL K 2206400013 BANK OF PONTIAC 2206400015 OLTMAN GLADYS B 2206400016 OLTMAN GLADYS B 2206400017 PRAIRIE CENTRAL COOPERATIVE INC 2207101010 JOHNSON JANET E 2207101011 SCHWAHN DIANE E SCHW AHN BRADLEY D 2207102007 PRAIRIE CENTRAL COO PERA TIVE INC 2207102008 MCDOWELL UNITED METHODIST CHURCH 2207102009 2207 103 001 S M ITH LA WRENCE J 2207 104 005 S M ITH LA WRENCE J 2207 104 006 S M ITH LA WRENCE J 2207 104 010 BLAIR DENNIS J BLAIR HARRIET C 2207104011 SMITH LAW RENCE J 2207106001 GREEN THOMAS CHARLES 2207106012 S M ITH LA WRENCE J 2207 106 013 S M ITH LA WRENCE J 2207 106 015 MCARDELL GLENN COLLINS HEATHER 2207126005 BERMES DON TRUST 2207126006 F R E E S T A R B A N K 2 2 7 1 5 1 5 VERMILLION VALLEY OFF ROAD VEHICLES INC. 2207201001 TELFORD SUSAN K TELFORD JOHN V JR 2207201003 PFLAGER VIRGIL K PFLAGER MARY K TRUST 2207226001 PFLAGER VIRGIL K PFLAGER MARY K TRUST 2207226002 ROWLEY DOUGLAS M ROWLEY NANCY H 2207251003 BERMES DON TRUST 2207251005 P F L A G E R J A M E S D P F L A G E R D E A N N A M 2 2 7 2 5 2 5 ZILLER IDA JEAN ZILLER WAYNE W JR 2207276001 SCHAFFER PETER B TRUST 2207300001 SCHAFFER LYNN D SCHAFFER REBECCA L 2207300002 SCHOPP TY P SCHOPP ANNETTE L 2207300004 SMITH FREDERICK A 2207300005 SCHAFFER PETER B TRUST 2207300012 HELMERS DOUGLAS E HELMERS BRENDA K 2207300013 TAVENER MARY ANN TRUST TAVENER ALBERT W TRUST 2207400004 ZILLER KRIS ELAINE 2207400009 STATE BANK OF GRAYMONT 2207400010 STATE BANK OF GRAYMONT 2207400011 ZILLER IDA JEAN ZILLER WAYNE W JR 2207400013 LANNON KAREN L 2207400014 PFLAGER VIRGIL K PFLAGER MARY K TRUST 2208100001 PFLAGER JAMES D PFLAGER DEANNA M 2208100002 TAVENER MARY ANN TRUST TAVENER ALBERT W TRUST 2208100005 HARMS MILDRED M TRUST 2208100012 HARMS MILDRED M TRUST 2208100013 SELLMYER JOSEPHINE 2208200001 PFLAGER VIRGIL K PFLAGER MARY K TRUST 2208200002 ENDERLI ALMA 2208200003 TAVENER MARY ANN TRUST TAVENER ALBERT W TRUST 2208300001 TAVENER MARY ANN TRUST TAVENER ALBERT W TRUST 2208300003 T A V E N E R M A R Y A N N T R U S T T A V E N E R A L B E R T W T R U S T 2 2 8 4 1 SELLMYER JOSEPHINE BLAIR LINDA J 2208400002 ENDERLI ALMA 2208400003 ZILLER IDA JEAN ZILLER ETHEL M 2208400004 ZILLER IDA JEAN ZILLER ETHEL M 2208400005 TAVENER CAROL 2208400006 ENDERLI ALMA 2209100002 ENDERLI ALMA 2209200001 METZ STEVEN R METZ SHERRY L 2209200003 ENDERLI DAVID G ENDERLI RENEE M 2209200004 ENDERLI DAVID G ENDERLI RENEE M 2209200005 WISER JACK K 2209200006 ENDERLI ALMA 2209300001 ZILLER IDA JEAN ZILLER ETHEL M 2209300002 ZILLER IDA JEAN ZILLER ETHEL M 2209300003 ENDERLI ALMA 2209400001 ENDERLI ALMA 2209400002 MORRISON RUBY 2209400003 MORRISON RUBY 2209400004 CHESEBRO ADA FARM #7 2209400006 DYNAMOMETER A W INC 2210100003 GREEN THOMAS CHARLES 2210100005 GREEN THOMAS CHARLES 2210100006 GREEN THOMAS CHARLES 2210100007 G R E E N T H O M A S C H A R L E S 2 2 1 1 8 WOODBURN DELORES A WOODBURN JOHN A 2210100009 W O O D B U R N D E L O R E S A W O O D B U R N J O H N A 2 2 1 1 1 CHURCHILL WOODFORD M 2210200002 SMITH LAWRENCE J 2210200003 HARMS PATRICK J HARMS JULIE ANN 2210200004 FREED RONALD B FREED DEBORAH J 2210200005 MEISTER HAROLD L MEISTER JONE L 2210200006 KAFER KEVIN KAFER HEIDI L 2210200007 SMITH LAWRENCE J 2210200008 M E T Z S T E V E N R 2 2 1 2 9 CHESEBRO ADA FARM #7 2210300001 1ST FINANCIAL BANK 2210300002 H A R M S P A T R I C K J 2 2 1 4 3 METZ STEVEN R METZ SHERRY L 2210400006 BOUNDS THOMAS L 2210400007 AUGSBURGER PERRY J & ALMA MEISTER TRUST 2211100003 MEISTER HAROLD L. & JONE L. 2211100004 ENDERLI ALMA 2211100005 AUGSBURGER PERRY J & ALMA MEISTER TRUST 2211100006 RUHLANDER SCOTT E RUHLANDER DEE M 2211100007 RAMSEY ELMER B JR 2211200003 ENDERLI DAVID G ENDERLI JOHN H 2211200005 ENDERLI DAVID G ENDERLI JOHN H 2211200006 ENDERLI DAVID G ENDERLI JOHN H 2211200007 M C G U I R E M I C H A E L W M C G U I R E K E L L E E K 2 2 1 1 3 7 TESKE PAMELA S BUCHENAU JERALD D 2211300010 HARMS PATRICK J HARMS JULIE ANN 2211300011 HARMS PATRICK J 2211300012 MCGUIRE MICHAEL W MCGUIRE KELLEE K 2211400001 RUFENER JAMES L RUFENER PATRICIA L 2211400003 ENDERLI ALMA 2211400006 CHURCHILL WOODFORD M 2211400009 WESSELS HARLAN E 2211400010 CARROLL MARTIN BILL 2212100001 ENDERLI DAVID G ENDERLI JOHN H 2212200002 HARMS EDWIN G 2212200004 HENRICHS LUKE WILLIAM 2212200006 HOFFMAN PAUL J 2212300001 WILLIV0184 ENDERLI JEFFREY D ENDERLI LORI A 2212300002 DAVIS ENTERPRISES 2212400002 WILLIV0064 ENDERLI HEIRS 2212400003 GERDES CORY EDWAR D 2213100009 HOFFMAN PAUL J 2213100010 WILLIV0184 METZ STEVEN R METZ SHERRY L 2213100011 WILLIV0284 MCGUIRE JASON 2213100012 ENDERLI HEIRS 2213200001 HARMS PAUL E TRUST 2213200009 WILLIV0157 T H O M P S O N M A R K A T H O M P S O N J I L L A 2 2 1 3 2 1 KILGUS ARLENE E KILGUS DUANE P 2213200011 WILLIV0223 FREESTAR BANK 2213300008 WILLIV0125 STEPHENS JERRY A 2213300009 WILLIV0380 JOHANSEN DAVID N JOHANSEN KATHY A 2213300010 ZEHR DLORAH J TRUST 2213400002 WILLIV0434 SLAGEL JOHN A SLAGEL DEBORAH J 2213400004 WILLIV0363 CONE MICHAEL MCKAY 2213400007 WILLIV0055 HARMS PATRICK J 2214100001 WARMKE JOSEPH F JR WARMKE LAWRENCE M 2214100002 WARMKE JOSEPH F JR WARMKE LAWRENCE M 2214100003 MEISTER HELEN 2214200004 WESSELS DEAN E 2214200007 WILLIV0420 MOLINA FRANK & BARBARA G TRUST 2214300003 WILLIV0289 FRIEDMAN HENRY G 2214300005 WILLIV0002 AUSTMAN INC. 2214300006 WILLIV0006 FRIEDMAN HENRY G FRIEDMAN MARJORIE E 2214300007 WILLIV0002 MOLINA FRANK & BARBARA G TRUST 2214400004 WILLIV0289 WESSELS DEAN E WESSELS CAROL L 2214400007 WILLIV0420 IFFT JANICE L IFFT ROGER GEORGE 2214400008 IFFT MATTHEW D IFFT SUSAN M 2214400009 IFFT MARK A IFFT BRENDA K 2214400010 IFFT MARK A IFFT BRENDA K 2214400011 CHESEBRO ADA FARM #7 2215100003 WILLIV0051 METZ STEVEN R METZ SHERRY L 2215200009 HOFFMAN PAUL J 2215200011 WARMKE JOSEPH F JR WARMKE LAWRENCE M 2215200013 AVOCA TOWNSHIP 2215400003 MEISTER HAROLD L MEISTER JONE L 2215400007 CHESEBRO ADA FARM #9 2215400008 WILLIV0051 ZILLER IDA JEAN ZILLER ETHEL M 2216100001 ZILLER WAYNE W JR ETAL 2216100002 ZILLER WAYNE W JR ETAL 2216100003 SLAGEL JOHN A SLAGEL DEBORAH J 2216200001 CHESEBRO ADA FARM #9 2216200003 WILLIV0051 ZILLER WAYNE W JR 2216300001 WILLIV0435 WENGER MICHAEL L 2216300002 MAGELLAN PIPELINE COMPANY LLC 2216300003 W ENGER MICHAEL L 2216300004 MORRISON RUBY 2216400001 WILLIV0127 TAVENER MARY ANN TRUST TAVENER ALBERT W TRUST 2217100001 FROBISH GORDON D FROBISH MARY R 2217100002 AVOCA TOWNSHIP 2217100003 JEFFRIES KEITH JEFFRIES ELAINE 2217100007 FOLK ANDY 2217100008 TAVENER MARY ANN TRUST TAVENER ALBERT W TRUST 2217100009 HELMERS DARLENE 2217100010 TAVENER MARY ANN TRUST TAVENER ALBERT W TRUST 2217200004 LAW DOUGLAS NEIL TRUST 2217300004 WILLIV0084 SHERIDAN JANE L TRUST LAW DOUGLAS NEIL TRUST 2217300010 KNAUER TARRY 2217300011 COLBOURNE'S PONTIAC FARM 2217300012 WILLIV0053 SHERIDAN JANE L TRUST 2217400002 WILLIV0359 BOUNDS BRIAN T BOUNDS REBECCA W 2217400004 LAW OTIS H TRUST 2217400005 WILLIV0311 METZ JAMES I METZ WILLIAM L 2218100002 METZ JAMES I METZ WILLIAM L 2218100003 CHRISTENSEN JOAN F 2218200006 METZ JAMES I METZ WILLIAM L 2218200016 METZ JAMES I METZ WILLIAM L 2218200017 TAVENER MARY ANN TRUST TAVENER ALBERT W TRUST 2218200019 TREMBLEY JOHN R TREMBLEY SHEILA E 2218200020 TAVENER MARY ANN TRUST TAVENER ALBERT W TRUST 2218200021 ELLIOTT JEANNE K 2218200022 COLBOURNE'S PONTIAC FARM 2218300001 WILLIV0053 LAW OTIS H TRUST 2218400005 WILLIV0311 COLBOURNE'S PONTIAC FARM 2218400007 WILLIV0053 TREMBLEY GEOFFRY W TREMBLEY JENNIFER S 2218400009 GENTES CLIFFORD W TRUST 2219100002 YOUNG NORMAN H YOUNG LOLA MAE 2219100003 HANEY DARYL D HANEY BARBARA E 2219100005 HANEY DUANE E HANEY MARGARET M 2219100006 GENTES CLIFFORD

W. & MILDRED

M I TRUST 2219100007 GENTES CLIFFORD W TRUST 2219200001 MALEY MARJORIE CAROLYN 2219200002 FREDERICK WILLIAM WARREN 2219300001 IFFT FRED JR IFFT KAREN 2219300005 MALEY MARJORIE CAROLYN 2219400001 MALEY BRAD K MALEY LORI J 2219400007 BRESSNER DENNIS D 2219400008 BRESSNER DENNIS D 2219400009 BRESSNER GALE E 2219400010 BOUNDS OLEN L TRUST 2220100010 SHERIDAN JANE L TRUST LAW DOUGLAS NEIL TRUST 2220100012 LAW OTIS H TRUST 2220100013 GOOLD WILMA JEAN TRUST 2220200002 YOUNG BRUCE E YOUNG BEVERLY K 2220200003 LAW OTIS H TRUST 2220200004 GOOLD WILMA JEAN TRUST 2220300003 GOOLD WILMA JEAN TRUST 2220300004 MAEDE WALLACE A MAEDE GEORGINA 2220300005 FREESTAR BANK 2220300006 MALEY BRAD K MALEY LORI J 2220300007 MALEY BRAD K MALEY LORI J 2220400010 MALEY BRAD K MALEY LORI J 2220400011 BREITENOEDER ALBERT C TRUST BREITENOEDER JOHN R TR 2220400015 YOUNG NORMAN H YOUNG LOLA MAE 2221100003 FRISBY CATHRYN L FRISBY GEORGE WILLIAM 2221100004 MIES THOMAS G MIES MARIBETH A 2221100005 MIES SANDRA S 2221100006 MIES THOMAS G 2221100007 SLAGEL RAYMOND J JR SLAGEL GLADYS E 2221200003 KURTENBACH CAROL E 2221200004 KURTENBACH CAROL E KURTENBACH STEPHEN PAUL 2221200005 AMBROSE P . THOMAS AMBROSE LINDA J 2221300005 AMBROSE P . THOMAS AMBROSE LINDA J 2221300006 FRISBY CATHRYN L FRISBY GEORGE WILLIAM 2221300008 HISH W EVAN 2221300009 HETHERINGTON SANDRA K 2221400001 KURTENBACH CAROL E KURTENBACH STEPHEN PAUL 2221400002 MEISTER HAROLD L ROBERTS ALMA L 2222100002 MEISTER HAROLD L MEISTER JONE L 2222200005 MEISTER EVERETT R & KATHY S TRUST 2222200006 HARMONY IV LP 2222200008 WILLIV0501 FEHR RALPH E FEHR MARTHA J 2222300003 SLAGEL RAYMOND J JR SLAGEL GLADYS E 2222300004 ULFERS MARION R 2222400001 AUSTMAN INC. 2223100003 WILLIV0006 IFFT TIMOTHY P IFFT JULIE R 2223200003 TOLLENSDORF DOUGLAS L 2223200005 IFFT TIMOTHY P IFFT JULIE R 2223200006 IFFT JANICE L IFFT ROGER GEORGE 2223200007 IFFT MATTHEW D IFFT SUSAN M 2223200008 HARMONY IV LP 2223300002 WILLIV0501 TOLLENSDORF DOUGLAS L 2223401001 KAISNER ROBERT L KAISNER CHERYL L 2223401002 STORK BARBARA E 2223426003 STORK BARBARA E 2223426004 TOLLENSD OR F DOU GLAS L 2223426007 EDELM AN M AR K L EDELM AN KAR IE L 2223426014 TOLLENSDORF DOUGLAS L 2223426015 BUSCH GEORGE J BUSCH TRACEY L 2223426016 MCKEON JAMES M MCKEON ANNA L 2223451007 KAISNER ROBERT L KAISNER CHERYL L 2223451008 S TEFANSK I WILLI A M W S TEFANSK I CE L INA J 2223 476 005 FEHR RYAN 2223476008 G EIGER JOHN C G EIGER RO SE S 2223476010 MCKEON JAMES M MCKEON ANNA L 2223476025 HATCH BRIAN D HATCH SUSAN I 2223476026 LAWLESS ROBERT D LAWLESS LORI A 2223476027 STORK ELIJAH M 2223476028 S IMM ONS GA REN L S IMM ONS M A RILYN R 2223477003 S IMM ONS GA REN L S IMM ONS M A RILYN R 2223477004 IFFT THOM A S G IFFT A M Y M 2223 477 005 DECK BRIAN M DECK SUSAN E 2223477009 MILLER ROGER A MILLER CRYSTAL 2223477010 RIEG ER RO BERT L RIEGER JESSICA M 2223477011 BYRN E PHILLIP R BYRN E T INA M 2223478002 MEISTER WILLIS D MEISTER BRENDA G 2223478005 WESSE LS DALE W 2223478007 SLAGEL BRANDON 2223478008 GOOLD MARY ELLEN 2224100002 WILLIV0504 GOOLD MARY ELLEN 2224100003 WILLIV0139 BAYSINGER GREGORY K 2224200002 FUGATE BERNADINE TRUST 2224200003 WILLIV0128 REILLY ROBERT J 2224300013 WILLIV0522 IFFT THOMAS G IFFT AMY M 2224300014 WILLIV0209 SLAGEL DENNIS W SLAGEL LORENE C 2224300015 WILLIV0361 IFFT VIOLET M IFFT DALE EVERETT 2224300016 WILLIV0207 SLAGEL DENNIS W SLAGEL LORENE C 2224300017 WILLIV0361 SCHMID MARK S 2224300018 WILLIV0353 IFFT JANICE L IFFT ROGER GEORGE 2224400005 WILLIV0208 IFFT JANICE L IFFT ROGER GEORGE 2224400009 WILLIV0208 IFFT VIOLET M IFFT DALE EVERETT 2224400010 WILLIV0207 SCHMID MARK S 2224400011 WILLIV0353 IFFT JANICE L IFFT ROGER GEORGE 2224400012 WILLIV0208 HERZOG ALICE IRENE 2225100001 WILLIV0176 WENGER LAURA 2225200003 WILLIV0112 WENGER JILL L WENGER TERI L 2225200004 BACHTOLD MARY K 2225200006 KELSON NATHANAEL S KELSON PAULA K 2225200007 FREED RONALD B FREED DEBORAH J 2226100001 MEISTER BENJAMIN A MEISTER MARTA K 2226100005 GOOLD MARY ELLEN 2226200005 MEISTER HAROLD L ROBERTS ALMA L 2227100002 SCHULZ DELORES E SCHULZ RALEIGH V 2227100003 STEIDINGER SISTERS 2227200010 FREED DELMA L TRUST 2227400003 FRISBY CATHRYN L FRISBY GEORGE WILLIAM 2228100001 AVOCA TRUST 2228200001 GOOL D ROBER T R GOOL D GA YL E A 2229 200 007 GOOL D ROBERT R 2229 200 008 GOOLD ROBERT R GOOLD GAYLE A 2229200009 HATZER RICHARD F 2230100002 VALLEY VIEW INDUSTRIES INC. 2230100005 IFFT FAMILY TRUST IFFT MARY ELLEN 2230100009 HATZER RICHARD F HATZER CAROL ANN 2230100010 VALLEY VIEW INDUSTRIES INC. 2230200002 VALLEY VIEW INDUSTRIES INC. 2230200004 STEIDINGER GARY D STEIDINGER ANNETTE K 2230200005 METZ JAMES I 2230200007 EDWARD JOY KAY 2230200008 PRITCHARD ROSLIE W TRUST PRITCHARD WILLIAM G TRUST 2306100001 STERN MARLYS TRUST 2306300006 HENRICHS LUKE WILLIAM HENRICHS BENJAMIN S 2307100001 HARMS EDWIN G TRUST HARMS THELMA L TRUST 2307300001 WILLIV0035 HARMS EDWIN G TRUST HARMS THELMA L TRUST 2318100001 WILLIV0154 CONE MICHAEL MCKAY 2318300005 WILLIV0055 BROWN ROGER I 2319100004 WILLIV0009 WENGER RICHARD D WENGER JILL L 2319300001 WILLIV0419 WENGER RICHARD D WENGER JILL L 2330100009 WILLIV0419 B A C H T O L D L L O Y D W B A C H T O L D N A N C Y J 2 3 3 1 1 W I L L I V 8 RINKENBERGER DOUGLAS A RINKENBERGER BETH A 2330100013 WILLIV0333 LEDFORD VIRGIL V & JOAN D TR 2112300005 TELFORD SUSAN K TELFORD JOHN V JR 2112400001 WILLIV0396 1/2 1/3 1/4 1/5 1/6 1/7 1/8 2/1 2/2 2/3 2/4 2/5 2/6 2/7 2/8 3/1 3/2 3/3 3/4 3/5 3/6 3/7 3/8 4/1 4/2 4/3 4/4 4/5 4/6 4/7 4/8 5/1 5/2 5/3 5/4 5/5 5/6 5/7 6/1 6/2 6/3 6/4 6/5 6/6 6/7 6/8 7/1 7/2 7/3 7/4 7/5 7/6 7/7 7/8 8/1 8/2 8/3 8/4 8/5 8/6 8/7 9/1 9/2 9/3 9/4 9/5 9/6 9/7 9/8 9/9 10/1 10/2 10/3 10/4 Sources: Esri, DeLorme, NAVTEQ, TomTom, Intermap, increment P Corp., GEBCO, USGS, FAO, NPS, NRCAN, GeoBase, IGN, Kadaster NL, Ordnance Survey, Esri Japan, METI, Esri China (Hong Kong), swisstopo, and the GIS User Community

Transmission Corridor Summary

Pleasant Ridge Wind Energy Project, Livingston County, Illinois

W

1,000 1,000 Feet

November 17, 2014

Date Saved: Monday, November 17, 2014 9:17:28 AM Prepared By: MChang Path: \\Arcgis-db\d\_MXDs\US\IL\PleasantRidge\pr_transmission_corridor.mxd

Rev. 03

Legend

" S Points ! = Proposed Turbine Location (L033)

# V

Met Tower Location

! <

Point of Interconnection Proposed Transmission Line Route (Cross Country) Transmission Line 75 Ft from Property Line Project Boundary Landowner Status Participating Landowner Participating - Overhang Agreement No Information One South Wacker Drive Suite 1900 Chicago, Illinois 60606 (312) 224-1400

SLIDE 15

Pleasant Ridge (ERP)

p A preliminary Emergency

Response Plan (ERP) has been developed.

p Initial outreach to

emergency services providers (provided ERP, project summary and site plan)

p We have received three

responses –

n

City of Fairbury

n

OSF Life Flight

n

SELCAS

p

(South East Livingston County Ambulance Services) 15

SLIDE 16

Pleasant Ridge (MET Towers)

p Invenergy has reached out to

the Illinois Agricultural Aviation Association (IAAA) to discuss the marking of our temporary Metrological (MET) towers and providing the GIS coordinates of the wind towers and permanent MET tower when the project is constructed

p Example of our temporary

MET tower:

SLIDE 17

Pleasant Ridge-Experience with Aerial Applicators

SLIDE 18

Pleasant Ridge (Microwave Path Study)

p

Completed a Microwave Path Study to ensure our towers will not interfere with existing communications.

SLIDE 19

Pleasant Ridge (Microwave Path Study cont.)

p

Zoomed in view

SLIDE 20

Pleasant Ridge (NTIA)

p

Letter from the National Telecommunications and Information Administration (NTIA) has been received stating that our project is not a concern for blocking radio frequency transmissions
