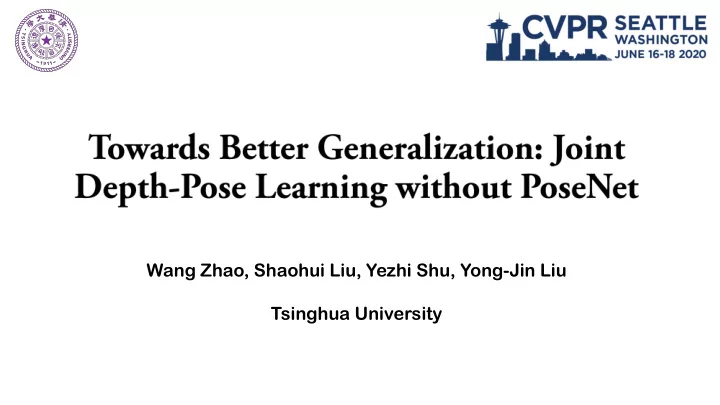

Wang Zhao, Shaohui Liu, Yezhi Shu, Yong-Jin Liu Tsinghua University Monocular Depth-Pose Prediction [R, t] Depth and Pose RGB PoseNet Fails to Generalize! All Drift ! Depth estimation in Indoor environments with Visual Odometry with
SLIDE 2
SLIDE 3
PoseNet Fails to Generalize!
Depth estimation in Indoor environments with complex camera motions and low texture Visual Odometry with Unseen Camera Ego-motions
All Drift!
SLIDE 4
Joint Learning without PoseNet
Built on top of two-frame structure-from-motion FlowNet DepthNet
Sampled Correspondences
[R, t]
Scale Alignment
Inlier Mask Sparse Triangulated Depth
Loss
Sample & Triangulation
Normalized 8‐Point 𝐺: 1 ⋯ ⋯ ⋮ 1 ⋮ ⋮ ⋯
SLIDE 5
Joint Learning without PoseNet
FlowNet
Sampled Correspondences
[R, t]
Inlier Mask
Normalized 8‐Point 𝐺: 1 ⋯ ⋯ ⋮ 1 ⋮ ⋮ ⋯
- Correspondences are sampled based on the occlusion mask and the forward-backward
consistency score produced by the optical flow network .
- 8-Point algorithm is implemented in RANSAC loop to robustly recover the relative pose.
- Epipolar distance (Inlier mask) is calculated and used to further filter out the incorrect
matchings and non-rigid objects.
SLIDE 6
Joint Learning without PoseNet
[R, t]
- We sample 6k matches from flow to triangulate, according to the occlusion mask,
forward-backward score, and the inlier mask.
- We use mid-point triangulation for its convenience and it’s naturally differentiable.
- A match is abandoned if the angle between two rays is too small.
+
Flow Correspondence Relative pose Sample Triangulation Sparse Triangulation
SLIDE 7
Joint Learning without PoseNet
- Predicted depth is aligned with triangulation depth map to have a consistent scale.
- Triangulation loss, depth re-projection loss and the depth smoothness loss are used to
supervise the depth-net. DepthNet
Scale Alignment
Sparse Triangulated Depth
Loss
SLIDE 8
Scale Disentanglement
- 1. The translation value 𝒖 of estimated pose [𝑺, 𝒖] from monocular
video is up-to-scale!
- 2. Monocular depth prediction 𝑬 from network has a learnt scale.
- 3. Joint training losses require a consistent scale across learnt
depth and pose.
SLIDE 9
Scale Disentanglement
PoseNet-based learning system DepthNet PoseNet RGB Input
[𝑺, 𝒖] 𝑬
Loss PoseNet needs to learn a translation scale consistent with DepthNet
Our system DepthNet RGB Input
[𝑺, 𝒖] 𝑬
Scale Alignment
No need for network to learn a translation scale consistent with DepthNet
FlowNet + Solver
𝑬′
Loss
SLIDE 10
Quantitative Results on KITTI dataset
Our method achieves state-of-the-art performances on KITTI depth and optical flow estimation.
SLIDE 11
Robustness Improved – KITTI
Visual Odometry with unseen camera ego-motion PoseNet-based Our system
SLIDE 12
Visual Odometry with Indoor Environments PoseNet-based Our system
Robustness Improved – TUM
SLIDE 13
Depth Estimation in Indoor Environments PoseNet-based Our system Input Image PoseNet Ours
Robustness Improved – NYUv2
SLIDE 14
Depth Estimation in Indoor Environments PoseNet-based Our system Best performance on NYUv2 among unsupervised methods!
Robustness Improved – NYUv2
