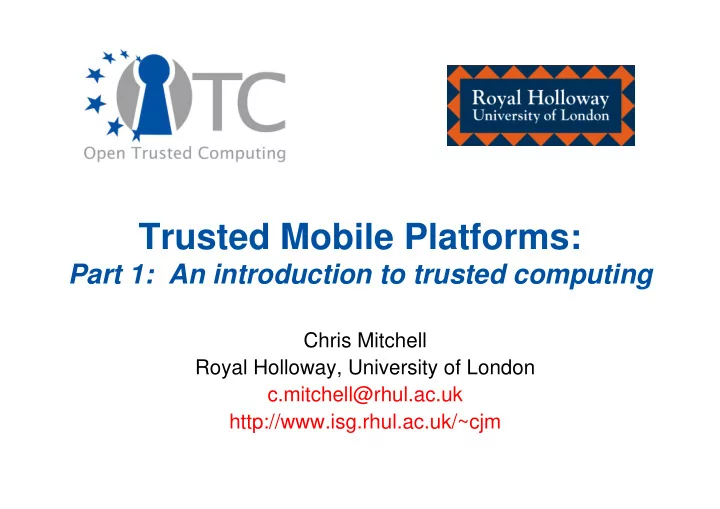

Trusted Mobile Platforms:

Part 1: An introduction to trusted computing

Chris Mitchell Royal Holloway, University of London c.mitchell@rhul.ac.uk http://www.isg.rhul.ac.uk/~cjm

slide-2
SLIDE 2

2 www.opentc.net 12th September 2007

Contents

  • What is trusted computing?
  • The TCG
  • TCG – TPM and TSS
  • Microsoft – NGSCB
  • Microsoft – Vista
  • Intel – LaGrande
  • Open_TC – XEN/L4
  • Software security – How can trusted computing help?
slide-3
SLIDE 3

3 www.opentc.net 12th September 2007

Contents

  • What is trusted computing?
  • The TCG
  • TCG – TPM and TSS
  • Microsoft – NGSCB
  • Microsoft – Vista
  • Intel – LaGrande
  • Open_TC – XEN/L4
  • Software security – How can trusted computing help?
slide-4
SLIDE 4

4 www.opentc.net 12th September 2007

Trusted Computing

  • We start by introducing the notion of Trusted Computing.
  • The notion originates from the Trusted Computing Group (TCG)

– in fact from its predecessor body, the TCPA.

  • The first fruits of what has been a large scale research and

development effort are now visible in the form of a secure chip

  • n the motherboards of many new PCs.
  • Microsoft Vista incorporates support for these chips, and uses

them as the basis for certain novel security functions.

  • Open source software also exists that is capable of exploiting

this hardware.

  • However, the full potential of the hardware remains to be

exploited.

slide-5
SLIDE 5

5 www.opentc.net 12th September 2007

A trusted system

  • The word trust is used to mean many different things.
  • For our purposes, a trusted system or component is one that

behaves in the expected manner for a particular purpose.

[Trusted Computing Group: www.trustedcomputinggroup.org]

  • Trust by this definition is not the same as secure.
  • Code known to be malicious, e.g. a virus, is trusted in the sense

that it will do bad things, as expected!

slide-6
SLIDE 6

6

Trust in a PC

  • Trusted operation is difficult to achieve for a PC – where

typically there is no way of telling whether the ‘real’ (uncorrupted) Windows is running.

  • As a result there is no way of getting confidence in the correct

running of applications. [Even if the operating system says that everything is OK, then this does not help because it cannot be believed].

  • It is even more difficult to prove to a third party that the state of a

PC is as claimed.

www.opentc.net 12th September 2007

slide-7
SLIDE 7

7 www.opentc.net 12th September 2007

Fundamental requirements

  • To achieve trust we first need to have a way of achieving

assurance that the operating system has booted correctly.

  • This requires assuming that the PC hardware has not been

modified; this is made difficult, but not impossible, for the attacker by embedding key functions in a dedicated chip – the Trusted Platform Module (TPM).

  • We need a way of monitoring the boot process.
  • The component that measures the initial boot must be trusted –

the ‘Core Root of Trust’ – this is hardware-based.

  • If the loaded software has been measured (and hence is

reliable), it can measure the next software to be loaded, and again there is a solid basis for trust; this process is iterated.

slide-8
SLIDE 8

8 www.opentc.net 12th September 2007

Storing measurements

  • As well as performing measurements during the boot process,

there needs to be a reliable way of recording the results of each

  • f these measurements.
  • The trusted hardware incorporates hardware registers which

store hash-codes of software that has been loaded – these registers provide a reliable record of all the software that has been executed on the trusted platform.

  • Anyone wishing to check the state of the platform only needs to

be given the contents of these registers (as long as they know what the values ‘ought to be’).

slide-9
SLIDE 9

9 www.opentc.net 12th September 2007

Building on the trusted base

  • This base of trust can be used to support two fundamental

trusted computing functions:

– Attestation, where a PC can reliably attest to its software state to a third party (by describing the contents of the registers which store hashes of software state); – Secure storage, where a PC can store data in such a way that

  • nly if the PC is in a specific trusted state will the data be

decrypted and available to an application (by linking the decryption keys to specific register contents).

  • We now look in a little more detail at the set of technical

functions provided by trusted computing (as needed to support the fundamentals we have outlined).

slide-10
SLIDE 10

10 www.opentc.net 12th September 2007

Components of a trusted computing framework I

  • Shielded locations and protected capabilities:

– Protected capabilities are those capabilities whose correct

  • peration is necessary for the platform to be trusted.

– Shielded locations are areas in which data is protected against interference or snooping. – Only protected capabilities have access to shielded locations.

  • Attestation:

– Attestation by the TPM; – Attestation to a trusted platform (incorporating a TPM); – Attestation of a trusted platform; – Authentication of a trusted platform.

  • Integrity measurement, storage and reporting.

[TCG specification Architecture Overview]

slide-11
SLIDE 11

11 www.opentc.net 12th September 2007

Components of a trusted computing framework II

Microsoft’s additional components:

  • Process isolation, where an integrated isolation kernel supports

the execution of several compartments/domains in parallel on the same machine, and controls the access of applications/OSs running in these compartments to system resources.

  • A secure path from the peripherals to trusted applications.

[Microsoft Security Model for NGSCB]

slide-12
SLIDE 12

12 www.opentc.net 12th September 2007

Components of a trusted computing framework III (summary)

  • Attestation – provides remote assurance of the state of the

hardware and software stack running on a computer.

  • Isolation – execution environments/domains/compartments.
  • Secure storage:

– Encryption; – Sealing (binding of data to specific machine state).

  • Secure I/O.
slide-13
SLIDE 13

13 www.opentc.net 12th September 2007

Current platforms with integrated TPMs Hardware Operating system Applications Data

TPM

slide-14
SLIDE 14

14 www.opentc.net 12th September 2007

Envisaged trusted platforms (stage 1) Hardware Operating system Applications Data

TPM CRTM

slide-15
SLIDE 15

15 www.opentc.net 12th September 2007

Envisaged trusted platforms (stage 2) Hardware Virtual machine monitor / Hypervisor / Isolation layer Data-1 Application-a Application-b Guest OS

TPM CRTM

Data-2 Application-c Application-d Guest OS

slide-16
SLIDE 16

16 www.opentc.net 12th September 2007

Envisaged trusted platforms (stage 3) Hardware (including hardware support for isolation – CPU, chipset, keyboard, mouse, video graphics card extensions) Virtual machine monitor/ Hypervisor/ Isolation layer Data-1 Application-a Application-b Guest OS

TPM

Data-2 Application-c Application-d Guest OS

CRTM and DRTM

slide-17
SLIDE 17

17 www.opentc.net 12th September 2007

Contents

  • What is trusted computing?
  • The TCG
  • TCG – TPM and TSS
  • Microsoft – NGSCB
  • Microsoft – Vista
  • Intel – LaGrande
  • Open_TC – XEN/L4
  • Software security – How can trusted computing help?
slide-18
SLIDE 18

18

Trusted Computing Group (TCG)

  • We next consider the body responsible for the trusted

computing specifications.

  • Whilst some of the key ideas of TCPA/TCG had existed before

the TCPA was formed, the impetus for the development of a comprehensive set of specifications has been provided by these industry consortia.

12th September 2007 www.opentc.net

slide-19
SLIDE 19

19 www.opentc.net 12th September 2007

The TCPA

  • The TCPA (Trusted Computing Platform Alliance) was an

industry working group with the goal of enhancing trust and security in computing platforms.

  • Originally an alliance of promoter companies (HP, IBM, Intel and

Microsoft). Founded in 1999.

  • Initial draft standard unveiled in late 1999.
  • Invitation then extended to other companies to join the alliance.
  • Specification eventually became an open industry standard.
  • By 2002 the TCPA had over 150 member companies.
slide-20
SLIDE 20

20 www.opentc.net 12th September 2007

The TCG

  • TCG: announced April 8, 2003.
  • TCPA recognised TCG as successor organisation for the

development of trusted computing specifications.

  • TCG adopted the specifications of the TCPA.
  • Aim:

– To extend the specifications for multiple platform types; – To complete software interface specifications to facilitate application development and interoperability; – To ensure backward compatibility.

slide-21
SLIDE 21

21 www.opentc.net 12th September 2007

The TCG

slide-22
SLIDE 22

22 www.opentc.net 12th September 2007

The TCG main specifications

  • TCG TPM main specification (general platform specification)

version 1.2:

– Design principles; – Structures of the TPM; – TPM commands.

  • TCG software stack (TSS) specification version 1.2.
  • TCG software stack (TSS) specification header file.
  • All the specifications are available at:

www.trustedcomputinggroup.org

slide-23
SLIDE 23

23 www.opentc.net 12th September 2007

Contents

  • What is trusted computing?
  • The TCG
  • TCG – TPM and TSS
  • Microsoft – NGSCB
  • Microsoft – Vista
  • Intel – LaGrande
  • Open_TC – XEN/L4
  • Software security – How can trusted computing help?
slide-24
SLIDE 24

24

TCG – main components

  • We next briefly review the main components specified by the

TCG.

  • These make up what is known as the Trusted Platform

Subsystem (TPS).

  • The TPS is a combination of hardware enhancements to a PC,

and software that makes it possible to use the functionality of the hardware.

www.opentc.net 12th September 2007

slide-25
SLIDE 25

25

Trusted platform foundation – the roots of trust

  • A Root of trust is a component that must behave as expected,

because its misbehaviour cannot be detected.

  • Roots of trust enable the gathering, storage and reporting of

evidence/references about the trustworthiness of the software environment running on the platform.

  • They represent the components of a TP which must be implicitly

trusted if the evidence/references are to be trusted.

slide-26
SLIDE 26

26 www.opentc.net 12th September 2007

Trusted Platform Subsystem (TPS)

The TPS is composed of three fundamental elements:

  • The root of trust for measurement (RTM);
  • The trusted platform module (TPM), which incorporates the root
  • f trust for storage (RTS), and the root of trust for reporting

(RTR); and

  • The TCG software stack (TSS), which encompasses the

software on the platform that supports the platform’s TPM.

slide-27
SLIDE 27

27 www.opentc.net 12th September 2007

Roots of trust: RTM I

  • The RTM is a computing engine which generates integrity

measurements of software components running on the platform.

  • The measurement (a hash digest) is then recorded to a platform

configuration register (PCR) in the TPM.

  • Details of the software component that has been measured are

then recorded to the stored measurement log (SML), held

  • utside the TPM.
slide-28
SLIDE 28

28 www.opentc.net 12th September 2007

Roots of trust: RTM II

  • For the foreseeable future, it is envisaged that the RTM will be

provided by the normal computing engine of the platform, where special BIOS boot block or BIOS instructions (the CRTM) cause the main platform processor to function as the RTM.

  • Ideally, however, for the highest level of security, the CRTM

would be part of the TPM.

slide-29
SLIDE 29

29 www.opentc.net 12th September 2007

Roots of trust: RTS/RTR

  • The RTS is a collection of capabilities which must be trusted if

storage of data inside a platform is to be trusted.

– The RTS provides integrity and confidentiality protection to the data used by the TPM, but that is stored externally (in the SML); – It also provides a mechanism to ensure that, if required, the release of specific data only occurs in a named environment.

  • The RTR is a collection of capabilities that must be trusted if

reports of integrity measurements (which represent the platform state) are to be trusted.

slide-30
SLIDE 30

30 www.opentc.net 12th September 2007

The TSS

  • The TCG software stack (TSS) is software (running on the host

platform) which supports use of the TPM.

  • The TSS architecture consists of a number of software modules,

which provide fundamental resources to support access to the TPM:

– The TPM Device Driver; – TPM Core Services; – TPM Service Provider.

slide-31
SLIDE 31

31

The TPM

  • The TPM incorporates the root of trust for storage and the root
  • f trust for reporting.
  • Normally implemented as a single chip.
  • Specifications exist for both v1.1 and v1.2 TPMs - we focus in

this talk on v1.2 TPMs.

  • TPM functions and storage are isolated from all other

components of the platform (e.g. the CPU).

  • Each TPM is bound to a single platform.
slide-32
SLIDE 32

32 www.opentc.net 12th September 2007

The TPM components

I/O HMAC engine Cryptographic co- processor Key generation RNG Power detection Execution environment Volatile memory SHA-1 engine Opt-in Non-volatile memory

slide-33
SLIDE 33

33 www.opentc.net 12th September 2007

TPM functional components

  • A TPM incorporates the following functionality:

– Key generation, including the generation of RSA key pairs, secret keys, and random nonces. – Cryptographic co-processor, providing:

  • RSA encryption and signing;
  • Symmetric encryption.

– Program execution. – HMAC computation. – SHA-1 computation. – Power detection. – Random number generation. – Non-volatile and volatile memory. – Platform Configuration Registers (PCRs).

slide-34
SLIDE 34

34 www.opentc.net 12th September 2007

Cryptographic aside

  • The cryptographic functions are fixed (‘hard coded’) in the v1.2

TPM specifications.

  • This has recently caused major problems, with the discovery of

weaknesses in the design of SHA-1, since SHA-1 is one of the functions built into the v1.2 TPM specifications.

  • SHA-1 now looks set to be phased out by NIST over the next

few years.

  • There will thus be a need for a v1.3 TPM specification in the

next couple of years, which looks likely to use crypto in a more flexible way (e.g. with algorithm identifiers, as in X.509, instead

  • f fixed algorithms).
slide-35
SLIDE 35

35

TPM random number generator (RNG)

  • Made up of three components:

– Entropy source and collector; – State register; and – A mixing function.

  • The entropy source is the process or processes which provide

entropy.

– Sources include, for example, noise, clock variations.

  • The entropy collector is the process that collects the entropy,

removes the bias and smoothes the output.

– For example, if the raw entropy data has a bias of 60% 1s and 40% 0s, then the collector takes this information into account before sending data to the state register.

slide-36
SLIDE 36

36

TPM – RNG (continued)

  • The output from the entropy collector is stored in the state

register; the implementation may use two registers: non-volatile and a volatile:

– the state of non-volatile register is stored to the volatile register on start-up; – changes to the state of the state register from either the entropy source or the mixing function affect the volatile register; – the state of the volatile register is stored to the non-volatile register at power down; – avoids overuse of flash.

  • The mixing function takes the state register and produces the

RNG output.

slide-37
SLIDE 37

37 www.opentc.net 12th September 2007

Entities in the TCG model

  • The TPM owner is in complete control of a trusted platform’s

(TP’s) TPM:

– Some commands are Owner authorised (they can only be executed by owner).

  • TPM user (who may be different to the TPM owner).
  • Challenger (who wishes to verify the platform state).
  • Protected object owner (i.e. the owner of data and/or software
  • n a platform, which may be distinct from the TPM owner and

TPM user).

  • Intermediaries – used to support migration.
slide-38
SLIDE 38

38

38

Trusted Third Parties

  • The TCG system relies on a number of Trusted Third Parties

(TTPs), typically to issue signed certificates asserting certain properties of hardware or software.

  • We refer to these as Certification Entities.
  • A Trusted Platform should be shipped with a number of

certificates created by these entities.

www.opentc.net 12th September 2007

slide-39
SLIDE 39

39 www.opentc.net 12th September 2007

Certification entities I

  • A Trusted Platform Module Entity (TPME) asserts that the TPM is

genuine by signing an endorsement credential containing the public endorsement key for that TPM. The TPME is likely to be the TPM manufacturer.

  • A Conformance Entity (CE) signs a conformance credential to assert

that the design and implementation of the TPM and the trusted building blocks (TBB) within a trusted platform meet established evaluation guidelines.

  • A Platform Entity (PE) signs a platform credential to assert that a

particular platform conforms to a TP design, as described in conformance credentials, and that the platform's TPM is genuine.

  • In the future, it is planned that every trusted platform will be shipped with

an endorsement credential, one or more conformance credentials, and a platform credential.

slide-40
SLIDE 40

40 www.opentc.net 12th September 2007

Certification entities II

  • Two other types of certification entity are defined:

– A validation entity (VE) signs validation certificates; these contain integrity measurements, i.e. measured values and measurement digests corresponding to correctly functioning or trustworthy platform components, for example embedded data or program code. – A Privacy-CA creates a certificate to assert that an identity (and an attestation identity public key) belong to a trusted platform.

slide-41
SLIDE 41

41

41

TCG keys

  • To perform the tasks expected of it, a TPM uses a

range of different types of key, including secret keys and key pairs for asymmetric algorithms.

  • These key types include:

– Endorsement Key (an asymmetric encryption key pair, unique per TPM, and typically generated at time of manufacture); – Attestation Identity Keys (signature key pairs, generated by the TPM during use – a TPM may have many); – Storage Root Key (a single asymmetric encryption key pair used to support secure storage of data external to the TPM).

www.opentc.net 12th September 2007

slide-42
SLIDE 42

42 www.opentc.net 12th September 2007

Endorsement Key Pair (EK)

  • It is a fundamental requirement that:

– Each TPM has an endorsement key pair stored in it; – The public part of the endorsement key pair is certified by the TPME (e.g. the manufacturer) in the form of the endorsement credential.

  • The private part of the EK is used by a TPM to prove that it

is a genuine TPM. It is never used for signing.

  • It is only ever used for decryption in two scenarios:

– To take ownership of a TPM; – To get a public key certificate for a platform attestation identity public key (a ‘platform identity’).

slide-43
SLIDE 43

43

43

Platform Credentials

  • Prior to use, a trusted platform (and the TPM

within the platform) are equipped with a set of signed certificates – generated by some of the TTPs referred to earlier.

  • These certificates bind the public part of the EK to

the platform, and also assert to properties of the platform.

  • We refer to these certificates as the Platform

Credentials.

www.opentc.net 12th September 2007

slide-44
SLIDE 44

44 www.opentc.net 12th September 2007

Credentials I

  • An Endorsement credential:

– Certifies that a public encryption key (the public endorsement key) belongs to a genuine TPM; – Constructed by a Trusted Platform Management Entity.

slide-45
SLIDE 45

45 www.opentc.net 12th September 2007

Credentials II

  • A Conformance credential is:

– a document that vouches that the design and implementation of the TPM and the trusted building blocks (TBB) within a trusted platform meet established evaluation guidelines; – signed by a Conformance Entity.

slide-46
SLIDE 46

46 www.opentc.net 12th September 2007

Credentials III

  • A Platform credential:

– is a document that proves that a TPM has been correctly incorporated into a design which conforms to the specifications; – proves the trusted platform is genuine – Is signed by a Platform Entity

slide-47
SLIDE 47

47 www.opentc.net 12th September 2007

Attestation Identity Key Pairs (AIKs)

  • These signature key pairs are used by a TPM to attest to

platform properties to external entities.

  • Used by a ‘challenger’ of the platform to verify that a TPM

is indeed genuine, without identifying a specific TPM.

  • A special trusted third party called a Privacy-Certification

Authority (P-CA) supports the use of AIKs.

slide-48
SLIDE 48

48 www.opentc.net 12th September 2007

Generation of AIKs

  • TPM generates a new AIK pair, chooses an ‘identity’, and

selects a P-CA which will be asked to attest to this new identity.

  • The TPM signs the AIK public key, the chosen identity, and the

identifier of the chosen P-CA, using the newly generated AIK private key.

  • The AIK public key, identity, signature and TPM credentials are

all encrypted using the P-CA public key and sent to the P-CA.

  • The P-CA decrypts the data, and then verifies the credentials

and the signature.

  • If all the checks succeed, the P-CA generates the Platform

Identity Certificate, a statement that the AIK public key and the identity belong to a genuine trusted platform with the specified properties.

slide-49
SLIDE 49

49 www.opentc.net 12th September 2007

Platform identity certificate

  • A Platform identity certificate (as generated by a P-CA)

has the following content):

The string ‘TPM Identity’

slide-50
SLIDE 50

50 www.opentc.net 12th September 2007

Sending the platform identity certificate to the TPM

  • The P-CA generates a random secret encryption key.
  • The platform identity certificate is encrypted using this secret

key.

  • The secret key is encrypted using the TPM’s EK.
  • The encrypted certificate and encrypted secret key are then sent

back to the requester, thus ensuring that only the appropriate TPM can access the certificate.

slide-51
SLIDE 51

51 www.opentc.net 12th September 2007

Issues with use of a P-CA

  • The P-CA gets to see all the platform credentials, including the

endorsement credential (and the public part of the EK).

  • A TPM has only one EK, and hence the P-CA can link the AIK

(and associated identity) with a unique trusted platform.

  • Hence, although a TPM can have many AIKs/identities, and

hence a degree of anonymity/pseudonymity, this depends on the honesty of the P-CA, i.e. the P-CA can compromise this anonymity.

slide-52
SLIDE 52

52 www.opentc.net 12th September 2007

Authenticated boot I

slide-53
SLIDE 53

53 www.opentc.net 12th September 2007

Authenticated boot II

  • A TPM incorporates a set of Platform Configuration Registers

(PCRs).

– They are used to store platform software integrity metrics. – A TPM has several PCRs (a minimum of sixteen) and uses them to record different aspects of the state of the trusted platform. – Each PCR has a length equal to a SHA-1 digest, i.e. 20 bytes.

slide-54
SLIDE 54

54 www.opentc.net 12th September 2007

Authenticated boot III

  • Each PCR holds a value representing a summary of all the

measurements presented to it since system boot:

– This is less expensive than holding all the individual measurements in the TPM; – This means that an unlimited number of results can be stored.

  • A PCR value is defined as:

– SHA-1( existing PCR value || latest measurement result ).

  • A PCR must be a TPM shielded location, protected from

interference and prying.

– The fewer sequences/PCRs there are, the more difficult it is to determine the meaning of the sequence; – The more sequences/PCRs there are, the more costly it is to store sequences in the TPM.

slide-55
SLIDE 55

55 www.opentc.net 12th September 2007

Reporting on integrity

  • Measurements reported to the TPM during or after the

boot process cannot be removed or deleted until reboot.

  • The attestation identity keys are used to sign integrity

reports.

  • The recipient can then evaluate the trustworthiness of

the:

– signed integrity measurements, by examining the platform identity certificate; – software configuration of the platform, using the reported measurements.

slide-56
SLIDE 56

56

56

Authenticated versus secure boot

  • The above measures provide authenticated boot, i.e. a means

by which a third party can verify that a certain set of software has booted.

  • They do not guarantee secure boot, i.e. guarantee that only a

particular set of software is able to boot.

www.opentc.net 12th September 2007

slide-57
SLIDE 57

57 www.opentc.net 12th September 2007

Secure boot – possible solutions I

  • The DIR (Data Integrity Register) is a TCG v1.1 function.
  • It provides a place to store information using the TPM’s NV

(non-volatile) storage.

  • Use of the DIR is deprecated in the v1.2 specifications.
  • The TPM must still support the functionality of the DIR register

in the NV storage area.

slide-58
SLIDE 58

58 www.opentc.net 12th September 2007

Secure boot – possible solutions II

  • The TPM has the same number of DIRs as PCRs.
  • The expected PCR values can be written by the TPM owner to

the corresponding DIRs.

  • During boot, the CRTM and the measurement agents measure

the software components on the platform.

  • Every time a final PCR value is computed, the PCR value is

compared to the corresponding DIR value.

  • If the two values match, control is passed to the next software

component, and the boot process continues; otherwise an exception is called and the boot process is halted.

slide-59
SLIDE 59

59 www.opentc.net 12th September 2007

Secure boot – possible solutions III

  • Alternatively, if the TPM has access to non-volatile memory, all

expected PCR values can be held in unprotected non-volatile memory and their summary (cumulative digest) held in a single DIR.

  • When a PCR value has been calculated, the RTM or

measurement agent checks that:

– the cumulative digest of the expected table of PCR values matches that held in the DIR; and – the calculated PCR value then matches its expected value in the table.

slide-60
SLIDE 60

60 www.opentc.net 12th September 2007

Secure storage I

  • Each trusted platform

contains a key hierarchy.

  • At the root is the storage

root key, SRK, stored securely in the TPM.

  • Data or keys can be

encrypted in such a way that they can only be decrypted by the TPM.

  • Asymmetric encryption is

used.

slide-61
SLIDE 61

61 www.opentc.net 12th September 2007

Secure storage II

  • Binding (data):

– This TPM capability allows external data to be encrypted using a public TPM parent key such that it can only be decrypted by the TPM.

  • Wrapping (keys):

– TSS Wrap Key: This TPM capability allows an externally generated key to be encrypted using a parent key.

  • Wrapping variants:

– TSS Wrap key to PCR: Similar to TSS Wrap Key but the externally generated key is ‘wrapped to’ PCR values; – TPM Create wrap key: Creates a TPM key, which may or may not be locked to PCRs.

slide-62
SLIDE 62

62 www.opentc.net 12th September 2007

Secure storage III (sealing)

  • Sealing (data / secret keys):

– This is an important aspect of protected storage. – The seal operation can bind a secret to an individual TPM. – External data is concatenated with the value of an integrity metric sequence at the time the seal operation is performed, and encrypted using the public key of a parent key pair. – It provides the capability to store a secret such that it can only be revealed by the TPM when the platform is in an specified software state. – The caller of the seal operation may choose not to wrap the secret to any PCR values.

slide-63
SLIDE 63

63 www.opentc.net 12th September 2007

Demonstrating privilege (access control)

  • TPM access control functions support:

– Owner authorised commands; – Protected objects; – Before a TPM is owned, the TPM is unavailable

  • Owner control is based on ‘Cryptographic authorisation’:

– 20 bytes, for example a hashed password, or 20 bytes from a smartcard submitted to a hash algorithm, may be used; – Separate authorisation data must exist for the TPM owner as well as protected objects; – There are a number of authorisation protocols which protect against:

  • Man in the middle attacks;
  • Replay;
  • The exposure of the authorisation data.
  • Physical presence:

– Certain commands require the physical presence of a human, e.g. to push a switch.

slide-64
SLIDE 64

64 www.opentc.net 12th September 2007

Direct Anonymous Attestation (DAA)

  • As discussed previously, the P-CA is a threat to privacy

since it is capable of:

– user/TPM activity tracking; or – making unwanted disclosures of platform information.

  • The DAA protocol removes the necessity to disclose the

public value of the endorsement key to a P-CA.

  • DAA is based on a family of cryptographic techniques

known as zero knowledge proofs.

  • DAA allows a TPM to convince a remote `verifier' that it is

indeed valid without disclosing the TPM public endorsement key, thereby removing the threat of a TTP collating data which may jeopardise the privacy of the TPM user.

slide-65
SLIDE 65

65 www.opentc.net 12th September 2007

Locality

  • The functionality allows a TPM owner to assign privileges to

external processes based on their locality.

  • It allows the characteristics (integrity metrics) of the external

software processes to be recorded in locality-specific PCRs.

  • When a trusted process sends commands to the TPM:

– A non-spoofable modifier is sent with it which indicates the locality of the process and thereby its trust value; – This can be used as a qualifier for more granular access to specific TPM resources.

slide-66
SLIDE 66

66 www.opentc.net 12th September 2007

Delegation

  • This allows an owner to have fine-grained control over the use
  • f specific owner-authorised TPM commands.
  • In the v1.1b TPM specifications (which do not support this

function), an owner that wishes to authorise a software module to perform an owner-authorised TPM function is required to provide the software with the TPM owner’s password.

  • With the delegation function provided in the v1.2 specifications,

the TPM owner may delegate to a software object or other entity the ability to use any individual owner-authorised TPM command or subset of TPM commands, without granting it the ability or permission to use any other TPM commands.

slide-67
SLIDE 67

67 www.opentc.net 12th September 2007

Transport protection

  • This is implemented to improve the security of the

communication channel between the TPM and trusted processes.

  • A transport session provides integrity and confidentiality

protection to commands sent to the TPM:

– integrity is provided by the use of a MAC; and – confidentiality is provided by the encryption of the command using a stream cipher, with keystream generated inside the TPM.

  • The logging of commands sent to the TPM within a transport

session is also supported.

slide-68
SLIDE 68

68 www.opentc.net 12th September 2007

Monotonic counters

  • A monotonic counter provides an incremental value.
  • The TPM is required to provide four such counters which may be

implemented as:

– Four unique counters; or – One counter with pointers which keep track of the other counter values.

  • The internal ‘base’ – i.e. the main counter – is not directly accessible

by external processes; it is used internally by the TPM.

  • External counters – used by external processes – may be unique or

linked to the main counter (implemented using pointers and difference values).

  • To create an external counter, owner authorisation data is required.
  • In order to increment an external counter, authorisation to use the

counter must be passed to the TPM.

slide-69
SLIDE 69

69 www.opentc.net 12th September 2007

Migration (of keys)

  • Non-migratable keys:

– are locked to a particular TPM and never duplicated; – must be created by the TPM.

  • Migratable keys:

– can be replicated ad infinitum by its owner (who knows the migration authorisation data); – the extent of duplication is only known to the owner of the key; – can be created either outside the TPM or by the TPM; – no control over where the keys can be migrated to (owner’s choice).

  • Certifiable migratable keys:

– are keys created in the TPM which may be migrated but only under strict controls; – the destination of the key must be authorised by the TPM owner and a migration selection authority.

slide-70
SLIDE 70

70 www.opentc.net 12th September 2007

Time-stamping

  • This functionality provides proof of a time interval not a time

instance.

  • It is the responsibility of the caller of the TPM capability to

associate the TPM ticks (a number) to the actual UTC time.

  • A sample protocol is given in the TPM specifications,

demonstrating how this may be achieved.

  • Use of the specified protocol is not required.
slide-71
SLIDE 71

71 www.opentc.net 12th September 2007

Other TPM features

  • Other TPM features include:

– TPM audit; – Maintenance; and – Context management.

slide-72
SLIDE 72

72 www.opentc.net 12th September 2007

Limits to TC hardware capabilities

  • The notion underlying trusted computing is to reliably measure

and report on the software running on a machine.

  • This is fine for a simple machine, for which software will not
  • ften change (e.g. dedicated systems such as mobile phones).
  • However, for a PC this is infeasible.
  • The operating system alone (e.g. Windows) is incredibly large

and complex, and has a very large number of versions.

  • If applications are added to this, then the problem of deciding

whether or not a given state is trustworthy becomes impossible.

slide-73
SLIDE 73

73 www.opentc.net 12th September 2007

Isolation layer

  • Instead, the idea is to measure all software only up to a certain

point, and then to rely on the software to ‘look after itself’.

  • If the measured software provides the basis for virtualisation

and secure compartments for individual processes, then we should be in good shape.

  • This is the idea behind the isolation layer.
  • An isolation layer is a small, secure, mini-operating system,

which is measured by the trusted computing hardware, and which takes care of the security of subsequently run applications.

  • Microsoft has described what its isolation layer would be like

(NGSCB), and there are a variety of open source initiatives (including OpenTC).

slide-74
SLIDE 74

74 www.opentc.net 12th September 2007

Contents

  • What is trusted computing?
  • The TCG
  • TCG – TPM and TSS
  • Microsoft – NGSCB
  • Microsoft – Vista
  • Intel – LaGrande
  • Open_TC – XEN/L4
  • Software security – How can trusted computing help?
slide-75
SLIDE 75

75 www.opentc.net 12th September 2007

Microsoft’s Trusted Computing Initiative

  • The Microsoft trusted computing initiative was originally

introduced under the name Palladium.

  • In January 2003 the name Palladium was dropped:
  • The work continued under the name NGSCB, for Next

Generation Secure Computing Base.

slide-76
SLIDE 76

76 www.opentc.net 12th September 2007

NGSCB architecture

Device Device Device Device Hardware

Guest Guest (high assurance guest) Guest OS (mass market OS)

Device driver Device driver Device driver Device driver Isolation kernel

slide-77
SLIDE 77

77 www.opentc.net 12th September 2007

NGSCB architecture

  • The NGSCB architecture has the following components:

– a TPM v1.2 (in NGSCB this is called a Security Support Component (SSC)); – the isolation kernel; – a mass market operating system and untrusted applications (running on this OS); – high assurance software components.

slide-78
SLIDE 78

78 www.opentc.net 12th September 2007

Crypto chip/SSC

  • The SSC is required to provide the following services:

– Authenticated boot; – Persistent protected storage:

  • Seal/unseal;
  • Monotonic counter;

– Attestation:

  • Quote;
  • PkSeal/PkUnseal.
  • A TCG v1.2 compliant TPM provides a concrete implementation
  • f the SSC.
slide-79
SLIDE 79

79 www.opentc.net 12th September 2007

Isolation layer approaches: device support

  • There are two ways an isolation layer can allow guest OSs

to access devices:

– A Virtual machine monitor (VMM) exposes devices to guest OSs by virtualising them:

  • VMM intercepts a guest OS’s attempt to access a physical device, and

performs the actual device access on its behalf, with possible modifications of the request and /or access control checks;

  • VMM co-ordinates access requests from guests to share devices;
  • requires a driver for each virtualised device to be part of the isolation

layer.

– The device can be exported to a guest OS:

  • isolation layer controls which guest can access a device;
  • device accesses by guests are made directly;
  • DMA devices have unrestricted access to the full physical address

space of the machine, and so a guest in control of a DMA device can circumvent isolation layer protections.

slide-80
SLIDE 80

80 www.opentc.net 12th September 2007

Isolation layer approaches: OS compatibility

  • A VMM:

– exposes the original hardware interface, and so supports ‘off the shelf’ OSs; – increases the complexity of the isolation layer, particularly on PC hardware where the x86 CPU is not virtualisable.

  • Exokernels / microkernels:

– expose different interfaces, and hence require new OSs to be written or existing OSs modified.

slide-81
SLIDE 81

81 www.opentc.net 12th September 2007

The NGSCB isolation kernel

  • The isolation layer exposes the original hardware interface to
  • ne guest.
  • The CPU has the following properties:

– the x86 CPU has four protection rings (rings 0-3); – upcoming versions of x86 processors will have a new CPU mode; – This new mode is more privileged than the existing ring 0 (effectively ring -1); – the Microsoft isolation kernel will execute in this ring, and virtualisability problems will be solved.

slide-82
SLIDE 82

82 www.opentc.net 12th September 2007

NGSCB isolation kernel: Memory

  • Virtualisation is used to partition memory among guests.
  • Instructions executing on the CPU will address memory via

virtual addresses.

  • Each virtual address is translated to a physical address, which is

then used to access physical resources.

  • The page table edit control (PTEC) algorithm partitions physical

memory among the guest OSs using page maps.

  • Any attempt by a guest to edit its page map traps to the isolation

kernel which consults its security policy, providing isolation between guests.

slide-83
SLIDE 83

83 www.opentc.net 12th September 2007

NGSCB isolation kernel: Devices

  • In a PC, many devices are memory mapped.
  • Control registers of a given device can be accessed by writing

to, or reading from, certain physical addresses.

  • The isolation kernel makes a device accessible to a guest by

allowing a guest to map the control registers of the device into its virtual address space.

  • The isolation kernel controls which guest can access the device,

but contains no device drivers.

slide-84
SLIDE 84

84 www.opentc.net 12th September 2007

NGSCB isolation kernel: DMA devices

  • In existing PC hardware, DMA devices have access to the full

physical address space.

  • Therefore a guest in control of a DMA device could circumvent

the virtual memory protections.

  • Solution: Chipset extensions:

– store a DMA policy in main memory; – the policy is set by software, e.g. the isolation kernel; – the policy is read and enforced by hardware.

slide-85
SLIDE 85

85 www.opentc.net 12th September 2007

NGSCB isolation kernel: other issues

  • Enhancements to input devices such as keyboards and

mice may be deployed to facilitate the MACing and encryption of data as it is communicated to a trusted application on the platform.

  • Secure graphics hardware may also be deployed in

parallel to the complex mass-market graphics system, and used only by the isolation kernel and high assurance guests.

slide-86
SLIDE 86

86 www.opentc.net 12th September 2007

Contents

  • What is trusted computing?
  • The TCG
  • TCG – TPM and TSS
  • Microsoft – NGSCB
  • Microsoft – Vista
  • Intel – LaGrande
  • Open_TC – XEN/L4
  • Software security – How can trusted computing help?
slide-87
SLIDE 87

87 www.opentc.net 12th September 2007

Microsoft Windows Vista TPM Driver TPM Base Services TSS

Secure Start- up Admin tools Key storage provider 3rd party app

TPM

slide-88
SLIDE 88

88 www.opentc.net 12th September 2007

Vista – TC features

  • A TPM device driver designed for the TPM v1.2 chip.
  • TPM base services provide sharing of limited resources on

the TPM.

  • The Secure Startup, Admin Tools (used, for example, to

curtail use of TPM commands that may reveal privacy- sensitive information about the user or workstation), and Key Storage Provider components are Microsoft applications and services that rely on TPM Services.

  • The “3rd-party Application” and TSS components are third-

party components that rely on TPM Services:

– No plans for v1.2 compliant TSS for Vista; – Microsoft say they will work with TSS vendors to create TSS products that interface with TBS infrastructure.

slide-89
SLIDE 89

89

89

BitLocker Drive Encryption

  • BitLocker Drive Encryption provides full volume encryption of

the Windows volume, which helps protect data on a lost or stolen machine against compromise.

  • In order to provide a solution that is easy to deploy and manage,

a Trusted Platform Module (TPM) 1.2 chip may be used to store the keys that encrypt and decrypt the Windows volume.

www.opentc.net 12th September 2007

slide-90
SLIDE 90

90

90

BitLocker

  • BitLocker also enables a key to be bound to measurements of the

system volume (using ‘sealing’).

  • When the computer is started, Vista verifies the system volume has

not been modified in an offline attack, e.g. where an attacker boots an alternative operating system to gain control of the system.

  • If the system volume has been modified, Vista alerts the user and

refuses to release the key required to access protected Windows document, file, directory, and machine level data.

  • The system then goes into a recovery mode, prompting the user to

provide a recovery key to allow access to the Windows volume.

www.opentc.net 12th September 2007

slide-91
SLIDE 91

91 www.opentc.net 12th September 2007

Contents

  • What is trusted computing?
  • The TCG
  • TCG – TPM and TSS
  • Microsoft – NGSCB
  • Microsoft – Vista
  • Intel – LaGrande
  • Open_TC – XEN/L4
  • Software security – How can trusted computing help?
slide-92
SLIDE 92

92 www.opentc.net 12th September 2007

LaGrande

  • LaGrande is defined as “a set of enhanced hardware

components designed to help protect sensitive information from software-based attacks, where LT [= LaGrande Technology] features include capabilities in the microprocessor, chipset, I/O subsystems, and other platform components”.

[Intel LaGrande]

slide-93
SLIDE 93

93 www.opentc.net 12th September 2007

The architecture

  • The standard partition provides an environment identical to

today's Intel Architecture – 32 (IA-32) environment.

  • In the standard partition, users may freely run software of their

choice.

  • The existence of this standard partition implies that, despite the

addition of supplementary security mechanisms to the platform, code already in existence will retain its value, and software unconcerned with security will have somewhere to execute unaffected.

slide-94
SLIDE 94

94 www.opentc.net 12th September 2007

The architecture

  • The protected partition provides a parallel environment, in which

hardened software can be executed with the assurance that it cannot be tampered with by software executing in either the standard or protected partition.

  • This protected partition is hardened against software attacks by

the implementation of a number of components, which provide domain separation; memory protection; protected graphics; and a trusted channel to peripherals.

slide-95
SLIDE 95

95 www.opentc.net 12th September 2007

The architecture

  • The existence of a domain manager, which facilitates this

domain separation, is also assumed.

  • This domain manager may be constructed in various ways,

depending on the architecture implemented. A concrete example of this domain manager is the isolation kernel as described in NGSCB.

  • The domain manager is physically protected via processor and

chipset extensions and, in turn, protects standard and protected partitions from each other.

slide-96
SLIDE 96

96 www.opentc.net 12th September 2007

Hardware enhancements and extensions

  • In order to facilitate the implementation of the protected

partition, in conjunction with protected input and output and TPM functionality to a platform, Intel are in the process of extending and enhancing the following hardware components:

– The CPU; – The memory controller or chipset; – The keyboard and mouse; – The video graphics card; and – The graphics adaptor.

  • A v1.2 TPM must also be added.
slide-97
SLIDE 97

97 www.opentc.net 12th September 2007

The protected partition

The protected partition is hardened against software attacks because:

  • LT’s domain separation allows hardened software to run in

memory pages that are protected from viewing or modification by unauthorized applications;

  • LT’s memory protection prevents DMA engines from reading or

modifying protected memory pages;

  • LT’s protected graphics processes application data from the

protected partition such that it is not visible either to software in the standard partition or other software running in the unprotected partition;

  • LT provides a trusted channel to keyboard and mouse that

prevents keyboard snooping and/or modification of user’s keystrokes or mouse movements.

slide-98
SLIDE 98

98 www.opentc.net 12th September 2007

Contents

  • What is trusted computing?
  • The TCG
  • TCG – TPM and TSS
  • Microsoft – NGSCB
  • Microsoft – Vista
  • Intel – LaGrande
  • Open_TC – XEN/L4
  • Software security – How can trusted computing help?
slide-99
SLIDE 99

99 www.opentc.net 12th September 2007

Open_TC

slide-100
SLIDE 100

100 www.opentc.net 12th September 2007

L4 and XEN (Open source isolation layers)

L4

  • Fine grained isolation between applications;
  • Minimal TCB for trusted applications / services:

– Reuse of untrusted components via trusted wrappers:

  • Sandboxing;
  • Perimeter wrapping.
  • Support for TC hardware.
  • Open source alternative to Microsoft NGSCB.

http://tudos.org/papers_ps/nizza.pdf

XEN

  • Xen is a virtual machine monitor (VMM) for x86-compatible computers.

http://www.cl.cam.ac.uk/Research/SRG/netos/xen/

slide-101
SLIDE 101

101 www.opentc.net 12th September 2007

Contents

  • What is trusted computing?
  • The TCG
  • TCG – TPM and TSS
  • Microsoft – NGSCB
  • Microsoft – Vista
  • Intel – LaGrande
  • Open_TC – XEN/L4
  • Software security – How can trusted computing help?
slide-102
SLIDE 102

102 www.opentc.net 12th September 2007

Software security – What TC will not do

  • Software vulnerabilities result from both:

– design errors; – coding errors;

  • TC technology will not prevent such errors, or aid in the

development of secure software without vulnerabilities.

  • Vulnerabilities can, at any time, be attacked by viruses and
  • worms. TC will not prevent the exploitation of such

vulnerabilities.

  • Viruses/malicious code – TC will not stop them being written or

circulated.

slide-103
SLIDE 103

103 www.opentc.net 12th September 2007

The isolation layer – What TC will do

  • Security of the isolation layer code itself:

– Architecture allows a relatively small isolation layer – few lines of code; – If it is sufficiently small then it may be possible to deploy a provably secure isolation layer; – Separation of the isolation layer into ring -1.

  • These features help prevent a potential attack by

malicious software against the isolation kernel.

slide-104
SLIDE 104

104 www.opentc.net 12th September 2007

The isolation layer – What TC will do

  • Security of software running in protected domains

supported by the isolation layer.

  • Confidentiality and integrity of application code and data:

– During execution: memory protections (which prevent software attack); – During storage: sealing; – DMA (which prevent physical attack which may allow software controls to be bypassed); – Inter Process Communication (IPC): a program should be able to exchange data with another program such that the integrity and confidentiality of the data is assured;

  • Helps prevent a potential attack by malicious software.
slide-105
SLIDE 105

105 www.opentc.net 12th September 2007

Peripheral security – What TC can do

  • Trusted path to the user in order to ensure the

confidentiality and integrity of user input:

– prevents malicious applications from displaying a faked dialogue, for example to enter a password; – prevents user input from being read/copied or altered by a malicious application:

  • Secure channel to output devices to ensure

integrity of output can be assured:

  • Helps prevent a potential attack by malicious

software.

slide-106
SLIDE 106

106 www.opentc.net 12th September 2007

The TPM – What TC can do

  • Persistent storage:

– Encrypted data protected from malicious code; – Assurance that data can only be accessed within a certain environment:

  • Secure boot:

– While not described within the TCG v1.2 specifications, all the necessary elements are in place to implement such a service;

  • Attestation:

– Enables a platform challenger to verify what versions of software are running on a platform; – For example, can check whether or not the latest anti-virus definitions have been downloaded:

  • These all help to prevent some of the damaging effects of

an attack by malicious software.

slide-107
SLIDE 107

107 www.opentc.net 12th September 2007

The TPM – What TC can do

  • Software can be built to build on the TPM security

mechanisms.

  • Many software security problems arise from misuse of

cryptography:

– Misuse of randomness:

  • Many programs require sources of randomness;
  • Most common method of generating “randomness” is to use a

deterministic pseudo-random generator;

  • Must be designed and implemented well – simply counting the

milliseconds since midnight on the system clock is not normally good enough!

– Poor key management:

  • Cryptographic key management is a complex issue;
  • Cannot protect long cryptographic keys with potentially weak short

passwords.

– Customised cryptography.

slide-108
SLIDE 108

108 www.opentc.net 12th September 2007

A crypto chip in every PC

  • Putting a TPM on every PC motherboard means that every PC

will have a crypto chip, with secure key storage, a random number generator, …

  • Possible security applications for such a chip are almost

endless.

  • For example, currently there are PC crypto boards available.
  • These can be used to make a PC into a secure system, e.g. to:

– run a Certification Authority as part of a PKI; – to perform key management functions for a company network; – …

  • In some cases, the TPM may be sufficiently secure to avoid the

need for a separate crypto board.

slide-109
SLIDE 109

109 www.opentc.net 12th September 2007

Managing distributed systems

  • In the long term, one of the key roles envisaged for trusted

computing is to enable the secure management of distributed systems (especially in a corporate setting).

  • One node in the distributed system can test the level of security
  • ffered by another node before deciding what types of task it

can safely delegate to that node.

  • That is, security policies can be automatically enforced.
  • However, there is a long way to go …
slide-110
SLIDE 110

110 www.opentc.net 12th September 2007

Other applications

  • A huge variety of applications have been suggested for trusted

computing functionality.

  • Examples include:

– secure signature generation; – digital rights management (DRM); – secure identities for peer-to-peer computing; – control of personal information; – …

  • However, what will actually happen is far from clear!
slide-111
SLIDE 111

111 www.opentc.net 12th September 2007

Resources

  • www.trustedcomputinggroup.org
  • http://www.microsoft.com/windowsvista/default.aspx
  • http://www.intel.com/technology/security/
  • http://www.cl.cam.ac.uk/Research/SRG/netos/xen/
  • http://os.inf.tu-dresden.de/L4/LinuxOnL4/
  • http://www.opentc.net/
  • Trusted Computing Platforms – TCPA Technology in Context,

Siani Pearson (editor), HP Invent.

  • Trusted Computing – Chris Mitchell (editor), IEE.
slide-112
SLIDE 112

112 www.opentc.net 12th September 2007

Acknowledgements

  • Must thank all members of the OpenTC project, and, in

particular, the RHUL team: Eimear Gallery and Stéphane Lo Presti.

  • Particular thanks to Eimear Gallery who produced the majority
  • f the material for this talk.
slide-113
SLIDE 113

113 www.opentc.net 12th September 2007

Questions

  • For further details on any topics addressed please contact me:

– c.mitchell@rhul.ac.uk – http://www.isg.rhul.ac.uk/~cjm – Chris Mitchell Information Security Group Royal Holloway University of London Egham, Surrey TW20 0EX UK

slide-114
SLIDE 114

114 www.opentc.net 12th September 2007

The information in this document is provided “as is”, and no guarantee or warranty is given that the information is fit for any particular purpose. The user thereof uses the information at its sole risk and liability.

The Open-TC project is co-financed by the EC. If you need further information, please visit our website www.opentc.net or contact the coordinator:

Technikon Forschungs- und Planungsgesellschaft mbH Richard-Wagner-Strasse 7, 9500 Villach, AUSTRIA Tel.

+43 4242 23355 – 0

  • Fax. +43 4242 23355 – 77

Email coordination@opentc.net

Open_TC EC Contract No: IST- 027635
