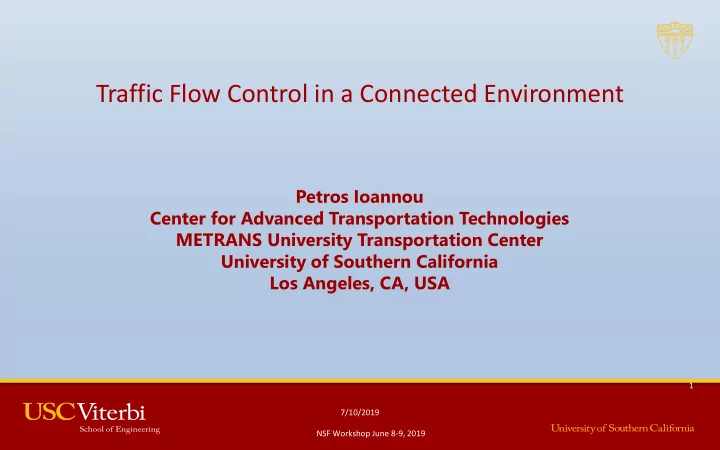

Traffic Flow Control in a Connected Environment Petros Ioannou Center for Advanced Transportation Technologies METRANS University Transportation Center University of Southern California Los Angeles, CA, USA 1 7/10/2019 NSF Workshop June 8-9,

slide-1
SLIDE 1

Petros Ioannou Center for Advanced Transportation Technologies METRANS University Transportation Center University of Southern California Los Angeles, CA, USA

7/10/2019 NSF Workshop June 8-9, 2019 1

Traffic Flow Control in a Connected Environment

slide-2
SLIDE 2

Brief History

7/10/2019 NSF Workshop June 8-9, 2019 2

  • Automated Highway System Program started in the 80’s ended with 1997
  • Demo. Platooning plus other technologies
  • Replaced with IV initiative with vehicle safety as priority
  • 2004, 2005, 2007 DARPA Challenge Competition
  • Current: Autonomous Vehicles, 5 levels of Autonomy (Google Cars, Tesla, Uber

etc)

  • Efforts are to get rid of the driver when vehicles is the cause of congestion
slide-3
SLIDE 3

Vehicle Control Safety and Platooning

7/10/2019 NSF Workshop June 8-9, 2019 3

Drag reduction: Fuel savings, lower pollution

𝑇

Ξ”V2 at collision Spacing 𝑇 P A M P: Platoon spacing ( 1 meter) A: Automated M: Manual; Capacity ∝

1 𝑇

π›¦π‘Š = π‘Š

1 βˆ’ π‘Š 2

π‘Š

1

π‘Š

2

Safety Objective: No vehicle should be put in a position it cannot handle

slide-4
SLIDE 4

7/10/2019 NSF Workshop June 8-9, 2019

WHAT IS THE MAIN TRANSPORTATION PROBLEM? This is what we usually see and experience

Image from www.msnbc.com Image from Wikipedia

4

slide-5
SLIDE 5

7/10/2019 NSF Workshop June 8-9, 2019

Transportation System for Moving Goods and People is far more complex

RAIL OCEAN ROAD PORT

5

slide-6
SLIDE 6

CURRENT TRANSPORTATION SYSTEM

  • Nonlinear Dynamical System of interconnected systems
  • Open Loop Most of the Time
  • Limited ineffective feedback
  • Lack of sensor data and connectivity

Consequences

  • Congestion
  • Inefficient utilization of infrastructure
  • Safety
  • Pollution
  • Long travel times, High cost
  • Unbalanced in time and space

7/10/2019 NSF Workshop June 8-9, 2019 6

slide-7
SLIDE 7

Connectivity will Revolutionize Transportation

  • Open loop operations will become more stable and robust via

active feedback

  • Information/data are crucial in optimizing processes and

movements of people and goods

  • Enhance coordination
  • Vehicle to Infrastructure Connectivity is Proven Technology
  • Private sector is moving faster to satisfy user needs

7/10/2019 NSF Workshop June 8-9, 2019 7

slide-8
SLIDE 8

7/10/2019 NSF Workshop June 8-9, 2019

Traffic Management Control (TMC) System

Data Acquisition & Processing Traffic System

Output:Traffic Data T2 T1 T0 Control Inputs

Traffic Controller

TMC System

8

slide-9
SLIDE 9

7/10/2019

Ramp Metering Beacons TMC

Optimum speed limits, Lane Change, VSL Routing, Pricing

Ramp metering commands

Closing the loop with the Highway System

Speed, Location, OD, status (incident report)

NSF Workshop June 8-9, 2019 9

slide-10
SLIDE 10

MANETs For Lane Change Control and Collision Avoidance

7/10/2019 NSF Workshop June 8-9, 2019 10

slide-11
SLIDE 11

Control of traffic at incidents and bottlenecks

  • Highway congestions at bottlenecks is detrimental

to traffic mobility, safety and environment

  • Upstream drivers lack of information of bottleneck

therefore blindly change lanes when traffic slows down

  • Forced lane changes performed at vicinity of

bottlenecks introduce capacity drop, which further harm the flow rate

  • Appearance of trucks exacerbate the

congestion condition

7/10/2019 NSF Workshop June 8-9, 2019 11

slide-12
SLIDE 12

NO CONTROL NO CONNECTIVITY

slide-13
SLIDE 13

Modeling of Highway Bottleneck

Capacity drop

  • Capacity will drop when 𝜍

> πœπ‘’,𝑑.

  • Difficult to maintain maximum flow rate by controlling just the speed

π‘Ÿπ‘ = ࡝ π‘€π‘”πœ , 𝜍 ≀ πœπ‘’,𝑑 ሺ1 βˆ’ πœ—)𝐷𝑐, 𝜍 > πœπ‘’,𝑑

7/10/2019 NSF Workshop June 8-9, 2019 13

slide-14
SLIDE 14

Design of Lane Change Controller to prevent last minute forced lane changes Two Parts: ❖ Design of lane change control distance How far from incident should start recommending lane changes? ❖Design of lane change control pattern What lane change recommendation should give in each lane? Not a traditional control problem as the key variable is not time but space.

7/10/2019 NSF Workshop June 8-9, 2019 14

slide-15
SLIDE 15

Design of Lane Change Controller based on an empirical model developed using simulation tests

Length of LC Control Segment: 𝑒𝑀𝐷 = 𝜊 β‹… π‘œ n: number of lanes closed 𝜊: design parameter based on the demand and capacity

7/10/2019 NSF Workshop June 8-9, 2019 15

slide-16
SLIDE 16

Effect of Lane Change Control

7/10/2019 NSF Workshop June 8-9, 2019 16

slide-17
SLIDE 17

Effect of Lane Change Control

Without LC Control:

  • Data points for πœπ‘’ ≀ πœπ‘’,𝑑 fits the linear

relation very well;

  • Significant capacity drop occurs, πœ— β‰ˆ 0.16
  • Data points concentrate in high density

area

With LC Control:

  • No obvious capacity drop
  • πœπ‘’ at πœπ‘’ > πœπ‘’,𝑑 is approximately linear

with a negative

  • Most data points scatter close to πœπ‘’ >

πœπ‘’,𝑑

7/10/2019 NSF Workshop June 8-9, 2019 17

slide-18
SLIDE 18

Protecting the Network

7/10/2019 NSF Workshop June 8-9, 2019 18

slide-19
SLIDE 19

Variable Speed Limit Control

  • If demand increases to the point that exceeds

capacity of bottleneck then congestion will kick in. Need a control mechanism to protect the network

  • Provide speed recommendations upstream

the bottleneck or incident in order to slow down the traffic flow to become close to the throughput of the bottleneck.

  • Approach is implemented at various highways

in Europe and US but in an adhoc way

7/10/2019 NSF Workshop June 8-9, 2019 19

slide-20
SLIDE 20

7/10/2019 NSF Workshop June 8-9, 2019 20

1.Carlos F Daganzo. The cell transmission model: A dynamic representation of highway track consistent with the hydrodynamic

  • theory. Transportation Research Part B: Methodological, 28(4):269-287, 1994.
slide-21
SLIDE 21

Traffic Flow Model and Stability Analysis

Let 𝐽 = αˆΊπ·π‘’, 𝐷, 𝑒) be the state of the network and Ξ© be the set of feasible values of 𝐽 with 𝑒 β‰₯ 0, 𝐷𝑒 > 0, 𝐷 > 0. All possible relationships between 𝐷𝑒, 𝐷 and 𝑒 are described by the tree diagram below:

Capacity Drop No Capacity Drop

7/10/2019 NSF Workshop June 8-9, 2019 21

slide-22
SLIDE 22

Equilibrium Points when Inflow = Outflow i.e. π‘Ÿ1 = π‘Ÿ2 ሢ 𝜍 = 0

7/10/2019 NSF Workshop June 8-9, 2019 22

slide-23
SLIDE 23

Variable Speed Limit Control

7/10/2019 NSF Workshop June 8-9, 2019 23

slide-24
SLIDE 24

Variable Speed Limit (VSL) Control

7/10/2019 NSF Workshop June 8-9, 2019 24

slide-25
SLIDE 25

7/10/2019 NSF Workshop June 8-9, 2019 25

VSL Controller Density Model

slide-26
SLIDE 26

Main Theorem The proposed VSL Controller guarantees that densities converge exponentially to a single equilibrium point πœβˆ— =

min[𝑒,𝐷𝑒] 𝑀𝑔

that corresponds to maximum possible flow and speed under any demand and capacity constraints.

Proof: based on simple Lyapunov stability arguments

7/10/2019 NSF Workshop June 8-9, 2019 26

slide-27
SLIDE 27

7/10/2019 NSF Workshop June 8-9, 2019 27

𝑒 < 1 βˆ’ 𝜁0 βˆ— 𝐷𝑒

slide-28
SLIDE 28

7/10/2019 NSF Workshop June 8-9, 2019 28

𝑒 = 1 βˆ’ 𝜁0 βˆ— 𝐷𝑒

slide-29
SLIDE 29

7/10/2019 NSF Workshop June 8-9, 2019 29

1 βˆ’ 𝜁0 βˆ— 𝐷𝑒 < 𝑒 ≀ 𝐷𝑒

slide-30
SLIDE 30

7/10/2019 NSF Workshop June 8-9, 2019 30

𝐷𝑒 < 𝑒 < 𝐷

slide-31
SLIDE 31

7/10/2019 NSF Workshop June 8-9, 2019 31

Why it Works: Less for More https://www.youtube.com/watch?v=9QwPfe-_T7s

slide-32
SLIDE 32

Multiple Sections

7/10/2019 NSF Workshop June 8-9, 2019 32

slide-33
SLIDE 33

Numerical Simulation

Simulation Setup:

  • 1. Simulation Network:

16km-long southbound segment of I-710 freeway in California, whose normal capacity without an accident is about 6800 veh/h.

  • 2. Incident Scenarios:

We construct accident scenarios with different accident durations

  • 3. Monte Carlo Simulation

10 sets of Monte Carlo simulation for each scenario in microscopic simulations.

7/10/2019 NSF Workshop June 8-9, 2019 33

slide-34
SLIDE 34

Fundamental Diagram under Control

  • Traffic states can be stabilized in a small region for different

demand levels

  • Density stops increasing when demand higher than the

capacity

  • Flow speed decreases when density close to the critical value

7/10/2019 NSF Workshop June 8-9, 2019 34

slide-35
SLIDE 35

Performance

7/10/2019 NSF Workshop June 8-9, 2019 35

Criteria Control Improvements for considered scenarios Total Time Spent in Network 10-15%. Number of Stops 80-90% Number of Lane Changes 6-10% NOx 6-7% CO2 7-8% Fuel 7-8% PM25 4-7%

slide-36
SLIDE 36

Coordination and connectivity in multimodal: Co-Simulation Optimization Control Approach

7/10/2019 NSF Workshop June 8-9, 2019 36 Final Decision Transportation Network Network Simulation Models Optimization Network states Controller Network Data Stopping Criteria

NSF CPS Synergy: Cyber Physical Regional Freight Transportation System

slide-37
SLIDE 37

Conclusions

  • Connectivity (V to V and V to I) is a key technology in achieving

transportation efficiency

  • Connectivity will generate vital information and provide missing data

that are necessary for effective control and optimization designs

  • Vehicle automation, self driving vehicles will face the major challenge
  • f Safety
  • The main causes of congestion are too many vehicles. Getting rid of

the driver and keeping the vehicle is unlikely to reduce congestion

  • Congestion is a system level problem. The system is dynamical and

feedback control and optimization are important tools to make it stable, robust and efficient

7/10/2019 NSF Workshop June 8-9, 2019 37

slide-38
SLIDE 38

THANK YOU
