Python language: Control Flow The FOSSEE Group Department of Aerospace Engineering IIT Bombay Mumbai, India FOSSEE Team (FOSSEE IITB) Control flow 1 / 32 Outline Control flow 1 Basic Conditional flow Control flow 2 Basic Looping


slide-1
SLIDE 1

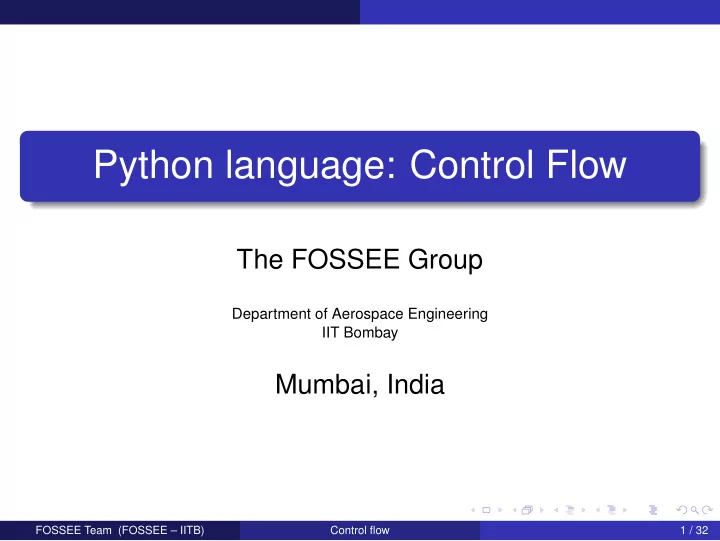

Python language: Control Flow

The FOSSEE Group

Department of Aerospace Engineering IIT Bombay

Mumbai, India

FOSSEE Team (FOSSEE – IITB) Control flow 1 / 32

slide-2
SLIDE 2

Outline

1

Control flow Basic Conditional flow

2

Control flow Basic Looping

3

Exercises

FOSSEE Team (FOSSEE – IITB) Control flow 2 / 32

slide-3
SLIDE 3

Control flow

Outline

1

Control flow Basic Conditional flow

2

Control flow Basic Looping

3

Exercises

FOSSEE Team (FOSSEE – IITB) Control flow 3 / 32

slide-4
SLIDE 4

Control flow

Control flow constructs

if/elif/else : branching while : looping for : iterating break, continue : modify loop pass : syntactic filler

FOSSEE Team (FOSSEE – IITB) Control flow 4 / 32

slide-5
SLIDE 5

Control flow Basic Conditional flow

Outline

1

Control flow Basic Conditional flow

2

Control flow Basic Looping

3

Exercises

FOSSEE Team (FOSSEE – IITB) Control flow 5 / 32

slide-6
SLIDE 6

Control flow Basic Conditional flow

if...elif...else example

Type the following code in an editor & save as ladder.py

x = int(input("Enter an integer: ")) if x < 0: print(’Be positive!’) elif x == 0: print(’Zero’) elif x == 1: print(’Single’) else: print(’More’)

Run in IPython: %run ladder.py Run on terminal: python ladder.py

FOSSEE Team (FOSSEE – IITB) Control flow 6 / 32

slide-7
SLIDE 7

Control flow Basic Conditional flow

if...elif...else example

Type the following code in an editor & save as ladder.py

x = int(input("Enter an integer: ")) if x < 0: print(’Be positive!’) elif x == 0: print(’Zero’) elif x == 1: print(’Single’) else: print(’More’)

Run in IPython: %run ladder.py Run on terminal: python ladder.py

FOSSEE Team (FOSSEE – IITB) Control flow 6 / 32

slide-8
SLIDE 8

Control flow Basic Conditional flow

Ternary operator

score_str is either ’AA’ or a string of one of

the numbers in the range 0 to 100. We wish to convert the string to a number using

int

Convert it to 0, when it is ’AA’

if-else construct or the ternary operator In []: if score_str != ’AA’: .....: score = int(score_str) .....: else: .....: score = 0

FOSSEE Team (FOSSEE – IITB) Control flow 7 / 32

slide-9
SLIDE 9

Control flow Basic Conditional flow

Ternary operator

With the ternary operator you can do this:

In []: ss = score_str In []: score = int(ss) if ss != ’AA’ else 0

FOSSEE Team (FOSSEE – IITB) Control flow 8 / 32

slide-10
SLIDE 10

Control flow

Outline

1

Control flow Basic Conditional flow

2

Control flow Basic Looping

3

Exercises

FOSSEE Team (FOSSEE – IITB) Control flow 9 / 32

slide-11
SLIDE 11

Control flow Basic Looping

Outline

1

Control flow Basic Conditional flow

2

Control flow Basic Looping

3

Exercises

FOSSEE Team (FOSSEE – IITB) Control flow 10 / 32

slide-12
SLIDE 12

Control flow Basic Looping

while: motivational problem

Example: Fibonacci series Sum of previous two elements defines the next: 0, 1, 1, 2, 3, 5, 8, 13, 21, ...

FOSSEE Team (FOSSEE – IITB) Control flow 11 / 32

slide-13
SLIDE 13

Control flow Basic Looping

How do you solve this?

Task: Give computer, instructions to solve this How would you solve it? How would you tell someone to solve it? Assume you are given the starting values, 0 and 1.

FOSSEE Team (FOSSEE – IITB) Control flow 12 / 32

slide-14
SLIDE 14

Control flow Basic Looping

while: Fibonacci

Example: Fibonacci series Sum of previous two elements defines the next: 0, 1, 1, 2, 3, 5, 8, 13, 21, ...

1

Start with: a, b = 0, 1

2

Next element: next = a + b

3

Shift a, b to next values

a = b b = next

4

Repeat steps 2, 3 when b < 30

FOSSEE Team (FOSSEE – IITB) Control flow 13 / 32

slide-15
SLIDE 15

Control flow Basic Looping

while: Fibonacci

Example: Fibonacci series Sum of previous two elements defines the next: 0, 1, 1, 2, 3, 5, 8, 13, 21, ...

1

Start with: a, b = 0, 1

2

Next element: next = a + b

3

Shift a, b to next values

a = b b = next

4

Repeat steps 2, 3 when b < 30

FOSSEE Team (FOSSEE – IITB) Control flow 13 / 32

slide-16
SLIDE 16

Control flow Basic Looping

while: Fibonacci

Example: Fibonacci series Sum of previous two elements defines the next: 0, 1, 1, 2, 3, 5, 8, 13, 21, ...

1

Start with: a, b = 0, 1

2

Next element: next = a + b

3

Shift a, b to next values

a = b b = next

4

Repeat steps 2, 3 when b < 30

FOSSEE Team (FOSSEE – IITB) Control flow 13 / 32

slide-17
SLIDE 17

Control flow Basic Looping

while: Fibonacci

Example: Fibonacci series Sum of previous two elements defines the next: 0, 1, 1, 2, 3, 5, 8, 13, 21, ...

1

Start with: a, b = 0, 1

2

Next element: next = a + b

3

Shift a, b to next values

a = b b = next

4

Repeat steps 2, 3 when b < 30

FOSSEE Team (FOSSEE – IITB) Control flow 13 / 32

slide-18
SLIDE 18

Control flow Basic Looping

while: Fibonacci

Example: Fibonacci series Sum of previous two elements defines the next: 0, 1, 1, 2, 3, 5, 8, 13, 21, ...

1

Start with: a, b = 0, 1

2

Next element: next = a + b

3

Shift a, b to next values

a = b b = next

4

Repeat steps 2, 3 when b < 30

FOSSEE Team (FOSSEE – IITB) Control flow 13 / 32

slide-19
SLIDE 19

Control flow Basic Looping

while

In []: a, b = 0, 1 In []: while b < 30: ...: print(b, end=’ ’) ...: next = a + b ...: a = b ...: b = next ...: ...:

Do this manually to check logic Note: Indentation determines scope

FOSSEE Team (FOSSEE – IITB) Control flow 14 / 32

slide-20
SLIDE 20

Control flow Basic Looping

while

We can eliminate the temporary next:

In []: a, b = 0, 1 In []: while b < 30: ...: print(b, end=’ ’) ...: a, b = b, a + b ...: ...: 1 1 2 3 5 8 13 21

Simple!

FOSSEE Team (FOSSEE – IITB) Control flow 15 / 32

slide-21
SLIDE 21

Control flow Basic Looping

for . . . range()

Example: print squares of first 5 numbers

In []: for i in range(5): ....: print(i, i * i) ....: ....: 0 0 1 1 2 4 3 9 4 16

FOSSEE Team (FOSSEE – IITB) Control flow 16 / 32

slide-22
SLIDE 22

Control flow Basic Looping

range()

range([start,] stop[, step]) range() returns a sequence of integers

The start and the step arguments are optional

stop is not included in the sequence

Documentation convention Anything within [] is optional Nothing to do with Python

FOSSEE Team (FOSSEE – IITB) Control flow 17 / 32

slide-23
SLIDE 23

Control flow Basic Looping

for . . . range()

Example: print squares of odd numbers from 3 to 9

In []: for i in range(3, 10, 2): ....: print(i, i * i) ....: ....: 3 9 5 25 7 49 9 81

FOSSEE Team (FOSSEE – IITB) Control flow 18 / 32

slide-24
SLIDE 24

Control flow Basic Looping

Exercise with for

Convert the Fibonnaci sequence example to use a for loop with range.

FOSSEE Team (FOSSEE – IITB) Control flow 19 / 32

slide-25
SLIDE 25

Control flow Basic Looping

Solution

a, b = 0, 1 for i in range(10): print(b, end=’ ’) a, b = b, a + b

Note that the while loop is a more natural fit here

FOSSEE Team (FOSSEE – IITB) Control flow 20 / 32

slide-26
SLIDE 26

Control flow Basic Looping

break, continue, and pass

Use break to break out of loop Use continue to skip an iteration Use pass as syntactic filler

FOSSEE Team (FOSSEE – IITB) Control flow 21 / 32

slide-27
SLIDE 27

Control flow Basic Looping

break example

Find first number in Fibonnaci sequence < 100 divisible by 4:

a, b = 0, 1 while b < 500: if b % 4 == 0: print(b) break a, b = b, a + b

FOSSEE Team (FOSSEE – IITB) Control flow 22 / 32

slide-28
SLIDE 28

Control flow Basic Looping

continue

Skips execution of rest of the loop on current iteration Jumps to the end of this iteration Squares of all odd numbers below 10, not multiples of 3

In []: for n in range(1, 10, 2): .....: if n%3 == 0: .....: continue .....: print(n*n)

FOSSEE Team (FOSSEE – IITB) Control flow 23 / 32

slide-29
SLIDE 29

Control flow Basic Looping

pass example

Try this:

for i in range(5): if i % 2 == 0: pass else: print(i, ’is Odd’) pass: does nothing

Keep Python syntactically happy Another example:

while True: pass

FOSSEE Team (FOSSEE – IITB) Control flow 24 / 32

slide-30
SLIDE 30

Exercises

Outline

1

Control flow Basic Conditional flow

2

Control flow Basic Looping

3

Exercises

FOSSEE Team (FOSSEE – IITB) Control flow 25 / 32

slide-31
SLIDE 31

Exercises

Problem 1.1: Armstrong numbers

Write a program that displays all three digit numbers that are equal to the sum of the cubes of their digits. That is, print numbers abc that have the property abc = a3 + b3 + c3 For example, 153 = 13 + 53 + 33 Hints Break problem into easier pieces How would you solve the problem? Can you explain to someone else how to solve it?

FOSSEE Team (FOSSEE – IITB) Control flow 26 / 32

slide-32
SLIDE 32

Exercises

Some hints

What are the possible three digit numbers? Can you split 153 into its respective digits, a = 1, b = 5, c = 3? With a, b, c can you test if it is an Armstrong number?

FOSSEE Team (FOSSEE – IITB) Control flow 27 / 32

slide-33
SLIDE 33

Exercises

Solution: part 1

x = 153 a = x//100 b = (x%100)//10 c = x%10 (a**3 + b**3 + c**3) == x

FOSSEE Team (FOSSEE – IITB) Control flow 28 / 32

slide-34
SLIDE 34

Exercises

Solution: part 2

x = 100 while x < 1000: print(x) x += 1 # x = x + 1

FOSSEE Team (FOSSEE – IITB) Control flow 29 / 32

slide-35
SLIDE 35

Exercises

Solution

x = 100 while x < 1000: a = x//100 b = (x%100)//10 c = x%10 if (a**3 + b**3 + c**3) == x: print(x) x += 1

FOSSEE Team (FOSSEE – IITB) Control flow 30 / 32

slide-36
SLIDE 36

Exercises

Problem 1.2: Collatz sequence

1

Start with an arbitrary (positive) integer.

2

If the number is even, divide by 2; if the number is

  • dd, multiply by 3 and add 1.

3

Repeat the procedure with the new number.

4

It appears that for all starting values there is a cycle of 4, 2, 1 at which the procedure loops. Write a program that accepts the starting value and prints out the Collatz sequence.

FOSSEE Team (FOSSEE – IITB) Control flow 31 / 32

slide-37
SLIDE 37

Exercises

What did we learn?

Conditionals: if elif else Looping: while & for

range break, continue, pass

Solving simple problems

FOSSEE Team (FOSSEE – IITB) Control flow 32 / 32
