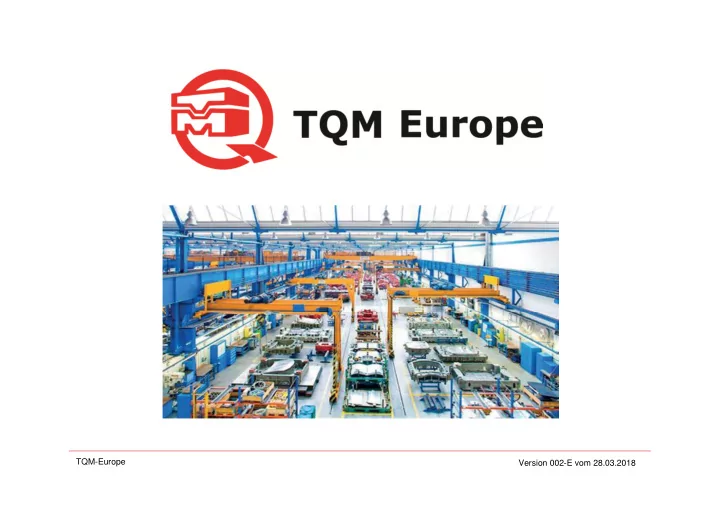

TQM-Europe Version 002-E vom 28.03.2018

TQM-Europe 2 23.04.2018

Tool Shop

1919 - 2010 … to 2012 from 2013 …

TQM Introduction

• Informationen about the Company

TQM is specialized in the efficient development and production of large, high-quality series tools for sheet metal forming, mainly for the production of dimensionally high quality series parts. As former “Laepple toolshop", we have benefited from tool competence since 1919.

• 170 highly qualified and well-trained employees ensure quality at a high level. Our

project managers accompany tool projects from the engineering phase till delivery and, if necessary, home line tryout in the customer press.

• Manufacturing information
• Types of Dies:

Line-Dies, Transfer-Dies, Progressive-Dies, Draw-, Flange-, Form- and Trim-Dies. Of cource, you will also receive from us the Gauge for measurement.

• Projects:

Support, assembly till function-stroke, spotting, modification, optimization. Projects from Engineering till Note 1. The engineering activities are procured externally and are 100% managed by TQM.

• Formable Materials:

Conventional Steel- and Draw-Quality, high strength Steel, Tailored Blanks, Precoated Steel, Aluminum alloyed Steel for Structure- und Outer-panels.

• Panels (mostly Body Parts):

Outer-panels, Inner-Panels, Structure-Panels, Carrier- and Floor-Panels. Side-Panels, Doors, Hoods and Tailgates, Roofs, Fenders, Pillars, Frontend, Reinforcement-Parts … Our Portfolio

TQM-Europe

Machining Optimization Tool-Assembly Tryout und Commisioning Engineering (external)

23.04.2018 3

Processes and services

TQM-Europe

High-Speed-Cutting

Machining

■ CAM - Manufacturing

• 12 Tebis-Licenses
• Tebis Interfaces
• Catia V5
• STL-Daten
• Siemens NX

■ Photogrammetrie ■ 3-Achs- / 5-Achs- / HSC-Milling

• Table-size up to 5.500 x 3.500 mm
• Headroom up to 1.700 mm
• Traversing distance up to

6.500 x 4.500 mm

• Table-loading max. 40 to.

Systems of Machining:

23.04.2018 4

Grundbearbeitung Bettfräsmaschine Droop & Rein HSC

TQM-Europe

Tool Assembly

■ Assembly of tools till functioning ■ … until accepting spotting picture ■ … until Note 3 ■ … until Note 1 ■ Manufacturing at TQM Europe (Heilbronn) ■ Great experience of total projects ■ Flexible implementation of order volumes according to customer requirements ■ Production according to customer standards ■ Quality according to German quality standards ■ Schedule and milestones in close cooperation with our customers ■ Communication in the language of the customer

23.04.2018 5

TQM-Europe

Tryout

■ Upon customer request, the tools are grinded with the stone after HSC machining and the sheet thickness is spotted into a constantly bearing picture in our tryout presses. Due to the decades-long specialization in the high requirements for outer skin parts, the tools are exclusively matched by TQM-Europe employees. ■ Thanks to decades of specialization in the demanding requirements for exterior body parts, the tools are being prepared by experienced TQM-Europe employees for the subsequent component optimization projects. ■ Ensuring the required component quality by

• Elimination of cracks and folds in the sheet

metal part

• Introduction of proven technical adjustments

and corrections

• High experience through versatile and different

requirements in the service sector.

■ Production of pre-production parts during the try-outs is possible ■ Manufacturing of small batches

23.04.2018 6

TQM-Europe

The presses of TQM are mainly used for tryout and optimization of the drawing, trimming and forming tools.

7 23.04.2018

Presses

In addition, a Pre-series and small batch production in these presses is possible. TQM Europe has:

• 5 Presses with a table length of 5 m
• 2 Presses with a table length of 4 m and 4,25 m (4 m)
• 7 Presses with a table length of 2,75 m to 3,20 m (3 m)

TQM-Europe

Optimization

■ Tool and component optimization at

• ur customers worldwide

■ Optimization Objects

Cracks, folds, surface quality, tolerances Defect areas, cutting burr, scrap disposal etc. …

■ Examples

Door handle Tank cut-out Top of fender

■ Target

Guarantee Tolerances of the panels Surface Quality (outer panels) Safety of the hole forming process Safety of process and lifetime of tools

Use of TQM-Europe specialists

23.04.2018 8

Execution in the service sector or within the process chain

TQM-Europe

Home-Line-Tryout

■ Home-line-tryout in the customers Press shop worldwide ■ The home-line tryout is always carried out with TQM-EU specialists and possibly in cooperation with TQM ■ Matching – Modifications according to the customer‘s specification are carried out during the course of commissioning ■ Optimization of tools up to production stage ■ Ensuring the process ■ Final acceptance of the tools and press parts by the customer together with the responsible persons of TQM-Europe ■ Communication in the language of the customer (german, english … ) ■ Accompanying the start of productions

23.04.2018 9

TQM-Europe

■ Quality Loops takes place in China or in Germany , but in principle with TQM-Europe specialists. ■ Project processes are coordinated with the customer ■ Optimal use of cost advantages by TQM-China and the know-how of TQM-EU

Collaborative Projects – Main task

Projects of TQM-Group (Collaborative Projects): ■ Project management is done by TQM-EU ■ Manufacturing of the tools is carried out primarily at TQM-China in consultation with our customer. ■ TQM-EU specialists are responsible for the production of tools in China

23.04.2018 10

TQM-Europe

Collaborative Projects – The Process at TQM

Product Developement (Automobilindustrie) Product Developement (Automobilindustrie) Die - Design Die - Design Manufacture of tools, (Casting, Milling, Assembly) Manufacture of tools, (Casting, Milling, Assembly) Q-Loops & Try Out Q-Loops & Try Out TQM-Europe – Partner for European Customers

23.04.2018 11

Example of Performance

TQM-China Analyse of feasibility, Methode - Developement Analyse of feasibility, Methode - Developement

TQM-Europe 12 23.04.2018

Qualitymanagement

Our Customers

• ur aim is to build and maintain long-term, partnership-based relationships with our customers.

We are proud to be among the customers of TQM and the former Läpple tool shop:

• ur comprehensive and experienced integrated management system takes care of all the necessary

quality-, environmental and work safety aspects for taking well our customers, our employees and the environment

as a certified company, we conside all relevant standards and laws as well as to the relevant

directives of the automotive industry

TQM-Europe

With the purchase of premises, halls and buildings completed at the end of 2017, TQM will produce more effectively in the short term, since the new floor plan means that the production process is optimally structured.

13 23.04.2018

Current information

Investments are already planned as follows:

• Additional large hydraulic presses for tryout and
• ptimization support.
• Additional state-of-the-art milling machines for 5-axis

machining

TQM-Europe

TQM – Ihr Partner

For parts of processes or total projects, TQM is always your competent Partner

23.04.2018 14
