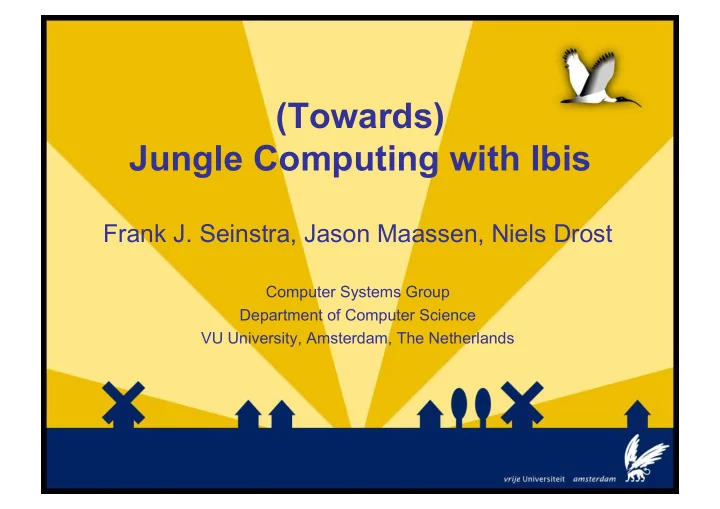

(Towards) Jungle Computing with Ibis

Frank J. Seinstra, Jason Maassen, Niels Drost

Computer Systems Group Department of Computer Science VU University, Amsterdam, The Netherlands

Jungle Computing (ComplexHPC)

• ‘Worst case’ computing as required by end-users
• Distributed
• Heterogeneous
• Hierarchical (incl. multi-/many-cores)

ComplexHPC Spring School 2011 2

Why Jungle Computing?

• Scientists often forced to use a wide variety of

resources to solve computational problems

• Prominent causes:
• Desire for scalability
• Software heterogeneity (e.g.: mix of C/MPI and CUDA)
• Distributed nature of (input) data
• Ad hoc hardware availability
• …

ComplexHPC Spring School 2011 3

Example Application Domains

• Computational Astrophysics
• Example: AMUSE
• “Simulating the Universe on an Intercontinental

Grid” - Portegies Zwart et al (IEEE Computer, Aug 2010)

• Climate Modeling
• Mixed / multi-model simulations
• Atmosphere, ocean, source rock formation,

…

• hardware:

(potentially) very diverse

• high

resolution => speed & scalability

• …

ComplexHPC Spring School 2011 4

Image / Multimedia Analysis

• Aim:
• Automatic extraction of ‘semantic concepts’ from image sets and

video streams

• Depending on specific problem & size of data set:
• May take hours, days, weeks, months, years…

ComplexHPC Spring School 2011 5

Image / Multimedia Analysis (2)

• Applications in (a.o):
• Medical Imaging
• Security / Surveillance
• Multimedia Systems
• Astronomy
• Remote Sensing
• Application types:
• Real-time vs. off-line
• Fine-grained vs. coarse-grained
• Data-intensive / compute-intensive / information-intensive

ComplexHPC Spring School 2011 6

Multimedia Content Analysis

• Need for user-friendly programming tools
• Shield domain-experts from all complexities of parallel, distributed,

heterogeneous, and hierarchical computing

• Familiar (sequential) programming model(s)

ComplexHPC Spring School 2011 7

Solution: tool to make parallel & distributed computing transparent to user

• familiar programming
• easy execution

Jungle Computing Systems User

Example: Color-based Object Recognition by a Grid-connected Robot Dog

ComplexHPC Spring School 2011 8

Seinstra et al (IEEE Multimedia, Oct-Dec 2007) Seinstra et al (AAAI’07: Most Visionary Research Award)

ComplexHPC Spring School 2011 9

Successful…

• …but many fundamental problem unsolved!
• Scaling up to very large systems
• Platform independence
• Middleware independence
• Connectivity (a.o. firewalls, …)
• Fault-tolerance
• …
• Software support tool(s) urgently needed!
• Jungle-aware + transparent + efficient
• No progress until ‘discovery’ of Ibis

ComplexHPC Spring School 2011 10

The Ibis Project

• Offers all functionality to efficiently & transparently

implement & run Jungle Computing applications

• Designed for dynamic / hostile environments
• Modular and flexible
• Allow replacement of Ibis components by external ones, including

native code

• Open source
• Download: http://www.cs.vu.nl/ibis/

ComplexHPC Spring School 2011 11

General Requirements

• Resource independence
• Transparent / easy deployment
• Middleware independence & interoperability
• Jungle-aware middleware
• Jungle-aware communication
• Robust connectivity
• System-support for malleability and fault-tolerance
• Globally unique naming
• Transparent parallelism & application-level fault-tolerance
• Easy integration with external software (legacy codes)
• MPI, OpenCL, CUDA, C, C++, scripts, …

ComplexHPC Spring School 2011 12

Ibis Software Stack

ComplexHPC Spring School 2011 13

Resource Independence: Java Transparent / Easy Deployment: Jungle-aware Middleware Middleware Independence & Interoperability

• Transp. Parallelism

Application-level FT Jungle-aware Communication Unique naming Malleability & FT Robust Connectivity

Constellation

External software

JavaGAT

• Java Grid Application Toolkit
• High-level API for developing (Grid) applications independent of

the underlying (Grid) infrastructure

• Use (Grid) services; file cp, resource discovery, job submission, …
• Overcomes problems, incl:
• Functionality may not work on all sites, or for all users, …
• Middleware version differences & complex codes…
• API standardized by OGF
• SAGA – Simple API for Grid Applications (a.o. with LSU)
• SAGA on top of JavaGAT (and v.v.)
• Tutorial by Thilo Kielmann Thursday May 12

ComplexHPC Spring School 2011 14

Zorilla

• A prototype P2P middleware
• A Zorilla system consists of a collection of nodes, connected by a

P2P network

• Each node independent & implements all middleware functionality
• No central components
• Supports fault-tolerance and malleability
• Easily combines resources in multiple administrative domains

ComplexHPC Spring School 2011 15

IbisDeploy

ComplexHPC Spring School 2011 16

Ibis Portability Layer (IPL)

• Java-centric ‘run-anywhere’ communication library
• Sent along with your application
• “MPI for the Grid” (quote 2005)
• Supports fault-tolerance and malleability
• Resource tracking (JEL model)
• Open-world / Closed world
• Efficient
• Highly optimized object serialization
• Can use optimized native libraries (e.g. MPI, MX)

ComplexHPC Spring School 2011 17

SmartSockets

• Robust connectivity
• Always connection in 30 different scenarios

ComplexHPC Spring School 2011 18

Problems:

Firewalls Network Address Translation (NAT) Non-routed networks Multi-homing …

Ibis Programming Models (1) .

• Some IPL-based programming models:
• Satin:
• A divide-and-conquer model (see paper)
• MPJ:
• The MPI binding for Java
• RMI:
• Object-Oriented remote Procedure Call
• Jorus:
• A ‘user transparent’ model for multimedia applications
• …

ComplexHPC Spring School 2011 19

Ibis Programming Models (2)

• Constellation (“the future of Ibis”):
• Generalized programming framework for ‘all’

Jungle Computing applications

• Automatically maps any application activity

(task) onto any appropriate executor (HW)

• By way of ‘contexts’:
• Example:
• Activity's context: “I need to run on a GPU”
• Executor’s context: “I represent a GPU”
• Note:
• Activities may represent any type of task:
• Even incl. legacy codes, scripts, 3rd party software, …

ComplexHPC Spring School 2011 20

Ibis Results: Awards

ComplexHPC Spring School 2011 21

WebPie: A Web-Scale Parallel Inference Engine

• J. Urbani, S. Kotoulas,
• J. Maassen, N. Drost, F.J. Seinstra,
• F. van Harmelen, and H.E. Bal

Conclusions

• Jungle Computing is hard
• High-Performance Jungle Computing even harder
• While research into efficient & transparent Jungle
• aware programming models has only just begun…
• …Ibis provides the basic functionality to efficiently

& transparently overcome most Jungle Computing complexities

ComplexHPC Spring School 2011 22

Conclusions (2)

• Successful, also because:
• Availability of dedicated hardware infrastructure
• 4 generations of DAS systems
• Focus on building solid software infrastructure
• No need to start from scratch over and over
• Focus on real-world problems on real-world systems
• e.g. participation in international competitions

ComplexHPC Spring School 2011 23

Download

www.cs.vu.nl/ibis/
