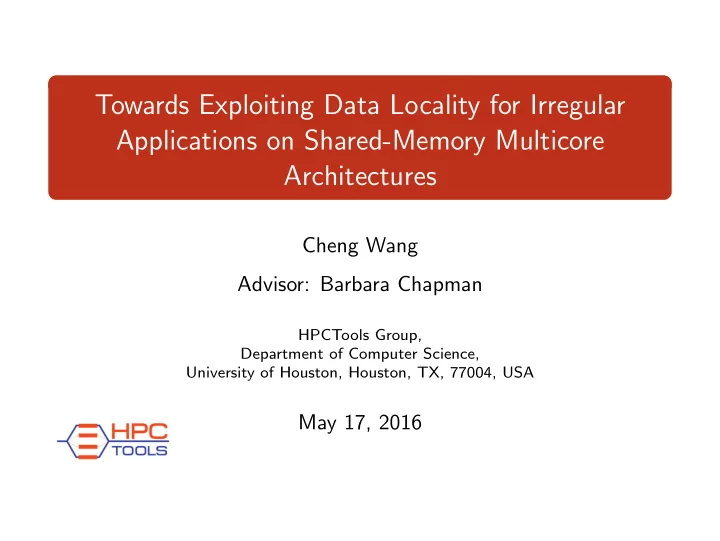

Towards Exploiting Data Locality for Irregular Applications on Shared-Memory Multicore Architectures

Cheng Wang Advisor: Barbara Chapman

HPCTools Group, Department of Computer Science, University of Houston, Houston, TX, 77004, USA

May 17, 2016

Outline

1 What are irregular applications? 2 Sparse FFT - A case study of irregular applications 3 A padding algorithm to improve the data locality 4 Conclusion & Future work

May 17, 2016 Cheng Wang (cwang35@uh.edu) 2 / 22

The Reality of Parallel Computing ...

1Slide based on a post from https://highscalability.com May 17, 2016 Cheng Wang (cwang35@uh.edu) 3 / 22

Why CPU Caching Matters?

year Performance

1980 2004 2014

CPU

Memory Processor-Memory Performance Gap

Memory hierarchy Processor-memory performance gap

• Memory has become the principle performance bottleneck
• Improve the cache utilization is the key to performance optimization

1Source: http://cs.uwec.edu/~buipj/teaching/cs.352.f12/lectures/lecture_08.html May 17, 2016 Cheng Wang (cwang35@uh.edu) 4 / 22

Shared-Memory Multicore Architectures

1 Shared memory

• On-chip: (Last-level) cache shared by homo/hetero processors
• Off-chip: Main memory shared by homo/hetero processors

May 17, 2016 Cheng Wang (cwang35@uh.edu) 5 / 22

What are Irregular Applications?

do i = 1 , N . . . = x [ idx [ i ] ] end do

1 Indirect array reference pattern 2 Commonly found in linked list, tree and graph-based

applications

3 Poor data locality 4 Challenge esp. for shared-memory multicore architecture as

cores compete for memory bandwidth

May 17, 2016 Cheng Wang (cwang35@uh.edu) 6 / 22

Approach: Computation/Data Reordering

1 2 3 4 1 2 3 4 Computation Data 1 2 3 4 3 1 2 4 2 3 1 4 1 2 3 4 Computation reordering Data reordering

May 17, 2016 Cheng Wang (cwang35@uh.edu) 7 / 22

Challenges in Dynamic Irregularity Removal

1 Dynamic irregularity

• Memory access pattern remains unknown until runtime and

may change during computations

• Previous work on compile-time transformations can hardly

apply

• Need for transformation at runtime

2 Runtime transformation overhead

• Transformation overhead is placed on the critical path of the

application’s execution

• The benefits of improved data locality must outweigh the cost
• f the data layout transformation at runtime

May 17, 2016 Cheng Wang (cwang35@uh.edu) 8 / 22

1 What are irregular applications? 2 Sparse FFT - A case study of irregular applications 3 A padding algorithm to improve the data locality 4 Conclusion & Future work

Sparse FFT

FFT

1 A novel compressive sensing algorithm with massive application

domains

2 Fourier transform is dominated by a small number of “peaks”

• FFT(O(nlogn)) is inefficient

3 Compute the k-sparse Fourier transform in lower time complexity

• k-sparse: no. of “large” coordinates at freq. domain

May 17, 2016 Cheng Wang (cwang35@uh.edu) 10 / 22

Sparse Data is Ubiquitous ...

1Slide based on http://groups.csail.mit.edu/netmit/sFFT/ May 17, 2016 Cheng Wang (cwang35@uh.edu) 11 / 22

Irregular Memory Access Pattern in Sparse FFT

n coordinates B buckets

Irregular data reference pattern

buckets[i % B] += signal[idx] * filter[i]

• Randomly permutes the signal

spectrum and bins into a small number of buckets

• Irregular memory access pattern

May 17, 2016 Cheng Wang (cwang35@uh.edu) 12 / 22

Parallel Sparse FFT

1 Modern architectures are exclusively based on multicore and

manycore processors

• e.g., Multicore CPUs, GPUs, Intel Xeon Phi, etc.
• Nature path to improve the performance of sFFT through

efficient parallel algorithm design and impl.

2 Standard full-size FFT has been well studied and implemented

• FFTW, cuFFT, Intel MLK, etc..
• Highly optimized for specific architectures

3 We are the first such effort of high-performance parallel sFFT

implementation

1cusFFT: A High-Performance Sparse Fast Fourier Transform Algorithm on GPUs,

• C. Wang, S. Chandrasekaran, and B. Chapman, in Proceedings of 30th IEEE

International Parallel & Distributed Processing Symposium (IPDPS 2016). [To Appear]

May 17, 2016 Cheng Wang (cwang35@uh.edu) 13 / 22

• Exec. Time: cusFFT vs. sFFT vs. cuFFT (k = 1000)

0.001 0.01 0.1 1 10 19 20 21 22 23 24 25 26 27 Execution Time (sec) Signal Size (2n)

GPU: NVIDIA Tesla K20x. CPU: Intel Xeon E5-2640 (Sandy Bridge)

sFFT (MIT) PsFFT (6 threads) cusFFT cuFFT

• cuFFT: full-size FFT library on Nvidia GPUs
• The MIT seq. sFFT is slower than cuFFT
• cusFFT is 5x faster than PsFFT, 25x vs. the seq. sFFT
• cusFFT is up to 12x faster than cuFFT

May 17, 2016 Cheng Wang (cwang35@uh.edu) 14 / 22

• Exec. Time cusFFT vs. sFFT vs. cuFFT (n = 225)

0.01 0.1 1 10 5000 10000 15000 20000 25000 30000 35000 40000 Execution Time (sec) Signal Sparsity k

GPU: NVIDIA Tesla K20x. CPU: Intel Xeon E5-2640 (Sandy Bridge)

sFFT (MIT) PsFFT (6 threads) cusFFT cuFFT

• The seq. sFFT is slower than cuFFT
• PsFFT is faster than cuFFT until k = 3000
• cusFFT is faster than cuFFT until k = 41, 000

May 17, 2016 Cheng Wang (cwang35@uh.edu) 15 / 22

1 What are irregular applications? 2 Sparse FFT - A case study of irregular applications 3 A padding algorithm to improve the data locality 4 Conclusion & Future work

Rethink the Consecutive Packing (CPACK) Algorithm

CPACK: A greedy algorithm which packs data into consecutive locations in the order they are first accessed by the computation

23 67 103 1 2 3 4 Computation Data 9 ... ... ... CPACK 9 23 67 103 Data 6 cache miss 5 6 7 1 2 3 4 Computation 5 6 7 Data access order: 9, 23, 103, 23, 67, 23, 67 7 cache misses Original Data reordered by CPACK miss hit

• First-touch policy packs (9,23) together
• Not optimal

May 17, 2016 Cheng Wang (cwang35@uh.edu) 17 / 22

Rethink the Consecutive Packing (CPACK) Algorithm

Affinity-conscious data reordering ...

23 67 103 1 2 3 4 Computation Data 9 ... ... ... data reordering 23 67 9 103 Data 4 cache miss 5 6 7 1 2 3 4 Computation 5 6 7 Data access order: 9, 23, 103, 23, 67, 23, 67 7 cache misses Original An Optimal data layout miss hit

• CPACK does not consider data affinity (i.e., how close the nearby

data elements are accessed together)

• Packs (23,67) rather than (9,23) should yield better locality

May 17, 2016 Cheng Wang (cwang35@uh.edu) 18 / 22

Data Reordering and NP-completeness

1 Finding an optimal data layout is a NP-complete problem1 2 No “best” data reordering algorithm that works in general 3 Implicit constraint: Each data entry has only one copy in

the transformed format

4 The complexity can be significantly reduced if more space is

allowed to use

• 1E. Petrank and D. Rawitz. 2002. The hardness of cache conscious data placement, POPL ’02)

May 17, 2016 Cheng Wang (cwang35@uh.edu) 19 / 22

A Padding Algorithm that Circumvents the Complexity

CPACKE Algorithm: Extends the CPACK by creating duplicated copies of each repeatedly accessed data entry

23 67 103 1 2 3 4 Computation Data 9 ... ... ... data reordering 23 67 9 103 Data 4 cache miss 5 6 7 1 2 3 4 Computation 5 6 7 Data access order: 9, 23, 103, 23, 67, 23, 67 7 cache misses Original Padding algorithm miss hit 23 23 67

• Advantage: Better locality than CPACK
• Disadvantage: Slight space overhead

May 17, 2016 Cheng Wang (cwang35@uh.edu) 20 / 22

Performance Evaluation

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 19 20 21 22 23 24 25 26 27 28 Execution time (sec) Signal size (2n) Intel Xeon E5-2670 (Sandy Bridge) PsFFT (before trans) PsFFF (after trans)

• Applies the CPACKE to the perm+filter stage in sFFT
• Improves the performance by 30% for the irregular kernel
• Improves the overall performance of PsFFT by 20%

May 17, 2016 Cheng Wang (cwang35@uh.edu) 21 / 22

Conclusion & Future Work

1 A padding-based algorithm improving the data locality of

irregular applications

2 Improves the performance of sFFT by 30% 3 Future work

• Evaluate with more irregular applications
• Evaluate with other data/computation reordering algorithms
• Let compiler generate the transformed the code automatically
