SLIDE 1
2
Presentation Structure
- Introduction\Motivations
- Related Work
- Our Approach
Towards Employing Multilingual Term Resources for Intelligent - - PowerPoint PPT Presentation
Towards Employing Multilingual Term Resources for Intelligent - - PowerPoint PPT Presentation

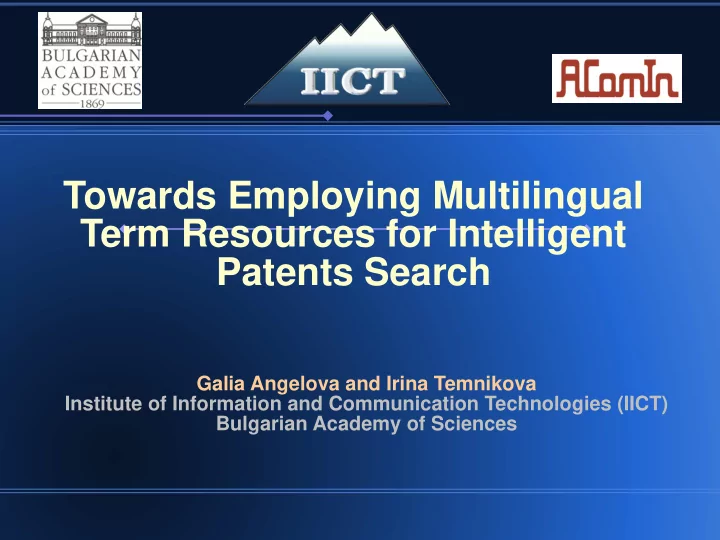

Towards Employing Multilingual Term Resources for Intelligent Patents Search Galia Angelova and Irina Temnikova Institute of Information and Communication Technologies (IICT) Bulgarian Academy of Sciences Presentation Structure
SLIDE 2
SLIDE 3
3
Work Motivations
SLIDE 4
4
Introduction/Motivations 1
- 1. 40 millions patents available electronically
- 2. Search mainly limited to:
– keywords – boolean operators – proximity – truncation/wildcards
- 3. Manual query formulation
(average of 5 minutes per query)
SLIDE 5
5
Introduction/Motivations 2
- 4. Up to 40 hours for 15 queries in 100 documents
(average 12 hours) [Joho, H., 2010]
- 5. Limited contribution of Natural Language Pro-
cessing (NLP)
- 6. Multilingual search restricted to
category numbers
SLIDE 6
6
Related work
SLIDE 7
7
Related Work 1
- 1. NLP for Patents – Various applications:
– Patents language analysis [Sheremetyeva, S., 2003;
Lamirel, J.-Ch. et al., 2003; Hsin-hung Lin, D. et al., 2010]
– Patents readability improvement [Shinmori, A. et al.,
2010]
– Patents text generation [Sheremetyeva, S. et al., 1996] – Text classification [Nanba, H. el al., 2009] – Patents translation [Waeschle, K., et al., 2011; Orsnes, B.
et al., 1996; Choi, S.-K., et al., 2007]
SLIDE 8
8
Related Work 2
- 1. NLP for Patents - Patents search:
– Document retrieval using Differential Latent Semantic Index
and Template Matching Technique [Chen, L.. et al., 2001]
– Patents, publications and persons network detection [Li, H.,
et al., 2011]
– The role of spelling errors in patents search [Stein, B., et al.,
2012]
– Query term distillation [Itoh, H., et al., 2005] – Transforming a patent application into a search query [Xue,
X., et al., 2009]
– Query expansion with synonyms using WordNet [Magdy, W.,
et al., 2011]
SLIDE 9
9
Related Work 3
- Use of Wikipedia in NLP
– Text Simplification and Machine Translation [Coster, W. et
al., 2011; Wubben, S., 2012]
– Question Answering [Dornescu, I., 2012] – Word Sense Disambiguation in Wikipedia [Ratinov, L.,
2011]
– Untangling Wikipedia cross-lingual links [De Melo, G., et
al., 2010]
– Relation extraction [Yan, Y. et al., 2009] – Named Entity disambiguation using W. [Cucerzan, S., 2007]
SLIDE 10
10
Our Approach
SLIDE 11
11
Our Approach 1
- Aims:
– Improve patents search – Make possible multilingual search
- How:
– By applying NLP techniques – With the help of a large external multilingual
terminological resource (extracted from Wikipedia)
SLIDE 12
12
Our Approach 2
- Expanding search by:
– Annotation/indexing of patent applications – Adding term equivalents to the search query
itself
- Types of terms added:
– Synonyms – Paraphrases – Multilingual equivalents
SLIDE 13
13
Our Approach 3
- Recognition of the correct sense of the term:
– Patent classification labels
+
– Wikipedia title pages controlled by experts
+
– Wikipedia articles long texts
SLIDE 14
14
Our Approach 5
Patent terms disambiguation using Wikipedia
SLIDE 15
15
Our Approach 4
International Patent Classification (IPC) terms
SLIDE 16
16
Our Approach 5
The Wikipedia “Computer file” article
SLIDE 17
17
Our Approach 6
NLP term enrichment details: 1.Extraction of synonyms
- textual markers “also known as”
- Wikipedia “redirect” pages {{Redirect|term}}
2.Noun phrase paraphrases
- “Date of birth”= “Birthdate”
SLIDE 18
18
Our Approach 7
NLP term enrichment details: 3.Multilingual equivalents
En: Childbirth
- French:
accouchement, travail, naissance, parturition
- Italian: parto
SLIDE 19
19
Our Approach 8
Multilingual indexation of patents terms.
SLIDE 20
20
Summary 1
- Improving patents search with NLP techniques
- Using a large terminological controlled and
regularly updated resource (Wikipedia)
- Challenges: term sense disambiguation
– Solutions:
- Patents classification categories
- Wikipedia articles large texts
SLIDE 21
21
Summary 2
- Patent applications annotation + search ex-
pansion with:
– Synonyms – NP paraphrases – Multilingual equivalents
SLIDE 22
22
Main References
- D. Hunt, D., L. Nguyen, and M. Rodgers (Eds.). Patent searching: tools
and techniques. Wiley, 2007. Joho, H., L. A. Azzopardi and W. Vanderbauwhede. A survey of patent users: an analysis of tasks, behavior, search functionality and system
- requirements. In Proceedings of the third symposium on Information
interaction in context, ACM, 2010, pp. 13-24. Lupu, M., K. Mayer, J. Tait, and A. J. Trippe. (Eds.) Current challenges in patent information retrieval. The Information Retrieval Series, Vol. 29, Springer, 2011.
SLIDE 23
23
