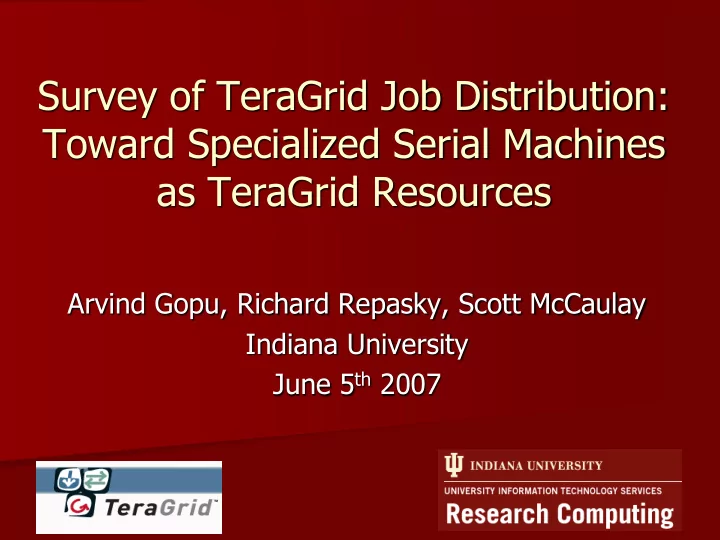

Survey of TeraGrid Job Distribution: Toward Specialized Serial Machines as TeraGrid Resources

Arvind Gopu, Richard Repasky, Scott McCaulay Indiana University June 5th 2007

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 2

Introduction

 Proceeding toward peta-scale computing

– On the TeraGrid: Massive parallel machines with high speed low latency (HSLL) networking – More to follow?

 HSLL networking gear:

– Expensive – most often 1/3rd of system cost – Additional technical skill set required to build and maintain

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 3

Introduction (contd…)

 Considerable user base that run serial and

coarse-grained parallel code

– Big chunk of compute nodes, and expensive networking gear: unutilized

 TeraGrid job distribution (Oct 2004-06)  Backfill: System utilization vs. user satisfaction  . . . More detail . . .  Conclusion: specialized serial systems or hybrid

parallel machines i.e. parts of parallel systems without HSSL network?

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 4

Peta-scale computing in the horizon

 Aggressively moving toward peta-scale

computing… NSF funded TeraGrid RP sites plus more…

– Large parallel systems – great for research! Lead to many a path breaking research finding

 BUT …

– High Speed Low Latency networks are expensive! – Do all researchers, who do computational analyses, need large parallel machines? No!

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 5

Who does not necessarily need HSLL?

 Users who run:

– Legacy serial applications: more likely to have longer walltime (since they don’t use multiple CPUs) – Coarse-grained parallel applications – embarrassingly parallel code, master-worker, etc.

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 6

Who does not necessarily need HSLL? (contd...)

 Consider 64 serial jobs, each running for 72

hours (or worse), on 4-core compute nodes

– 75% of cores, i.e., 3 out of 4 cores idle (mostly) for 72 hours

• 64 cores active; 192 cores idle!

– Optical fiber or the like (usually 1/3rd of system cost), connecting those 64 nodes unutilized for 72 hours! – Possibly holding parallel user for 72 hours – How about 8-core nodes – even worse.

 Bad scenario!

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 7

When do serial and coarse-grained parallel jobs help?

 When they’re short (walltime)!  Consider 1024 serial jobs (or distributed worker tasks

from a parallel code), each running for 30 minutes or less, on 4-core compute nodes

– 75% of cores, i.e., 3 out of 4 cores idle (mostly) at worst, for 30 minutes

• Again … 64 active cores; 192 cores idle
• Again … HSLL network connecting those 64 nodes unutilized
• BUT only for a short period of time;

– And most likely: not holding a large parallel job up

 Scenario? Much better system utilization – backfill

– Constant flow of such jobs is good on massive parallel systems (with HSLL)

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 8

TeraGrid Job Distribution (Oct 2004-06)

 Plotted job characteristics:

– Number of CPUs used by each job vs. Number

• f jobs

– Walltime for serial jobs vs. Number of jobs

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 9

TeraGrid Job Distribution: Number

• f CPUs per job vs. Number of Jobs

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 10

TeraGrid Job Distribution: Walltime for serial jobs vs. Number of Jobs

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 11

TeraGrid Job Distribution (contd…)

 The plots in previous slides:

– Show serial vs. multi-CPU jobs (close to 60% serial) – Do not show coarse-grained vs. fine-grained parallel jobs

• Hard to figure out from available logs; possible to

filter at allocation stage though

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 12

Job Distribution on TeraGrid vs. on IU resources

 Is job distribution on TeraGrid completely reflective of

computational user base?

– Many legacy applications run serial (unless a web service wraps them to run differently – still a research topic) – Coarse-grained parallel applications abound –embarrassingly parallel with not much communication

 For instance, on IU’s Big Red

– Part of system dedicated to TeraGrid; rest for local users – Larger serial user base – Plus … (repeating what’s been mentioned before) users running embarrassingly parallel code do not need HSLL network – Continuation of trend we’ve seen on past systems

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 13

Revisiting backfill

 So, are serial jobs inherently bad for

parallel machines? No!

 Use parallel jobs with low CPU-count and

walltime requirements, as well as shorter serial jobs, to fill in while scheduler accumulates nodes for large parallel job

 Great to increase system utilization

– But does backfill always work?

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 14

When backfill is great …

 Backfill is great when there are large number of

short serial (or parallel) jobs.

– Monte Carlo simulations – Lots and lots of really short serial jobs – Applications that distribute one big task into simultaneously short running serial/threaded tasks – Fill up nodes that are being kept idle for massive parallel job

 Don’t necessarily need serial jobs; can use

smaller parallel jobs to fill in as backfill (for larger parallel jobs)

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 15

Increased queue wait times

 Backfill does not work when…  Serial or coarse-grained parallel jobs are

longer (walltime)

– Long serial jobs wait in queue because scheduler is usually configured to give preference to large parallel jobs – Frustration for serial user: “Just one (or a few) long single CPU job(s), why can’t I run?”

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 16

Increased queue wait times (contd…)

 Another scenario – large serial job(s) sneak(s) in…  What if, a set of long (walltime) serial or coarse-grained

parallel jobs sneak into running state before large parallel job arrives in job queue?

– Parallel job(s) wait(s) till all or a subset of serial jobs complete – In this case,

• Again 3/4ths or more of CPUs/cores – on nodes used by

aforementioned longer walltime jobs – laying around

• And repeating one more time … expensive networking gear

connecting those nodes also laying around idle!

– Frustration for parallel user! “My job is tailor-made for this system but I am waiting because of these serial jobs!”

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 17

Specialized Serial Machines?

 Certain resources without HSLL network

– Or certain resources with a mix of HSLL connected nodes and Ethernet connected nodes

 Allocate large serial apps or long running coarse-

grained parallel apps here

– Still use short serial for backfill on massive parallel machine – Threshold will be based on need, and will vary over each allocation meeting

• Is parallel cycles in shortage (or serial cycles)?

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 18

Lower financial barrier for new RPs

 Not only does having serial systems

• bviate wastage of expensive network

gear/CPUs

 Lowers financial barrier for new resource

providers to join TeraGrid

– Spend less on entire system! – Or, relocate funds that would have been used for HSLL networking gear toward more CPUs

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 19

Training wheels for new RPs

 Plus new RPs have lot on their hands:

– Hooking up to TG network backbone – CTSS – Accounting and Usage (AMIE, etc.) – Myrinet and Infiniband require specialized skills to maintain… even experienced sys- admins find it challenging

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 20

Single point of entry for ALL computational users

 Right now, the legacy serial code user base may

find it hard to get cycles on TeraGrid (unless they have some sort of threading in their code)

 Have more variety in available resources:

– Massive parallel systems – Systems that provide serial cycles or parallel cycle without HSLL – SMP systems

 Single point of entry for all types of

computational users in the US: TeraGrid

– 10 Gig pipe requirement may also a barrier as of now for smaller resource providers

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 21

Conclusion

 Myrinet, Infiniband, etc. (high speed low latency

networks) very expensive and require specialized maintenance

 A large subset of users still run legacy serial applications

• r coarse-grained parallel applications

 With specialized serial machines or hybrid parallel

machines:

– Allocate large serial user requests and coarse-grained parallel requests to those – Better “user experience” (especially in terms of queue wait times) for both massive parallel users and long running serial users – Lower financial barrier for new RPs and lesser learning curve for sys-admins – TeraGrid as single point of entry for computational users

June 5th 2007 Gopu et al., Survey of TeraGrid Job Distribution... 22

Acknowledgments

 Larry Simms – for assistance with analysis

and visualization of the TeraGrid usage data using SAS

 David Hart (@ SDSC), Chris Baumbauer –

for letting us query the TeraGrid central database to collect usage data used on this paper

 TG’07 organizers – for giving us an

• pportunity to present this paper
