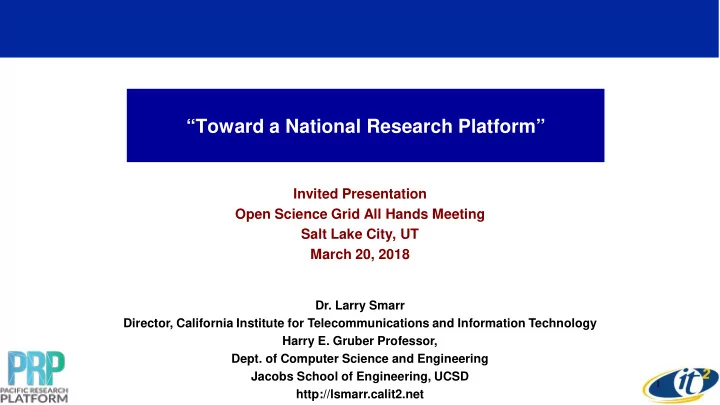

Toward a National Research Platform Invited Presentation Open Science Grid All Hands Meeting Salt Lake City, UT March 20, 2018 Dr. Larry Smarr Director, California Institute for Telecommunications and Information Technology Harry E.
“Toward a National Research Platform”
Invited Presentation Open Science Grid All Hands Meeting Salt Lake City, UT March 20, 2018
Director, California Institute for Telecommunications and Information Technology Harry E. Gruber Professor,
Jacobs School of Engineering, UCSD http://lsmarr.calit2.net
1
30 Years Ago NSF Brought to University Researchers a DOE HPC Center Model NCSA Was Modeled on LLNL SDSC Was Modeled on MFEnet 1985/6
Supercomputing ‘95
– 65 Science Projects – Into the San Diego Convention Center
– Networked Visualization Applications – Large-Scale Immersive Displays – I-Soft Programming Environment
– Led to the Globus Project
http://archive.ncsa.uiuc.edu/General/Training/SC95/GII.HPCC.html
See talk by: Brian Bockelman
NSF’s PACI Program was Built on the vBNS to Prototype America’s 21st Century Information Infrastructure
The PACI Grid Testbed
National Computational Science
1997
vBNS led to
Key Role
& Condor
UCSD Has Been Working Toward PRP for Over 15 Years: NSF OptIPuter, Quartzite, Prism Awards
PI Papadopoulos, 2013-2015 PI Smarr, 2002-2009 PI Papadopoulos, 2004-2007
Precursors to DOE Defining DMZ in 2010
Based on Community Input and on ESnet’s Science DMZ Concept, NSF Has Funded Over 100 Campuses to Build DMZs
Red 2012 CC-NIE Awardees Yellow 2013 CC-NIE Awardees Green 2014 CC*IIE Awardees Blue 2015 CC*DNI Awardees Purple Multiple Time Awardees
Source: NSF
NSF Program Officer: Kevin Thompson
(GDC)
Logical Next Step: The Pacific Research Platform Networks Campus DMZs to Create a Regional End-to-End Science-Driven “Big Data Superhighway” System
NSF CC*DNI Grant $5M 10/2015-10/2020
PI: Larry Smarr, UC San Diego Calit2 Co-PIs:
Letters of Commitment from:
NSF Program Officer: Amy Walton
Source: John Hess, CENIC
Note That the OSG Cluster Map Has Major Overlap with the NSF-Funded DMZ Map
Source: Frank Würthwein, OSG, UCSD/SDSC, PRP
NSF CC* Grants
Bringing OSG Software and Services to a Regional-Scale DMZ
Source: Frank Würthwein, OSG, UCSD/SDSC, PRP
– ~$8,000 Big Data PC with:
– 1 CPUs – 10/40 Gbps Network Interface Cards – 3 TB SSDs or 100+ TB Disk Drive
– Extensible for Higher Performance to:
– +NVMe SSDs for 100Gbps Disk-to-Disk – +Up to 8 GPUs [4M GPU Core Hours/Week] – +Up to 160 TB Disks for Data Posting – +Up to 38 Intel CPUs
– $700 10Gpbs FIONAs Being Tested
– 1Gbps NIC With USB-3 for Flash Storage or SSD
Big Data Science Data Transfer Nodes (DTNs)- Flash I/O Network Appliances (FIONAs)
FIONette—1G, $250
Phil Papadopoulos, SDSC & Tom DeFanti, Joe Keefe & John Graham, Calit2
Key PRP Innovation: UCSD Designed FIONAs To Solve the Disk-to-Disk Data Transfer Problem at Full Speed on 10/40/100G Networks
FIONAS—10/40G, $8,000
We Measure Disk-to-Disk Throughput with 10GB File Transfer Using Globus GridFTP 4 Times Per Day in Both Directions for All PRP Sites
January 29, 2016
From Start of Monitoring 12 DTNs to 24 DTNs Connected at 10-40G in 1 ½ Years
July 21, 2017 Source: John Graham, Calit2/QI
PRP’s First 2 Years: Connecting Multi-Campus Application Teams and Devices
Earth Sciences
PRP Over CENIC Couples UC Santa Cruz Astrophysics Cluster to LBNL NERSC Supercomputer CENIC 2018 Innovations in Networking Award for Research Applications
100 Gbps FIONA at UCSC Allows for Downloads to the UCSC Hyades Cluster from the LBNL NERSC Supercomputer for DESI Science Analysis
300 images per night. 100MB per raw image 120GB per night 250 images per night. 530MB per raw image 800GB per night
Source: Peter Nugent, LBNL Professor of Astronomy, UC Berkeley
Precursors to LSST and NCSA
NSF-Funded Cyberengineer Shaw Dong @UCSC Receiving FIONA Feb 7, 2017
Jupyter Has Become the Digital Fabric for Data Sciences PRP Creates UC-JupyterHub Backbone
Source: John Graham, Calit2
Goal: Jupyter Everywhere
LHCOne Traffic Growth is Large Now But Will Explode in 2026
31 Petabytes in January 2018 +38% Change Within Last Year
LHC Accounts for 47% of Total ESNet traffic Today
Dramatic Data Volume Growth Expected for HL-LHC in 2026
Source: Frank Würthwein, OSG, UCSD/SDSC, PRP
Data Transfer Rates From 40 Gbps DTN in UCSD Physics Building, Across Campus on PRISM DMZ, Then to Chicago’s Fermilab Over CENIC/ESnet
Based on This Success, Würthwein Will Upgrade 40G DTN to 100G For Bandwidth Tests & Kubernetes Integration With OSG, Caltech, and UCSC
Source: Frank Würthwein, OSG, UCSD/SDSC, PRP
LHC Data Analysis Running on PRP
Source: Frank Würthwein, OSG, UCSD/SDSC, PRP
Two Projects:
First Steps Toward Integrating OSG and PRP – Tier 3 “Cluster-in-a Box”
Source: Frank Würthwein, OSG, UCSD/SDSC, PRP
PRP Distributed Tier-2 Cache Across Caltech & UCSD
Cache Server Cache Server
Redirect
Cache Server Cache Server
Redirect
UCSD Caltech
Redirector Top Level Cache Global Data Federation of CMS
Applications Can Connect at Local
⇒ Test the System as Individual or Joint Cache Provisioned pilot systems:
PRP UCSD: 9 x 12 SATA Disk of 2TB @ 10Gbps for Each System PRP Caltech: 2 x 30 SATA Disk of 6TB @ 40Gbps for Each System
Production Use (UCSD only) I/O in Production Limited by # of Apps Hitting the Cache, and Their I/O Patterns
Source: Frank Würthwein, OSG, UCSD/SDSC, PRP
Game Changer: Using Kubernetes to Manage Containers Across the PRP
“Kubernetes is a way of stitching together a collection of machines into, basically, a big computer,”
and now CEO and Founder of Heptio "Everything at Google runs in a container."
“Kubernetes has emerged as the container orchestration engine of choice for many cloud providers including Google, AWS, Rackspace, and Microsoft, and is now being used in HPC and Science DMZs.
See talk by: Rob Gardner
Distributed Computation on PRP Nautilus HyperCluster Coupling SDSU Cluster and SDSC Comet Using Kubernetes Containers
25 years
Developed and executed MPI-based PRP Kubernetes Cluster execution [CO2,aq] 100 Year Simulation
4 days
75 years 100 years
separated by two shale layers
Simulating the Injection of CO2 in Brine-Saturated Reservoirs: Poroelastic & Pressure-Velocity Fields Solved In Parallel With MPI Using Domain Decomposition Across Containers
Source: Chris Paolini and Jose Castillo, SDSU
Rook is Ceph Cloud-Native Object Storage ‘Inside’ Kubernetes https://rook.io/
Source: John Graham, Calit2/QI
See talk by: Shawn McKee
FIONA8: Adding GPUs to FIONAs Supports Data Science Machine Learning
Multi-Tenant Containerized GPU JupyterHub Running Kubernetes / CoreOS Eight Nvidia GTX-1080 Ti GPUs
~$13K 32GB RAM, 3TB SSD, 40G & Dual 10G ports Source: John Graham, Calit2
FIONA8 FIONA8 100G Epyc NVMe
Nautilus - A Multi-Tenant Containerized PRP HyperCluster for Big Data Applications Running Kubernetes with Rook/Ceph Cloud Native Storage and GPUs for Machine Learning
40G SSD 3T 100G NVMe 6.4T SDSU 100G Gold NVMe March 2018 John Graham, Calit2/QI 100G NVMe 6.4T Caltech 40G SSD UCAR FIONA8 UCI FIONA8 FIONA8 FIONA8 FIONA8 FIONA8 FIONA8 FIONA8 FIONA8
sdx-controller controller-0
Calit2 100G Gold FIONA8 SDSC 40G SSD UCR 40G SSD USC 40G SSD UCLA 40G SSD Stanford 40G SSD UCSB 100G NVMe 6.4T 40G SSD UCSC 40G SSD Hawaii
Rook/Ceph - Block/Object/FS Swift API compatible with SDSC, AWS, and Rackspace
Kubernetes Centos7
FIONA8 FIONA8 100G Epyc NVMe 40G 160TB 100G NVMe 6.4T SDSU 100G Gold NVMe
March 2018 John Graham, UCSD
100G NVMe 6.4T Caltech 40G 160TB UCAR FIONA8 UCI FIONA8 FIONA8 FIONA8 FIONA8 FIONA8 FIONA8 FIONA8 FIONA8
sdx-controller controller-0
Calit2 100G Gold FIONA8 SDSC 40G 160TB UCR 40G 160TB USC 40G 160TB UCLA 40G 160TB Stanford 40G 160TB UCSB 100G NVMe 6.4T 40G 160TB UCSC 40G 160TB Hawaii
Running Kubernetes/Rook/Ceph On PRP Allows Us to Deploy a Distributed PB+ of Storage for Posting Science Data
Rook/Ceph - Block/Object/FS Swift API compatible with SDSC, AWS, and Rackspace
Kubernetes Centos7
Collaboration Opportunity with OSG & PRP
1.8PB 1.2PB 1.6PB 210TB Total data volume pulled last year is dominated by 4 caches.
OSG Is Operating a Distributed Caching CI. At Present, 4 Caches Provide Significant Use PRP Kubernetes Infrastructure Could Either Grow Existing Caches by Adding Servers,
See talks by: Alex Feltus Derek Weitzel
StashCache Users include:
See talk by Marcelle Soares-Santos
LIGO DES
Source: Frank Würthwein, OSG, UCSD/SDSC, PRP
New NSF CHASE-CI Grant Creates a Community Cyberinfrastructure: Adding a Machine Learning Layer Built on Top of the Pacific Research Platform
Caltech UCB UCI UCR UCSD UCSC Stanford MSU UCM SDSU NSF Grant for High Speed “Cloud” of 256 GPUs For 30 ML Faculty & Their Students at 10 Campuses for Training AI Algorithms on Big Data
NSF Program Officer: Mimi McClure
48 GPUs for OSG Applications
UCSD Adding >350 Game GPUs to Data Sciences Cyberinfrastructure - Devoted to Data Analytics and Machine Learning
SunCAVE 70 GPUs WAVE + Vroom 48 GPUs
FIONA with 8-Game GPUs
88 GPUs for Students CHASE-CI Grant Provides 96 GPUs at UCSD for Training AI Algorithms on Big Data
Next Step: Surrounding the PRP Machine Learning Platform With Clouds of GPUs and Non-Von Neumann Processors
Microsoft Installs Altera FPGAs into Bing Servers & 384 into TACC for Academic Access
CHASE-CI
64-TrueNorth Cluster 64-bit GPUs
4352x NVIDIA Tesla V100 GPUs
See talk by: Hurtado Anampa
PRP is Partnering with NSF Grants Supporting Advanced Cyberinfrastructure Facilitators to Explore PRP Extension Toward NRP
PRP Connected
ACI-REF has also spawned the 35-member Campus Research Computing Consortium (CaRCC), Funded by the NSF as a Research Coordination Network (RCN)
CaRCC is Dedicated to Sharing Best Practices, Expertise, and Resources, Enabling the Advancement of Campus-Based Research Computing Activities Across the Nation
Jim Bottum, Principal Investigator Tom Cheatham, ACI REF Chair of Campus PIs
ACI-REF CaRCC
See talk by Tom Cheatham
Expanding to the Global Research Platform Via CENIC/Pacific Wave, Internet2, and International Links PRP
PRP’s Current International Partners
Korea Shows Distance is Not the Barrier to Above 5Gb/s Disk-to-Disk Performance
Netherlands Guam Australia Korea Japan Singapore
The Second National Research Platform Workshop Bozeman, MT August 6-7, 2018
A follow-up FIONA workshop will be held as a lead into the 2nd NRP workshop in Bozeman, starting August 2nd. While the workshop will be
there is a specific focus
and minority serving institutions. Co-Chairs: Larry Smarr, Calit2 Inder Monga, ESnet Ana Hunsinger, Internet2
Local Host: Jerry Sheehan, MSU
Our Support:
ACI-1540112, & ACI-1541349
