The 24th International Conference on Automated Planning and Scheduling, ICAPS 2014 Thompson Sampling based Monte-Carlo Planning in POMDPs Aijun Bai 1 Feng Wu 2 Zongzhang Zhang 3 Xiaoping Chen 1 1 University of Science & Technology of China 2

slide-1
SLIDE 1

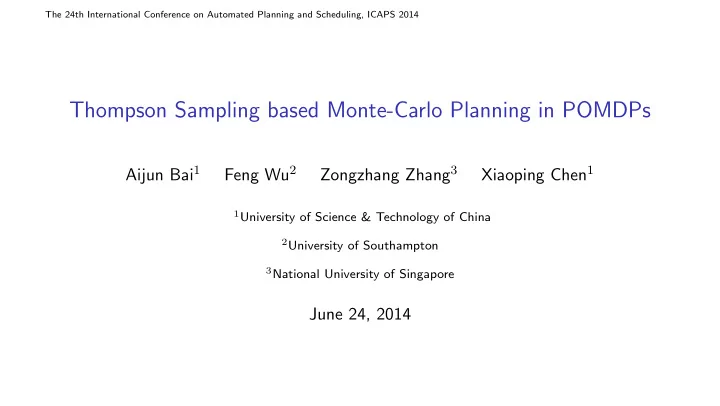

The 24th International Conference on Automated Planning and Scheduling, ICAPS 2014

Thompson Sampling based Monte-Carlo Planning in POMDPs

Aijun Bai1 Feng Wu2 Zongzhang Zhang3 Xiaoping Chen1

1University of Science & Technology of China 2University of Southampton 3National University of Singapore

June 24, 2014

slide-2
SLIDE 2

Table of Contents

Introduction The approach Empirical results Conclusion and future work

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 2 / 22

slide-3
SLIDE 3

Monte-Carlo tree search

◮ Online planning method ◮ Finds near-optimal policies for MDPs and POMDPs ◮ Builds a best-first search tree using Monte-Carlo samplings ◮ Without explicitly knowing the underlying models in advance

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 3 / 22

slide-4
SLIDE 4

MCTS procedure

Figure 1 : Outline of Monte-Carlo tree search [Chaslot et al., 2008].

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 4 / 22

slide-5
SLIDE 5

Resulting asymmetric search tree

Figure 2 : An example of resulting asymmetric search tree [Coquelin and Munos, 2007].

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 5 / 22

slide-6
SLIDE 6

The exploration vs. exploitation dilemma

◮ A fundamental problem in MCTS:

  • 1. Must not only exploit by selecting the action that currently seems best
  • 2. Should also keep exploring for possible higher future outcomes

◮ Can be seen as a multi-armed bandit problem (MAB)

  • 1. A set of actions: A
  • 2. An unknown stochastic reward function R(a) := Xa

◮ Cumulative regret (CR):

RT = E T

  • t=1

(Xa∗ − Xat)

  • (1)

◮ Minimize CR by trading off between exploration and exploitation

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 6 / 22

slide-7
SLIDE 7

UCB1 heuristics

◮ POMCP algorithm [Silver and Veness, 2010]:

UCB1(h, a) = ¯ Q(h, a) + c

  • log N(h)

N(h, a) (2)

◮ ¯

Q(h, a) is the mean outcome of applying action a in history h

◮ N(h, a) is the visitation count of action a following h ◮ N(h) =

a∈A N(h, a) is the overall count

◮ c is the exploration constant

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 7 / 22

slide-8
SLIDE 8

Balancing between CR and SR in MCTS

◮ Simple regret (SR):

rn = E [Xa∗ − X¯

a]

(3) where ¯ a = argmaxa∈A ¯ Xa

◮ Makes more sense for pure exploration ◮ A recently growing understanding: balance between CR and SR

[Feldman and Domshlak, 2012]

  • 1. Does not collect a real reward when searching the tree
  • 2. Good to grow the tree more accurately by exploiting the current tree
  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 8 / 22

slide-9
SLIDE 9

Thompson sampling

◮ Select an action based on its posterior probability of being optimal

P(a) =

  • 1
  • a = argmax

a′

E [Xa′ | θa′]

a′

Pa′(θa′ | Z) dθ (4)

  • 1. θa specifies the unknown distribution of Xa
  • 2. θ = (θa1, θa2, . . . ) is a vector of all hidden parameters

◮ Can efficiently be approached by sampling method

  • 1. Sample a set of hidden parameters θa
  • 2. Select the action with highest expectation E [Xa′ | θa′]
  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 9 / 22

slide-10
SLIDE 10

An example of Thompson sampling

◮ 2-armed bandit: a and b ◮ Bernoulli reward distributions ◮ Hidden parameters pa and pb ◮ Prior distributions:

◮ pa ∼ Uniform(0, 1) ◮ pb ∼ Uniform(0, 1)

◮ History: a, 1, b, 0, a, 0 ◮ Posterior distributions:

◮ pa ∼ Beta(2, 2) ◮ pb ∼ Beta(1, 2)

◮ Sample pa and pb ◮ Compare E[Xa | pa] and E[Xb | pb]

(a) Beta(2, 2). (b) Beta(1, 2). Figure 3 : Posterior distributions.

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 10 / 22

slide-11
SLIDE 11

Motivation

◮ Thompson sampling

  • 1. Theoretically achieves asymptotic optimality for MABs in terms of CR
  • 2. Empirically has competitive and even better performance comparing with

state-of-the-art in terms of CR and SR

◮ Seems to be a promising approach for the challenge of balancing CR and SR

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 11 / 22

slide-12
SLIDE 12

Contribution

◮ A complete Bayesian approach for online Monte-Carlo planning in POMDPs

  • 1. Maintain the posterior reward distribution of applying an action
  • 2. Use Thompson sampling to guide the action selection
  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 12 / 22

slide-13
SLIDE 13

Bayesian modeling and inference

◮ Xb,a: the immediate reward of performing action a in belief b ◮ A finite set of possible immediate rewards: I = {r1, r2, . . . , rk} ◮ Xb,a ∼ Multinomial(p1, p2, . . . , pk)

  • 1. pi =

s∈S 1[R(s, a) = ri]b(s)

  • 2. k

i=1 pi = 1

◮ (p1, p2, . . . , pk) ∼ Dirichlet(ψb,a), where ψb,a = (ψb,a,r1, ψb,a,r2, . . . , ψb,a,rk) ◮ Observing r:

ψb,a,r ← ψb,a,r + 1 (5)

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 13 / 22

slide-14
SLIDE 14

Bayesian modeling and inference

◮ Xs,b,π: the cumulative reward of following policy π in joint state s, b ◮ Xs,b,π ∼ N(µs,b, 1/τs,b) (according to CLT on Markov chains) ◮ (µs,b, τs,b) ∼ NormalGamma(µs,b,0, λs,b, αs,b, βs,b) ◮ Observing v:

µs,b,0 = λs,bµs,b,0 + v λs,b + 1 (6) λs,b = λs,b + 1 (7) αs,b = αs,b + 1 2 (8) βs,b = βs,b + 1 2 λs,b(v − µs,b,0)2 λs,b + 1

  • (9)
  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 14 / 22

slide-15
SLIDE 15

Bayesian modeling and inference

◮ Xb,π: the cumulative reward of following policy π in belief b ◮ Xb,π follows a mixture of Normal distributions:

fXb,π(x) =

  • s∈S

b(s)fXs,b,π(x) (10)

◮ Xb,a,π: the cumulative reward of applying a in belief b and following policy π

Xb,a,π = Xb,a + γXb′,π (11)

◮ Expectation of Xb,a,π:

E[Xb,a,π] = E[Xb,a] + γ

  • ∈O

1[b′ = ζ(b, a, o)]Ω(o | b, a)E[Xb′,π] (12)

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 15 / 22

slide-16
SLIDE 16

Bayesian modeling and inference

◮ Ω(· | b, a) ∼ Dirichlet(ρb,a) ◮ ρb,a = (ρb,a,o1, ρb,a,o2, . . . ) ◮ Observing a transition (b, a) → o:

ρb,a,o ← ρb,a,o + 1 (13)

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 16 / 22

slide-17
SLIDE 17

Thompson sampling based action selection

◮ Decision node with belief b ◮ Sample a set of parameters:

  • 1. {wb,a,o} ∼ Dirichlet(ρb,a)
  • 2. {wb,a,r} ∼ Dirichlet(ψb,a)
  • 3. {µs′,b′} ∼ NormalGamma(µs′,b′,0, λs′,b′, αs′,b′, βs′,b′), where b′ = ζ(b, a, o)

◮ Select action with highest expectation — sampled ˜

Q value: ˜ Q(b, a) =

  • r∈I

wb,a,rr + γ

  • ∈O

1[b′ = ζ(b, a, o)]wb,a,o

  • s′∈S

µs′,b′b′(s′) (14)

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 17 / 22

slide-18
SLIDE 18

Experiments

◮ D2NG-POMCP: Dirichlet-Dirichlet-NormalGamma partially observable

Monte-Carlo planning

◮ RockSample and PocMan domains ◮ Evaluation:

  • 1. Run the algorithms for a number of iterations for current belief
  • 2. Apply the best action based on the resulting action-values
  • 3. Repeat until terminating conditions (goal state or maximal number of steps)
  • 4. Report the total discounted reward and the average time usage per action
  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 18 / 22

slide-19
SLIDE 19

Experimental results

  • 5

5 10 15 20 25 1 10 100 1000 10000 100000 1e+06

  • Avg. Discounted Return

Number of Iterations POMCP D2NG-POMCP

(a) RS[7, 8].

  • 5

5 10 15 20 25 1e-05 0.0001 0.001 0.01 0.1 1 10 100

  • Avg. Discounted Return
  • Avg. Time Per Action (Seconds)

POMCP D2NG-POMCP

(b) RS[7, 8].

  • 5

5 10 15 20 25 1 10 100 1000 10000 100000 1e+06

  • Avg. Discounted Return

Number of Iterations POMCP D2NG-POMCP

(c) RS[11, 11].

  • 5

5 10 15 20 25 1e-05 0.0001 0.001 0.01 0.1 1 10 100

  • Avg. Discounted Return
  • Avg. Time Per Action (Seconds)

POMCP D2NG-POMCP

(d) RS[11, 11].

  • 5

5 10 15 20 25 1 10 100 1000 10000 100000

  • Avg. Discounted Return

Number of Iterations POMCP D2NG-POMCP

(e) RS[15, 15].

  • 5

5 10 15 20 25 0.0001 0.001 0.01 0.1 1 10 100

  • Avg. Discounted Return
  • Avg. Time Per Action (Seconds)

POMCP D2NG-POMCP

(f) RS[15, 15].

  • 10

10 20 30 40 50 60 70 80 90 1 10 100 1000 10000 100000

  • Avg. Discounted Return

Number of Iterations POMCP D2NG-POMCP

(g) PocMan.

  • 10

10 20 30 40 50 60 70 80 90 1e-05 0.0001 0.001 0.01 0.1 1 10

  • Avg. Discounted Return
  • Avg. Time Per Action (Seconds)

POMCP D2NG-POMCP

(h) PocMan. Figure 4 : Performance of D2NG-POMCP in RockSample and PocMan

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 19 / 22

slide-20
SLIDE 20

Discussion

◮ The total computation time is linear with the total number of simulations ◮ Require more computation time than POMCP, due to the time-consuming

  • perations of sampling from various distributions

◮ Can obtain better performance in terms of computational complexity, if the

simulations are expensive

◮ Expected to have lower sample complexity

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 20 / 22

slide-21
SLIDE 21

Conclusion and future work

◮ A Bayesian MCTS algorithm: D2NG-POMCP

  • 1. Maintain the posterior distribution of cumulative reward
  • 2. Select action using Thompson sampling
  • 3. Balance between CR and SR

◮ Future work

  • 1. Our assumptions of distributions in principle only hold in the limit
  • 2. Extend these assumptions to more realistic distributions
  • 3. Test our algorithm on real-world applications
  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 21 / 22

slide-22
SLIDE 22

References I

Chaslot, G., Bakkes, S., Szita, I. and Spronck, P. (2008). Monte-Carlo Tree Search: A New Framework for Game AI. In Proceedings of the Fourth Artificial Intelligence and Interactive Digital Entertainment Conference, October 22-24, 2008, Stanford, California, USA, (Darken, C. and Mateas, M., eds), The AAAI Press. Coquelin, P.-A. and Munos, R. (2007). Bandit algorithms for tree search. In Uncertainty in Artificial Intelligence. Feldman, Z. and Domshlak, C. (2012). Simple regret optimization in online planning for Markov decision processes. In AAAI Conference on Artificial Intelligence. Silver, D. and Veness, J. (2010). Monte-Carlo planning in large POMDPs. In Advances in Neural Information Processing Systems pp. 2164–2172,.

  • A. Bai, F. Wu, Z. Zhang, and X. Chen

Thompson Sampling based Monte-Carlo Planning in POMDPs 22 / 22
