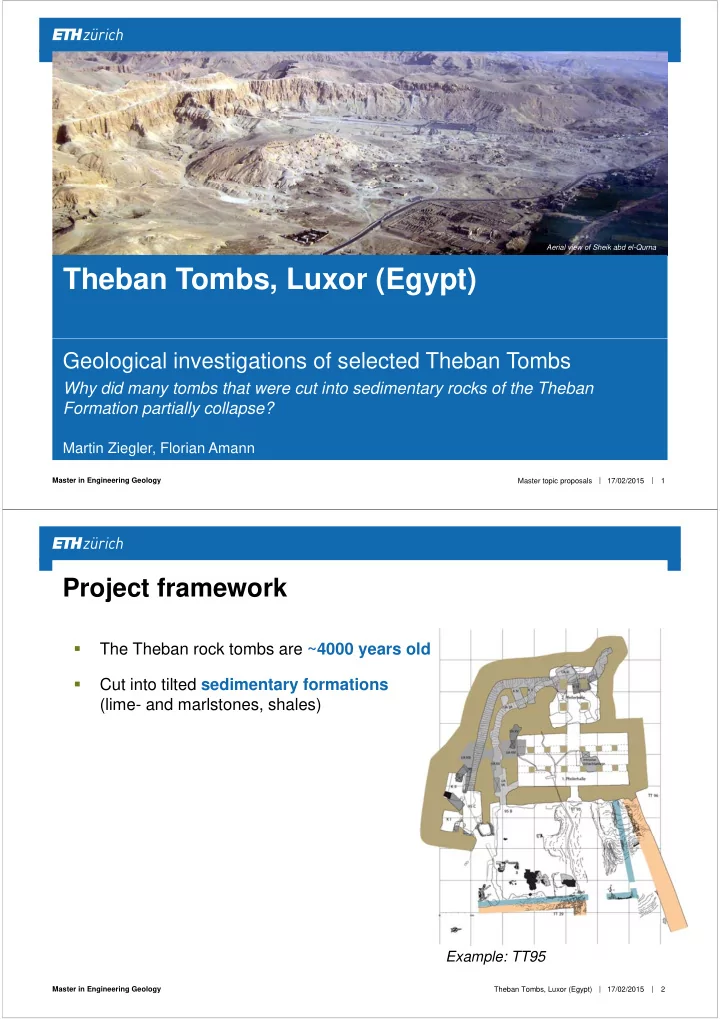

Geological investigations of selected Theban Tombs

Why did many tombs that were cut into sedimentary rocks of the Theban Formation partially collapse?

Martin Ziegler, Florian Amann

17/02/2015 Master topic proposals 1

Theban Tombs, Luxor (Egypt)

Aerial view of Sheik abd el-Qurna | | Master in Engineering Geology

Example: TT95

17/02/2015 Theban Tombs, Luxor (Egypt) 2

Project framework

• The Theban rock tombs are ~4000 years old
• Cut into tilted sedimentary formations

(lime- and marlstones, shales)

| | Master in Engineering Geology 17/02/2015 Theban Tombs, Luxor (Egypt) 3

Project framework

• The Theban rock tombs are ~4000 years old
• Cut into tilted sedimentary formations

(lime- and marlstones, shales)

• Many of the rock cut tombs show partial or

entire collapse of pillars and ceilings

• The damage is proposed to have happened

during or soon after construction of the tombs

• Archeologists from the University of Basel

are working on some of the Theban Tombs

• Study of timing and reasons of the collpase
• f the unique underground structures

| | Master in Engineering Geology 17/02/2015 Theban Tombs, Luxor (Egypt) 4

Project location

• Sheik Abd el-Qurna, Luxor

~1 hour flight from Cairo

• Between the Valley of the Kings

and the Valley of the Queens Cairo Luxor/ Theben

| | Master in Engineering Geology 17/02/2015 Theban Tombs, Luxor (Egypt) 5

Project location

• Sheik Abd el-Qurna, Luxor

~1 hour flight from Cairo

• Between the Valley of the Kings

and the Valley of the Queens Cairo Luxor/ Theben

| | Master in Engineering Geology 17/02/2015 Theban Tombs, Luxor (Egypt) 6

Project location

Dupuis et al. (2011)

| | Master in Engineering Geology 17/02/2015 Theban Tombs, Luxor (Egypt) 7

Site Geology

Dupuis et al. (2011)

Southwestern flank of the Hills of Sheikh Abd el Qurna

| | Master in Engineering Geology 17/02/2015 Theban Tombs, Luxor (Egypt) 8

Site Geology

Dupuis et al. (2011)

Southwestern flank of the Hills of Sheikh Abd el Qurna

| | Master in Engineering Geology 17/02/2015 Theban Tombs, Luxor (Egypt) 9

Sheik Abd el-Qurna (Luxor)

| | Master in Engineering Geology 17/02/2015 Theban Tombs, Luxor (Egypt) 10

Goals

• A. Detailed documentation of the geological settings of selected tombs
• B. Evaluate potential causes of early tomb damage and current stability

Tasks

• A. Develop detailed geological maps of the tombs and their surroundings
• Mapping will focus on lithology and on rock mass structures (fractures, faults, tension cracks)
• How? In-situ investigation, aerial photo interpretation, analyse photogrammetric models and

laser scans to obtain fracture statistics of different sedimentary rock layers

• B. Developed numerical models that reproduce the discrete nature of the

rock mass and the construction sequence

• Models will be built upon literature data (for geomechanical properties) and own field work
• Carried out with a distinct element approach (e.g., 3DEC)

| | Master in Engineering Geology 17/02/2015 Theban Tombs, Luxor (Egypt) 11

You will be integrated in a multi-disciplinary team

• Dr. Andrea Loprieno-Gnirs

Egyptologist and manager of the project TT95 (University of Basel)

• Prof. Dr. Christian Dupuis

Sedimentologist (Mons Polytechnics, Belgium)

• Prof. Dr. Andreas Wieser / Pascal Theiler

Geodesists (Institute of Geodesy and Photogrammetry, ETH Zurich)

| | Master in Engineering Geology 17/02/2015 Theban Tombs, Luxor (Egypt) 12

Your field site in winter 2015/2016 ?

| | Master in Engineering Geology 17/02/2015 Theban Tombs, Luxor (Egypt) 13

Your field site in winter 2015/2016 ?
