The triumvirate of automation, expressivity, and safety Chantal Keller October, 18 th 2016 The triumvirate ofautomation, expressivity, and safety Chantal Keller 1 / 18 Why so many provers? A wide range of applications, such as: deductive

SLIDE 1

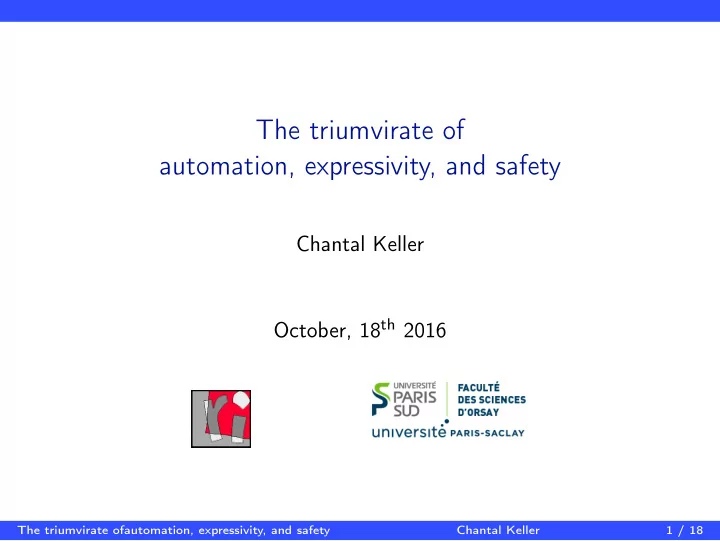

The triumvirate of automation, expressivity, and safety

Chantal Keller October, 18th 2016

The triumvirate ofautomation, expressivity, and safety Chantal Keller 1 / 18

SLIDE 2

Why so many provers?

A wide range of applications, such as: deductive verification proofs of programs “mathematical” proofs formalizing metatheory induction/coinduction reasoning on/with computation . . .

The triumvirate ofautomation, expressivity, and safety Chantal Keller 2 / 18

SLIDE 3

The triumvirate

The triumvirate ofautomation, expressivity, and safety Chantal Keller 3 / 18

SLIDE 4

Interoperability: get the best of everything

But: at what cost/effort? how agnostic can the systems be? portability? automation?

The triumvirate ofautomation, expressivity, and safety Chantal Keller 4 / 18

SLIDE 5

Interoperability: get the best of everything

But: at what cost/effort? how agnostic can the systems be? portability? automation? In this talk: three examples of interoperability between two systems A and B

The triumvirate ofautomation, expressivity, and safety Chantal Keller 4 / 18

SLIDE 6

1. Autarkic approach

system A The triumvirate ofautomation, expressivity, and safety Chantal Keller 5 / 18

SLIDE 7

1. Autarkic approach

system B system A The triumvirate ofautomation, expressivity, and safety Chantal Keller 5 / 18

SLIDE 8

1. Autarkic approach

system B system A goal The triumvirate ofautomation, expressivity, and safety Chantal Keller 5 / 18

SLIDE 9

1. Autarkic approach

system B system A goal The triumvirate ofautomation, expressivity, and safety Chantal Keller 5 / 18

SLIDE 10

1. Autarkic approach

system B system A goal

Ex: Ergo (A = Coq; B = subset of Alt-Ergo)

The triumvirate ofautomation, expressivity, and safety Chantal Keller 5 / 18

SLIDE 11

Advantages and limitations

+ shared representation of formulas + correctness established once and for all + formal correctness of the algorithms

really hard to prove
really hard to maintain or improve (fixes the implementation)
not always possible

The triumvirate ofautomation, expressivity, and safety Chantal Keller 6 / 18

SLIDE 12

Our criteria:

at what cost/effort?

statements? none proofs? huge

how agnostic can the systems be? not at all portability? none automation? medium

The triumvirate ofautomation, expressivity, and safety Chantal Keller 7 / 18

SLIDE 13

2. Skeptical approach

system A The triumvirate ofautomation, expressivity, and safety Chantal Keller 8 / 18

SLIDE 14

2. Skeptical approach

system A system B The triumvirate ofautomation, expressivity, and safety Chantal Keller 8 / 18

SLIDE 15

2. Skeptical approach

system A system B goal The triumvirate ofautomation, expressivity, and safety Chantal Keller 8 / 18

SLIDE 16

2. Skeptical approach

system A system B goal proof The triumvirate ofautomation, expressivity, and safety Chantal Keller 8 / 18

SLIDE 17

2. Skeptical approach

system A system B goal proof The triumvirate ofautomation, expressivity, and safety Chantal Keller 8 / 18

SLIDE 18

2. Skeptical approach

certificate system A system B goal proof preprocessor The triumvirate ofautomation, expressivity, and safety Chantal Keller 8 / 18

SLIDE 19

2. Skeptical approach

checker system A goal proof preprocessor system B certificate (correctness) The triumvirate ofautomation, expressivity, and safety Chantal Keller 8 / 18

SLIDE 20

Examples

Tool System A System B metis Isabelle/HOL, HOL4, . . . metis sledgehammer Isabelle/HOL Z3, CVC4, vampire SMTCoq Coq ZChaff, veriT, CVC4 HOL Light ↔ Coq Coq HOL Light

The triumvirate ofautomation, expressivity, and safety Chantal Keller 9 / 18

SLIDE 21

Advantages and limitations

+ correctness easier to establish + System B may evolve independently + pre-processing ⇒ efficiency and various provers + caching

no shared representation of formulas
if the certificate is false?
System B needs instrumentation

The triumvirate ofautomation, expressivity, and safety Chantal Keller 10 / 18

SLIDE 22

Our criteria:

at what cost/effort?

statements? from small to huge proofs? small

how agnostic can the systems be? only certificates portability? great automation? medium to good

The triumvirate ofautomation, expressivity, and safety Chantal Keller 11 / 18

SLIDE 23

Standards for certificates?

Propositions: LFSC veriT/SMTCoq TPTP Open Theory . . . Encodings between first-order formats not that hard

The triumvirate ofautomation, expressivity, and safety Chantal Keller 12 / 18

SLIDE 24

3. A priori approaches

Built-in interoperability: decide in advance the interoperability you want with System B build System A around it

The triumvirate ofautomation, expressivity, and safety Chantal Keller 13 / 18

SLIDE 25

Example: F*

impure functional programming language rich type system: dependent and refined types (to express various properties on programs) type checking: designed to use the Z3 SMT solver Curry-Howard: programs are proofs

The triumvirate ofautomation, expressivity, and safety Chantal Keller 14 / 18

SLIDE 26

Example: F*

impure functional programming language rich type system: dependent and refined types (to express various properties on programs) type checking: designed to use the Z3 SMT solver Curry-Howard: programs are proofs module Induction val u : nat -> Tot nat let rec u n = if n = 0 then 0 else u (n-1)

The triumvirate ofautomation, expressivity, and safety Chantal Keller 14 / 18

SLIDE 27

Example: F*

impure functional programming language rich type system: dependent and refined types (to express various properties on programs) type checking: designed to use the Z3 SMT solver Curry-Howard: programs are proofs module Induction val u : nat -> Tot nat let rec u n = if n = 0 then 0 else u (n-1) val induction : n:nat -> Lemma (ensures (u n = 0)) let rec induction n = if n = 0 then () else induction (n-1)

The triumvirate ofautomation, expressivity, and safety Chantal Keller 14 / 18

SLIDE 28

Example: Why3

The triumvirate ofautomation, expressivity, and safety Chantal Keller 15 / 18

SLIDE 29

Our criteria:

at what cost/effort?

statements? from small to huge proofs? from small to huge

how agnostic can the systems be? good portability? bad automation? really good

The triumvirate ofautomation, expressivity, and safety Chantal Keller 16 / 18

SLIDE 30

Summary

Criterion Autarkic Skeptical A priori effort (statements) ++ –

effort (proofs)

– ++

agnostic

– ++ + portability – ++

automation

+ + ++

The triumvirate ofautomation, expressivity, and safety Chantal Keller 17 / 18

SLIDE 31

Take-away

The lessons for new systems: interoperability is hard! think from the very beginning that people may want to use your system differently certificates (possibly in a standard), API, . . .

The triumvirate ofautomation, expressivity, and safety Chantal Keller 18 / 18
