The Trafficware Pod Pod Detection and Advanced Applications As a Means of Collecting Purdue High Resolution Data The Pod Bill Ische, Business Development Manager Chris Jannace, Detection Specialist 03 September 2015 A GENDA Pod Detection

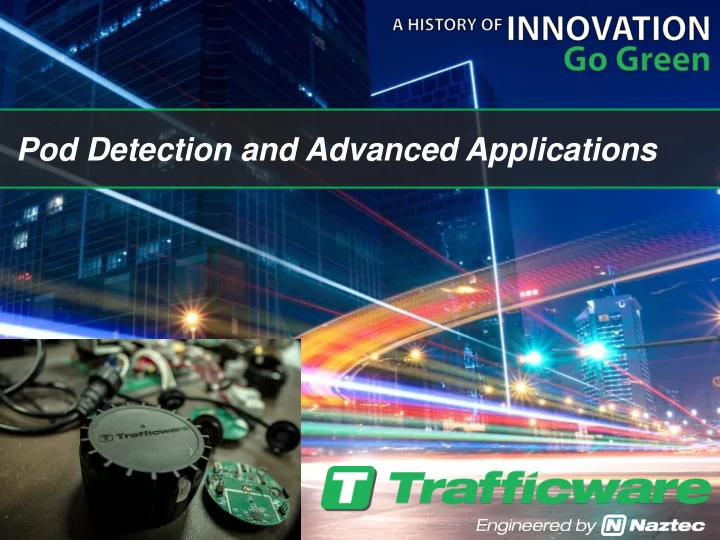

SLIDE 1

The Pod

Bill Ische, Business Development Manager Chris Jannace, Detection Specialist 03 September 2015

The Trafficware Pod

As a Means of Collecting Purdue High Resolution Data

Pod Detection and Advanced Applications

SLIDE 2

AGENDA

Pod Detection System
Applications

– Purdue MOEs (ATMS.now) – Adaptive Traffic Control (Synchro Green)

Metrics

– BlueTOAD

SLIDE 3

COMPONENTS

SLIDE 4

900 MHz built-in antenna, and two-way radio
700 ft communication range without repeaters
10 year battery life based on 700 detections per hour

(24/7)

Automatic self-calibration
Uses 4 magnetometers (X, Y, and 2 Z axes)
Detection area approximately 6’ x 6’

CAPABILITIES POD

SLIDE 5

120VAC
Wireless (internal) or Wired Communication
3 Radios (external)
Box designed to fit articulating style bracket

(comes with Access Point kit)

CAPABILITIES ACCESS POINT

SLIDE 6

ZigBee standard compliant encryption used between Base

Station and Access Point

Can communicate effectively with two Access Points
Browser-based GUI (You own the Base Station, You own the

GUI)

SDLC or parallel wiring connection to controller / cabinet

based on configuration

CAPABILITIES BASE STATION

SLIDE 7

POD USE IN HIGH DEFINITION DATA COLLECTION

SLIDE 8

ATMS.NOW PURDUE MOE MODULE

Purdue Coordination

Diagrams

Phase Termination Charts

SLIDE 9

SUGAR LAND DETECTION DESIGN

SLIDE 10

POD USE IN ADAPTIVE TRAFFIC CONTROL

SLIDE 11

BAYTOWN ADAPTIVE DESIGN

SLIDE 12

NB SPEED – WED 2/17 VS PREVIOUS 12 WEDNESDAYS

SLIDE 13

NB TRAVEL TIME – WED 2/17 VS PREVIOUS 12 WEDNESDAYS

SLIDE 14

Fast / Easy Installation Weather Resistant Durable Packaging Cabinet / Controller Compatibility Minimal Disturbance to Roadway No Repeaters Required

DETECTION OVERVIEW WIRELESS

Accurate Advanced Detection Accurate Counts

SLIDE 15

CONTACT INFORMATION

Chris Jannace, Detection Specialist

ChrisJannace@trafficware.com (O) 281-240-7233 x309 (C) 626-261-0875

Areas of Responsibility:

Texas
Louisiana
Arkansas
Oklahoma
New Mexico
Hawaii
