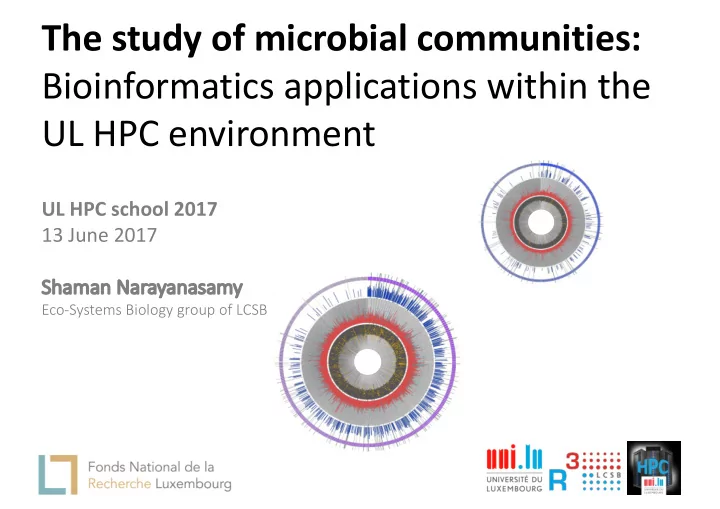

SLIDE 1
The study of microbial communities: Bioinformatics applications within the UL HPC environment
UL HPC school 2017 13 June 2017 Sh Shaman Na Narayanasamy
Eco-Systems Biology group of LCSB
The subject: microbial communities
2
The study of microbial communities: Bioinformatics applications - - PowerPoint PPT Presentation
The study of microbial communities: Bioinformatics applications - - PowerPoint PPT Presentation
The study of microbial communities: Bioinformatics applications within the UL HPC environment UL HPC school 2017 13 June 2017 Sh Shaman Na Narayanasamy Eco-Systems Biology group of LCSB The subject: microbial communities 2 The samples:
SLIDE 2
SLIDE 3
The samples: Biomolecules
3
Roume et al. ISME J. (2013) 7:110-21 Roume et al. Methods Enzymol. (2013) 531:219-36
SLIDE 4
4
Metatranscriptomics Metagenomics
Data integration
Metaproteomic
Roume et al. ISME J. (2013) 7:110-21 Roume et al. Methods Enzymol. (2013) 531:219-36
The measurements: High-throughput data
SLIDE 5
The measurements: Random shotgun sequencing
5
DNA / cDNA
WGS
Biological
NGS
WGS library
Biological sample
NGS reads
In silico data
cDNA: complementary DNA WGS: whole genome shotgun NGS: next-generation sequencing
SLIDE 6
The data: Next-generation sequencing (NGS)
6
Uncompressed Size: 14-82 GB
SLIDE 7
The process: NGS read preprocessing
7
NGS reads
Preprocessing In silico data
Preprocessed NGS reads
SLIDE 8
8
Preprocessing Assembly Post-assembly Automation Containerization Trimmomatic CutAdapt SortMeRNA *BWA *Bowtie2 IDBA-UD MEGAHIT SPAdes AbySS Newbler Cap3 BWA Bowtie2 MaxBin dRep HMMer BLASTn AMPHORA2 PhyloPhlan Bash Make Python Perl Galaxy Snakemake CWL Ruffus Docker LXD Vigrant *BioConda
The process: NGS read preprocessing
SLIDE 9
9
NGS reads
Preprocessing In silico data
Contig 1 Contig 2
Preprocessed NGS reads
De novo assembly
Assembled contigs
The process: De novo assembly
SLIDE 10
10
Preprocessing Assembly Post-assembly Automation Containerization Trimmomatic CutAdapt SortMeRNA *BWA *Bowtie2 IDBA-UD MEGAHIT SPAdes AbySS Newbler Cap3 BWA Bowtie2 MaxBin dRep HMMer BLASTn AMPHORA2 PhyloPhlan Bash Make Python Perl Galaxy Snakemake CWL Ruffus Docker LXD Vigrant *BioConda
The process: De novo assembly
SLIDE 11
The process: Post-assembly analysis
11
Structure information Contig 1 Contig 2
Assembled contigs Annotation
Binning
Contig 2 Gene B Contig 1 Gene A
Predicted genes
Contig 1
Bin X
Contig 2
Bin Y
Bins
Function information Gene B Gene A
SLIDE 12
12
Preprocessing Assembly Post-assembly Automation Containerization Trimmomatic CutAdapt SortMeRNA *BWA *Bowtie2 IDBA-UD MEGAHIT SPAdes AbySS Newbler Cap3 BWA Bowtie2 MaxBin dRep HMMer BLASTn AMPHORA2 PhyloPhlan Bash Make Python Perl Galaxy Snakemake CWL Ruffus Docker LXD Vigrant *BioConda
The process: Post-assembly analysis
SLIDE 13
The process: Automation
13
Preprocessing Assembly Post-assembly Automation Containerization Trimmomatic CutAdapt SortMeRNA *BWA *Bowtie2 IDBA-UD MEGAHIT SPAdes AbySS Newbler Cap3 BWA Bowtie2 MaxBin dRep HMMer BLASTn AMPHORA2 PhyloPhlan Bash Make Python Perl Galaxy Snakemake CWL Ruffus Docker LXD Vigrant *BioConda
SLIDE 14
The process: Reproducibility
14
Preprocessing Assembly Post-assembly Automation Containerization Trimmomatic CutAdapt SortMeRNA *BWA *Bowtie2 IDBA-UD MEGAHIT SPAdes AbySS Newbler Cap3 BWA Bowtie2 MaxBin dRep HMMer BLASTn AMPHORA2 PhyloPhlan Bash Make Python Perl Galaxy Snakemake CWL Ruffus Docker LXD Vigrant *BioConda
SLIDE 15
15
IMP available at:
http://r3lab.uni.lu/web/imp
Narayanasamy, Jarosz et al. BioarXiv (2016) Narayanasamy, Jarosz et al. Genome Biology (2016)
Original logo by Linda Wampach
The process: Integrated meta-omics pipeline (IMP)
SLIDE 16
16
snakemake
42 tools
Input: 14-82 GB Output: 44-182 GB
20 – 280 hrs.
- 8 cores
- 256 – 1024 GB
RAM
- r3.4xlarge
- 16 cores
- 122 GB
Computing platforms The requirements, performance and output: In numbers
Narayanasamy, Jarosz et al. BioarXiv (2016) Narayanasamy, Jarosz et al. Genome Biology (2016)
SLIDE 17
The outcome: Knowledge on microbial communities
17
Muller, Pinel et al. Nature Communications (2014) Roume, Heintz-Buschart et al. NPJ Microbiome and Biofilms (2015) Laczny et al. Frontiers in Microbiology (2016) Heintz-Buschart et al. Nature Microbiology (2016) Narayanasamy, Jarosz et al. Genome Biology (2016) Wampach et al. Frontiers in Microbiology (2017) Kaysen et al. Translational Research (accepted) Muller, Narayanasamy et al. Standards in Genomic Sciences (in review) Wampach, Heintz-Buschart et al. (in preparation) Herold et al. (in preparation) Narayanasamy, Martinez-Arbas et al. (in preparation)
SLIDE 18
The outcome: AcKnowledge the HPC
18
SLIDE 19
19
And in all presentations/posters in international conferences and PhD theses!
The outcome: AcKnowledge the HPC
SLIDE 20
The experience: Continued improvement
20
- First impression: Impressed!
- Initial problems:
- Learning curve
- File system issues
- Users “misbehaving”
- Independent systems (bigbug compute node and storage “boxes”)
- No dedicated system admin for LCSB
- Improvements over the years:
- Solved file system issues
- HPC school
- Improved documentation
- Well behaved users
- Dedicated system admin for LCSB
- Additional request:
- High-quality logo on HPC website for presentations
SLIDE 21
The future: Best practices and improvements
21
- Best practices:
- (Try to) Be a good user; attend the HPC school
- Incorporate cost of HPC into budgets/grants
- Acknowledge the HPC (manuscripts, presentations)
- Communicate effectively!
- Future practices and improvements:
- Integration of independent machines with HPC
- Reduce reliance on Docker
- Better data management
- Software management
- Software benchmarking
- *Dedicated personnel within group
- Continuous learning!
SLIDE 22
Acknowledgements
Former ESBers: Emilie Muller Cedric Laczny Abdul Sheik Hugo Roume Myriam Zeimes
22
