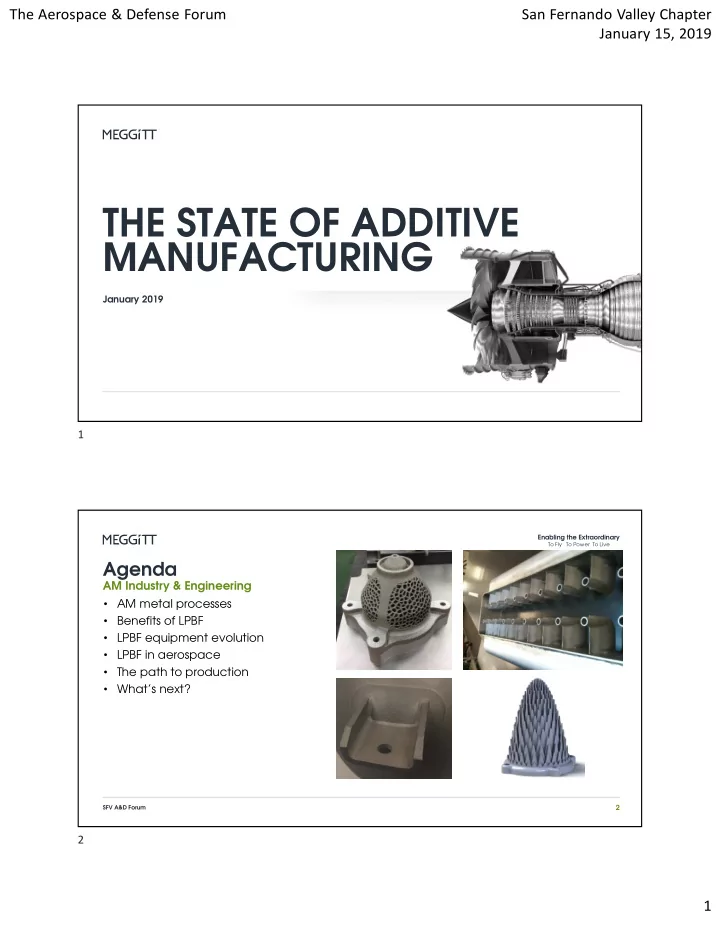

The Aerospace & Defense Forum San Fernando Valley Chapter January 15, 2019 Enabling the Extraordinary To Fly To Power To Live THE STATE OF ADDITIVE MANUFACTURING January 2019 1 Enabling the Extraordinary To Fly To Power To Live

slide-1
SLIDE 1

The Aerospace & Defense Forum San Fernando Valley Chapter January 15, 2019 1

Enabling the Extraordinary

To Fly To Power To Live

THE STATE OF ADDITIVE MANUFACTURING

January 2019

Enabling the Extraordinary

To Fly To Power To Live

Agenda

  • AM metal processes
  • Benefits of LPBF
  • LPBF equipment evolution
  • LPBF in aerospace
  • The path to production
  • What’s next?

AM Industry & Engineering

SFV A&D Forum

2

1 2

slide-2
SLIDE 2

The Aerospace & Defense Forum San Fernando Valley Chapter January 15, 2019 2

Enabling the Extraordinary

To Fly To Power To Live

AM metal processes

  • Additive manufacturing (AM)

Additive vs. Subtractive Manufacturing

3

Subtractive Additive

SFV A&D Forum Enabling the Extraordinary To Fly To Power To Live

AM metal processes

4

Additive vs. Subtractive Manufacturing

SFV A&D Forum

3 4

slide-3
SLIDE 3

The Aerospace & Defense Forum San Fernando Valley Chapter January 15, 2019 3

Enabling the Extraordinary

To Fly To Power To Live

AM metal processes

5

Additive Layer Manufacturing (ALM) Additive Manufacturing (AM) Direct Deposition Laminated Sheet Powder Bed

SFV A&D Forum Enabling the Extraordinary To Fly To Power To Live

Laser Powder Bed Fusion

LPBF

6

Inert atmosphere

  • Argon

Prepared CAD file

SFV A&D Forum

5 6

slide-4
SLIDE 4

The Aerospace & Defense Forum San Fernando Valley Chapter January 15, 2019 4

Enabling the Extraordinary

To Fly To Power To Live

Laser Powder Bed Fusion

  • LPBF – Laser Powder Bed Fusion
  • SLM – Selective Laser Melting
  • DMLS – Direct Metal Laser Sintering (EOS)
  • DMLM – Direct metal laser melting (GE)

Many names, one process

7

SFV A&D Forum Enabling the Extraordinary To Fly To Power To Live

LPBF Benefits

8

  • Process cost requires substantial

benefits

  • Tooling
  • “Fast-make” castings, forgings, &

weldments

  • Superior product:
  • Reduced weight, part count &
  • perating cost
  • Increased efficiency, functionality, &

reliability

Increasing capability

SFV A&D Forum

7 8

slide-5
SLIDE 5

The Aerospace & Defense Forum San Fernando Valley Chapter January 15, 2019 5

Enabling the Extraordinary

To Fly To Power To Live

LPBF Benefits

9

SFV A&D Forum Enabling the Extraordinary To Fly To Power To Live

LPBF Benefits

10

Increasing complexity Increasing capability

  • 14%
  • 3%
  • 21%

+26%

  • 60%
  • 49%
  • 75%

+50%

SFV A&D Forum

9 10

slide-6
SLIDE 6

The Aerospace & Defense Forum San Fernando Valley Chapter January 15, 2019 6

Enabling the Extraordinary

To Fly To Power To Live

LPBF Machines

11

SFV A&D Forum Enabling the Extraordinary To Fly To Power To Live

LPBF Machines

12

SFV A&D Forum

11 12

slide-7
SLIDE 7

The Aerospace & Defense Forum San Fernando Valley Chapter January 15, 2019 7

Enabling the Extraordinary

To Fly To Power To Live

LPBF in Aerospace

  • 2012: GE purchases Morris Technologies
  • 2013: GE announces fuel nozzle & sensor housing production
  • 2015: MTU announces flying borescope boss
  • 2015: Rolls-Royce announces flying front end bearing housing
  • 2016: GE purchases Arcam & Concept Laser
  • 2017: GE announces GE 9X AM heat exchanger & ATP engine

Major events

13

SFV A&D Forum Enabling the Extraordinary To Fly To Power To Live

Year-on-year metal machine sales

14

LPBF in Aerospace

SFV A&D Forum

Morris acquisition

13 14

slide-8
SLIDE 8

The Aerospace & Defense Forum San Fernando Valley Chapter January 15, 2019 8

Enabling the Extraordinary

To Fly To Power To Live

LPBF in Aerospace

15

SFV A&D Forum Enabling the Extraordinary To Fly To Power To Live

Path to Production

  • Unstable machines
  • Geometry driven material properties
  • Limited public data
  • Limited collaboration
  • Varied local regulation
  • High costs
  • Process & post-process intensive

Hurdles

16

SFV A&D Forum

15 16

slide-9
SLIDE 9

The Aerospace & Defense Forum San Fernando Valley Chapter January 15, 2019 9

Enabling the Extraordinary

To Fly To Power To Live

Path to Production

  • Process control
  • Data ownership
  • Cost reduction
  • Drive innovation

In-house development

17

SFV A&D Forum Enabling the Extraordinary To Fly To Power To Live

The future of LPBF

18

SFV A&D Forum

17 18

slide-10
SLIDE 10

The Aerospace & Defense Forum San Fernando Valley Chapter January 15, 2019 10

Enabling the Extraordinary

To Fly To Power To Live

The future of LPBF

19

SFV A&D Forum Enabling the Extraordinary To Fly To Power To Live

The future of LPBF

20

SFV A&D Forum

19 20
