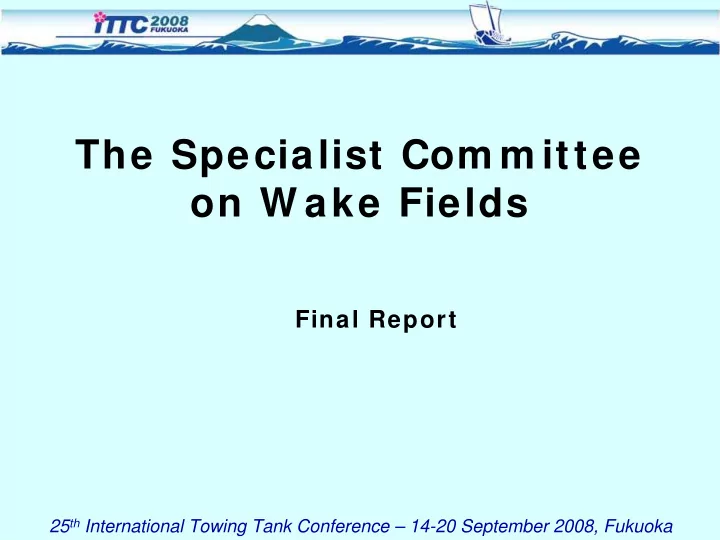

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

The Specialist Com m ittee

  • n W ake Fields

Final Report

slide-2
SLIDE 2

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

  • Dr. Jin Kim (Chairman)

MOERI, Korea

  • Dr. Thomas C. Fu (Secretary)

NSWCCD, U.S.A.

  • Dr. Tomasz Bugalski

Ship Design and Research Center (CTO-SA), Poland

  • Dr. Munehiko Hinatsu

NMRI, Japan

  • Dr. Fabio Di Felice

INSEAN Italian Ship Model Basin, Italy

Mem bership

slide-3
SLIDE 3

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

  • I ntroduction
  • Task 1 : Survey of numerical methods for the

prediction of wake-fields at model and full scale.

  • Task 2 : Review the experimental methods of

determining the velocity distribution in the wake.

  • Task 3 : Development of procedures for measuring

the velocity distribution in the wake at model-scale.

  • Task 4 : Review and update the existing guidelines

for the simulation of the wake-field for cavitation testing

  • Task 5 : Guidelines for the use of PIV in

determining the velocity distribution in the wake.

  • Recom m endations to the Conference

Contents

slide-4
SLIDE 4

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

I ntroduction

  • Review of the numerical prediction and

experimental measurement of wake-fields.

  • Emphasis was on completeness

– Not constrained to the period since the 24th ITTC Meeting

  • Model and Full scale Computation

– Much attention was paid to the numerical prediction of wakes at full-scale

  • Measurements for

– Simulated wake verification, – Computational Fluid Dynamics (CFD) validation, – Basic research

  • Review and development of ITTC

procedures of simulated wakes.

  • Generation,
  • Use
  • Verification (measurement)
slide-5
SLIDE 5

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

I ntroduction

  • Review of all of the ITTC Procedures to

standardize the procedures for generating and assessing simulated wakes.

– Procedure 7.5-02-03-03.1: Model-Scale Cavitation Test Cavitation Induced Pressure – Procedure 7.5-02-03-03.3: Fluctuations Model Scale Experiments – Procedure 7.5-02-03-03.5: Cavitation Induced Erosion on Propellers, Rudders and Appendages Model Scale Experiments – Procedure 7.5-02-03-03.6: Podded Propulsor Model- Scale Cavitation Test

slide-6
SLIDE 6

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

I ntroduction

  • Development of wake-field measurement

procedures

– 5-Hole Pitot Tubes, – Laser Doppler Velocimetry (LDV) – Particle Image Velocimetry (PIV)* – Full-Scale* * Determined to be not mature enough for ITTC procedures

  • The committee’s recommendations
slide-7
SLIDE 7

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

  • December 2005 saw the successful conclusion of the

three-year European Full-scale FlOw Research and Technology (EFFORT) project.

– Principal objective was to validate CFD predictions of wake field of ships by comparison with experimental data. – Full-scale flow measurements were conducted by MARIN, Netherland for ‘Nawigator XXI’, a single screw research vessel. – ‘Uilenspiegel’, a hopper dredger of Dredging International, Netherland; a twin-screw vessel with bossings, exposed shaft hoses, shaft support struts and ducted propellers. – A dedicated LDV system was used, operating through windows flush-mounted in the hull. – Parallel model experiments were carried out, including

  • Pitot measurements by HUT, Finland
  • PIV measurements by CTO, Poland
  • Wave pattern measurements using a laser sheet technique by NTUA,

Greece.

slide-8
SLIDE 8

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

Naw igator XXI

slide-9
SLIDE 9

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

Uilenspiegel

slide-10
SLIDE 10

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

  • On the CFD front, RANS computations were requested

for full-scale Reynolds numbers.

  • An internal EFFORT workshop compared results and

stimulated improvements of the accuracy and applicability of several codes.

  • All model and full-scale experimental data, for the two

new ships and five existing ones, were then used to study the achievable level of accuracy of the predicted wake fields at full-scale.

  • Several of the CFD codes were found to predict the full-

scale flow relatively accurately, provided fine enough grids were used.

  • An important contribution has been made to the

practical use of CFD for prediction of the full-scale viscous flow and propeller action.

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

slide-11
SLIDE 11

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

  • The LEADI NG EDGE project aimed at providing tools for

predicting and scaling the development and evolution of propeller blade tip vortices.

  • Eight participants have calculated the flow around one or more of

the propellers, at model scale as well as at full scale using RANS codes.

  • Complementary experiments have been carried out:

– a conventional propeller (used as a reference propeller), – a modern high-skew propeller – a tip-plated propeller.

  • Validation measurements at model scale have been obtained.

These measurements include

– traditional propulsion, open-water and cavitation inception tests – flow field measurements with 3D Particle Image Velocimetry

  • The LEADI NG EDGE project has shown that viscous flow analysis

for ship propellers is feasible and useful.

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

slide-12
SLIDE 12

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Viscous Flow Com putations at Model Scale

  • The 2005 CFD Workshop Tokyo - wake

computations

– MOERI container ship (KCS), – MOERI tanker ship (KVLCC2M) – DTMB 5415 combatant ship – Theses efforts provide examples of the current CFD capability to simulate the viscous wake-field around a ship. – RANS – Turbulence model: two-equation & RSM models

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

slide-13
SLIDE 13

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Viscous Flow Com putations at Model Scale

  • Alin et al. (2003): LES for Submarine hull
  • Bensow et al. (2006) investigated a comparative study of RANS,

DES and LES. one of case is a flow past an axisymmetric submarine hull (SUBOFF). For the axisymmetric hull, RANS and DES show reasonable results but somewhat inferior when compared to the LES.

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

slide-14
SLIDE 14

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Viscous Flow Com putations at Model Scale

  • Bugalski & Kraskowski (2006) presents validation of the RANSE

wake computations for the training vessel Nawigator XXI and the dredger Uilenspiegel – result of work for EFFORT project.

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

standard k-ε Menter’s k-ω RSM

slide-15
SLIDE 15

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Total or Effective W ake

  • RANS + VLM (Propeller model)
  • Study on total wake & Propeller-Hull

Interaction

  • Hino (2006)

– Trim & Sinkage – Self-propulsion factors

  • Kimura et al. (2007)

– Self-propulsion factors

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

Wake behind a propeller (Hino)

slide-16
SLIDE 16

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Total or Effective W ake

  • Kim et al. (2006)

– RANS + VLM – Overset grid for rudder block – Self-propulsion factors – Hull-Propeller-Rudder Interaction

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

slide-17
SLIDE 17

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Appendage/ Propeller w ake

  • Bensow et al. (2006) shows propeller near wake

analysis using LES. LES on a rotating mesh has been applied for the simulation of the flow around a propeller, focusing on an investigation of the velocity field in the near wake.

  • Regnstrom & Bathfield (2006) presents drag and

wake prediction for ships with appendages using an overlapping grid method. The work was done for the EFFORT project.

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

slide-18
SLIDE 18

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka Viscous Flow Com putations at Full Scale

  • Visonneau (2005) presents

studies carried out in one of the major EFFORT project.

  • Visonneau et al. (2007) shows

application of the developed method to simulation of the full scale flow on two appended hull configurations.

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

RANS Computation for Uilenspiegel

slide-19
SLIDE 19

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka Viscous Flow Com putations at Full Scale

  • Starke et al. (2006) presents and

discusses full-scale wake field validations for a number of ships.

– Hamburg Test Case – St. Michaelis – Nawigator XXI – Uilenspiegel

  • Verkuyl et al. (2006) presents an
  • verview of the EFFORT project results

and shows the numerical developments that have been implemented by six CFD European groups.

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

RANS Computation for Nawigator XXI

slide-20
SLIDE 20

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka Viscous Flow Com putations at Full Scale

  • Han et al. (2007) presents

numerical optimization of the propeller behind a ship hull at full scale – Uncertainty analysis – Wake validation are made for the SHIPFLOW code.

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

SHI PFLOW Computation for the Hamburg test case

slide-21
SLIDE 21

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

SUMMARY

  • The survey of numerical methods for wake field predictions

presents the rapid development of these tools. It is shown that numerical methods for prediction of wake fields can be useful for the complex stern hull forms at the model and full scale and a variety of rudder/ appendages configurations, etc.

  • For wake field computations almost all scientists solve RANS
  • equations. Reynolds Stress Model (RSM) and 2-equation model

as k-ε, k-ω, or their combined models are mainly used as a turbulence model.

  • DES or LES are also prospective for future numerical study on

wake fields.

  • The EFFORT project shows that RSM turbulence model is the

most reliable for wake field calculations.

Task 1 : Survey of num erical m ethods for the prediction of w ake- fields at m odel and full scale.

slide-22
SLIDE 22

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 2 : Review the experim ental m ethods of determ ining the velocity distribution in the w ake

Measurem ent Techniques

  • Single Point Techniques

– Pitot Tube – LDV

  • Planar

– PIV, SPIV

  • Volumetric

– Tomography – DDPIV

slide-23
SLIDE 23

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 2 : Review the experim ental m ethods of determ ining the velocity distribution in the w ake

measured components measurement location frequency resolution data amount per s (Mb) processing time (s) note

5 holes Pitot tube

3 single point up to 10-100 Hz < 0.01 real time Requires priori knowledge of the flow direction. Not suitable in detached and reverse flow

LDV

3 single point up to 5-10 KHz 0.02 real time Able to resolve flow direction

PIV

2 plane up to 30 Hz 64 240 Time for processing evaluated on a Xeon processor 2.7 GHz, with a 2 step multi-grid algorithm

SPIV

3 plane up to 30 Hz 128 520 Time for processing evaluated on a Xeon processor 2.7 GHz, with a 2 step multi-grid algorithm. Stereo reconstruction based on Solo method

Time Resolved PIV

2 plane up to 5-10 KHz 4000 7500÷30000 Minimum time for processing based

  • n direct analysis of a image pairs.

Maximum processing time based on a multi-frame analysis of 4 images

Time Resolved SPIV

3 plane 8000 16500÷66000 s

DDPIV

3 volume up to 30 Hz 192 600 s

Time Resolved DDPIV

3 volume up to 5-10 KHz 12000 20000-80000 s

slide-24
SLIDE 24

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 2 : Review the experim ental m ethods of determ ining the velocity distribution in the w ake

LDV Measurem ents

  • Felli & Di Felice (2005)

– Propeller wake in behind condition – Phase sampling technique – Inlet & downstream wake

slide-25
SLIDE 25

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 2 : Review the experim ental m ethods of determ ining the velocity distribution in the w ake

LDV Measurem ents

  • Felli et al. (2006)

– Propeller-rudder interaction – 600 points

slide-26
SLIDE 26

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 2 : Review the experim ental m ethods of determ ining the velocity distribution in the w ake

PI V Measurem ents

  • Di Felice et al.(2004) & Felli et al.

(2006)

– PIV in a cavitation tunnel – Propeller wake w/ load variation

  • Paik et al. (2007)

– Similar study – Focused on the analysis of tip vortex trajectory

slide-27
SLIDE 27

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 2 : Review the experim ental m ethods of determ ining the velocity distribution in the w ake

Stereo PI V Measurem ents

  • Jessup et al. (2004 & 2006)

– Propeller in crash-back condition – Valuable data for CFD validation

slide-28
SLIDE 28

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 2 : Review the experim ental m ethods of determ ining the velocity distribution in the w ake

Underw ater SPI V

  • INSEAN developed the first underwater Stereo-

PIV system for towing tank applications. The system has a high energy laser, four megapixel cameras and is suitable for the measurement

  • f the three velocity components. Felli et al.

(2003) and Di Felice and Pereira (2007)

  • Underwater probes for towing tank applications

are growing steadily. Within the European Hydro-Testing Alliance, a cooperative effort and joint research venture has begun for the development of standards on PIV methods in towing tanks. Due to the wide range of possible applications and difficulties related to hardware and calibration methods, these standards are still in the early development stage.

First underw ater StereoPI V Probe ( Calcagno et al 2 0 0 3 )

slide-29
SLIDE 29

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 2 : Review the experim ental m ethods of determ ining the velocity distribution in the w ake Volum etric m easurem ents

  • The current efforts in the PIV community

are related to the extension of the PIV concept to the full three-dimensional space.

– scanning PIV – multiplane PIV – holographic PIV – particle tracking velocimetry – tomographic PIV – defocusing PIV

slide-30
SLIDE 30

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Task 2 : Review the experim ental m ethods of determ ining the velocity distribution in the w ake

Volum etric m easurem ents ( DDPI V)

  • Pereira et al. (2006)

– Two-phase flow field around a propeller

Figure 3: Bubble density in a meridian plane and isosurface of density at 0.03 mm−3

slide-31
SLIDE 31

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Full Scale Measurem ent

  • Several methods are commonly used to measure the velocity

distribution in the wake at full-scales, but these measurements are relatively rare. For this reason, full-scale measurements were not developed.

  • LDV Measurements

– Tanibayashi (1991) used an LDV to measure the full-scale propeller inflow distribution as a basis of calculating propeller vibratory forces through the use of the training ship Seiun Maru as the full-scale ship. – Kux et al. (1985) used LDV systems to measure wake fields of model and full-scale ships. The ships used were the Sydney Express of Cb= 0.61 Tanker model of and Cb= 0.8. Three components of velocity are measured for the model ships, while one-component of velocity is measured for the full-scale ships. – Kuiper et al. (2002) measured the wake in front of the working propeller equipped in a full-scale patrol boat (Lwl= 36.5m) by using LDA. – Norris (1984) introduced an example of full-scale wake measurement through the use of LDV in the 17th ITTC.

Task 2 : Review the experim ental m ethods of determ ining the velocity distribution in the w ake

slide-32
SLIDE 32

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Full Scale Measurem ent

  • Pitot measurement

– Takahashi et al. (1971) measured full-scale ship (Lpp= 167m) wake distribution through the use of a Swing-arm type mount method. On the mount, five, five-hole Pitot probes and two, one-component Pitot probes were set with the measured plane 7.5 m ahead of A.P. The diameter of a five-hole Pitot is 60 mm and the apex angle is twenty degrees. – At DTNSRDC (1980), rake-type Pitot-tubes were used to measure the wake at propeller plane for a fast patrol boat. Pressure measurements were carried out using an “air-blow system,” similar to the method of Takahashi et al. (1971). A Pitot rake consisting of both a five and a thirteen hole Pitot tube was used. For the measurement of unsteady flow, five piezoelectric differential pressure transducers were mounted in the tube. – Chai et al. (1981) introduced an example of wake measurements for model and full- scale ships in which comb-type Pitot probes were used. The full-scale ship (Lpp= 36.6m) was towed by a tug and the wake of 4 m long model ship was

  • measured. The full-scale wake was predicted from the model ship wake through the

use of Sasajima’s method and compared with the measurement of a full-scale ship wake.

Task 2 : Review the experim ental m ethods of determ ining the velocity distribution in the w ake

slide-33
SLIDE 33

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

W ake Measurem ents Procedures by 5 -Hole Pitot

  • Procedure 7.5-02-03-02.5 describes the proper use
  • f 5-Hole Pitot tubes to make wake measurements.

Included in this procedure are guidance on:

– Instrumentation, model specs – Calibrations – Test procedure – Data analysis – Advantages and drawbacks of Pitot tubes

Task 3 : Developm ent of procedures for m easuring the velocity distribution in the w ake at m odel-scale.

slide-34
SLIDE 34

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

W ake Measurem ents Procedure by LDV

  • Procedure 7.5-02-03-02.4 to be used as a

standard for the nominal wake measurement by

  • LDV. In this procedure, detailed instructions are

provided for any ITTC institution that seeks to perform this type of measurement.

– Instrumentation – Model specs – Calibrations – Test procedure – Data analysis – Advantages of LDV

Task 3 : Developm ent of procedures for m easuring the velocity distribution in the w ake at m odel-scale.

slide-35
SLIDE 35

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

  • By reviewing all of the ITTC Procedures for references to

wake fields, it was found that only four existing procedures refer to the simulation of wake fields for cavitation testing. These procedures are: – Procedure 7.5-02-03-03.1: Model-Scale Cavitation Test Cavitation Induced Pressure – Procedure 7.5-02-03-03.3: Fluctuations Model Scale Experiments – Procedure 7.5-02-03-03.5: Cavitation Induced Erosion

  • n Propellers, Rudders and Appendages Model Scale

Experiments – Procedure 7.5-02-03-03.6: Podded Propulsor Model- Scale Cavitation Test

Task 4 : Review & update the existing guidelines for the sim ulation of the w ake-field for cavitation testing

slide-36
SLIDE 36

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

  • The committee’s review of these procedures was made

to ensure the accurate simulation of wake-fields for cavitation testing and to standardize the procedures for generating and assessing simulated wakes. Apart from standardizing the language, the main modifications introduced are:

– When a dummy model is used for testing, it is recommended that the simulated wake be verified by measurement of the wake and comparison to the actual wake. – When wake measurements are performed, the newly developed and submitted procedures (pitot tube and LDV) should be utilized. – The modifications to the above four procedures have been submitted to the Advisory Committee for adoption.

Task 4 : Review & update the existing guidelines for the sim ulation of the w ake-field for cavitation testing

slide-37
SLIDE 37

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

  • The broad range of applications in which PIV can be

used doesn’t allow an easy step by step procedure to be provided

  • Guidelines and practical information regarding PIV

setups, which can help in the design of PIV experiments especially in towing tank, are given.

  • The goal is not to provide detailed technical

information on the measurement techniques that can be found in more dedicated literature.

Task 5 : Guidelines for the use of PI V in determ ining the velocity distribution in the w ake

slide-38
SLIDE 38

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Recom m endations

The 2 5 th I TTC Specialist Com m ittee

  • n W ake Fields recom m ends:
  • adoption of the changes to the four existing

procedures:

– Procedure 7.5-02-03-03.1: Model-Scale Cavitation Test Cavitation Induced Pressure – Procedure 7.5-02-03-03.3: Fluctuations Model Scale Experiments – Procedure 7.5-02-03-03.5: Cavitation Induced Erosion on Propellers, Rudders and Appendages Model Scale Experiments – Procedure 7.5-02-03-03.6: Podded Propulsor Model-Scale Cavitation Test

  • acceptance of the tw o new procedures to

m easure nom inal w akes at the propeller plane

– use of 5-Hole Pitot Tubes (Procedure 7.5-02-03-02.5) – and LDV (Procedure 7.5-02-03-02.4).

slide-39
SLIDE 39

25th International Towing Tank Conference – 14-20 September 2008, Fukuoka

Recom m endations

The 2 5 th I TTC Specialist Com m ittee

  • n W ake Fields recom m ends:
  • Monitor and review the developm ent of PI V as

a m ore standard m easurem ent system

  • Survey and m onitor validation of num erical

predictions of w ake fields at full-scale
