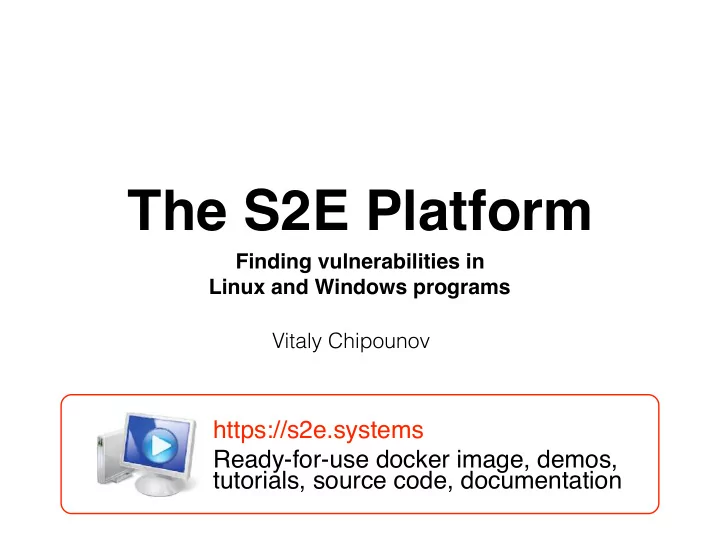

The S2E Platform

Finding vulnerabilities in Linux and Windows programs Vitaly Chipounov

https://s2e.systems Ready-for-use docker image, demos,
 tutorials, source code, documentation

Vitaly Chipounov

• Ph.D. in 2014 at EPFL, Switzerland


DSLAB, George Candea

• S2E started back in 2008 when we wanted to reverse engineer Windows

device drivers using symbolic execution

• Realized that we could also use this to find bugs in drivers, do

performance analysis, etc. => created the S2E platform


• Co-founder and chief architect at Cyberhaven
• Finalists in the Cyber Grand Challenge

• Evaluate software for vulnerabilities (Attack)
• Defend software against attacks (Defend)
• Keep software running and available (Availability)

The World's First All-Machine
 Hacking Tournament

Two teams used S2E

Team CodeJitsu Cyberhaven
 UC Berkeley
 Syracuse University Team Disekt

Tutorial Overview (Part 1)

• Overview of S2E and symbolic execution
• Getting started with S2E
• Design and Implementation
• Automated generation of proofs of vulnerability

Finding vulnerabilities in user-space apps with S2E

Tutorial Overview (Part 2)

• Dealing with path explosion


>12 KLOC driver, large input files

• Parallel symbolic execution, concolic execution,

fuzzer integration, symbolic fault injection, function models, etc.

Testing Windows device drivers with S2E

FAT12/16/32 driver from the WDK (fastfat.sys)

S2E is a platform for in-vivo
 multi-path analysis of software systems

Bug finding Verification Testing Security checking … Extensible Write your own tools Symbolic execution Concolic execution State merging Fuzzing … On real OSes, with real apps, libraries, drivers Pretty much anything that runs on computers

void main(int argc, char **argv) { int r = 1, i = 1; if (i < argc) { if (argv[i][0] == 'n') { r = 0; ++i; } }

Dynamic Symbolic Execution

✓ ✓

void main(int argc, char **argv) { int r = 1, i = 1; if (i < argc) { if (argv[i][0] == 'n') { r = 0; ++i; } }

30 GB disk 4 GB RAM?

Dynamic Symbolic Execution

30 GB disk 4 GB RAM?

void main(int argc, char **argv) { int r = 1, i = 1; if (i < argc) { if (argv[i][0] == 'n') { r = 0; ++i; } }

Dynamic Symbolic Execution

#include <stdio.h> int main(int argc, char **argv) { FILE *fp = fopen(argv[1], "rb"); if (!fp) { goto err; } int data; if (fread(&data, sizeof(data), 1, fp) != 1) { goto err; } if (data == 0xdeadbeef) { printf("Hello world\n"); } else { *(char *)0xbadcafe = 0; } err: if (fp) { fclose(fp); } return 0; }

Quick Start

ssh -CX userXX@issisp.anu.edu.au $ wget -O crash.c https://pastebin.com/raw/B1BbapMV $ gcc -g -O0 —m32 -o ./crash ./crash.c $ source s2e/s2e_activate $ s2e new_project ./crash @@ $ cd s2e/projects/crash $ ./launch-s2e.sh …

Analysis Output

$ ls -1 s2e/projects/crash/s2e-last/ assembly.ll debug.txt ExecutionTracer.dat info.txt module.bc run.stats tbcoverage-0.json tbcoverage-1.json testcase-crash:0x50f:0x804858a-0-_tmp_input testcase-kill-0-_tmp_input testcase-kill-1-_tmp_input warnings.txt

Reproducing crashes with concrete test cases

~/s2e/projects/crash$ gdb --args ./crash s2e-last/testcase-crash:0x50f:0x804858a-0-_tmp_input (gdb) r Starting program: /home/vitaly/s2e/projects/crash/crash s2e-last/ testcase-crash:0x50f:0x804858a-0-_tmp_input Program received signal SIGSEGV, Segmentation fault. 0x0804858a in main (argc=2, argv=0xffffcec4) at crash.c:18 18 *(char *)0xbadcafe = 0; (gdb)

Profiling Path Explosion

$ s2e forkprofile crash … 01295 crash:0x08048571 1 /home/ubuntu/s2e/env/crash.c:15 (main)

if (data == 0xdeadbeef) { printf("Hello world\n"); } else { *(char *)0xbadcafe = 0; }

More on that in the 2nd part of the tutorial…

Displaying Code Coverage

$ s2e coverage lcov --html crash Overall coverage rate: lines......: 84.6% (11 of 13 lines) functions..: no data found
 Line coverage saved to
 /home/vitaly/s2e/env/projects/crash/s2e-last/crash.info.

 An HTML report is available in
 /home/vitaly/s2e/env/projects/crash/s2e-last/crash_lcov

$ s2e coverage lcov --html crash

Overview

Finding vulnerabilities in user-space apps with S2E

• Overview of S2E and symbolic execution
• Getting started with S2E
• Design and Implementation
• Automated generation of proofs of vulnerability

Valgrind AddressSanitizer KLEE Astrée TEMU BitBlaze VMware CoreDet SyncFinder ESD Parfait Saturn Calysto LLBMC Isabelle CUTE EXE SJPF Coverity CodeSonar DTrace Oprofile BAP IDApro Jakstab Angr SimOS Pin PinOS LFI ThreadSanitizer Manticore Dingo SFI Nooks CFI Dimmunix VeriSoft Eraser SAGE DART Cloud9 BitScope bddbddb … Testing Verification P r

• fi

l i n g Simulation Isolation Immunity Debugging …

Check properties on
 execution paths

✖

./prog argc != 2 ./prog 123 argc == 2

int main(argc, argv) { if (argc == 2) { printf(“%c”, *argv[2]); … } return 0; }

Checking Properties on Execution Paths

Enumerating All Execution Paths

int main(argc, argv) { void *p = malloc(…);
 if (!p) { exit(-1); } … return 0; }

Program Kernel Libraries Hardware

~2 paths

system size

Off-limits

Environment Modelling

int main(argc, argv) { void *p = malloc(…);
 if (!p) { exit(-1); } … return 0; }

Program Environment
 Model

~ 2 paths

program size

KLEE Cloud9 SLAM LLBMC Coverity …

Impractical

Calling the Environment

int main(argc, argv) { void *p = malloc(…);
 if (!p) { exit(-1); } … return 0; }

Program Kernel Libraries Hardware

False negatives False positives

KLEE EXE DART Fuzzing …

~ 2 paths

program size

Analysis Tools Make Trade-offs

• Accuracy vs. performance


False positives vs. false negatives

• Types of analysis


Testing, verification, profiling, etc.

• Software stack level


Applications, libraries, kernel modules, etc.

• Source code vs. binaries

S2E is a Platform that Enables Flexible Trade-offs

• Accuracy vs. performance


Symbolic execution, state merging, fuzzing, etc.
 You can write models, but don’t have to!

• Types of analysis


Wide range of analyses

• Software stack level


In-vivo, at any level of software stack

• Source code vs. binaries


Works on binaries

Kernel Libraries Hardware Applications Distributed systems Reverse
 engineering

RevNIC [EUROSYS’10]

Profiling

PROFs [ASPLOS’11]

Testing

BIOS Testing [WOOT’15] Avatar [NDSS’14] CHEF [ASPLOS’14] Achilles [ASPLOS’13] SWIFT [EUROSYS’12] SymDrive [OSDI’12] SymNet [WRIPE’12] DDT [USENIX’11] …

Verification

Software router
 dataplanes [NSDI’14]

Security

CVE-2015-1536

Analysis
 Plugins Symbolic Execution Engine Dynamic
 Binary
 Translator Instrumentation Engine Path Selection
 Plugins S2E Applications Libraries Kernel Drivers Virtual Hardware VM What input to make symbolic What input to make concrete Search heuristics Check for crashes, vulnerability conditions, performance metrics, etc.

• S2E uses QEMU
• S2E and QEMU are completely

decoupled

• S2E is contained in libs2e.so
• libs2e.so intercepts and

replaces /dev/kvm functionality

• Need a few simple KVM extensions

to intercept DMA, disk R/W, and device state snapshotting

• You don’t have to use QEMU with

S2E

KVM Extensions for Symbolic Execution

Analysis
 Plugins Symbolic Execution Engine Dynamic
 Binary
 Translator Instrumentation Engine Path Selection
 Plugins S2E Applications Libraries Kernel Drivers Virtual Hardware VM libs2e.so KVM-compatible interface

/dev/kvm

• We refactored QEMU’s translator to

make it standalone

• libcpu, libtcg: code translation and

generation libraries

• libs2ecore, libs2eplugins, klee,

libvmi, etc.

• You can reuse these in your own

projects

• You can swap out the symbolic

execution engine with your own if you want

Modular Architecture

Analysis
 Plugins Symbolic Execution Engine Dynamic
 Binary
 Translator Instrumentation Engine Path Selection
 Plugins S2E Applications Libraries Kernel Drivers Virtual Hardware VM libs2e.so KVM-compatible interface

/dev/kvm

Dynamic Binary Translation

0x80000000: mov [ebx], eax void tb_0x80000000(cpu) { tmp1 = cpu->regs[EBX]; tmp2 = cpu->regs[EAX]; __stl_mmu(tmp1, tmp2); } while(true) { tb = translate(cpu->pc) tb->func(cpu); }}

Dynamic Binary Translation

0x80000000: mov [ebx], eax void tb_0x80000000(cpu) { tmp1 = cpu->regs[EBX]; tmp2 = cpu->regs[EAX]; __stl_mmu(tmp1, tmp2); } Host-independent micro-operations Frontend Host instructions
 (x86, arm, mips, etc.) Backend
 (one per target
 architecture) while(true) { tb = translate(cpu->pc) tb->func(cpu); }} translate()

Dynamic Binary Translation

translate(pc) { do { ins = disassemble(pc);
 emit_uops(ins); pc += ins.size; } while (ins != jmp); }} while(true) { tb = translate(cpu->pc) tb->func(cpu); }} translate(pc) { do { if (s2e_instrument_ins(pc)) {
 emit_uops_s2e(); }} ins = disas(pc); emit_uops(ins); pc += ins.size; } while (ins != jmp); }}

Code Instrumentation

translate(pc) { do { ins = disassemble(pc);
 emit_uops(ins); pc += ins.size; } while (ins != jmp); }} translate(pc) { do { if (s2e_instrument_ins(pc)) {
 emit_uops_s2e(); }} ins = disas(pc); emit_uops(ins); pc += ins.size; } while (ins != jmp); }} 0x80000000: mov [ebx], eax void tb_0x80000000(cpu) { s2e_call_plugins(); tmp1 = cpu->regs[R_EBX]; tmp2 = cpu->regs[R_EAX]; __stl_mmu(tmp1, tmp2); } void tb_0x80000000(cpu) { tmp1 = cpu->regs[EBX]; tmp2 = cpu->regs[EAX]; __stl_mmu(tmp1, tmp2); }

Dynamic Binary Translation

0x80000000: mov [ebx], eax void tb_0x80000000(cpu) { tmp1 = cpu->regs[EBX]; tmp2 = cpu->regs[EAX]; __stl_mmu(tmp1, tmp2); } Host-independent micro-operations Frontend Host instructions
 (x86, arm, mips, etc.) Backend
 (one per target
 architecture) while(true) { tb = translate(cpu->pc) tb->func(cpu); }} translate()

+LLVM

define i64 @tb_0x80000000(i64*) #12 { entry: %loc_18ptr = alloca i32 %loc_19ptr = alloca i32 %1 = getelementptr i64, i64* %0, i32 0 %2 = load i64, i64* %1 %eax_ptr = getelementptr %struct.CPUX86State, …, i32 0, i32 0 %ebx_ptr = getelementptr %struct.CPUX86State, …, i32 0, i32 2 %eax = load i32, i32* %eax_ptr %ebx = load i32, i32* %ebx_ptr call void @__stl_mmu(i32 %ebx, i32 %eax) … }

Symbolic Execution

0x80000000: mov [ebx], eax

KLEE

Applications Libraries Kernel Drivers Analysis
 Plugins Symbolic Execution Engine Dynamic
 Binary
 Translator Instrumentation Engine Virtual Hardware Path Selection
 Plugins S2E VM

Core execution events

• nTranslateInstructionStart
• nMemoryAccess
• nTimer
• nStateFork
• nStateKill
• nCustomInstruction

…

Writing Plugins

void MyPlugin::initialize() { s2e()->getCorePlugin()->onTranslateInstructionStart->
 connect(MyPlugin::onInstructionTranslation); } void MyPlugin::onInstructionTranslation(signal, pc) { if (pc == crashHandlerPc) { signal->connect(MyPlugin::onInstructionExecution, …); } } void MyPlugin::onInstructionExecution(state) { s2e()->getExecutor()->terminateState(…); }

Where do I get the crash handler pc? Is it going to change between OSes? Where do I get information about the crash (pid, pc, etc.)? Is the crash handler pc in the correct address space? => Requires complex virtual machine introspection

void MyPlugin::initialize() {} void MyPlugin::handleOpcodeInvocation(state, data, size) { my_plugin_data_t data; s2e()->mem()->read(&data, data, size…); s2e()->getExecutor()->terminateState(data.pid, “crashed”); }} // linux-4.9.3/arch/x86/mm/fault.c static void force_sig_info_fault(int si_signo, int si_code, unsigned long address, …) { unsigned lsb = 0; siginfo_t info; my_plugin_data_t data; data.pid = current->pid; data.address = address; s2e_invoke_plugin(“MyPlugin”, &data, sizeof(data); … }}

Do as much work as possible inside the guest!

Applications Libraries Kernel Drivers Analysis
 Plugins Symbolic Execution Engine Dynamic
 Binary
 Translator Instrumentation Engine Virtual Hardware Path Selection
 Plugins S2E VM

s2e_invoke_plugin(); OS Monitoring Plugins

• nProcessLoad()
• nProcessExit()
• nThreadCreate()
• nThreadExit()
• nSegFault()

… S2E Guest Tools #!/bin/bash s2ecmd kill -1 “error” s2eget file.txt …

Overview

• Overview of S2E and symbolic execution
• Getting started with S2E


Finding simple crashes and getting code coverage

• Design and Implementation
• Automated generation of proofs of vulnerability

Finding vulnerabilities in user-space apps with S2E

What is a proof of vulnerability (PoV)?

• Input to the program that can control the program’s

state arbitrarily

• Set the program counter and a general purpose

register to an arbitrary agreed upon value

• Exfiltrate data from memory
• Useful for developers to triage bugs (a crash in

itself may not be exploitable).

$ gdb —args ./vulnerable-program pov_input.txt SEGFAULT at 0xdeadbeef

int main(int argc, char **argv) { char buf[4]; receive(buf, 12); return 0; } push ebp mov ebp, esp sub esp, 4 ; Allocate 4 bytes on the stack for buf lea eax, [ebp-4] ; Compute address of buf push 12 ; Push 12 for 2nd parameter of receive push eax ; Push address of buf for 1st param of receive call receive xor eax, eax ; Set return value to 0 leave ; Clean the stack frame ret ; Return from the main function echo AAAAAAAABBBBBBBBCCCCCCCC | xxd -r -p | ./program Segfault at address 0xCCCCCCCC

push argv push argc call main main: push ebp mov ebp, esp sub esp, 4 lea eax, [ebp-4] push 12 push eax call receive xor eax, eax leave ret 0xf8: 0xabc0 ; argv 0xf4: 0xdef0 ; argc 0xf0: 0x800231 ; return address 0xec: 0x1000 ; saved frame pointer 0xe8: ???????? ; space for the buffer 0xe4: 12 ; size of the parameter passed to receive 0xe0: 0xe8 ; address of the buffer on the stack 0xf8: 0xabc0 ; argv 0xf4: 0xdef0 ; argc 0xf0: CCCCCCCC ; return address 0xec: BBBBBBBB ; saved frame pointer 0xe8: AAAAAAAA ; space for the buffer 0xe4: 12 ; size of the parameter passed to receive 0xe0: 0xe8 ; address of the buffer on the stack

int main(int argc, char **argv) { char buf[4]; receive(buf, 12); return 0; } echo λ0λ1λ2λ3λ4λ5λ6λ7λ8λ9λ10λ11 | ./program Segfault at address λ11λ10λ9λ8

push argv push argc call main main: push ebp mov ebp, esp sub esp, 4 lea eax, [ebp-4] push 12 push eax call receive xor eax, eax leave ret 0xf8: 0xabc0 ; argv 0xf4: 0xdef0 ; argc 0xf0: 0x800231 ; return address 0xec: 0x1000 ; saved frame pointer 0xe8: ???????? ; space for the buffer 0xe4: 12 ; size of the parameter passed to receive 0xe0: 0xe8 ; address of the buffer on the stack 0xf8: 0xabc0 ; argv 0xf4: 0xdef0 ; argc 0xf0: λ11λ10λ9λ8 ; return address 0xec: λ4λ5λ6λ7 ; saved frame pointer 0xe8: λ0λ1λ4λ3 ; space for the buffer 0xe4: 12 ; size of the parameter passed to receive 0xe0: 0xe8 ; address of the buffer on the stack

0xf8: 0xabc0 ; argv 0xf4: 0xdef0 ; argc 0xf0: λ11λ10λ9λ8 ; return address 0xec: λ4λ5λ6λ7 ; saved frame pointer 0xe8: λ0λ1λ4λ3 ; space for the buffer 0xe4: 12 ; size of the parameter passed to receive 0xe0: 0xe8 ; address of the buffer on the stack

• nSymbolicAddress(S2EExecutionState *state,


klee::ref<klee::Expr> address, …)

push argv push argc call main main: push ebp mov ebp, esp sub esp, 4 lea eax, [ebp-4] push 12 push eax call receive xor eax, eax leave ret

• 1. Add constraint address == 0xbadcafe
• 2. Solve constraints
• 3. Get concrete test case

Segfault at address 0xbadcafe echo 0000000000000000fecaad0b | xxd -r -p | ./program

Practice Time!

ssh -CX userXX@issisp.anu.edu.au

$ wget -O vulnerable.c https://pastebin.com/raw/rBYFGEJS $ gcc -g -w -fno-stack-protector -D_FORTIFY_SOURCE=0 -O0 -m32 \

• o ./vulnerable vulnerable.c

$ source s2e/s2e_activate $ s2e new_project —-enable-pov-generation ./vulnerable @@ $ cd s2e/projects/vulnerable $ ./launch-s2e.sh …

Testcases for
 PoVs and Crashes

$ ls ~/s2e/projects/vulnerable/s2e-last

_tmp_input-crash@0x0-pov-unknown-0 _tmp_input-crash@0x0-pov-unknown-3 _tmp_input-recipe-type1_i386_generic_reg_ebp.rcp@0x8048760-pov-type1-0 _tmp_input-recipe-type1_i386_generic_reg_edi.rcp@0x8048760-pov-type1-0 _tmp_input-recipe-type1_i386_generic_shellcode_eax.rcp@0x804883e-pov-type1-3 ...

Validating PoVs

$ gdb --args ./vulnerable s2e-last/_tmp_input-recipe- type1_i386_generic_shellcode_eax.rcp@0x804883e-pov-type1-3 (gdb) r Starting program: /home/user/s2e/env/projects/vuln-lin32-32/vulne… Demoing function pointer overwrite Program received signal SIGSEGV, Segmentation fault. 0x44556677 in ?? () (gdb) info registers eax 0xccddeeff -857870593 ecx 0x44556677 1146447479 edx 0x40 64 ebx 0x0 0 esp 0xffffcd1c 0xffffcd1c ebp 0xffffcd68 0xffffcd68 esi 0x804b008 134524936 …

Controlling Register Values

• - This plugin writes PoVs as input files. This is suitable for programs that
• - take their inputs from files (instead of stdin or other methods).

add_plugin("FilePovGenerator") pluginsConfig.FilePovGenerator = {

• - The generated PoV will set the program counter
• - of the vulnerable program to this value

target_pc = 0x0011223344556677,

• - The generated PoV will set a general purpose register
• - of the vulnerable program to this value.

target_gp = 0x8899aabbccddeeff }

s2e-config.lua

Recipes for PoVs

• Recipes tell S2E how to constrain the input in order

to get interesting PoVs

• The recipe plugin monitors execution for symbolic

pointers

• When the recipe plugin detects a symbolic

pointers, it looks at the available recipes and applies those that satisfy constraints

$ ls ~/s2e/projects/vulnerable/recipe type1_i386_generic_reg_eax.rcp type1_i386_generic_reg_ebp.rcp type1_i386_generic_reg_esi.rcp … type1_i386_generic_reg_esp.rcp type1_i386_generic_shellcode_eax.rcp type1_i386_generic_shellcode_ebp.rcp

Recipes for PoVs

# Set GP and EIP with shellcode # mov eax, $gp # mov ecx, $pc # jmp ecx :type=1 :reg_mask=0xffffffff :pc_mask=0xffffffff :arch=i386 :platform=generic :gp=EAX :exec_mem=EIP [EIP+0] == 0xb8 [EIP+1] == $gp[0] [EIP+2] == $gp[1] [EIP+3] == $gp[2] [EIP+4] == $gp[3] [EIP+5] == 0xb9 [EIP+6] == $pc[0] [EIP+7] == $pc[1] [EIP+8] == $pc[2] [EIP+9] == $pc[3] [EIP+10] == 0xff [EIP+11] == 0xe

# Set GP and EIP with shellcode # mov eax, $gp # mov ecx, $pc # jmp ecx :reg_mask=0xffffffff :pc_mask=0xffffffff :type=1 :arch=i386 :platform=generic :gp=EAX :exec_mem=EIP [EIP+0] == 0xb8 [EIP+1] == $gp[0] [EIP+2] == $gp[1] [EIP+3] == $gp[2] [EIP+4] == $gp[3] [EIP+5] == 0xb9 [EIP+6] == $pc[0] [EIP+7] == $pc[1] [EIP+8] == $pc[2] [EIP+9] == $pc[3] [EIP+10] == 0xff [EIP+11] == 0xe [EIP+0] == 0xb8 [EIP+1] == 0xaa [EIP+2] == 0xaa [EIP+3] == 0xaa [EIP+4] == 0xaa [EIP+5] == 0xb9 [EIP+6] == 0xbb [EIP+7] == 0xbb [EIP+8] == 0xbb [EIP+9] == 0xbb [EIP+10] == 0xff [EIP+11] == 0xe

EIP=λ11λ10λ9λ8

Look for address ranges that are

• executable
• contain symbolic data

When such a range is found (e.g, at address 0xb8001200)

• add constraint EIP == 0xb8001200
• add constraints [EIP+i] == 0x…

If constraints satisfiable => we have a PoV

Challenges

• Unreplayable PoVs


Randomness (/dev/random, ASLR, etc.)

• Arbitrary memory reads and writes


Require plugin support to track interesting memory regions

• Interactive CGC-style PoVs


We have seen file-based PoVs so far

More details on s2e.systems/docs

Conclusion

• S2E enables flexible trade-offs


Source/binary, environment, SW stack level, etc.

• Using S2E to generate proofs of vulnerabilities

https://s2e.systems Ready-for-use docker image, demos,
 tutorials, source code, documentation

We are hiring!
