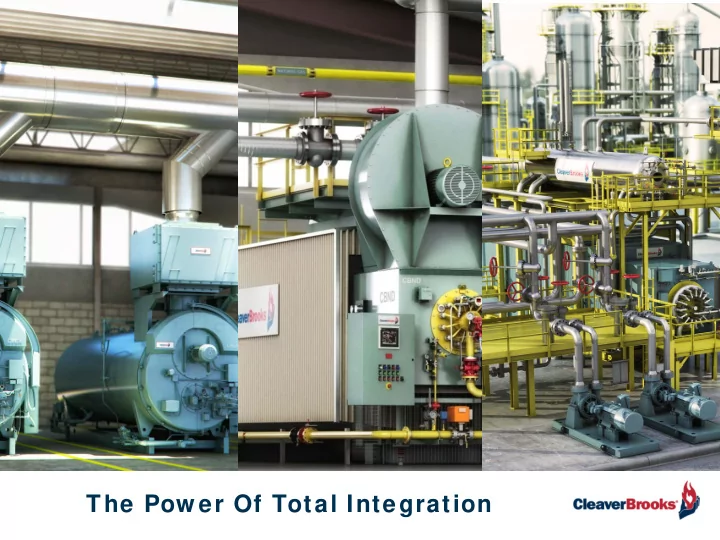

The Pow er Of Total Integration The Most Comprehensive, Integrated Solutions Flexible Solutions Industry Leading Netw ork Vertical Markets 6 Guiding Principles Safety Efficiency Reliability Sustainability A New Standard in Steam
SLIDE 2
SLIDE 3
Flexible Solutions
SLIDE 4
SLIDE 5
Industry Leading Netw ork
SLIDE 6
Vertical Markets
6
SLIDE 7
Guiding Principles
Safety Efficiency Reliability Sustainability
SLIDE 8
A New Standard in Steam Generation
Cleaver-Brooks EX Firetube Boilers
SLIDE 9
- For decades, engineers
have been trying to build a better, more efficient boiler system
- Cleaver-Brooks has
challenged the status quo and re-imagined just w hat is possible
- Since w e are the only
company that manufactures every component of the boiler system, w e w ere able to design a completely new system from the ground up
SLIDE 10
- Introducing
EX Technology – the first major breakthrough in the industry since WWII
- A quantum leap in
firetube design – the highest
- perating
efficiency and low est possible NOx ever achieved
SLIDE 11
Design Advancement 1:
Optimizing the tubes for better heat transfer
SLIDE 12
Design Advancement 2:
Optimizing the geometry of the furnace for near-perfect combustion
SLIDE 13
Design Advancement 3:
Integrating the burner and controls
SLIDE 14
The Benefits Of EX Technology
- Highest operating
efficiency of any firetube: 10:1 turndow n w hile maintaining 3% O2 across the firing range
SLIDE 15
The Benefits Of EX Technology
* Select models
- Optimized
furnace provides low er heat release and near- perfect combustion
- Combined w ith
the Haw k, emissions are reduced to unprecedented levels
- Prior to the CBEX,
sub-5 ppm NOx w ithout SCR had never been achieved
Low est Possible NOx: Sub-5 ppm Without SCR*
SLIDE 16
Quick Steam Up
- Heats up 20% quicker
than traditional firetubes due to smaller footprint and lower water volume
Smaller Footprint and Weight
- Requires less heating
surface to achieve the same BTU output as traditional firetubes due to optimized heat transfer of both the tubes and furnace
- On average, has a 15%
smaller footprint and weighs 20% less than traditional boilers
Extended Pressure Vessel Life
- Furnace temperature is
more uniform
- Reduced turnaround
gas temperature
- Lower stress on the
furnace and second- pass tube attachments
- Industry-leading 15-
year pressure vessel limited warranty
The Benefits Of EX Technology
SLIDE 17
SLIDE 18
- Best operating efficiency of any firetube ever built
- Completely integrated boiler, burner, controls, and
heat recovery system
- Minimum excess air across the operating range
- Ultra-low NOx emissions w ithout SCR
- Can meet 10 ppm CO emissions requirements (at
30 ppm NOx)
- 15% reduction in footprint vs. traditional designs
SLIDE 19
SLIDE 20
SLIDE 21
- Available in sizes ranging
from 100 – 2,200 HP
- Available in the follow ing
design pressures:
- 150, 200, and 250 psig for steam
- 30 and 125 psig for hot water
- Manufactured in state-of-
the-art facilities under demanding quality control requirements using ISO standards
SLIDE 22
High operating efficiency Smaller boiler room Low er fuel costs Low est emissions
