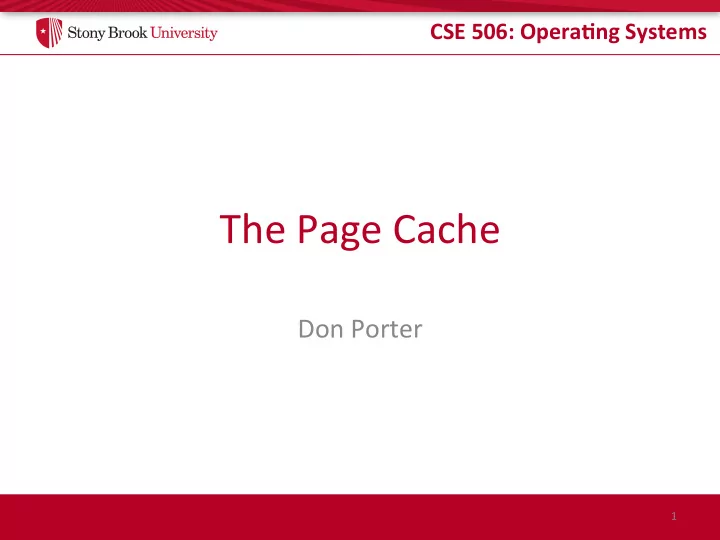

The Page Cache

Don Porter

1

CSE 506: Opera.ng Systems

Logical Diagram

Memory Management CPU Scheduler User Kernel Hardware Binary Formats Consistency System Calls Interrupts Disk Net RCU File System Device Drivers Networking Sync Memory Allocators Threads Today’s Lecture (kernel level mem. management)

2

CSE 506: Opera.ng Systems

Recap of previous lectures

• Page tables: translate virtual addresses to physical

addresses

• VM Areas (Linux): track what should be mapped at in

the virtual address space of a process

• Hoard/Linux slab: Efficient allocaTon of objects from

a superblock/slab of pages

3

CSE 506: Opera.ng Systems

Background

• Lab2: Track physical pages with an array of PageInfo

structs

– Contains reference counts – Free list layered over this array

• Just like JOS, Linux represents physical memory with

an array of page structs

– Obviously, not the exact same contents, but same idea

• Pages can be allocated to processes, or to cache file

data in memory

4

CSE 506: Opera.ng Systems

Today’s Problem

• Given a VMA or a file’s inode, how do I figure out

which physical pages are storing its data?

• Next lecture: We will go the other way, from a

physical page back to the VMA or file inode

5

CSE 506: Opera.ng Systems

The address space abstracTon

• Unifying abstracTon:

– Each file inode has an address space (0—file size) – So do block devices that cache data in RAM (0---dev size) – The (anonymous) virtual memory of a process has an address space (0—4GB on x86)

• In other words, all page mappings can be thought of

as and (object, offset) tuple

– Make sense?

6

CSE 506: Opera.ng Systems

Address Spaces for:

• VM Areas (VMAs)
• Files

7

CSE 506: Opera.ng Systems

Start Simple

• “Anonymous” memory – no file backing it

– E.g., the stack for a process

• Not shared between processes

– Will discuss sharing and swapping later

• How do we figure out virtual to physical mapping?

– Just walk the page tables!

• Linux doesn’t do anything outside of the page tables

to track this mapping

8

CSE 506: Opera.ng Systems

File mappings

• A VMA can also represent a memory mapped file
• The kernel can also map file pages to service

read() or write() system calls

• Goal: We only want to load a file into memory once!

9

CSE 506: Opera.ng Systems

Logical View

Disk

Hello!

Foo.txt inode

?

Process A

?

Process B

?

Process C

?

10

CSE 506: Opera.ng Systems

VMA to a file

• Also easy: VMA includes a file pointer and an offset

into file

– A VMA may map only part of the file – Offset must be at page granularity – Anonymous mapping: file pointer is null

• File pointer is an open file descriptor in the process

file descriptor table

– We will discuss file handles later

11

CSE 506: Opera.ng Systems

Logical View

Disk

Hello!

Foo.txt inode

?

Process A Process B Process C

File Descriptor Table FDs are process- specific

12

CSE 506: Opera.ng Systems

Tracking file pages

• What data structure to use for a file?

– No page tables for files

• For example: What page stores the first 4k of file

“foo”

• What data structure to use?

– Hint: Files can be small, or very, very large

13

CSE 506: Opera.ng Systems

The Radix Tree

• A space-opTmized trie

– Trie: Rather than store enTre key in each node, traversal

• f parent(s) builds a prefix, node just stores suffix
• Especially useful for strings

– Prefix less important for file offsets, but does bound key storage space

• More important: A tree with a branching factor k > 2

– Faster lookup for large files (esp. with tricks)

• Note: Linux’s use of the Radix tree is constrained

14

CSE 506: Opera.ng Systems

From “Understanding the Linux Kernel”

(a) radix tree of height 1 (b) radix tree of height 2 radix_tree_root height = 1 radix_tree_node rnode count = 2 slots[0] slots[4] index = 0 page ... index = 4

63

radix_tree_root height = 2 radix_tree_node rnode count = 2 ...

63

radix_tree_node count = 2 slots[0] slots[4] index = 0 ... index = 4

63

slots[0] radix_tree_node count = 1 slots[3] index = 131 ...

63

slots[2] page page page page

15

CSE 506: Opera.ng Systems

A bit more detail

• Assume an upper bound on file size when building

the radix tree

– Can rebuild later if we are wrong

• Specifically: Max size is 256k, branching factor (k) =

64

• 256k / 4k pages = 64 pages

– So we need a radix tree of height 1 to represent these pages

16

CSE 506: Opera.ng Systems

Tree of height 1

• Root has 64 slots, can be null, or a pointer to a page
• Lookup address X:

– Ship off low 12 bits (offset within page) – Use next 6 bits as an index into these slots (2^6 = 64) – If pointer non-null, go to the child node (page) – If null, page doesn’t exist

17

CSE 506: Opera.ng Systems

Tree of height n

• Similar story:

– Ship off low 12 bits

• At each child ship off 6 bits from middle (starTng at 6

* (distance to the bosom – 1) bits) to find which of the 64 potenTal children to go to

– Use fixed height to figure out where to stop, which bits to use for offset

• ObservaTons:

– “Key” at each node implicit based on posiTon in tree – Lookup Tme constant in height of tree

• In a general-purpose radix tree, may have to check all k children,

for higher lookup cost

18

CSE 506: Opera.ng Systems

Fixed heights

• If the file size grows beyond max height, must grow

the tree

• RelaTvely simple: Add another root, previous tree

becomes first child

• Scaling in height:

– 1: 2^( (6*1) +12) = 256 KB – 2: 2^( (6*2) + 12) = 16 MB – 3: 2^( (6*3) + 12) = 1 GB – 4: 2^( (6*4) + 12) = 64 GB – 5: 2^( (6*5) + 12) = 4 TB

19

CSE 506: Opera.ng Systems

Back to address spaces

• Each address space for a file cached in memory

includes a radix tree

– Radix tree is sparse: pages not in memory are missing

• Radix tree also supports tags: such as dirty

– A tree node is tagged if at least one child also has the tag

• Example: I tag a file page dirty

– Must tag each parent in the radix tree as dirty – When I am finished wriTng page back, I must check all siblings; if none dirty, clear the parent’s dirty tag

20

CSE 506: Opera.ng Systems

Logical View

Disk

Hello!

Foo.txt inode

Process A Process B Process C

Address Space Radix Tree

21

CSE 506: Opera.ng Systems

Recap

• Anonymous page: Just use the page tables
• File-backed mapping

– VMA -> open file descriptor-> inode – Inode -> address space (radix tree)-> page

22

CSE 506: Opera.ng Systems

Problem 2: Dirty pages

• Most OSes do not write file updates to disk

immediately

– (Later lecture) OS tries to opTmize disk arm movement

• OS instead tracks “dirty” pages

– Ensures that write back isn’t delayed too long

• Lest data be lost in a crash
• ApplicaTon can force immediate write back with

sync system calls (and some open/mmap opTons)

23

CSE 506: Opera.ng Systems

Sync system calls

• sync() – Flush all dirty buffers to disk
• fsync(fd) – Flush all dirty buffers associated with this

file to disk (including changes to the inode)

• fdatasync(fd) – Flush only dirty data pages for this

file to disk

– Don’t bother with the inode

24

CSE 506: Opera.ng Systems

How to implement sync?

• Goal: keep overheads of finding dirty blocks low

– A naïve scan of all pages would work, but expensive – Lots of clean pages

• Idea: keep track of dirty data to minimize overheads

– A bit of extra work on the write path, of course

25

CSE 506: Opera.ng Systems

How to implement sync?

• Background: Each file system has a super block

– All super blocks in a list

• Each super block keeps a list of dirty inodes
• Inodes and superblocks both marked dirty upon use

26

CSE 506: Opera.ng Systems

FS OrganizaTon

SB / SB /floppy SB /d1 One Superblock per FS inode Dirty list Dirty list of inodes Inodes and radix nodes/pages marked dirty separately

27

CSE 506: Opera.ng Systems

Simple traversal

for each s in superblock list: if (s->dirty) writeback s for i in inode list: if (i->dirty) writeback i if (i->radix_root->dirty) : // Recursively traverse tree wriTng // dirty pages and clearing dirty flag

28

CSE 506: Opera.ng Systems

Asynchronous flushing

• Kernel thread(s): pdflush

– A kernel thread is a task that only runs in the kernel’s address space – 2-8 threads, depending on how busy/idle threads are

• When pdflush runs, it is given a target number of

pages to write back

– Kernel maintains a total number of dirty pages – Administrator configures a target dirty raTo (say 10%)

29

CSE 506: Opera.ng Systems

pdflush

• When pdflush is scheduled, it figures out how many

dirty pages are above the target raTo

• Writes back pages unTl it meets its goal or can’t

write more back

– (Some pages may be locked, just skip those)

• Same traversal as sync() + a count of wrisen pages

– Usually quits earlier

30

CSE 506: Opera.ng Systems

How long dirty?

• Linux has some inode-specific bookkeeping about

when things were dirTed

• pdflush also checks for any inodes that have been

dirty longer than 30 seconds

– Writes these back even if quota was met

• Not the strongest guarantee I’ve ever seen…

31

CSE 506: Opera.ng Systems

But where to write?

• Ok, so I see how to find the dirty pages
• How does the kernel know where on disk to write

them?

– And which disk for that maser?

• Superblock tracks device
• Inode tracks mapping from file offset to sector

32

CSE 506: Opera.ng Systems

Block size mismatch

• Most disks have 512 byte blocks; pages are generally

4K

– Some new “green” disks have 4K blocks – Per page in cache – usually 8 disk blocks

• When blocks don’t match, what do we do?

– Simple answer: Just write all 8! – But this is expensive – if only one block changed, we only want to write one block back

33

CSE 506: Opera.ng Systems

Buffer head

• Simple idea: for every page backed by disk, store an

extra data structure for each disk block, called a buffer_head

• If a page stores 8 disk blocks, it has 8 buffer heads
• Example: write() system call for first 5 bytes

– Look up first page in radix tree – Modify page, mark dirty – Only mark first buffer head dirty

34

CSE 506: Opera.ng Systems

From “Understanding the Linux Kernel”

Figure 15-2. A buffer page including four buffers and their buffer heads

Page descriptor b_data private b_this_page Buffer Buffer Buffer Buffer Page Buffer head Buffer head Buffer head Buffer head b_page

35

CSE 506: Opera.ng Systems

More on buffer heads

• On write-back (sync, pdflush, etc), only write dirty

buffer heads

• To look up a given disk block for a file, must divide by

buffer heads per page

– Ex: disk block 25 of a file is in page 3 in the radix tree

• Note: memory mapped files mark all 8 buffer_heads
• dirty. Why?

– Can only detect write regions via page faults

36

CSE 506: Opera.ng Systems

Summary

• Seen how mappings of files/disks to cache pages are

tracked

– And how dirty pages are tagged – Radix tree basics

• When and how dirty data is wrisen back to disk
• How difference between disk sector and page sizes

are handled
