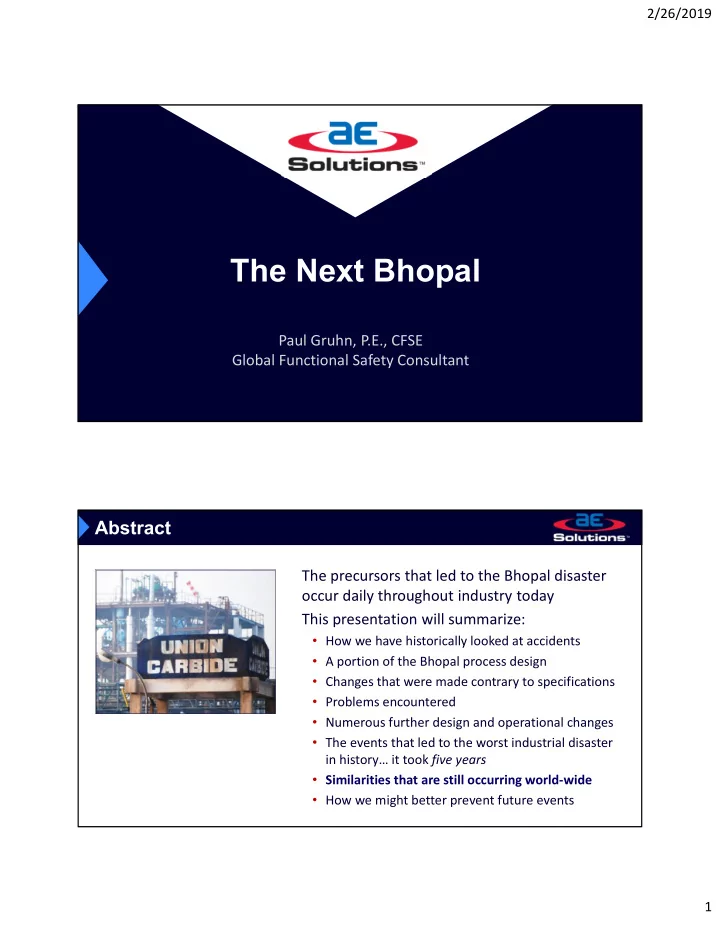

The Next Bhopal Paul Gruhn, P.E., CFSE Global Functional Safety - - PDF document

2/26/2019 1

The Next Bhopal

Paul Gruhn, P.E., CFSE Global Functional Safety Consultant

Abstract

The precursors that led to the Bhopal disaster

• ccur daily throughout industry today

This presentation will summarize:

• How we have historically looked at accidents
• A portion of the Bhopal process design
• Changes that were made contrary to specifications
• Problems encountered
• Numerous further design and operational changes
• The events that led to the worst industrial disaster

in history… it took five years

• Similarities that are still occurring world‐wide
• How we might better prevent future events

2/26/2019 2

Paul Gruhn, P.E., CFSE

Global Functional Safety Consultant at aeSolutions Safety Systems Specialist for 30 years ISA Life Fellow, active volunteer since 1989 Co‐chair and 28 year member of ISA 84 (SIS) committee Developer & primary instructor for ISA’s courses on Safety Instrumented Systems (8.5 days of material) Co‐author of ISA book on SIS BSME, IIT, Chicago, IL 2019 ISA President

Kenneth Bloch

Process Safety Supervisor 30+ years experience in maintenance, process safety, technical and operational roles Author of “Rethinking Bhopal” Environmental Science degree from Lamar University, Beaumont, TX

2/26/2019 3

Much of this material comes from…

Other great references:

• Safeware ‐ System Safety and Computers,

Nancy G. Leveson

• What Went Wrong? Case Histories of Process

Plant Disasters, Trevor A. Kletz

• An Engineer's View Of Human Error, Trevor A.

Kletz

• Learning from Accidents, Trevor A. Kletz
• Drift into failure, Sidney Dekker

Introduction

Dealing with chronic pump seal problems led to misguided process‐related shortcuts How could this have happened?

• The plant was patterned after a successful US facility
• However, changes were made that did not match

the design intention or specifications

• The pattern of manipulating a process to

compensate for issues is not unusual

“The road to hell is paved with good intentions”

• “If the original designers…”
• If a US operator were transplanted…

2/26/2019 4

Summary of the disaster (Dec 3 1984)

• 1. Plant undergoing maintenance
• 2. Worker connects water hose to flush lines

and valves

• 3. Water leaks into MIC tank and a reaction

begins

• 4. Temperature and pressure builds and a leak

started

• 5. Workers detect and report the leak
• 6. Vapor recover system off and not designed

for such a load

• 7. Piping to flare badly corroded

Summary of the disaster

8. Material released above makeshift water curtain 9. 28 tons of toxic vapor were released which settled in the capital city

• 10. 3,800 dead, 200,000 injured, 2,000 animals

died, environment severely impacted

• 11. Facility never reopened
• 12. US operations suspended
• 13. Parent company never recovered, and all

divisions were eventually sold AIChE CCPS, being proactive, the Titanic…

2/26/2019 5

Looking for causes

Often an image of corporate misconduct, greed, and/or irresponsible cost cutting

• Responsible, proud people who believe in safety

There is no such thing as a “precise cause”

• Cultural causes are very similar, though

Equipment reliability, process reliability, productivity, and process safety are linked

• Asset reliability is a fundamental aspect of

preventing industrial disasters

• Much depends upon how small issues are

managed (as repeat failures have led to accidents)

• Repeat failures also lead to normalization of

deviance (e.g., Texas City)

It’s not so much what they did, but why

It’s not so much “How can situations like this be prevented?” but rather “What makes the regrettable choices people make even possible?”

• 1. Why did the design not follow the US plant?
• 2. Why did a worker connect a water hose to flush
• ut lines?
• 3. Why was material building up inside the piping in

the first place?

2/26/2019 6

History and process summary

The product to be made was a success Yet the process to make it was neither cooperative nor originally efficient MIC was an intermediate product MIC needed to be:

• 1. cooled,
• 2. covered with a nitrogen blanket,
• 3. process constructed with stainless steel

US facility operated safely for over a decade and served as the template for Bhopal

History and process summary

Other safety layers

• high temperature alarms,
• diluting heat sink

(if adequate cooling could not be restored),

• reserve tanks

(for additional cooling, reprocessing, or disposal),

• pressure relief,
• vent scrubber,
• flare

Unfortunately, there were dependencies between all these layers

2/26/2019 7

Facility layout (1979) Facility siting issue

2/26/2019 8

Design change

Vent header piping, valves, and vent gas scrubber made of iron

• Such an exception could be justified with the

nitrogen blanket

• Might even be considered today (Value Eng.)

“Can be managed” can lead to compromised thinking and normalization of deviance

• When you finally appreciate what you’ve lost…

When suggesting changes, state not only the what, but they why

• Excluding the why can lead to confusion behind

the recommendation, especially when the original designers are no longer around

Note: Not the piping at Bhopal

MIC tank, pumps, vent and nitrogen lines

2/26/2019 9

Pump problems from the start

Pump seals lasting 45 months would be ‘average’ Seals at Bhopal only lasted 24 days Considering the number of pumps, there were repairs about every 5 days Specific details of the failure mechanism are not in the public record

• Repeat failure are urgent warning signs
• Simply diagnosing ‘vibration’ is not helpful (ex.)
• Misdiagnosed vibration problems have led to many

repeat failures in industry (Ken’s book has examples)

• Not diagnosing chronic reliability problems will lead

to loss of control of a process

Normalization of deviance

Detecting leaks was audio/visual/olfactory Workers found they could respond to leaks without serious problems Chest and eye irritation became normal for those living near the plant No immediate solution could be found Repairs became routine, but the financial impact was very penalizing Pump problems led to secondary issues…

2/26/2019 10

Secondary issues

Pump failures cause irregular instrument readings (temperature)

• The meaningless information became normal
• High temperature alarm in the control room

disabled

Repeat failures and exposure became normal

• Yet a false sense of security

Leaks are a sign of a problem worth analyzing

• All failures deserve to be addressed

Acceptance of such problems is normalization

• f deviance
• Bad things are usually the result

Task force (1981)

Operating at 1/3 of capacity not sustainable Task force created with members from the parent company and the subsidiary Nitrogen could also be used to move MIC (rather than use transfer pumps)

• From 2 to 25 psig
• Pressure information now useless

Yet the circulation pumps still failed Other problems soon surfaced as a result of the changes

2/26/2019 11

More improvisations

Using Nitrogen to pressurize the tank interrupted its flow to the vent header lines and the vent gas scrubber Use of iron piping and valves led to

• Rust, which led to
• Trimer formation, which led to
• Choking of pipes and
• Failure (leakage) of valves

Dealing with trimer now became the priority Flushing the lines with water was the answer

• Yet this led to further problems

Further corrosion and repairs

Process not designed for invasive maintenance

• Attaching water hoses to pressure gauge taps

Yet water increased the corrosion of iron pipes

• Deep corrosion pits formed

Leaks not tolerable and required repair

• Replacing corroded sections of the pipes

Water now a more likely source of MIC contamination

Note: These are not pipes at Bhopal!

2/26/2019 12

Safety vs. maintainability

+ Inherently Safer Design ‐ ‐ Maintainable + Weld Joint Flange Joint Flange Joint with Spacer Slip Blind Spacer

A fatality (Dec 1981)

Repairs often required the use of blinds One worker sprayed when unbolting a flange He inhaled vapors while at the safety shower Workers felt the problem was an unforgiving, maintenance intensive process Supervisors disagreed Worker’s union insisted upon design modifications, yet supervisors refused The divide between the workers and supervisors grows

2/26/2019 13

25 workers injured (Jan 1982)

One pump seal replaced with a different material (ceramic, not metallic)

• Corporate did not authorize the change

The seal failed catastrophically after 2 days Workers were not wearing breathing masks Supervisors considered the change sabotage 3rd party investigation triggered Seal failure cannot be tolerated, so… Circulation pumps shut off

• Pressurize the tank, rather than cool it
• Such a practice is still supported in industry

The divide widens

Supervisors would not agree to changes

• Neither side communicating or negotiating well

Workers acted independently to protect themselves (e.g., use of blinds avoided) Workers took their complaints to the public

• Publicity campaign with pamphlets
• Public demonstrations at the factory gate
• The public showed little interest
• Supervisors terminated certain individuals
• Workers came back for employment with their

morale broken

Note: These are not Bhopal workers!

2/26/2019 14

Operating far beyond the original design

• 1. The process monitoring temperature and

pressure gauges were of no value

• 2. The temperature alarms had been disabled
• 3. The refrigeration unit was not in use most
• f the time
• 4. Chronic valve leaks replaced chronic pump

seal failures

• 5. Leaking pump seals, although less frequent

that before, were still a periodic exposure hazard

Operating far beyond the original design

• 6. Water was being introduced regularly into

process piping sections to flush out copious amounts of trimer deposits

• 7. Sections of iron pipe in the vent headers

were corroding from the inside out and were in constant need of repair Must either change to stainless steel piping and valves, or find the root cause of the pump seal problems

• Not possible with the plant in financial crisis

2/26/2019 15

An independent audit (May 1982)

The team’s composition caused a dependency that limited their effectiveness

• Corporate staff members were already familiar

with decisions made (and previously approved)

• It put them in an uncomfortable position

(e.g., interrupting refrigeration was not marked as a deviation)

• Design and operation not according to original

specifications

Audit findings (July 1982)

The audit team praised the facility for their workaround solutions!

• Yet the team did not transfer any of that

knowledge back to the US facility

No immediate concerns requiring urgent attention Several long term improvements recommended

• Manage the effects, did not address their cause

Failed to point out:

• Compliance issues to operate safely, the

connection between trimer and failed valves, MIC pump reliability issues

2/26/2019 16

Further improvisations (May 1983)

Considered a spare PVH Used a jumper instead

• Corporate approved

the change

The facility discontinued the use of replacing damaged sections of pipe… Instead, clamps and weld overlays were applied as a quick fix What would you do if you worked had worked here for five years? Where can you pinpoint “blame” for all this? RVVH starts to experience the same problems

Optimization and improvement program

Between ‘78 and ‘83 a loss of $7.5 MM

• Could not compete with local suppliers

Investors demanded the “bleeding” stop (Jan 1984) An “optimization and improvement” program

• > 300 layoffs
• Reductions in compensation and benefits
• Savings of $1.25 MM

Process now less profitable, less stable, and more labor intensive than before Investors couldn’t justify sinking more money Factory abandoned in place

2/26/2019 17

Facility shuts down (June 1984)

Refrigerant had leaked out, vent headers corroded and choked, valves leaking… Two storage tanks idle with 25 tons of MIC

• Yet no way to convert to saleable product

Workers insecure about their future

• Wandered around the facility for weeks

What to do? (Oct 1984)

Facility up for sale MIC and other hazardous materials on site

• Raw materials must be consumed by Jan ’85

(collaboration agreement expiration date)

August meeting to coordinate liquidation Decided to go into production one last time Temporary workers found Short term repairs done Production run planned to take 15 days Circulation pump seal failed on 12th day Relief systems choked and valves leaking

• Can’t transfer material to derivatives section

2/26/2019 18

The last straw (Dec 1984)

Water flush required Water flush worked, but… Exothermic reaction started Leak patrol party reported a leak Little they could do at this point

• No pumps, spare tanks, cooling, heat sink,

scrubber, flare, or water curtain

28 tons of material released

• 3,800 dead, 200,000 injured, 2,000 animals died,

environment severely impacted

AIChE CCPS, being proactive, the Titanic…

Conclusion

It’s not enough to find out what people were doing at the time It’s more important to find out why they were doing it (so document you design ‘whys’) How widespread might these issues be?

• Actual design differs from intent and specification

(e.g., if stainless steel would have been used…)

• Fundamental issues not resolved (e.g., if the pump

problems would have been resolved…)

When confronting a problem, look for ways to eliminate it, not control it Have you seen cases of instruments not installed correctly, operating procedures that differ from original intent, design basis no longer available…

2/26/2019 19

Lest you think I’m joking…

When the Bhopal plant manager was informed of the accident, he actually said in disbelief,

“The gas leak just can’t be from my plant. The plant is shut down. Our technology just can’t go wrong. We just can’t have leaks.”

He eventually went to prison Bhopal safety officer… Indiana student example… DuPont mercapton release video

What is this a graph of?

Happy Thanksgiving! Surprise!! Turkey Well Being

2/26/2019 20

Historical information and recommendations

Knowing what happened the day of an event is interesting… Newtonian thinking is too simplified Kletz’s suggestions have been time:

• Process hazards analysis
• Training
• Procedures
• Inspections and testing
• Control of management of change
• User friendly designs
• Better management

Process safety management (per CFR 1910.119)

Trade secrets Compliance audits Emergency planning and response Incident investigation Management of change Hot work permit Mechanical integrity Pre‐startup safety review Contractors Training Operating procedures Process hazards analysis Process safety information Employee participation

2/26/2019 21

Process safety management (per CFR 1910.119)

Trade secrets Compliance audits Emergency planning and response Incident investigation Management of change Hot work permit Mechanical integrity Pre‐startup safety review Contractors Training Operating procedures Process hazards analysis Process safety information Employee participation

Yet the instability may not be obvious

The tower is still standing… Murphy’s law is wrong… Everything that can go wrong usually goes right, And then we draw the wrong conclusions.

(Langewiesche)

What do safe plants and safe drivers have in common? Not all Jenga towers (plants) are the same What if we could tell how close the tower was to toppling!?

2/26/2019 22

Health isn’t ‘binary’

There are varying levels of health How long are you willing to tolerate high cholesterol? Are you willing to tolerate being obese and diabetic? What would it take to make you (or your company) change?

Complex systems and drifting into failure

Organizations are complex, messy, and have conflicting goals

• NASA: “Faster, Better, Cheaper”

Complex systems are bounded by three constraints (Jens Rasmussen) The goal is to remain in the space bound by all three Yet complex organizations, over time, may “Drift into Failure” (a book by Sidney Dekker) Control theory can be used to keep the system bounded, and provide a visual indication!

Must adapt to unruly technology, along with pressures of scarcity and competition

2/26/2019 23

So what else might we do?

• 1. Diversity of opinion and power
• A person or group that has the authority,

credibility and courage to say “no” (HROs: aircraft carriers)

• Accidents and the call for PEs
• 2. Alteration of MOC practices
• Involve outsiders (for diversity)
• 3. Audits / assessments
• Insiders may not have the necessary diversity

Safety and reliability are connected!

Definition of Maturity Class Mean Class Performance Best in Class

Top 20%

• f aggregate performance scores
• 90% OEE (Overall Equipment Effectiveness)
• 0.2% Repeat Accident Rate
• 0.05 Injury Frequency Rate
• 2% Unscheduled Asset Downtime

Industry Average

Middle 50%

• f aggregate performance scores
• 85% OEE
• 2.4% Repeat Accident Rate
• 0.9 Injury Frequency Rate
• 6% Unscheduled Asset Downtime

Laggard

Bottom 30%

• f aggregate performance scores
• 76% OEE
• 10% Repeat Accident Rate
• 3 Injury Frequency Rate
• 14% Unscheduled Asset Downtime

Source: Aberdeen Group Having an Executive Sponsor is key!

2/26/2019 24

160+ specialists dedicated to: Process safety

PHAs, compliance audits / gap assessments, facility siting, risk management planning, and much more

Functional safety

Cradle to grave SIS/BMS/F&G design and implementation services

Cybersecurity

All aspects of the cyber lifecycle: Assess and define; design, implement, and construct; operate and maintain

SIS lifecyle software

A relational database to document, track, and analyze all SIFs

Control system design and integration services

UL listed panel shop; partners with Rockwell, Siemens & Schneider

aeSolutions: Experts in safety & cybersecurity

Partnering for a safe and secure world
