The New ISO 10723 Advances and new concepts in the performance evaluation and benchmarking of on line natural gas analysers. Dr Paul Holland BD Director, EffecTech Group Natural gas quality measurement composition (content) of natural gas


slide-1
SLIDE 1

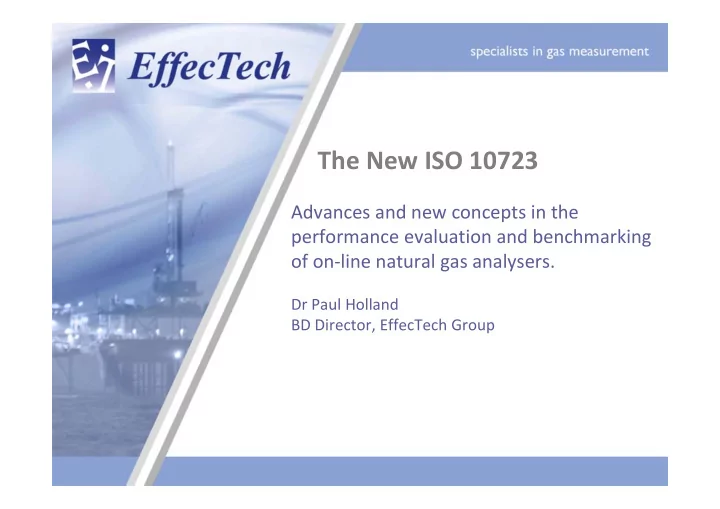

The New ISO 10723

Advances and new concepts in the performance evaluation and benchmarking

  • f on‐line natural gas analysers.

Dr Paul Holland BD Director, EffecTech Group

slide-2
SLIDE 2

Natural gas quality measurement

composition (content) of natural gas

  • inert gases
  • nitrogen, carbon dioxide, helium, (argon & hydrogen)
  • hydrocarbons
  • methane, ethane, propane, iso‐butane, n‐butane,

pentanes, hexanes + ......

properties (characteristics) of natural gas

  • calorific value, Wobbe number, standard density (ISO 6976)
  • compression factor, line density (ISO 12213)
  • hydrocarbon dew point (ISO 23874)
  • emission factors
slide-3
SLIDE 3

Energy determination

slide-4
SLIDE 4

Risks in energy metering

500,000 1,000,000 1,500,000 2,000,000 2,500,000 3,000,000 3,500,000 4,000,000 4,500,000 0.2 0.4 0.6 0.8 1 1.2 1.4 1.6

Annual Value / € U(Energy) / %

Typical gas fired power station Power output : 500 MW Energy Price : €60 / MWh

Typical

slide-5
SLIDE 5

Gas quality measurement instruments

slide-6
SLIDE 6

Legal / commercial requirements

legislation

  • customer protection (example in UK law)

Public Gas Transporters (PGTs) shall carry out performance evaluations of gas quality metering instruments in accordance with ISO 10723 following installation or maintenance. Provided that the results of the procedure show that the error on the calculated calorific value of transmission gas will not exceed 0.10 MJ.m‐3 for gas compositions allowed in the system, the PGT may then use that instrument for the determination of calorific values for the purposes of section 12 of the Gas Act 1986.”

  • control of GHG emissions (example in EU directive)

commercial gas contracts

  • sales gas agreements / contracts (end‐users)
  • allocation agreements (upstream)
slide-7
SLIDE 7
slide-8
SLIDE 8

Revision of ISO 10723 : 1995

revision to existing standard required for

  • inclusion of measurement uncertainties
  • instrument precision, instrumental errors
  • working calibration gas
  • compliance with GUM
  • more rigorous assessment of errors and uncertainties of

measurement of

  • composition (gas content amount fraction)
  • gas properties (calculated from composition)

revision by

  • ISO/TC193/WG15 (with liaison from ISO/TC158)
  • Drafting by G Squire (EffecTech, UK) and D Lander (NGG,

UK)

slide-9
SLIDE 9

ISO/DIS 10723 : 2011 ‐ Scope

Determine E(x), E(P) and U(x), U(P) over a pre‐defined range of compositions for each specified component Determine a range of compositions for each specified component which satisfy pre‐ defined maximums in E(x), E(P) and U(x), U(P)

using a specified calibration gas composition and uncertainty calibration gas redesign composition and uncertainty

slide-10
SLIDE 10

Instrument errors

1 2 3 4 5 6 7 8 9 10

response / (peak area) content / (% mol/mol)

y=Fass(x) xcal

slide-11
SLIDE 11

Instrument errors

1 2 3 4 5 6 7 8 9 10

response / (peak area) content / (% mol/mol)

y=Fass(x) y=Ftrue(x) xcal

slide-12
SLIDE 12

Instrument errors

1 2 3 4 5 6 7 8 9 10

response / (peak area) content / (% mol/mol)

y=Fass(x) y=Ftrue(x) xcal

slide-13
SLIDE 13

Instrument errors

1 2 3 4 5 6 7 8 9 10

response / (peak area) content / (% mol/mol)

y=Fass(x) y=Ftrue(x) xcal

slide-14
SLIDE 14

Challenge

measurement of TRUE (actual) response functions for the instrument for all components (i=1..q)

  • calibration functions
  • y = Fi,true(x)
  • analysis functions
  • x = Gi,true(y)

function types for F & G

  • polynomials of order 1, 2 or 3
  • yi = Fi,true(xi) = a0 + a1xi + a1xi

2 + a3xi 3

  • xi= Gi,true(yi) = b0 + b1yi + b2yi

2 + b3yi 3

slide-15
SLIDE 15

Design of reference gases

a series of reference gases is measured by the instrument being calibrated components included in reference gases

  • depends on application

range of composition

  • equal or greater than that expected to be measured by the

instrument (no extrapolation)

number of mixtures

  • dependent upon expected order of F and G
  • 3 (1st order), 5 (2nd order), 7 (3rd order)
  • approximately equally spaced within the range
slide-16
SLIDE 16

ISO 10723 ‐ Performance evaluations of on‐line analytical systems

  • ISO 17025 accredited calibration

gases

  • well established reference values &

uncertainties

  • 7 ‐10 cylinders each containing 10,11
  • r 12 components
  • wide range natural gas compositions
slide-17
SLIDE 17

Experimental design

replicate measurements reference gases

Batch‐wise calibration

 simplest / manual / most practical (p gas changes)  temporal drift has more significance

slide-18
SLIDE 18

replicate measurements reference gases

Drift compensation calibration

 compensates for temporal drift (due to sample size effects)  automation required

Experimental design

slide-19
SLIDE 19

Drift correction

Samples are injected at (or with reference to) ambient pressure.

response effective sample size ambient pressure

Batch‐wise calibration Drift compensation calibration

yijk = y’ijk . Pref / Pijk

measure ambient pressure at time of sample injection (Pijk)

slide-20
SLIDE 20

Gas fired power station

slide-21
SLIDE 21

Gas fired power station

slide-22
SLIDE 22

Witnessed factory evaluation

slide-23
SLIDE 23

LNG receiving terminal

slide-24
SLIDE 24

Custody transfer border station

slide-25
SLIDE 25

Drift compensation calibration (automated)

slide-26
SLIDE 26

Offshore allocation / sales gas

slide-27
SLIDE 27

Regression analysis

parameters F and G are calculated using GLS

  • maximum liklihood functions relationships (MLFR)
  • uncertainties in both variables (amount and response)
  • procedure identical to that prescribed in ISO 6143

response functions validated for each component and in each domain F and G using ISO 6143

slide-28
SLIDE 28

Calibration results

slide-29
SLIDE 29

Errors

content / amount fraction & properties

  • assumed
  • true
  • measured amount following calibration

(where functions coincide)

  • normalise
  • errors

) (

, i ass i i

y G x  ) (

, i true i i

x F y 

)) ( ( )) ( ( .

, , , , , , , * , cal i true i ass i true i true i ass i cal i meas i

x F G x F G x x 

* , * , , meas i meas i meas i

x x x

true i meas i meas i

x x x

, , ,

  

true meas meas

P P P   

slide-30
SLIDE 30

Uncertainties in errors

contributions from

  • calibration gas
  • instrument precision

properties

  • any property / characteristic calculated from composition

) (

,cal i

x u ) ( & ) (

, , meas i cal i

y u y u

) ,..., , , ,..., , (

2 1 2 1 m n

w w w x x x f P 

) ( ) ( ) (

2 1 2 2 1 2 2 i m i i i n i i c

w u w f x u x f P u

 

 

                     

slide-31
SLIDE 31

produce a off‐line model of instrument

  • errors as a function of amount fraction
  • repeatability as a function of amount fraction
  • uncertainties as a function of amount fraction

use Monte Carlo simulation

  • generate 10,000 different gas compositions
  • for each composition calculate
  • errors in physical properties
  • uncertainties in physical properties

Off‐line model

slide-32
SLIDE 32

Errors and uncertainties on errors

  • 0.15
  • 0.10
  • 0.05

0.00 0.05 0.10 0.15 78 80 82 84 86 88 90 92 94 96 98

E(CVSUP) / MJ.m-3 methane content / (% mol/mol)

slide-33
SLIDE 33

Error distribution

  • 0.15
  • 0.10
  • 0.05

0.00 0.05 0.10 0.15 78 80 82 84 86 88 90 92 94 96 98

E(CVSUP) / MJ.m-3 methane content / (% mol/mol)

slide-34
SLIDE 34

Mean error (bias)

  • 0.16
  • 0.14
  • 0.12
  • 0.10
  • 0.08
  • 0.06
  • 0.04
  • 0.02

0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 78 83 88 93 98

E(CVSUP) / MJ.m-3 methane content / (%mol/mol)

Maximum Permissible Bias (MPB)

mean error = bias ‐ B(P)

MPB P  

slide-35
SLIDE 35

Uncertainty on mean error

  • 0.16
  • 0.14
  • 0.12
  • 0.10
  • 0.08
  • 0.06
  • 0.04
  • 0.02

0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 78 83 88 93 98

E(CVSUP) / MJ.m-3 methane content / (%mol/mol)

Maximum Permissible Error (MPE) uncertainty on the mean error ≈ uncertainty on bias ‐ U(B(P))

  MPE

P U P

c

   

slide-36
SLIDE 36

Errors and uncertainties ‐ summary

slide-37
SLIDE 37

Example – design of calibration gas

slide-38
SLIDE 38

Example – design of calibration gas

xC1,cal = 0.88 mean E(CV) = 0.001 ± 0.061 MJ.m‐3

slide-39
SLIDE 39

Example – design of calibration gas

xC1,cal = 0.88 mean E(CV) = 0.001 ± 0.061 MJ.m‐3 xC1,cal = 0.81 mean E(CV) = 0.000 ± 0.028 MJ.m‐3

slide-40
SLIDE 40

Analysis function correction ‐ superior CV

slide-41
SLIDE 41

Instrument errors

1 2 3 4 5 6 7 8 9 10

response / (peak area) content / (% mol/mol)

y=Fass(x) y=Ftrue(x) xcal

slide-42
SLIDE 42
