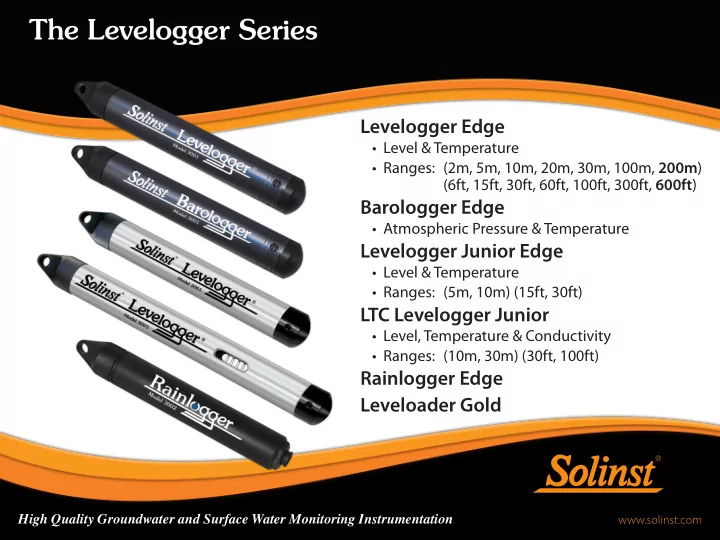

The Levelogger Series

Levelogger Edge

• Level & Temperature
• Ranges: (2m, 5m, 10m, 20m, 30m, 100m, 200m)

(6ft, 15ft, 30ft, 60ft, 100ft, 300ft, 600ft)

Barologger Edge

• Atmospheric Pressure & Temperature

Levelogger Junior Edge

• Level & Temperature
• Ranges: (5m, 10m) (15ft, 30ft)

LTC Levelogger Junior

• Level, Temperature & Conductivity
• Ranges: (10m, 30m) (30ft, 100ft)

Rainlogger Edge Leveloader Gold

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Model 3001

Levelogger Edge

Enhanced Features

• Corrosion resistant Titanium based PVD coating
• Hastelloy pressure sensor (can withstand 2X over-pressure)
• Improved temperature compensation and temperature response time
• Stores up to 120,000 water level and temperature datapoints using

a data compression algorithm

Absolute Water Level Precision Technology

• Combined pressure transducer, temperature thermistor, battery, and

data logger in a 7/8" x 6.25" (22 mm x 159 mm) self-contained, sealed unit

• Accuracy: 0.05% net FS
• SS Faraday Cage design

➙ protects against lightning/power surges

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Levelogger Edge

Other Features

• 10 year battery life, based on readings every minute
• ver full temperature range (-20 to 80˚C)
• Life-time calibration
• Self-test capability
• Firmware upgrades online

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Barologger Edge (Atmospheric Pressure & Temperature)

Model 3001

Barologger Edge

• Use Barologger for barometric

compensation

• No vent tubes required
• Software is backwards compatible
• Compensate multiple Levelogger

fjles at once with Data Wizard ➙ within 20 mile (30 km) radius

• r with every 1000 ft (300 m)

change in elevation

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Model 3001

Levelogger Junior Edge

Levelogger Junior Edge (Water Level & Temperature)

• Low cost
• 40,000 datapoints
• 5 year battery life

(based on 1 reading/minute)

• Accuracy of 0.1% FS
• Linear Sampling Mode

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Model 3001

Levelogger LTC Junior

Monitor Conductivity, Water Levels and Temperature

• Ideal for salinity and saltwater intrusion

studies, tracer tests, agricultural and stormwater run-ofg monitoring

• Conductivity range

0 - 80,000 µS/cm

• Memory for 16,000 datapoints
• 5 year battery
• 2% accuracy

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Model 3002

Rainlogger Edge

Add Rainfall Data to Your Monitoring Network

• ABS housing protects against ESD
• Compatible with Levelogger Series accessories,

STS and RRL Telemetry Systems

• 10 year battery
• Memory for 60,000 readings

Model 3001

Leveloader Rugged Data Transfer Unit

Leveloader Gold

• 8 Mb non-volatile FLASH memory,

holds over 1.3 million readings or 34 full Levelogger downloads

• Stores up to 10 personalized settings fjles
• Apply Levelogger settings fjles to

in-fjeld Leveloggers

• Easy transfer of data to a PC
• Look at real-time readings in the fjeld,

without disturbing the Levelogger program

• Robust, water-resistant, ergonomic

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Levelogger DataGrabber

Portable USB Data Transfer Device

• Connects to DRC or Adaptor
• One push-button to download data
• LED light to indicate operation
• Uses separate, replaceable 9V battery
• Transfer does not interrupt running Levelogger

Direct Read to Optical Adaptor

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Levelogger App Interface

• Uses Bluetooth technology to connect your

Levelogger to your smart device

• Connects to a Levelogger’s Direct Read Cable
• r Adaptor
• Compact design, uses 4 AA batteries

Solinst Levelogger App

• View and save real-time readings from

connected Levelogger

• View or download logged data

➙ E-mail data logs from the field

• Save and apply Levelogger Settings fjles
• Program Leveloggers in the fjeld

Model 3001

Solinst Levelogger App and Interface

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Model 3001

Levelogger Communication

High Speed Optical Reader PC Interface Cable

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Version 4.1 Software

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Direct Read Cable

• Allows direct connection from Levelogger to surface
• Program and retrieve data without disturbing the

datalogger

• If difgerent sampling interval needed for pump test, use

Real-Time View function

Levelogger Edge Deployment Options

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Levelogger Edge Deployment Options

Wireline Suspension or Kevlar Cord

• Program Leveloggers and set them in place for long-term
• Retrieve and download data
• Provides the fmexibility for sites where vandalism is an issue

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Lockable Well Cap Ideal For: Suspension Cable & DRC Installations

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Model 3001

Biofoul Screen for Leveloggers

Extend Levelogger Deployment

• Resists biofouling on a Levelogger pressure sensor
• r conductivity cell
• Simple, low-cost design

➙ Copper coiled Delrin sleeve

• Reduces maintenance time and costs
• Improves long-term performance

and accuracy

www.solinst.com

High Quality Groundwater and Surface Water Monitoring Instrumentation

Model 9100 & 9200

Telemetry Overview

STS Gold

• Digital cellular

communication

• Small to large

networks

• Control your own

telemetry systems

• ver the web
• Set alarm notifjcations

RRL Gold

• Short-distance radio
• Small closed loop

networks

• Cost-efgective design
• Interchangeable

stations

• Compact, all-in-one

units

Built for the Levelogger Series, Solinst Telemetry Systems ofger cost savings, fmexibility and easy access to remote monitoring locations.
