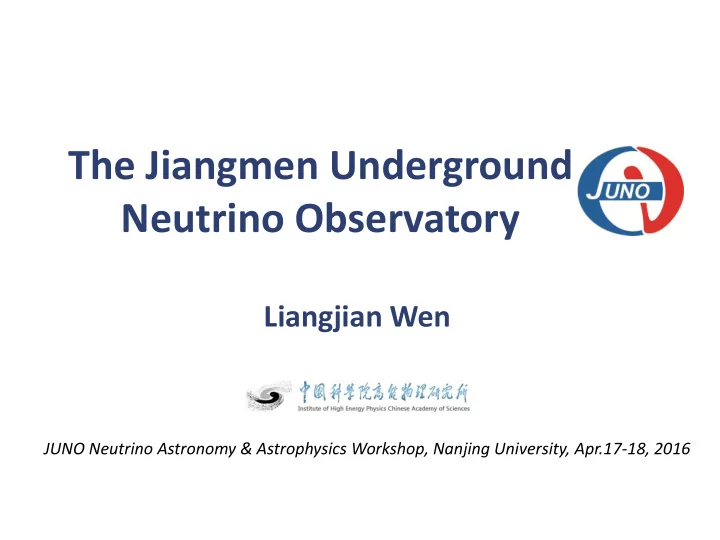

The Jiangmen Underground Neutrino Observatory

Liangjian Wen

JUNO Neutrino Astronomy & Astrophysics Workshop, Nanjing University, Apr.17-18, 2016

slide-2
SLIDE 2

Yangjiang NPP, 17.4 GWth Taishan NPP, 18.4 GWth

53 km 53 km

Daya Bay NPP

700 m overburden

q12 osc. maximum

PRD 88, 013008 (2013)

JUNO Experiment

Rich Physics

  • Reactor neutrinos:

Mass hierarchy & Precision measurement

  • f mixing parameters
  • Supernova neutrinos
  • Geo-neutrinos
  • Solar neutrinos
  • Sterile neutrinos
  • Atmospheric neutrinos
  • Exotic searches

Jiangmen Underground Neutrino Observatory

  • 20 kton LS detector, 3%/ 𝑭 energy resolution

A multiple-purpose neutrino experiment

  • J. Phys. G 43: 030401 (2016)

(arXiv:1507.05613)

2

slide-3
SLIDE 3
slide-4
SLIDE 4

Cosmic muons ~ 250k/day

Atmospheric  several/day Geo-neutrinos 1-2/day Solar  (10-1000)/day

Neutrino Rates

reactor , ~ 60/day

700 m

Supernova  ~ 5k in 10s for 10kpc

20k ton LS 36 GW, 53 km 0.003 Hz/m2, 215 GeV 10% multiple-muon

4

slide-5
SLIDE 5

Reactor e signal and backgrounds

5

Background Rate Uncertainties 30% 1% 100% 20% 50% Background Shape Uncertainties 5% negligible 20% 10% 50%

n e p

e

  

n + p  d + γ (2.2 MeV)

Neutrino Event: coincidence in time, space and energy τ  200 μs

Inverse- decay reaction:

slide-6
SLIDE 6

Ref: Y.F Li et al, PRD 88, 013008 (2013)

Relative Meas.

(a)Use

absolute Dm2 Ideal case 4s 5s

(b)Realistic case

3s 4s

Sensitivity on MH

Y.F Li et al

JUNO MH sensitivity with 6 years' data:

(a) If accelerator experiments, e.g NOvA, T2K,

can measure DM2

mm to ~1% level (b) Take into account multiple reactor cores,

uncertainties from energy non-linearity, etc

Ideal Core distr. DYB & HZ Shape B/S (stat.) B/S (shape) |Dm2

mm|

Size 52.5 km Real Real 1% 6.3% 0.4% 1% Dc2

MH

+16

  • 3
  • 1
  • 1
  • 0.6
  • 0.1

+ (4-12)

6

slide-7
SLIDE 7

Precision Measurement

Probing the unitarity of UPMNS to ~1%

0.16%0.24% 0.39%0.54% 0.16%0.27%

E resolution Correlation among parameters

Statistics +BG +1% b2b +1% EScale +1% EnonL sin2 θ12 0.54% 0.67% Δm2

21

0.24% 0.59% Δm2

ee

0.27% 0.44%

Probing the unitarity of UPMNS to ~1% more precise than CKM matrix elements !

7

slide-8
SLIDE 8

Precision Measurement

8

  • Unitarity test of neutrino mixing matrix. (precision of s𝑗𝑜θ12is critical)
  • Narrow down the parameter space of the effective mass |mee| of

NDBD

  • Discriminate models of the neutrino masses and mixing.
  • Test if Δ𝑛13

2 + Δ𝑛21 2 + Δ𝑛32 2 =1

slide-9
SLIDE 9

Requirements on Energy Resolution

Impact to MH sensitivity

stochastic term constant term noise term

Generic form

  • 3%/ 𝑭 energy resolution

– LS att. length: >20m@430nm

Absorption 60 m + Rayleigh scattering 30 m

– PMT parameters

  • QE: >30%@430nm

(CE modeled in MC)

  • photo-coverage: >75%
  • charge resolution: <30%
  • QE non-uniformity: <20%
  • time resolution: <3ns
  • dark noise: <50kHz/PMT

Data validated Full MC (DYB&DC) JUNO 9

6 yrs

slide-10
SLIDE 10

20” MCP-PMT R&D in JUNO

10

Evaluate both the PMT characteristics’ impacts on MH hierarchy and the cost. Finished 20” PMT bidding at end of 2015:

  • - 15000 MCP-PMT (China)
  • - 5000 Dynode-PMT (Japan)
slide-11
SLIDE 11

Liquid Scintillator

  • LAB+PPO+bisMSB (no Gd-loading)
  • Increase light yield

– Optimization of fluors concentration

  • Increase transparency

– Good raw solvent LAB – Online handling/purification

  • Distillation, Filtration, Water

extraction, Nitrogen stripping, … To be tested with Daya Bay detector

  • Reduce radioactivity

– No Gd, Less risk. Singles<~3Hz (>0.7MeV), with U/Th <10-15 g/g,

40K< 10-16 g/g

Linear Alky Benzene (LAB)

  • Atte. Length

@ 430 nm RAW (specially made) 14.2 m Vacuum distillation 19.5 m SiO2 coloum 18.6 m Al2O3 coloum 24~25 m

11

water extraction Al2O3 column

Al2O3 Test

slide-12
SLIDE 12

Al2O3 column

LAB and Al2O3 mixing tank Pure LAB

JUNO-LS Pilot plant

  • Test the overall design of purification system at

Daya Bay. Replace the target LS in one detector

  • Quantify the effectivities of subsystems

– Optical : >20m A.L @430nm? – Radio-purity: 10-15 g/g (U, Th) ?

  • Determine the choice of sub-systems

– Al2O3 column, distillation, gas striping, water extraction

12

Al2O3 column pilot plant installed in Daya Bay LS hall Distillation system Steam stripping system Distillation and steam stripping system (by Italian group). Be transported to Daya Bay at Apr/May

slide-13
SLIDE 13

13

JUNO Layout

slide-14
SLIDE 14

Central detector Acrylic sphere+ 20kt Liquid Scin+ ~17000 20” PMT+ ~34000 3’’ PMT Water Cherenkov ~2000 20’’ PMT Top Tracker Calibration 43.5m D43.5m AS: ID35.4m SSLS: ID40.1m AS: Acrylic sphere; SSLS: stainless steel latticed shell Electronics Filling+

  • verflow

Pillar: ~100 Connecting bars: ~600

JUNO Detector Scheme

slide-15
SLIDE 15

15

March, 2014 July, 2015 SS truss+ Acrylic sphere Balloon + Acrylic support+ SS tank

Acrylic sphere+ SS truss Balloon+ SS tank Acrylic sphere+ SS tank Acrylic module+ SS tank

Final decision: Acrylic sphere + SS truss

CD Option Selection

slide-16
SLIDE 16

Detector Dimension

16

RLS=17.2 Tacrylic= 0.12m TwBuffer = 1.43 m TWP = 1.2m PMT mounting

  • n SS Struss

RCD-PMT = 17.82 + TwBuffer RWP = 43.5m

slide-17
SLIDE 17

Sensitivity vs. dimension

17

Only consider the statistical impact on chi2 from accidental background: Divide LS into equal-mass-bin, calculate the c2 contribution from each shell, then

slide-18
SLIDE 18

Central detector Acrylic sphere+ 20kt Liquid Scin+ ~17000 20” PMT+ ~34000 3’’ PMT Water Cherenkov ~2000 20’’ PMT Top Tracker Calibration 43.5m D43.5m AS: ID35.4m SSLS: ID40.1m AS: Acrylic sphere; SSLS: stainless steel latticed shell Electronics Filling + Overflow

JUNO Detector Scheme

slide-19
SLIDE 19

JUNO Central Detector

19

Acrylic sphere

  • ID:Ø35.4m
  • Thickness:120mm
  • Weight: ~600t

Acrylic panel

  • 21 layers + top chimney

+ bottom flange

  • ~260 pieces
  • ~560 connecting nodes

Stainless steel latticed shell

  • ID: Ø40.1m
  • OD: Ø41.1
  • Total Weight: ~600t

H-beam

  • 21 latitude circles: 400x300x12x18
  • 32 longitude circle: 500x300x12x18
  • ~100 Supporting legs
  • Connecting bar: Ø70

Supporting leg H-beam Connecting bar Connecting node

Connecting node

  • ~560
  • Connecting steel piece

inserted into acrylic

120mm acrylic wall Appended acrylic Steel piece

slide-20
SLIDE 20

Acrylic Sphere R&D

20

The maximum stress of acrylic is concentrated at connecting nodes How to reduce the stress on acrylic node?

  • a. Lower the load on connecting bar
  • b. Improve the design of connecting node

Worst stress case: the total vertical load is ~2600t, ~560 connecting nodes will carry it

Type B

  • b. How to improve the node design
  • Optimize the structure of node
  • Two kinds of node for compressive area

and tensile area

High tensile strength Type A High compressive strength

spring Adjust the stiffness of some connecting bars

  • a. Lower the max load on connecting bar
  • Add the quantity of bar Add light block X
  • Improve the load distribution on bars

How to improve the load distribution on bars?

Acrylic stress is a critical issue for engineering design.

slide-21
SLIDE 21

Acrylic Sphere R&D

21

Forming panel size: 3m x 8m x 120mm Prototype of spherical panel The problems of shrinkage and shape variation were resolved. Three companies had good practices. Acrylic divided into 200+ panels

slide-22
SLIDE 22

Prototypes of connecting node

22

Another key point of acrylic sphere, ~500 nodes needed, production in acrylic company

1:1 Prototypes and strength test 1:4 Prototypes and strength test

Type A Type B

Purpose:

  • Compare the FEA and test result
  • Improve the structure design and bonding technology
  • Get the ultimate breaking capacity of connecting structure
slide-23
SLIDE 23

CLS GT

Calibration System

23

Guide Tube ACU

slide-24
SLIDE 24

PMT arrangement

24 Coverage for different arrangement tries

The supper layer method is the best one, can get the highest coverage

20” PMT(~17000) 3” sPMT(~34000) Arranged between 20” PMTs

CD: 20 inch and 3inch PMTs were arranged on the steel structure

slide-25
SLIDE 25

PMT Readout

25

Made the final decision last year

Put most of electronics underwater and sealed with BASE, HV together. Use the single CAT5+ cable to transfer data, hit, clock, power and trigger

Front part under-water Backend part- ”Dry” part

  • Needs to consider the integration and potting structure with PMT
  • Replacement under water is almost impossible, need high reliability of

potting, electronics and HV

Flash ADC of 1GHz Out of water

slide-26
SLIDE 26

PMT Potting

26 The conceptual design of JUNO PMT Potting

Status:

  • Conceptual design of the overall structure is finished
  • Study on potting sealants, cable sealing and the

thermo-conductivity is ongoing

  • 41 PMTs of 5 types were potted and used for JUNO
  • prototype. Obtained good experience

Potting requirement became higher

  • Base, High Voltage unit and the front-end electronics need to be potted
  • Working under 45m high-purity water;
  • 20 years lifetime
  • 0.5% failure rate for the first 6 years

Adhesive or oil Waterproof sealant

slide-27
SLIDE 27

SS cover Acrylic cover small holes Openings

PMT Implosion Protection

27

  • A prototype of the protective cover is under design and test

upper cover: Acrylic lower cover: Stainless Steel

Protection requirement:

  • Protect PMT from chain implosion
  • ptical transparent : ~1% in light blocking
  • least possible impact on the coverage

Distance (m) Pressure (MPa)

Shock wave from bare PMT has been measured in JUNO conditions:

  • peak value is about 14 MPa @15cm from the glass shell
  • The shockwave decreases quickly for larger distance
slide-28
SLIDE 28

CD Prototype

Test the performance of various PMTs’ performances, the PMT potting, supporting structure, electronics, HV, reliability, etc.

H 20” MCP 20” HZC 9” H 8” MCP 8” 28

~1 m water tank

slide-29
SLIDE 29

29

CD Prototype

Assembly finished at the end of 2015 Preliminary data shows: PMT water-proof potting works well PMTs perform well

slide-30
SLIDE 30

6.8 m

  • Cosmic muon flux

– Overburden：~700 m – Muon rate：0.0031 Hz/m2 – Average energy：214 GeV

  • Water Cherenkov Detector

– > 3.9 m water shielding, Radon: <0.2 Bq/m3 – ~1500 20”PMTs – 20~30 kton pure water, HDPE lining – Similar technology as Daya Bay (99.8% efficiency)

  • Top muon tracker

– Muon track for cosmogenic bkg rejection – Decommissioned OPERA plastic scintillator – Possibly w/ RPC

Veto Detectors

Top muon tracker Water Cherenkov Detector

Muon multiplicity at JUNO

30

slide-31
SLIDE 31

Compensation coils

  • Vertical

 17 pairs；central intensity：0.238Gs；  Diamter：43.3m；  current：11.73A；  Total cable length:16.5Km;  Horizontal

 15 pairs；central intensity：0.38Gs；  Diamter：43.3m；  current：10.32A；  total cable length：21.4Km；

  • Earth magnetic field in experiment site
  • Two direction coils systems

Ф41m uniformity: 94.0% Ф40m uniformity: 96.0% Ф39m uniformity: 97.0% Ф41m uniformity: 81.0% Ф40m uniformity: 94.0% Ф39m uniformity: 98.0%

31

slide-32
SLIDE 32

Project Plan and Progresses

  • Decided Central Detector Scheme: 2015.07
  • Finished PMT bidding: 2015.12 (production: 2016-2019)
  • Finish the engineering design of detector structure:

2016.07

  • Bidding for acrylic production: end of 2016
  • Civil construction: 2015-2017
  • Detector component production: 2016-2017
  • Build detector onsite: 2018-2019
  • PMT installation, Veto, cleaning, filling : 2019-2020
  • Data taking：2020

32

slide-33
SLIDE 33

Thanks!
