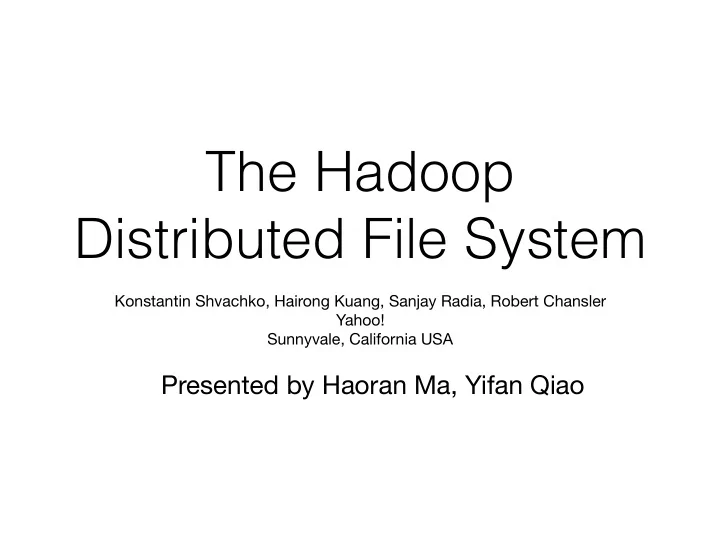

The Hadoop Distributed File System

Konstantin Shvachko, Hairong Kuang, Sanjay Radia, Robert Chansler Yahoo! Sunnyvale, California USA

Outline

• Introduction
• Architecture
• File I/O Operations and Replica Management
• Practice at YAHOO!
• Future Work

Introduction

• A single dataset is too large —> Divide it and

store them on a cluster of commodity hardwares.

• What if one of the physical machines fails?
• Some applications like MapReduce need high

throughput of data access.

Introduction

• HDFS is the file system component of Hadoop. It

is designed to store very large data sets reliably, and to stream those data sets at high bandwidth to user applications.

• These are achieved by replicating file contents
• n multiple machines(DataNodes).

Introduction

• Very Large Distributed File System
• Assumes Commodity Hardware
• Files are replicated to handle hardware failure
• Optimized for Batch Processing
• Data locations exposed so that computations

can move to where data resides

Introduction

Usually 128 MB

Source: HDFS Tutorial – A Complete Hadoop HDFS Overview. DATAFLAIR TEAM.

Architecture

Source: Hadoop HDFS Architecture Explanation and Assumptions. DATAFLAIR TEAM.

Architecture

• Stores meta-data such as number of data

blocks, replicas and other details in memory

• Maintains and manages the DataNodes, and

assigns tasks to them

Architecture

Store Application Data

Source: Hadoop HDFS Architecture Explanation and Assumptions. DATAFLAIR TEAM.

Architecture

HDFS Client: a code library that exports the HDFS file system interface

Architecture

• How does this architecture achieve high fault-

tolerance?

• DataNodes Failure
• NameNode Failure

Architecture:

Failure Recovery for DataNodes

Source: Understanding Hadoop Clusters and the Network. Brad Hedlund.

Architecture:

Failure Recovery for DataNodes

Block Report Heartbeat

Source: Understanding Hadoop Clusters and the Network. Brad Hedlund.

Architecture:

Failure Recovery for DataNodes

Source: Understanding Hadoop Clusters and the Network. Brad Hedlund.

Architecture:

Failure Recovery for DataNodes

What if NameNode fails?

Architecture:

Failure Recovery for NameNode

Image = Checkpoint + Journal

• Image: The file system metadata that describes

the organization of application data as directories and files.

• Checkpoint: A persistent record of the image

written to disk.

• Journal: The modification log of the image. It is

also stored in the local host’s native file system.

Architecture:

Failure Recovery for NameNode

• CheckpointNode:
• Periodically combines the existing checkpoint and

journal to create a new checkpoint and an empty journal.

• BackupNode:
• A read-only NameNode.
• Maintains an in-memory, up-to-date image of the file

system namespace that is always synchronized with the state of the NameNode.

Architecture:

Failure Recovery for NameNode

• Snapshots
• To minimize potential damage to the data

stored in the system during upgrades.

• Persistently save the current state of the file

system(both data and metadata).

Architecture:

Failure Recovery for NameNode

• Snapshots
• To minimize potential damage to the data

stored in the system during upgrades.

• Persistently save the current state of the file

system(both data and metadata).

Copy on Write

Architecture:

Failure Recovery for NameNode

Combine Return

NameNode DataNode (Example) BackupNode CheckpointNode Memory:


Disk: Memory:

Synchronize

Image Checkpoint Journal

New Checkpoint Empty Journal

Snapshot Snapshot (Only Hard Links)

Disk: Disk:

Usage & Management of HDFS Cluster

• Basic File I/O operations
• Rack Awareness
• Replication Management

File I/O Operations

• Write Files to HDFS: Single writer, multiple reader

(1) addBlock (2) unique block ids (3) write to block

Source: Understanding Hadoop Clusters and the Network. Brad Hedlund.

• Write Files to HDFS: Single writer, multiple reader

(1) addBlock (2) unique block ids (3) write to block

• 1. Client consults the

NameNode to get a lease and destination DataNodes

• 2. Client writes a block to

DataNodes in a pipeline way

• 3. DataNodes replicate blocks
• 4. Client writes a new block

after finishing the previous block

The visibility of the modification is not guaranteed!

File I/O Operations

• 1. the client consults the NameNode to get the

list of blocks and their replicas' locations

• 2. try the nearest replica first, then the second

nearest replica, and so on

• Identifying corrupted data
• Checksums-CRC32
• Read Files in HDFS

File I/O Operations

In-cluster Client Reads a File

Source: Understanding Hadoop Clusters and the Network. Brad Hedlund.

Outside Client Reads a File

Source: Understanding Hadoop Clusters and the Network. Brad Hedlund.

Rack Awareness

Source: Understanding Hadoop Clusters and the Network. Brad Hedlund.

Rack Awareness

• Benefits:
• higher throughput
• higher reliability:
• an entire rack failure never loses all replicas of a

block

• better network bandwidth utilization:
• reduce inter-rack and inter-node write traffic as

much as possible

• The default HDFS replica placement policy:
• 1. No DataNode contains more than one

replica of any block

• 2. No rack contains more than two replicas of

the same block, provided there are sufficient racks on the cluster

Rack Awareness

Replication Management

• to avoid blocks to be under- or over-replicated

Source: Understanding Hadoop Clusters and the Network. Brad Hedlund.

Practice at Yahoo!

• Clusters at Yahoo! can be as large as ~3500 nodes with

typical configuration:

• 2 quad core Xeon processors @ 2.5Ghz
• 4 directly attached SATA drives (1TB each, 4TB total)
• 16GB RAM
• 1-Gbit Ethernet
• Total 9.8PB of storage available, 3.3PB available for user

applications when replicating blocks 3 times

Cluster Basic Information

Practice at Yahoo!

• Uncorrelated nodes failure:
• Chance of a node failed during a month ~0.8%

(Naive estimation for a node failure probability during a year is ~9.2%)

• Chance of losing a block during a year < 0.5%
• Correlated nodes failure:
• HDFS tolerates a rack switch failure
• But a core switch failure or cluster power loss can

lose some blocks

Data Durability

Practice at Yahoo!

• Benchmarks

Scenario Read (MB/s per node) Write (MB/s per node) DFSIO 66 40

7200 RPM Desktop HDD[6]

< 130 (typical 50-120) < 130 (typical 50-120)

Table1: Contrived benchmark compared with typical HDD performance

Scenario Read (MB/s per node) Write (MB/s per node) Busy Cluster 1.02 1.09

Table2: HDFS performance in a production cluster

Practice at Yahoo!

• Benchmarks

Bytes (TB) Nodes Maps Reduces Time / s HDFS I/O Bytes/s Aggregate (GB) Per Node (MB) 1 1460 8000 2700 62 32 22.1 1000 3658 80000 20000 58500 34.2 9.35

Table 3: Sort benchmark

1000TB is too large to fit in the node memory intermediate results spill to disks and occupy disk bandwidth

Practice at Yahoo!

• Benchmarks

Operation Throughput (ops/s) Open file for read 126 100 Create file 5600 Rename file 8300 Delete file 20 700 DataNode Heartbeat 300 000 Blocks report (blocks/s) 639 700

Table4: NameNode throughput benchmark

involve modifying nodes, can be the bottleneck in large scale

Summary: HDFS: Two Easy Pieces*

• Reliability
• Throughput

*: The title is from two great books: Six Easy Pieces: Essentials Of Physics Explained By Its Most Brilliant Teacher, by Richard P . Feynman, and Operating Systems: Three Easy Pieces, by Remzi H. Arpaci-Dusseau and Andrea C. Arpaci-Dusseau

Summary: HDFS: Reliability

• System Design:
• Split files into blocks and replicate them (typical 3)
• For NameNode:
• Checkpoint + Journal can restore the latest image
• BackupNode
• Snapshot
• NameNode is the single point of failure of the whole system - NOT GOOD!
• For DataNodes:
• Rack Awareness + Replica Placement Policy, never lose a block if a rack

fails

• Replica Management, to avoid blocks to be under-replicated
• Snapshot

Summary: HDFS: Throughput

• System Design
• Split files into large blocks (128MB) - good for streaming access and

parallel access

• Provide APIs that expose the location of blocks - facilitating applications

to schedule computation tasks to where the data reside

• NameNode - Not Good for High Throughput and Scalability
• Single node handles all requests from clients and manages all DataNodes
• DataNodes
• Rack Awareness & replica placement policy - better utilizing network

bandwidth

• Write files in a pipeline way
• Read files from the nearest DataNode first

Future Work (Out of Date!)

• Automated failover solution
• Zookeeper
• Scalability of the NameNode
• multiple namespaces to share physical storage
• Advantages:
• isolate namespaces
• improve the overall availability
• generalize the block storage

abstraction

• Drawbacks:
• management cost

Thank you.
