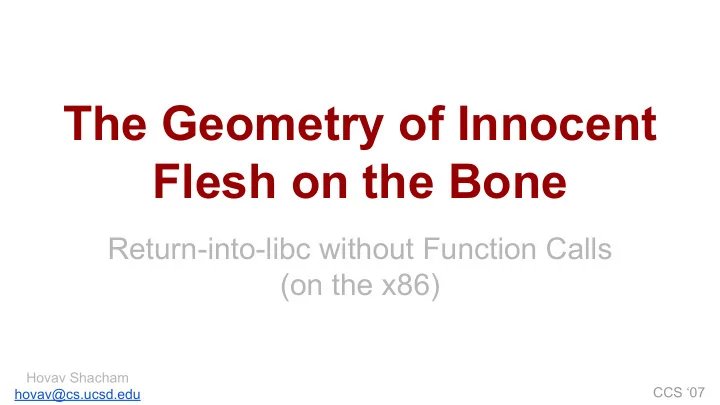

The Geometry of Innocent Flesh on the Bone

Return-into-libc without Function Calls (on the x86)

Hovav Shacham hovav@cs.ucsd.edu CCS ‘07

Technical Background

• Gadget: a short instructions sequence (e.x. pop %edx; ret;)
• Return-Oriented Programming(ROP): a technique by which an

attacker can induce arbitrary behavior in a program whose control flow he has diverted, without injecting any code

• Return-into-libc: a buffer overflow attack which causes the

vulnerable program to jump to some existing code which is already loaded into the memory

Background: Attacker Model

• Must find some way to subvert the program’s control flow

○ Overwriting a return address on the stack

• Must cause the program to act in the manner of his choosing

○ Injecting code into the process image

• Non-executable stack
• W X:

Marks all writeable(“W”) locations in a process’ address space as non-executable(“X”)

• Deployment:

Linux (via PaX patches); OpenBSD; Windows; OS X;

• Hardware support:

Intel “XD” bit, AMD “NX” bit

Background: Defenses

• Return-into-libc is considered a limited attack

○ the attacker can execute only straight-line code ■ calling one libc function after another ○ the attacker can be restricted ■ removing certain functions from libc

Background: Existing Problem

• Traditional return-into-libc building blocks are functions

○ can be removed by the maintainers of libc

• Our building blocks are short code sequences

○ very difficult to eliminate

Building Blocks:Traditional vs New return-into-libc

We rely on the following:

• x86 instructions are not aligned

○ we can make out more words on the page

• x86 ISA is extremely dense

○ random byte stream can be interpreted as a series of valid instruction with high probability ➔ Our goal ◆ Find sequences that end in a return instruction ( c3 )

• libc contains many such sequences

Building Blocks

f7 c7 07 00 00 00 test $0x00000007, %edi 0f 95 45 c3 setnzb -61(%ebp) Starting one byte later c7 07 00 00 00 0f movl $0x0f000000, (%edi) 95 xchg %ebp, %eax 45 inc %ebp c3 ret

Building Blocks: Example

• Apply an instruction alignment scheme ( like the one MIPS uses )

➔ Cons ◆ Code compiled for this scheme cannot call libraries not compiled for this ◆ May introduce slowdowns

Building Blocks: Defense

• Short code sequences
• Calls no functions at all
• The code sequences have random interfaces,

unlike function-call interface is standard.

• Called code sequences weren’t placed in libc by the authors,

so are not easily removed.

New return-into-libc Techniques

• Valid instructions sequences that :

○ could be used on our gadgets ○ end in a ret instruction ➔ None of the instructions should cause the processor to transfer execution away ( not reaching the ret ) ➔ ret causes the processor to continue to the next step

Finding Sequences: Useful Instruction Sequences

• Any suffix of an instruction sequence is also a useful instruction sequence

e.g. If we find "a; b; c; ret" then "b; c; ret" also exist

• We care if some sequence occurs but not how often it does

➔ We chose to record sequences on a trie ➔ root of the trie is the ret

Finding Sequences: Recording our Findings

The Idea

• Scan backwards from an already found sequence for valid instructions

➔ Some sequences ending with ret are ignored ◆ leave; ret; ◆ pop %ebp; ret; ◆ ret; or unconditional jump

Finding Sequences: Producing the Trie

Finding Sequences: Implementation

➔ Results ◆ Analyzed 1,189,501 bytes of libc's executable segment

• yielded a trie with 15,121 nodes
• took 1,6 sec on 1.33GHz PowerPC G4 with 1GB RAM

Implementation & Performance

• Stack pointer (%esp) determines which instruction sequence to fetch &

execute

• Processor doesn’t automatically increment %esp;

but the “ret” at end of each instruction sequence does

Return-Oriented Programming (ROP)

Operations

• Load/Store

○ Loading a Constant ○ Loading from Memory ○ Storing to Memory

• Control Flow

○ Unconditional Jump ○ Conditional Jumps

• Arithmetic & Logic

○ Add ○ Exclusive OR (XOR) ○ And, Or, Not ○ Shift and Rotate

• System Calls

Load a constant into a register

Add Operation

Control Flow: Unconditional Jump

Control Flow: Conditional Jump

Strategy:

• Check whether a value is equal to zero by using neg

○ clears CF if equal to zero or sets CF otherwise

• We have a word that contains either esp_delta (if flag is 1)
• r 0 (if flag is 0)

esp_delta is the amount we’d like to perturb %esp by

• Perturb %esp by the computed amount

(using esp_delta or 0)

System Calls (1/2)

• Syscalls have simple wrappers in libc with the following behavior:

○ move the arguments from the stack to the registers

arguments are loaded in register %ebx, %ecx, %edx, %esi, %edi, %ebp (in this order)

○ set the syscall number in %eax ○ trap into the kernel ○ check for error and translate the return value ➔ we can invoke any syscall we want by: ◆ setting up the parameters ourselves ◆ jump into a wrapper that is immediately before lcall

System Calls (2/2)

Return-Oriented Shellcode (1/2)

➢ Invokes the execve system call to run a shell. Requirements: ➔ Set the system call index in %eax to 0xb (execve) ➔ Set the path of the program to run in %ebx to the string “/bin/sh” ➔ Set the argument vector argv in %ecx ➔ Set the environment vector envp in %edx

Return-Oriented Shellcode (2/2)

Return-Oriented Shellcode (2/2)

lacll is invoked with arguments:

• %ebx = “/bin/sh”
• %ecx = addr of argv
• %edx = addr of envp

Catalog of rets: Origin of c3 byte

• Check whether c3:

○ belongs to a function exported in libc’s SYMTAB section ■ disassemble the function until we discover which instruction includes the c3 ➔ Out of 975,626 covered bytes, 5,483 are c3 bytes (one in every 178)

Catalog of rets: avoid spurious rets

• each procedure could have a single exit point

( early exits jump to this point )

• %ebx could be avoided as an accumulator for adds
• moves from %eax to %ebx could be avoided

(or written using instruction other than mov )

• instruction placements could be adjusted (avoid offsets with c3)

➔ Drawbacks ◆ compiler would be less transparent and complicated ◆ loss of efficiency in the use of registers

Catalog of rets: kinds of returns

• c3

○ near return

• c2 imm16

○ near return with stack unwind

• cb

○ far return

• ca imm16

○ far return with stack unwind

➔ Last three variants are more difficult to use in the exploits we described

Conclusion

• A new way of organising return-into-libc exploits on x86
• Discovered short instruction sequences
• Showed how to combine such sequences into gadgets

Thank you! Questions?
