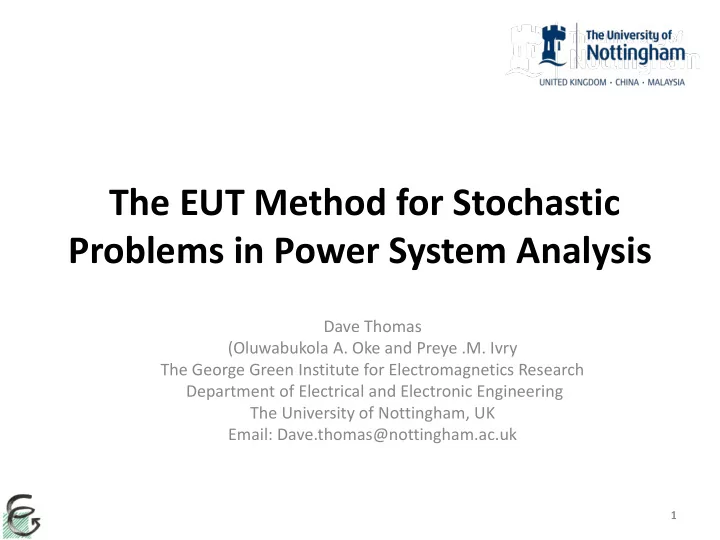

The EUT Method for Stochastic Problems in Power System Analysis

Dave Thomas (Oluwabukola A. Oke and Preye .M. Ivry The George Green Institute for Electromagnetics Research Department of Electrical and Electronic Engineering The University of Nottingham, UK Email: Dave.thomas@nottingham.ac.uk

slide-2
SLIDE 2

2

Nottingham, UK

Nottingham Population is

  • Approx. 300,000

The University of Nottingham has approx. 30,000 students

Nottingham Manchester Liverpool London Bristol

180 km

slide-3
SLIDE 3

3

slide-4
SLIDE 4

4

slide-5
SLIDE 5

5

The University of Nottingham

  • Nottingham Civic college 1881
  • Full University in 1948
  • UK Russel Group University Ranked in the top

1% in the world

  • 3 Campuses

– Nottingham, UK (33,000 Students) – Malaysia (5000 Students) – China (6000 Students)

slide-6
SLIDE 6

6

Famous for

20/02/2018 GGIEMR 6

slide-7
SLIDE 7

7

Also Famous for

20/02/2018 GGIEMR 7

George Green

slide-8
SLIDE 8

8

The George Green Institute for Electromagnetics Research Established in 2004 and led by 8 academics:

Dave Thomas (Director)

Trevor Benson Slaweck Sujecki Ana Vukovic Angela Nothofer Steve Greedy Kristof Cools Phillip Sewell

slide-9
SLIDE 9

9

Background

24322 31181 39295 47693 59024 74122 93930 120903 159213 203500 50000 100000 150000 200000 250000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010

World Total Installed Capacity [MW]

Prediction

Wind energy accounted for

  • ver 20% of

world’s total electricity installations in 2009

(Wind energy report

2010)

Over 15% of total world electricity generation to be from wind by 2020 (DOE,

2010)

Probabilistic load flow was introduced in 1974 to properly account for uncertainties in the network during load flow studies.

slide-10
SLIDE 10

10 10

Probabilistic Modeling of Uncertainties

Some sources of uncertainties within the network.

  • Load
  • Generator
  • Wind generator
  • Wind data fitted to the Weibull Distribution
  • Wind power obtained wind speed and turbine output curve.
  • Output wind power obtained as Truncated Weibull-Degenerate

Distribution.

slide-11
SLIDE 11

11 11

Wind Power Distribution

International Conference on Environment and Electrical Engineering, 2012

Active Points

0.2 0.4 0.6 0.8 1 0.01 0.02 0.03 0.04 0.05 0.06 Output Wind Power (MW) Probability PDF of A 1MW Wind Turbine

Wind Speed follows the Weibull Distribution with PDF

] ) ( exp[ ) ( ) (

1  

   

  • v

v v v v f    

 (4) exp exp ] ) ) ( ( exp[ ) ) ( (

1 1 1 1 1 1 r w

  • co
  • r

r w ci w ci w

P P v v v v P P C v vo C P C v vo C P C                                             

    

     

 ) (

w

P f

  • 100

100 200 300 400 500 600 5 10 15 20 25 Wind Power (kW) Wind Speed (m/s)

Wind Turbine Curve

slide-12
SLIDE 12

12 12

Existing PLF Methods

Monte Carlo Simulation (MCS) Analytical methods

  • Convolution method
  • FFT technique
  • Cumulant method

Approximate Methods

  • Point Estimate method

(PEM)

  • Unscented Transforms

(UT) method

Heuristic techniques

  • Fuzzy load flow

PLF Methods

slide-13
SLIDE 13

13 13

Probabilistic Modeling of Uncertainties

  • Monte Carlo computationally very expensive
  • UT greatly reduces number of simulations
  • EUT extends the capability of the UT method
slide-14
SLIDE 14

14 14

The Unscented Transforms (UT) Method

5 10 15 20 25 0.1 0.2 0.3 0.4 0.5 0.6 0.7

X f(x)

Continous 2nd order UT 8th order UT

Works by approximating a continuous distribution function as a discrete distribution using deterministically chosen points such that both distributions have the same moments

ˆ ˆ ˆ ˆ i k i S i w u )d u w( k u ) k u E(    

Continuous moment Discrete moment

Illustration of continuous and discrete PDF

Conventional UT

  • Based on Taylor’s series expansion or some moment related method

×Limited to a few orders of approximation ×Inaccurate and results in complex points for arbitrary measures like the Rayleigh distribution.

slide-15
SLIDE 15

15 15

UT as a Gaussian Quadrature Problem

  • Integration of the UT equation is carried out using a quadrature

technique.

  • Desired sigma points (Si) correspond to the root of a polynomial
  • rthogonal to weighting function.
  • No classical orthogonal polynomial associated with the Rayleigh

distribution

  • Polynomial orthogonal to Rayleigh distribution is built

from scratch.

slide-16
SLIDE 16

16 16

Orthogonal Polynomials

  • fn and fm are orthogonal if

where (dW(u)=w(u)du)

  • To derive orthogonal polynomials Moment method is

extremely ill-conditioned for arbitrary measures.

  • Discretization schemes such as the STIELJES

PROCEDURE are better alternatives.

  • )

( ) ( ) ( ,    

u dW u f u f f f

m b a n m n

slide-17
SLIDE 17

17 17

Implementation Procedure

Get PDF for wind power, load and other random variables Obtain sigma points and weights using Gaussian quadrature and Stieltjes procedure Get final sigma points and weights if more than 1 random variable Input basic load flow data and sigma points Run load flow using Newton Raphson Compute statistical data (moments and cumulants) Plot CDF for desired variables using statistical data.

slide-18
SLIDE 18

18 18

Simple 3 Bus Test System

1.0139 1.014 1.014 1.0141 0.404 0.405 0.406 0.407 0.408 0.409 0.41 0.411

V3 F(V3) Empirical CDF

MCS 2nd Order UT 3rd Order UT 4th Order UT 5PEM

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 ε V3(mean) ε σ(Std) εμ3(Skewness) εμ4(Kurtosis)

(%) error Moments

2nd order UT 3rd order UT 4th order UT 5PEM

slide-19
SLIDE 19

19 19

IEEE 14 Bus Test System

  • 0.095
  • 0.09
  • 0.085
  • 0.08
  • 0.075
  • 0.07

0.2 0.4 0.6 0.8 1 P6-12 F(P6-12) CDF of P6-12 MCS 2nd Order UT 3rd Order UT 4th Order UT 5PEM

  • 0.0884
  • 0.0882
  • 0.088
  • 0.0878
  • 0.0876

0.29 0.3 0.31 0.32 0.33 P6-12 F(P6-12) CDF of P6-12 MCS 2nd Order UT 3rd Order UT 4th Order UT 5PEM

  • A 50MW rated wind

farm on Bus 6

  • Varying active and

reactive load on Bus 9

Method Computation Time (S) 2nd Order UT 0.22054 3rd Order UT 0.50433 4th Order UT 0.97112 5PEM 0.9478 MCS 835.574

slide-20
SLIDE 20

20 20

Summary

  • The UT method has been introduced as a method for

carrying out PLF.

  • The performance of the UT method has been evaluated by

comparing results obtained with those from MCS and 5PEM, using a simple 3 bus test system and the IEEE 14 bus test system. Correlation between the random variables to be considered. Method to be extended for conducted emissions

slide-21
SLIDE 21

21 21

Wind Farm Sites and Dependence

Probabilistic Methods Applied to Power Systems 2012

Source: http://www.renewables-map.co.uk

slide-22
SLIDE 22

22 22

Dependence Versus Correlation

Probabilistic Methods Applied to Power Systems 2012

 Dependence measures the statistical relationship between two random variables  Correlation is the strength of relationship between two or more random variables  Linear Correlation measures how two random variables are proportional to each other.  Zero correlation does NOT imply zero dependence

1000 random variates from 2 identical Gamma marginal distributions and identical correlation but different dependence structure

slide-23
SLIDE 23

23 23

Measures of Dependence

Probabilistic Methods Applied to Power Systems 2012

 Pearson Product Moment Correlation coefficient

Measures linear dependence between variables Simple and commonly used

 Spearman Rank-Order Correlation Coefficient

Nonparametric Robust and resistant to data defeats

 Kendall’s Tau

Nonparametric Natural

 Blomqvist Beta

Nonparametric Fast with low computational complexities

slide-24
SLIDE 24

24 24

Techniques for Dependent Variable Generation

Probabilistic Methods Applied to Power Systems 2012

Rosenblatt Transformation

Only applicable to Gaussian distribution Requires prior full knowledge of random variables joint distribution

Nataf Transformation

Based on linear dependence Transforms correlated variables into standard normal variables

Copulas

They join marginal distributions of a set of variables to their joint distribution function Captures dependence structure of any set of random variables

slide-25
SLIDE 25

25 25

Copulas

Probabilistic Methods Applied to Power Systems 2012

 Elliptical Copulas

  • Easily determined from covariance matrix of the marginal

distributions

  • Applicable to symmetrical and radial distributions
  • Poor for distributions with strong tail dependence
  • Examples: Gaussian Copula and Student T copula

Archimedean Copulas

  • Flexible and uniquely constructed through a generator
  • Dependence parameters other than Pearson rho needed

to generate copula function

  • Examples: Gumbel copula, Frank copula, Clayton copula

)) ( , ), ( ), ( ( ) , , ( , ,

2 2 1 1 1 1 n n X X X n n

x F x F x F C x x x Fx    

Joint Distribution Function Marginal distribution Functions

Mathematical Basis Families

slide-26
SLIDE 26

26 26

Dependent Variable Generation Using Copulas

Generate W, a (n-by-m) uniformly distributed variables on the interval [0, 1]. Evaluate the partial differential of one of the margins (say u1) with respect to the other margins. For instance for a bivariate Clayton copula with distributions u1 and u2; Substitute u1 the first set of random variables W(1,m) with m random samples into the equation. Let the partial derivative in step 2 above c(u2) equal to W(2,m). With this, u2 can easily be evaluated. The desired input random variables are then determined using the inverse CDF

  • f their margins.

Probabilistic Methods Applied to Power Systems 2012

] 1 [ ) , ( ) 2 (

) 1 ( 2 1 ) 1 ( 1 1 1 1 2 1            

        u u u u u u u u C u c

  • 2

, 1 ],

1

 

i u F i

i i X

X

slide-27
SLIDE 27

27 27

Case Study

IEEE 24 Bus RTS System with Wind farms

Modifications

 System sectionalized into 2 areas, Area 1= buses 1-13,24; Area 2=buses 14-23  2 wind farms in Area 1 located on buses 4 and 9  Each wind farm made up of an aggregate of 60 2.3MW turbines  Wind speed parameters: 2.025 and 9 respectively for shape and scale parameters  Turbine Parameters: 3m/s, 13m/s and 25m/s for cut-in, rated and cut-out wind speed  5% coefficient of variation for all active and reactive loads.

Probabilistic Methods Applied to Power Systems 2012

slide-28
SLIDE 28

28 28

Results & Discussion I

Probabilistic Methods Applied to Power Systems 2012

20 40 60 80 100 120 140 0.2 0.4 0.6 0.8 1 P20-23 (MW) F(P20-23) CDF of P20-23 Independent Dependent

CDF of Power Flow Between Buses 20 and 23 for Dependent and Independent Cases

slide-29
SLIDE 29

29 29

Results & Discussion II

Probabilistic Methods Applied to Power Systems 2012

Method P Bus4 (MW) P Bus9 (MW) Nataf 44.723 44.748 Gumbel 43.795 44.764 Clayton 45.347 45.714

POWER INJECTED AT BUSES 4 AND 9 FOR A 138MW RATED WIND FARM

Moment Average Maximum Voltage Mean 0.0089 0.0330 Standard dev 13.920 46.219 Skewness 56.365 710.34 Angle Mean 0.5737 1.9500 Standard dev 41.213 49.309 Skewness 59.353 112.59 Active Power Mean 1.7609 28.441 Standard dev 29.330 52.967 Skewness 66.252 221.68 Reactive Power Mean 1.1218 9.6439 Standard dev 27.745 49.323 Skewness 119.26 1569.9

Percentage Variation in Dependent and Independent Moment (relative to Dependent )for the 24 Bus RTS

slide-30
SLIDE 30

30 30

Summary

Assumption of independence between variables may lead to large errors. dependence may exist between variables even when the linear correlation coefficient is zero. Other coefficients other than the Pearson moment product are needed for full dependence representation Copulas are effective in dependence representation of any variable type. Data sample should be analysed to understand its best copula fit.

Probabilistic Methods Applied to Power Systems 2012

slide-31
SLIDE 31

31 31

VSC Structure

Shows the schematics of the studied VSC system

The figure shows n numbers

  • f VSCs connected in parallel

and interfaced to the grid at the PCC.

Grid Vgabc PCC Lgabc Rgabc Igabc VSC 1 PS 1 Edc Idc Rcabc Lfabc1 Cfabc Rdabc Lfabc2 VSC 2 PS 2 Edc Idc Rcabc Lfabc1 Cfabc Rdabc Lfabc2 VSC n PS n Edc Idc Rcabc Lfabc1 Cfabc Rdabc Lfabc2

slide-32
SLIDE 32

32 32

Conducted Emissions

Shows the conducted emission at sidebands of the switching frequency relative to the fundamental frequency

It can be

  • bserved

from the figure that high emissions are present at the sidebands of the VSC switching frequency (fsw = 4kHz). These emissions are at the 78th and 82nd order.

78th 82nd 1st

slide-33
SLIDE 33

33 33

Simulation

  • The number of evaluations and computational time utilized by each method in

predicting the conducted emission of 5 VSCs is given below.

  • 3 sigma points approximation was used for the UT, BDR and UDR techniques, and

1000 simulations for the MCS approach.

1000 243 106 16 200 400 600 800 1000 1200 5000 10000 15000 20000 25000 30000 MCS UT BDR UDR Number of Evaluation (Ev) Computational time (s) time Ev Evaluation Number and Simulation Time for MCS, UT, 3pts BDR and UDR

slide-34
SLIDE 34

34 34

Power Variation

  • THD for 1 VSC is the same using

the UT and the dimension reduction methods.

  • However, they all over predicted

the THD by 15.5% when compared to the MCS.

  • The standard deviation values are

close to the MCS approach. THDi due to Power Variation

Mean, µ (%) Standard deviation, σ MCS UT BDR UDR MCS UT BDR UDR 1 4.25 5.03 5.03 5.03 1.86 2.24 2.24 2.24 3 2.62 2.83 2.88 2.6 0.82 0.78 0.79 0.79 5 2.36 2.43 2.11 2.36 0.27 0.32 0.23 0.20 1 2 3 4 5 6 1 VSC 3 VSCs 5 VSCs THDi (%) MCS UT BDR UDR Method nVSC

Mean THDi for nVSCs under power variation

slide-35
SLIDE 35

35 35

Power Variation

  • Better

accuracy was achieved using the BDR and UDR technique in predicting the conducted emissions at the 78th

  • rder.
  • The standard deviation values are

in close agreement with the MCS approach.

  • The UDR results are close to the

MCS for its mean and standard deviation (Std) only. 78TH order emission due to Power Variation

Mean, µ (%) Standard deviation, σ MCS UT BDR UDR MCS UT BDR UDR 1 0.54 0.53 0.53 0.53 0.251 0.248 0.248 0.248 3 0.31 0.33 0.33 0.33 0.055 0.061 0.061 0.052 5 0.28 0.27 0.28 0.25 0.029 0.030 0.032 0.028 0.1 0.2 0.3 0.4 0.5 0.6 1 VSC 3 VSCs 5 VSCs Emission (%) MCS UT BDR UDR nVSC Method

Conducted emission mean value at the 78th

  • rder under

power variation

slide-36
SLIDE 36

36 36

Summary

  • Conducted emissions of multiple VSCs were investigated and

predictions made using the univariate and bivariate dimension reduction method.

  • Majority of the predicted conducted emission results showed

that the BDR and UDR techniques have a good agreement with the MCS approach.

  • BDR and UDR can be used when MCS is not practical

in predicting conducted emissions of a large number of VSCs when there are uncertainties in the system or the VSCs

slide-37
SLIDE 37

37 37

Conclusion

  • EUT has been introduced
  • Shown to be an efficient and accurate method

to estimate stochastic parameters in power systems

  • Has been demonstrated for loadflow studies

and conducted emission studies

slide-38
SLIDE 38

38 38

slide-39
SLIDE 39

39 39

Thank You?
