The Dynamics of Freight Car Cushioning John F. Deppen Director, Engineering End of Car Systems Amsted Rail 1 Abstract It is typical for railcars to be assembled into a train by coupling individual cars together in a marshalling yard.


slide-1
SLIDE 1

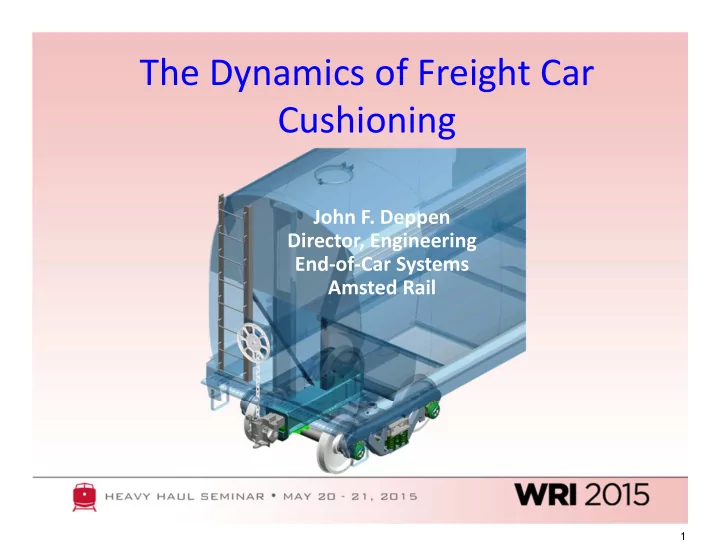

The Dynamics of Freight Car Cushioning

John F. Deppen Director, Engineering End‐of‐Car Systems Amsted Rail

1

slide-2
SLIDE 2

It is typical for railcars to be assembled into a train by coupling individual cars together in a marshalling yard. These yards often use impact ramps or flat switching to accelerate the railcar to a velocity sufficient to roll through a series of switches and tracks to the designated

  • train. Rail operations attempt to keep these velocities to a minimum, but unfortunately at

times impact velocities can be higher than desirable. Depending on the type of coupling system (i.e. draft gear or end‐of‐car cushion unit), damage to the railcar, lading or both can

  • ccur at these velocities.

Another source of damage can occur in‐train, where relative velocities between railcars can become large. Train length, gross rail load, terrain and the locomotive inputs are sources for these in‐train shocks along with automatic couplers and their inherent free‐slack. Coupling components must be designed to account for these various inputs to reduce in‐train shocks to acceptable levels. Computer simulations validated through over‐the‐road testing is one

  • f the tools that used to predict the performance of various end‐of‐car products.

As trains become longer and heavier, it’s critical that coupling component manufactures understand railcar dynamics and focus their efforts on products that can reduce in‐train

  • shocks. Products such as active draft cushioning along with improvements to A.A.R.

specifications will be instrumental to support global heavy haul operations.

Abstract

2

slide-3
SLIDE 3

End‐of‐Car (EOC) Product Offering

Car Body Coupler Attachment via. “EOC Product”

3

slide-4
SLIDE 4

It’s all about Energy Management…

4

slide-5
SLIDE 5

Kinetic energy of moving car = Work done by End‐of‐Car Device ½MV² = Coupler Force x Travel (Longer the Travel; Lower the Force)

lading protection from Yard Impacts lading protection from In‐Train Events “Slack is the Enemy”

Damage Not Limited to Yard Impacts

Where does the Energy Come From

…and where does it go?

5

slide-6
SLIDE 6

“Slack is the Enemy”

40 80 120 160 200 240 280 320 360 400 Coupler Force (klbs) 4 8 12 16 20 24 28 32 36 40 Time (sec)

Con.#3 Con.#30 Con.#57 Con.#84 Con.#111 Con.#137

  • Tract. Force

Fig.2

Shock Wave progresses through train with increasing force

6

slide-7
SLIDE 7

Other Sources of Energy Input?

7

slide-8
SLIDE 8

Coupling Impacts

Protect freight car structure Protect sensitive lading

Train Operation

Protect sensitive lading Improve train handling

Prevent high forces v. Managing high forces

Energy Management Objectives…

8

slide-9
SLIDE 9

If not Properly Managed…

9

slide-10
SLIDE 10

How the force is applied is important…

Two Different Draft Gear; Same Peak Force

10

slide-11
SLIDE 11

How the force is applied is important…

Two Different Draft Gear; Same Peak Force…Significantly different Car Body Stresses

11

slide-12
SLIDE 12

Cushion Unit vs. Draft Gear Application

12

12

slide-13
SLIDE 13

~20% N.A. Fleet Equipped with End‐of‐Car Hydraulic Cushioning Lading Protection (automotive, paper, building materials)

Vs.

Cushion Unit v. Draft Gear

13

slide-14
SLIDE 14

Cushion Unit Basics

14

  • 1. Inner cylinder filled

with hydraulic fluid

  • 2. Piston forces hydraulic

fluid through specially designed valves

  • 3. Nitrogen gas pushes

piston back to neutral after impact

14

slide-15
SLIDE 15

Draft Gear Basics

15

Friction Elements compress and absorb energy. Mechanical or Elastomer Springs ‘return’ unit back to neutral position. Elastomer Elements compress and absorb energy

  • via. Hystersis…and act as

‘return spring’

15

slide-16
SLIDE 16

Draft Gear v. Cushion Unit

16

slide-17
SLIDE 17

Hydraulic Cushion Unit Standard Draft Gear

6 mph Impact…Cushion Unit v. Draft Gear

17

slide-18
SLIDE 18

Hydraulic Cushion Unit Standard Draft Gear Movement @ impact: .75” Movement @ impact: 3.6”

6 mph Impact…Cushion Unit v. Draft Gear

162 lb. Steel Block Lading Damage Demonstration…

18

slide-19
SLIDE 19
  • Apply physics and computational methods
  • Evaluate changes in design parameters
  • Compare performance predictions
  • Reduce product development cycle time
  • Facilitate proper equipment selection

Computer Simulation Code Development

19

slide-20
SLIDE 20
  • Impact and Train‐Action

~ 200 individual characteristics

  • Lading density
  • Car body stiffness
  • Draft gear characteristics
  • Free slack
  • Rolling resistance
  • Braking characteristics
  • Locomotive characteristics
  • Other

Modeling Capabilities

20

slide-21
SLIDE 21

100 200 300 400 500 600 700 800 900 Force (klb) 1 2 3 4 5 6 7 8 9 10 Travel (inches)

Impact Simulation

21

slide-22
SLIDE 22
  • 600
  • 500
  • 400
  • 300
  • 200
  • 100

100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000

Connection Forces (kN)

5 10 15 20 25 30 35 40 45

Time (sec)

1 - Tract. Force of the Front Locos 2 - Con. 2 (after the Front Locos) 3 - Con. 38 4 - Con.78 (before the Middle Locos) 5 - Con.80 (after the Middle Locos) 6 - Con. 116 7 - Con. 151 (the Last)

2 4

5

6 7 3 1

Train Start‐Up Simulation

22

slide-23
SLIDE 23

Train Start‐Up Simulation

23

slide-24
SLIDE 24

Train Start‐Up Simulation

24

slide-25
SLIDE 25
  • 1000
  • 900
  • 800
  • 700
  • 600
  • 500
  • 400
  • 300
  • 200
  • 100

Connection Forces (kN)

5 10 15 20 25 30 35 40 45

Time (sec)

1 - Braking Force 2 - Con. 11 3 - Con. 31 4 - Con. 51 5 - Con. 71 6 - Con. 91 7 - Con. 111 8 - Con. 131 9 - Con. 150 1 2 3 4 5 6 7 8 9

Dynamic Brake Simulation

25

slide-26
SLIDE 26

Emergency Brake Simulation

26

slide-27
SLIDE 27

Real‐Time Asset Monitoring

27

27

slide-28
SLIDE 28

B‐End 3‐Axis Accelerometer A‐End 3‐Axis Accelerometer

+Longitudinal to A‐End + Lateral to Right + Vertical Up

A‐End Dynamometer Coupler

Over‐the‐Road Testing

What is a Day in the Life…

28

slide-29
SLIDE 29

29

slide-30
SLIDE 30

Over‐the‐Road Testing

Std Draft System Active Draft System

30

slide-31
SLIDE 31

Car60 – Histogram

31

slide-32
SLIDE 32

Car90 ‐ Histogram

32

slide-33
SLIDE 33

Goal‐ Equipment Solutions to Reduce Damage

R2 = 0.9809 R2 = 0.7526 200 400 600 800 1,000 1,200 1,400 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00

Impact Speed (mph) Impact Force (kips)

Twinpack - 38 tests Steel friction gears - 44 tests

  • Poly. (Twinpack - 38 tests)
  • Poly. (Steel friction gears - 44 tests)

40 80 120 160 200 240 280 320 360 400 Coupler Force (klbs) 4 8 12 16 20 24 28 32 36 40 Time (sec)

Con.#3 Con.#30 Con.#57 Con.#84 Con.#111 Con.#137

  • Tract. Force
  • Fig. 4

Data used to improve A.A.R. specifications via. manufacturers committees (DGMEC, CUMEC) Lower Coupler Forces

33

slide-34
SLIDE 34
  • Computer simulation techniques are effective
  • Permit rapid evaluation of design iterations
  • Enhance selection of appropriate equipment
  • Applied physics always permit direct comparisons
  • All parameters must be accounted for
  • Mathematical accuracy is imperative
  • Actual values may slightly differ, but reflect the trends

to make informed equipment design decisions

Summary

34

slide-35
SLIDE 35

Summary

‘One size fits all’ may not always be appropriate.

  • Unit train v. manifest train v. ‘mini‐unit train’
  • Specific car performance expectations / requirements
  • Autoracks, Container flats, ISO Tank Containers, Boxcars

Critical to working with RR’s, Asset Owners, Shippers… Understand ‘energy inputs’, lading, car body sensitivity and then recommend appropriate equipment.

Prevent High Forces vs. Managing High Forces

35

slide-36
SLIDE 36

Thank You
