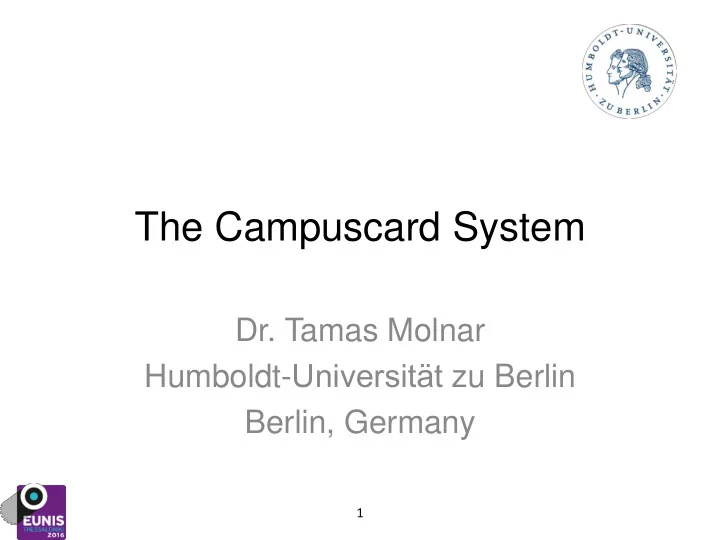

SLIDE 1
The Campuscard System
- Dr. Tamas Molnar
Humboldt-Universität zu Berlin Berlin, Germany
1
An alliance of universities
2
The Campuscard System Dr. Tamas Molnar Humboldt- Universitt zu - - PowerPoint PPT Presentation
The Campuscard System Dr. Tamas Molnar Humboldt- Universitt zu - - PowerPoint PPT Presentation
The Campuscard System Dr. Tamas Molnar Humboldt- Universitt zu Berlin Berlin, Germany 1 An alliance of universities 2 Overview Mifare DESfire EV1 cards Electronic Student IDs 25 mm TRW strip Phase 1a 2015 Photo and
SLIDE 2
SLIDE 3
Overview
- Mifare DESfire EV1 cards
- 25 mm TRW strip
- Photo and barcode for library
use
3
Phase 1a 2015
- Electronic Student IDs
Phase 1b 2016
- Integrated electronic IDs for
university libraries
Phase 2 2017
- Electronic employee IDs
- Electronic visitor IDs
Phase 3 2018
- Integrated electronic ticket
for public transport
SLIDE 4
Problem – The card issuing process
4
Personally
- Requires a high number of employees
- Multiple different processes
- Requires much office space
Dispatch
- Expensive
- Outsourcing is problematic because of
privacy laws
- In-house production requires
machinery
- Multiple different processes
SLIDE 5
Our innovation – The print terminal
5
Automated card issuing Integrated photo station Integrated card printing
SLIDE 6
The process
6
QR-code – received (electronic or postal delivery) Card - received Through the terminal (20 terminals in Berlin) Card - validated Through TRW kiosk (30 kiosks in Berlin)
SLIDE 7
The user interface
7
SLIDE 8
Some impressions
8
SLIDE 9
The system components
9
- Blank with the university layout and deployed cafeteria application
Mifare DESfire EV1 4K 70pF cards
- Self service terminals with integrated photo station and card printer
Card print terminals
- Self service kiosks with integrated TRW-printer
TRW-kiosks
- Universal solution for different data sources
Card management Software and WebGUI
SLIDE 10
The Campuscard alliance
10
SLIDE 11
Structure of the Campuscard alliance
11
- Design of the cards
- Design of the terminals, kiosks and WebGUIs
- Support for specific university services
Individual solutions
- Identical technological groundwork
- Identical system infrastructure
- Identical card structure
Common components and compatibility
- Procurement
- Application compatibility
- Campuscard Service
Centre
- Steering Committee
Joint coordination
SLIDE 12
The card management
Data Source – Student Administration System Card Management System Card Printing (Terminal) Card Validation (Kiosk) Card Management System
12
SLIDE 13
What is inside?
Talend Open Studio KMS 2
Data transformation
HIS- SOS SAP- CM
Tomcat based PostGreSQL
Data Source
13
SLIDE 14
The KMS 2
KMS 2 Core KMS Database KMS WebGUI WebGUI for Admins WebGUI for Students (in Development) KMS Auth with Sibboleth
14
SLIDE 15
Interfaces
KMS 2
- RESTful
- XML or JSON
Machines (Terminals and Kiosks)
- RESTful
- XML or JSON
15
<?xml version="1.0" encoding="UTF- 8"?> <CardInfo> <sys>sys</sys> <externid>8555236</externid> <photoflag>true</photoflag> <cardid>0F000F000F000F</cardid> <csid>0123456789012345678901234</ csid> </CardInfo>
SLIDE 16
KMS Database
16
SLIDE 17
Database structure
PersonInfo CardInfo TicketInfo Feature(N) UniLog
17
SLIDE 18
The future
18
CampusCard – electronic multifunctional employee Card CampusCard – Visitor Card Integration of the electronic ticket Integration of the electronic library ID with compatibility across the alliance CampusCard – alumnicard
SLIDE 19
Thank you
