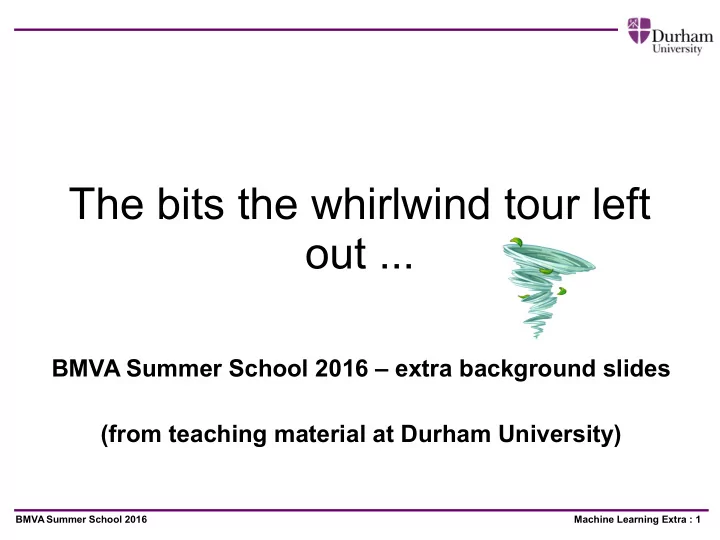

The bits the whirlwind tour left out ... BMVA Summer School 2016 - - PowerPoint PPT Presentation

Machine Learning Extra : 1 BMVA Summer School 2016

The bits the whirlwind tour left

• ut ...

BMVA Summer School 2016 – extra background slides (from teaching material at Durham University)

Machine Learning Extra : 2 BMVA Summer School 2016

Machine Learning

Definition:

– “A computer program is said to learn from experience E with respect to some class of tasks T and performance measure P, if its performance at tasks T, improves with experience E.”

[Mitchell, 1997]

Machine Learning Extra : 3 BMVA Summer School 2016

Algorithm to construct decision trees ….

Machine Learning Extra : 4 BMVA Summer School 2016

Building Decision Trees – ID3

 node = root of tree

 Main loop:

A = “best” decision attribute for next node .....

But which attribute is best to split on ?

Machine Learning Extra : 5 BMVA Summer School 2016

Entropy in machine learning

Entropy : a measure of impurity

– S is a sample of training examples – P is the proportion of positive examples in S – P⊖ is the proportion of negative examples in S

Entropy measures the impurity of S:

Machine Learning Extra : 6 BMVA Summer School 2016

Information Gain – reduction in Entropy

Gain(S,A) = expected reduction in entropy due to splitting

• n attribute A

– i.e. expected reduction in impurity in the data – (improvement in consistent data sorting)

Machine Learning Extra : 7 BMVA Summer School 2016

Information Gain – reduction in Entropy

– reduction in entropy in set of examples S if split on attribute A – Sv = subset of S for which attribute A has value v

– Gain(S,A) = original entropy – SUM(entropy of sub-nodes if split on A)

Machine Learning Extra : 8 BMVA Summer School 2016

Information Gain – reduction in Entropy

Information Gain :

– “information provided about the target function given the value of some attribute A” – How well does A sort the data into the required classes?

Generalise to c classes :

– (not just  or ⊖)

EntropyS=−∑

i=1 c

pi log pi

Machine Learning Extra : 9 BMVA Summer School 2016

Building Decision Trees

 Selecting the Next Attribute – which attribute should we split on next?

Machine Learning Extra : 10 BMVA Summer School 2016

Building Decision Trees

 Selecting the Next Attribute – which attribute should we split on next?

Machine Learning Extra : 11 BMVA Summer School 2016

Boosting and Bagging …. + Forests

Lecture 4 : 12 Toby Breckon

Learning using Boosting

Assign equal weight to each training instance For t iterations: Apply learning algorithm to weighted training set, store resulting (weak) classifier Compute classifier’s error e on weighted training set If e = 0 or e > 0.5: Terminate classifier generation For each instance in training set: If classified correctly by classifier: Multiply instance’s weight by e/(1-e) Normalize weight of all instances

Learning Boosted Classifier (Adaboost Algorithm) Classification using Boosted Classifier

Assign weight = 0 to all classes For each of the t (or less) classifiers: For the class this classifier predicts add –log e/(1-e) to this class’s weight Return class with highest weight

e = error of classifier on the training set

Lecture 4 : 13 Toby Breckon

Learning using Boosting

 Some things to note:

– Weight adjustment means t+1th classifier concentrates on the examples tth classifier got wrong – Each classifier must be able to achieve greater than 50% success

• (i.e. 0.5 in normalised error range {0..1})

– Results in an ensemble of t classifiers

• i.e. a boosted classifier made up of t weak classifiers
• boosting/bagging classifiers often called ensemble classifiers

– Training error decreases exponentially (theoretically)

• prone to over-fitting (need diversity in test set)

– several additions/modifications to handle this

– Works best with weak classifiers

Boosted Trees

– set of t decision trees of limited complexity (e.g. depth)

.....

Lecture 4 : 14 Toby Breckon

Decision Forests (a.k.a. Random Forests/Trees)

Bagging using multiple decision trees where each tree in the ensemble classifier ... – is trained on a random subsets of the training data – computes a node split on a random subset of the available attributes Each tree is grown as follows:

– Select a training set T' (size N) by randomly selecting (with replacement) N instances from training set T – Select a number m < M where a subset of m attributes

• ut of the available M attributes are used to compute

the best split at a given node (m is constant across all trees in the forest) – Grow each tree using T' to the largest extent possible without any pruning.

[Breiman 2001]

Machine Learning Extra : 15 BMVA Summer School 2016

Backpropogation Algorithm ….

Machine Learning Extra : 16 BMVA Summer School 2016

Backpropagation Algorithm

Assume we have:

– input examples d={1...D}

• each is pair {xd,td} = {input

vector, target vector}

– node index n={1 … N} – weight wji connects node j → i – input xji is the input on the connection node j → i

• corresponding weight = wji

– output error for node n is δn

• similar to (o – t)

Output Layer

Input layer Input, x Output vector, Ok

Hidden Layer node index {1 … N}

Machine Learning Extra : 17 BMVA Summer School 2016

Backpropagation Algorithm

(1) Input Example

example d

(2) output layer error

based on :

difference between

• utput and target

(t - o) derivative of sigmoid function

(3) Hidden layer error

proportional to node contribution to output error

(4) Update weights wij

–

Machine Learning Extra : 18 BMVA Summer School 2016

Backpropagation

Termination criteria

– number of iterations reached – Or error below suitable bound

Output layer error Hidden layer error Add weights updated using relevant error

Machine Learning Extra : 19 BMVA Summer School 2016

Backpropagation

Output Layer, unit k

Input layer Input, x Output vector, Ok

Hidden Layer, unit h

Machine Learning Extra : 20 BMVA Summer School 2016

Backpropagation

Output vector, Ok

δh is expressed as a weighted sum of the output layer errors δk to which it contributes (i.e. whk > 0)

Output Layer, unit k

Input layer Input, x

Hidden Layer, unit h

Machine Learning Extra : 21 BMVA Summer School 2016

Backpropagation

Error is propogated backwards from network

• utput ....

to weights of output layer .... to weights of the hidden layer … Hence the name: backpropagation

Output Layer, unit k

Input layer Input, x

Hidden Layer, unit h

Output vector, Ok

Machine Learning Extra : 22 BMVA Summer School 2016

Backpropagation

Repeat these stages for every hidden layer in a multi-layer network: (using error δi where xji>0) .......

Output Layer, unit k

Input layer Input, x

Hidden Layer(s), unit h

Output vector, Ok

Machine Learning Extra : 23 BMVA Summer School 2016

Backpropagation

Error is propogated backwards from network

• utput ....

to weights of output layer ....

• ver weights of all N

hidden layers … Hence the name: backpropagation .......

Output Layer, unit k

Input layer Input, x

Hidden Layer(s), unit h

Output vector, Ok

Machine Learning Extra : 24 BMVA Summer School 2016

Backpropagation

Will perform gradient descent

• ver the weight

space of {wji} for all connections i → j in the network Stochastic gradient descent

– as updates based on training one sample at a time

Machine Learning Extra : 25 BMVA Summer School 2016

Future and current concepts

This is beyond the scope this introductory tutorial but the following are recommended as good places to start: Convolutional Neural Networks

– http://deeplearning.net/tutorial/lenet.html

Deep Learning

– http://www.deeplearning.net/tutorial/

Machine Learning Extra : 26 BMVA Summer School 2016

Understanding (and believing) the SVM stuff ….

Machine Learning Extra : 27 BMVA Summer School 2016

Remedial Note: equations of 2D lines

Line: where: are 2D vectors.

Offset from origin Normal to line 2D LINES REMINDER

Machine Learning Extra : 28 BMVA Summer School 2016

Remedial Note: equations of 2D lines

http://www.mathopenref.com/coordpointdisttrig.html

2D LINES REMINDER

Machine Learning Extra : 29 BMVA Summer School 2016

Remedial Note: equations of 2D lines

For a defined line equation: Fixed Insert point into equation …...

Normal to line

Result is +ve if point on this side

• f line (i.e.> 0).

Result is -ve if point on this side

• f line. ( < 0 )

Result is the distance (+ve or

• ve) of point from line given by:

for:

2D LINES REMINDER

Machine Learning Extra : 30 BMVA Summer School 2016

Linear Separator

 Instances (i.e, examples) {xi , yi } – xi = point in instance space (Rn) made up of n attributes – yi =class value for classification of xi

Want a linear separator. Can view this as constraint satisfaction problem: Equivalently,

y = +1 y = -1 Classification of example function f(x) = y = {+1, -1} i.e. 2 classes N.B. we have a vector of weights coefficients ⃗ w

Machine Learning Extra : 31 BMVA Summer School 2016

Linear Separator

If we define the distance of the nearest point to the margin as 1 → width of margin is (i.e. equal width each side) We thus want to maximize:

finding the parameters: y = +1 y = -1 Classification of example function f(x) = y = {+1, -1} i.e. 2 classes

Machine Learning Extra : 32 BMVA Summer School 2016

which is equivalent to minimizing:

Machine Learning Extra : 33 BMVA Summer School 2016

…............. back to main slides

Machine Learning Extra : 34 BMVA Summer School 2016

So …. Find the “hyperplane” (i.e. boundary) with: a) maximum margin b) minimum number of (training) examples on the wrong side of the chosen boundary (i.e. minimal penalties due to C) Solve via optimization (in polynomial time/complexity)

Machine Learning Extra : 35 BMVA Summer School 2016

Find hyperplane separator (plane in 3D) via optimization Non-linear Separation (red / blue data items

• n 2D plane).

Kernel projection to higher dimensional space Non-linear boundary in original dimension (e.g. circle n 2D) defined by planar boundary (cut) in 3D.

Example:

Machine Learning Extra : 36 BMVA Summer School 2016

Non Linear SVMs

Suppose we have instance space X = Rn, need non-linear separator.

– project X into some higher dimensional space X' = Rm where data will be linearly separable – let  : X → X' be this projection.

Interestingly,

– Training depends only on dot products of form (xi)  (xj)

• i.e. dot product of instances in Rn gives divisor in Rn

– So we can train in Rm with same computational complexity as in Rn, provided we can find a kernel basis function K such that:

• K(xi, xj) = (xi)  (xj)

(kernel trick)

– Classifying new instance x now requires calculating sign of:

Machine Learning Extra : 37 BMVA Summer School 2016

.... but it is all about the data!

Machine Learning Extra : 38 BMVA Summer School 2016

Desirable Data Properties

Machine learning is a Data Driven Approach The Data is important! Ideally training/testing data used for learning must be:

– Unbiased

• towards any given subset of the space of examples ...

– Representative

• of the “real-world” data to be encountered in use/deployment

– Accurate

• inaccuracies in training/testing produce inaccuracies results

– Available

• the more training/testing data available the better the results
• greater confidence in the results can be achieved

Machine Learning Extra : 39 BMVA Summer School 2016

Data Training Methodologies

Simple approach : Data Splits

– split overall data set into separate training and test sets

• No established rule but 80%:20%, 70%:30% or ⅓:⅔ training to testing

splits common

– Training on one, test on the other – Test error = error on the test set – Training error = error on training set – Weakness: susceptible to bias in data sets or “over-fitting”

• Also less data available for training

Machine Learning Extra : 40 BMVA Summer School 2016

Data Training Methodologies

More advanced (and robust): K Cross Validation

– Randomly split (all) the data into k-subsets – For 1 to k

• train using all the data not in kth subset
• test resulting learned [classifier|function …]

using kth subset – report mean error over all k tests

Machine Learning Extra : 41 BMVA Summer School 2016

Key Summary Statistics #1

tp = true positive / tn = true negative fp = false positive / fn = false negative Often quoted or plotted when comparing ML techniques

Machine Learning Extra : 42 BMVA Summer School 2016

Kappa Statistic

Measure of classification of “N items into C mutually exclusive categories” Pr(a) = probability of success of classification ( = accuracy) Pr(e) = probability of success due to chance

– e.g. 2 categories = 50% (0.5), 3 categories = 33% (0.33) ….. etc. – Pr(e) can be replaced with Pr(b) to measure agreement between classifiers/techniques a and b

[Cohen, 1960]
