Identification of Environment Ontology terms in text and the annotation of the Encyclopedia of Life http://www.environments-eol.blogspot.com/ Evangelos Pafilis 1* , Sune Frankild 2 , Lucia Fanini 1 , Sarah Faulwetter 1 , Christina Pavloudi 1 ,

slide-1

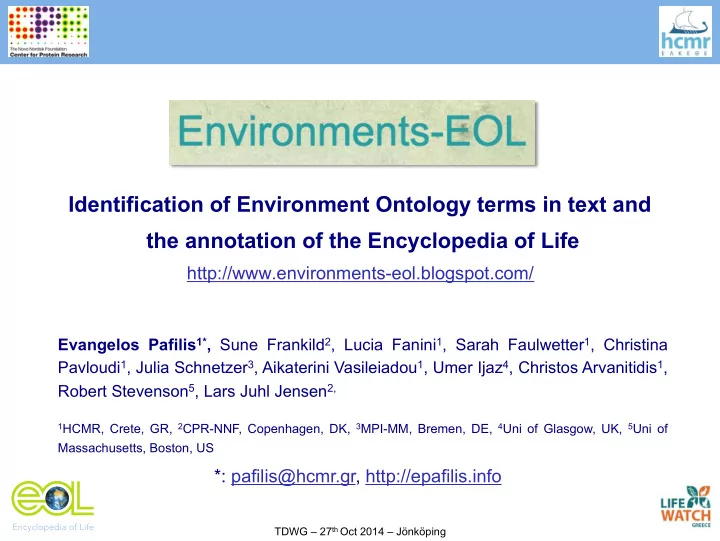

SLIDE 1

TDWG – 27th Oct 2014 – Jönköping

Identification of Environment Ontology terms in text and the annotation of the Encyclopedia of Life

http://www.environments-eol.blogspot.com/

Evangelos Pafilis1*, Sune Frankild2, Lucia Fanini1, Sarah Faulwetter1, Christina Pavloudi1, Julia Schnetzer3, Aikaterini Vasileiadou1, Umer Ijaz4, Christos Arvanitidis1, Robert Stevenson5, Lars Juhl Jensen2,

1HCMR, Crete, GR, 2CPR-NNF, Copenhagen, DK, 3MPI-MM, Bremen, DE, 4Uni of Glasgow, UK, 5Uni of

Massachusetts, Boston, US

*: pafilis@hcmr.gr, http://epafilis.info

slide-2
SLIDE 2

TDWG – 27th Oct 2014 – Jönköping

Species – Environments

slide-3
SLIDE 3

TDWG – 27th Oct 2014 – Jönköping

http://eol.org/

Parr CS, et al. The Encyclopedia of Life v2: Providing Global Access to Knowledge About Life on Earth (2014) Biodiversity Data Journal 2: e1079

slide-4
SLIDE 4

TDWG – 27th Oct 2014 – Jönköping

http://eol.org/info/discover_what

  • Encyclopedia of Life (EOL) http://www.eol.org
  • ne-stop-shop for biodiversity knowledge
  • Over 3 Mi Taxa
slide-5
SLIDE 5

TDWG – 27th Oct 2014 – Jönköping

  • Encyclopedia of Life (EOL) http://www.eol.org
  • ne-stop-shop for biodiversity knowledge
  • Over 3 Mi Taxa

http://eol.org/info/discover_what

slide-6
SLIDE 6

TDWG – 27th Oct 2014 – Jönköping

Species Descriptions

(e.g. “Biology Description”, “Ecology”, “Habitat”)

slide-7
SLIDE 7

TDWG – 27th Oct 2014 – Jönköping

http://rs.tdwg.org/ontology/voc/SPMInfoItems#Biology http://rs.tdwg.org/ontology/voc/SPMInfoItems#Conservation http://rs.tdwg.org/ontology/voc/SPMInfoItems#Description http://rs.tdwg.org/ontology/voc/SPMInfoItems#Dispersal http://rs.tdwg.org/ontology/voc/SPMInfoItems#Distribution http://rs.tdwg.org/ontology/voc/SPMInfoItems#Ecology http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat http://rs.tdwg.org/ontology/voc/SPMInfoItems#LifeCycle http://rs.tdwg.org/ontology/voc/SPMInfoItems#Migration http://rs.tdwg.org/ontology/voc/SPMInfoItems#Reproduction http://rs.tdwg.org/ontology/voc/SPMInfoItems#TrophicStrategy http://www.eol.org/voc/table_of_contents#Wikipedia More info: http://eol.org/info/98 (“EOL Subject Types”)

Species Descriptions

(e.g. “Biology Description”, “Ecology”, “Habitat”)

slide-8
SLIDE 8

TDWG – 27th Oct 2014 – Jönköping

Information in Free Text

http://eol.org/data_objects/31415353

slide-9
SLIDE 9

TDWG – 27th Oct 2014 – Jönköping

Information in Free Text

http://eol.org/data_objects/31415353

slide-10
SLIDE 10

TDWG – 27th Oct 2014 – Jönköping

Information in Free Text

ID: ENVO:00000192 Name: mudflat ID: ENVO:00000020 Name: lake

http://eol.org/data_objects/31415353

slide-11
SLIDE 11

TDWG – 27th Oct 2014 – Jönköping

Literature Mining

slide-12
SLIDE 12

TDWG – 27th Oct 2014 – Jönköping

processing text to extract facts of interest

slide-13
SLIDE 13

TDWG – 27th Oct 2014 – Jönköping

terrestrial, aquatic, marine, lagoon, coral reef, sediment, freshwater, soil

slide-14
SLIDE 14

TDWG – 27th Oct 2014 – Jönköping

ENVIRONMENTS

slide-15
SLIDE 15

TDWG – 27th Oct 2014 – Jönköping

ENVIRONMENTS

http://environments.hcmr.gr http://environments-eol.blogspot.gr/

  • Dictionary based, Open source
  • Environment Ontology
  • fast performance
  • 4000 PubMed abstracts /

second *

  • Based on SPECIES name recognition

tagger (Pafilis et al, PLOS ONE)

  • E600 gold standard: EnvO-based

corpus of EOL Species pages

  • Recognition Accuracy – Mention Level:
  • F1: 82.0%

87.1% of the TPs: exact id among predicted ones

*: based a single-thread run on an Intel 2,27GHz, 24 GB RAM processing a set of 536,052 abstracts Pafilis E et al. (2013) The SPECIES and ORGANISMS Resources for Fast and Accurate Identification of Taxonomic Names in Text. PLoS ONE 8(6): e65390

slide-16
SLIDE 16

TDWG – 27th Oct 2014 – Jönköping

biome environmental feature environmental material environmental condition habitat

… … … … …

Based on slides by Dr. Pier Luigi Buttigier, AWI, Bremenhaven, Germany

http://environmentontology.org ~1600 terms, June 2013

EnvO: source of environment descriptor names and synonyms

slide-17
SLIDE 17

TDWG – 27th Oct 2014 – Jönköping

ENVIRONMENTS – Improving Accuracy

  • Increasing matches in text
  • orthographic variation supported

e.g. freshwater, fresh water, and fresh-water

  • Case-insensitive matching
  • Synonym generation to reflect the way environment descriptive

terms are mentioned in text (both generic and EnvO specific)

  • Preventing overmatching (i.e. avoiding increased FP)
  • „stopword-list” (e.g. spring, well, range)

Action Example Add a variant in which non-informative words have been removed epipelagic zone → epipelagic estuarine biome → estuarine Plural form addition sediment → sediments Adjective form addition lagoon → lagoonal

slide-18
SLIDE 18

TDWG – 27th Oct 2014 – Jönköping

EnvO parts Not included: species tissues foods Limitations – Known Issues negation not supported conflicts with anatomy terms (e.g. mouth, blowhole) Scope

slide-19
SLIDE 19

TDWG – 27th Oct 2014 – Jönköping

ENVIRONMENTS – Sample Output

eol_documents_ascii_nonHTML.txt 346289845 346289853 mud flats ENVO:00000192 eol_documents_ascii_nonHTML.txt 346289845 346289853 mud flats ENVO:00002297 eol_documents_ascii_nonHTML.txt 346289845 346289853 mud flats ENVO:00000043 eol_documents_ascii_nonHTML.txt 346289845 346289853 mud flats ENVO:00000000 eol_documents_ascii_nonHTML.txt 346289845 346289853 mud flats ENVO:00000012 eol_documents_ascii_nonHTML.txt 346289871 346289873 mud ENVO:01000001 eol_documents_ascii_nonHTML.txt 346289871 346289873 mud ENVO:00010483 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00000180 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00000191 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00002297 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00000176 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00000000 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00000477

File Name Start coord End coord Match text EnvO ID

Tags corresponding to “Habitat” text data object: http://eol.org/data_objects/31415353

  • f EOL Taxon Phoenicopterus ruber (Greater Flamingo): http://eol.org/pages/913221
slide-20
SLIDE 20

TDWG – 27th Oct 2014 – Jönköping

ENVIRONMENTS – Sample Output

eol_documents_ascii_nonHTML.txt 346289845 346289853 mud flats ENVO:00000192 eol_documents_ascii_nonHTML.txt 346289845 346289853 mud flats ENVO:00002297 eol_documents_ascii_nonHTML.txt 346289845 346289853 mud flats ENVO:00000043 eol_documents_ascii_nonHTML.txt 346289845 346289853 mud flats ENVO:00000000 eol_documents_ascii_nonHTML.txt 346289845 346289853 mud flats ENVO:00000012 eol_documents_ascii_nonHTML.txt 346289871 346289873 mud ENVO:01000001 eol_documents_ascii_nonHTML.txt 346289871 346289873 mud ENVO:00010483 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00000180 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00000191 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00002297 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00000176 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00000000 eol_documents_ascii_nonHTML.txt 346289905 346289910 mounds ENVO:00000477

File Name Start coord End coord Match text EnvO ID

Tags corresponding to “Habitat” text data object: http://eol.org/data_objects/31415353

  • f EOL Taxon Phoenicopterus ruber (Greater Flamingo): http://eol.org/pages/913221

Traversing all IS_A, PART_OF Relationships in EnvO

slide-21
SLIDE 21

TDWG – 27th Oct 2014 – Jönköping

In collab.: Dr. Jennifer Hammock, Mr. Patrick Leary, Dr. Katja Schulz, Dr. Cyndy Parr

Monthly Updates

slide-22
SLIDE 22

TDWG – 27th Oct 2014 – Jönköping

ENV-EOL Annotation .tsv

EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mud flats ENVO:00000192 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mud flats ENVO:00002297 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mud flats ENVO:00000043 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mud flats ENVO:00000000 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mud flats ENVO:00000012 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mud ENVO:01000001 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mud ENVO:00010483 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mounds ENVO:00000180 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mounds ENVO:00000191 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mounds ENVO:00002297 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mounds ENVO:00000176 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mounds ENVO:00000000 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mounds ENVO:00000477

EOL Taxon ID EOL Data Object EnvO ID

Traversing all IS_A, PART_OF Relationships in EnvO

Subject Type Match text

Annotations corresponding to “Habitat” text data object: http://eol.org/data_objects/31415353

  • f EOL Taxon Phoenicopterus ruber (Greater Flamingo): http://eol.org/pages/913221
slide-23
SLIDE 23

TDWG – 27th Oct 2014 – Jönköping

ENV-EOL Annotation .tsv

EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mud flats ENVO:00000192 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mud ENVO:01000001 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mounds ENVO:00000180 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat mud flats ENVO:00000192 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat estuaries ENVO:00000045 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat bodies of water ENVO:00000063 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat coastal areas ENVO:00000303 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat inlets ENVO:00000475 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat rivers ENVO:00000887 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat rivers ENVO:00000890 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat lakes ENVO:00000020 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat coastal ENVO:00000303 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat lagoons ENVO:00000038 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat volcanic ENVO:00000354 EOL:913221 31415353;http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat lakes ENVO:00000020

EOL Taxon ID EOL Data Object EnvO ID

Direct Matches Only (No hierarchy traversal)

Subject Type Match text

Annotations corresponding to “Habitat” text data object: http://eol.org/data_objects/31415353

  • f EOL Taxon Phoenicopterus ruber (Greater Flamingo): http://eol.org/pages/913221
slide-24
SLIDE 24

TDWG – 27th Oct 2014 – Jönköping

Download

ENVIRONMENTS-EOL Annotations (17th Oct 2014)

  • 234.582 EOL Taxa
  • 1.945.383 Tags
  • 1.077.522 Unique EOL Taxon – EnvO ID pairs

ENVIRONMENTS

  • Home Page: http://environments.hcmr.gr/
  • ENVIRONMENTS-EOL Annotations:

http://download.jensenlab.org/EOL/

  • Tagger Software:

http://download.jensenlab.org/environments_tagger.tar.gz

slide-25
SLIDE 25

TDWG – 27th Oct 2014 – Jönköping

  • ther forms of access
slide-26
SLIDE 26

TDWG – 27th Oct 2014 – Jönköping

In collab.: Dr. Jennifer Hammock, Mr. Patrick Leary, Dr. Katja Schulz, Dr. Cyndy Parr http://eol.org/info/discover_what

slide-27
SLIDE 27

TDWG – 27th Oct 2014 – Jönköping

In collab.: Dr. Jennifer Hammock, Mr. Patrick Leary, Dr. Katja Schulz, Dr. Cyndy Parr

Phoenicopterus ruber (Greater Flamingo) EOL Taxon Page Overview: http://eol.org/pages/913221

Quick Facts

slide-28
SLIDE 28

TDWG – 27th Oct 2014 – Jönköping

In collab.: Dr. Jennifer Hammock, Mr. Patrick Leary, Dr. Katja Schulz, Dr. Cyndy Parr

Data Tab

Phoenicopterus ruber (Greater Flamingo) EOL Taxon Page Data Tab: http://eol.org/pages/913221 Parts of the screenshot truncated for illustration purposes

slide-29
SLIDE 29

TDWG – 27th Oct 2014 – Jönköping

In collab.: Dr. Jennifer Hammock, Mr. Patrick Leary, Dr. Katja Schulz, Dr. Cyndy Parr

Integrated in Traitbank

http://eol.org/info/516

Parr CS, et al. TraitBank: Practical semantics for organism attribute data, Semantic Web Journal, under review

slide-30
SLIDE 30
slide-31
SLIDE 31
slide-32
SLIDE 32

TDWG – 27th Oct 2014 – Jönköping

large scale biological questions

slide-33
SLIDE 33

TDWG – 27th Oct 2014 – Jönköping

In collab.: Prof. Rob Stevenson (UMass)

citizen science project

slide-34
SLIDE 34

TDWG – 27th Oct 2014 – Jönköping

In collab.: Prof. Rob Stevenson (UMass)

When and where is a species most likely to be found, and vice versa?

slide-35
SLIDE 35

TDWG – 27th Oct 2014 – Jönköping

Which other species are most likely to be found near by?

slide-36
SLIDE 36

TDWG – 27th Oct 2014 – Jönköping

In collab.: Prof. Rob Stevenson (UMass)

Where ?

  • Location
  • Environment type

When ?

  • Life Stage
  • Periods of year
slide-37
SLIDE 37

TDWG – 27th Oct 2014 – Jönköping

too much data

slide-38
SLIDE 38

TDWG – 27th Oct 2014 – Jönköping

Crete, Greece, http://www.gbif.org/occurrence/

slide-39
SLIDE 39

TDWG – 27th Oct 2014 – Jönköping

  • ~15000 EnvO term tags in the EOL Pages
  • For 234 bird species reported in Crete,

Greece (accord to GBIF, NCBI Taxonomy)

slide-40
SLIDE 40

TDWG – 27th Oct 2014 – Jönköping

  • Statistics (e.g term count per taxon)
  • Data provenance (e.g. EOL Text Type)
  • Taxonomy
  • Interactive Visualizations
slide-41
SLIDE 41

Developed by Dr. Umer Ijaz, University of Glasgow (Umer.Ijaz@glasgow.ac.uk), source: http://userweb.eng.gla.ac.uk/umer.ijaz/bioinformatics/summarize_v0.2/summarize.html

Try it live: http:// environments.hcmr.gr/ cretan-birds/ summarize.html

slide-42
SLIDE 42

Developed by Dr. Umer Ijaz, University of Glasgow (Umer.Ijaz@glasgow.ac.uk), source: http://userweb.eng.gla.ac.uk/umer.ijaz/bioinformatics/HEAPcloud_v0.1/

slide-43
SLIDE 43

TDWG – 27th Oct 2014 – Jönköping

Specific text sources to address specific biological questions http://rs.tdwg.org/ontology/voc/SPMInfoItems#Habitat http://rs.tdwg.org/ontology/voc/SPMInfoItems#Migration http://rs.tdwg.org/ontology/voc/SPMInfoItems#Reproduction http://rs.tdwg.org/ontology/voc/SPMInfoItems#TrophicStrategy Hierarchy of ontological data structures e.g. habitat only, environmental material only , environmental feature only Taxonomy e.g. re-calculate term counts at the family or higher level taxon

Further Inspection

slide-44
SLIDE 44

TDWG – 27th Oct 2014 – Jönköping

!

Species – Environment association

!

EOL: global aggregator of biodiversity knowledge

!

Semantically typed text clauses

!

ENVIRONMENTS:

!

Dictionary-based environment descriptive term identification

!

Ontological Community standards, e.g. EnvO: name source

!

ENVIRONMENTS and EOL

!

processing the EOL Taxon pages

!

extract descriptions of their environmental context

!

Data Access

!

Raw annotations (tabular format)

!

Browse via the EOL Web Interface (Broad audience)

!

Search and Retrieve via TraitBank@EOL

!

Large scale biological questions

!

Integrative data analysis / interactive visualization

!

Citizen science project support

Summary

slide-45
SLIDE 45

TDWG – 27th Oct 2014 – Jönköping

Based on processing PubMed, Apr 2013

Co-mention based analysis More Entity types

  • Functional Traits (feeding type, body features, etc)
  • Localities (co-ordindates, geographical locations)

Next Steps

slide-46
SLIDE 46

TDWG – 27th Oct 2014 – Jönköping

Digging-out Information

http://hartpurylrc.files.wordpress.com Photo by Dr Chatzinikolaou E

slide-47
SLIDE 47

TDWG – 27th Oct 2014 – Jönköping

Acknowledgements

HCMR-IMBG: Christos Arvanitidis, Christina Pavloudi, Katerina Vasileiadou Lucia Fanini, Sarah Faulwetter, Anastasis Oulas NNF CPR: Lars Juhl Jensen, Sune Frankild U Mass: Rob Stevenson Uni Glasgow: Christopher Quince, Umer Ijaz EOL: Cynthia Parr, Jennifer Hammock, Patrick Leary, Katja Schulz MM-MPI: J. Schnetzer, AWI: Dr P. Buttigieg, and more Funding: EOL Rubenstein Fellowship, LifeWatch Greece, MARBIGEN, NNF-CPR, EOL-BHL NESCent Researh, Sprint 2014,”SEQenv” Hackathons (COST ES1103)

Thank You!

Amvrakikos Lagoons, May 2011

ACTION ES1103

slide-48
SLIDE 48

TDWG – 27th Oct 2014 – Jönköping

Acknowledgements

Thank You!

Amvrakikos Lagoons, May 2011

ACTION ES1103

id: ENVO:00000038 name: lagoon

HCMR-IMBG: Christos Arvanitidis, Christina Pavloudi, Katerina Vasileiadou Lucia Fanini, Sarah Faulwetter, Anastasis Oulas NNF CPR: Lars Juhl Jensen, Sune Frankild U Mass: Rob Stevenson Uni Glasgow: Christopher Quince, Umer Ijaz EOL: Cynthia Parr, Jennifer Hammock, Patrick Leary, Katja Schulz MM-MPI: J. Schnetzer, AWI: Dr P. Buttigieg, and more Funding: EOL Rubenstein Fellowship, LifeWatch Greece, MARBIGEN, NNF-CPR, EOL-BHL NESCent Researh, Sprint 2014,”SEQenv” Hackathons (COST ES1103)

slide-49
SLIDE 49

TDWG – 27th Oct 2014 – Jönköping

E600 Corpus

  • 600 EOL species pages
  • Sections like “Habitat”, “Ecology”, “Reproduction”,

“Distribution”

  • randomly picked from the following eight taxonomic

taxa: Actinopterygii, Annelida, Arthropoda, Aves, Chlorophyta, Mammalia, Mollusca, Streptophyta.

  • 6 curators (4 graduate students, 2 postdocs)

http://environments-eol.blogspot.gr/
