Lunch Talk (Department of Physics, University of Tokyo) November 20, 2015 Testing Lorentz Invariance with an Optical Cavity Yuta Michimura Department of Physics, University of Tokyo Self Introduction Assistant Professor(

slide-1

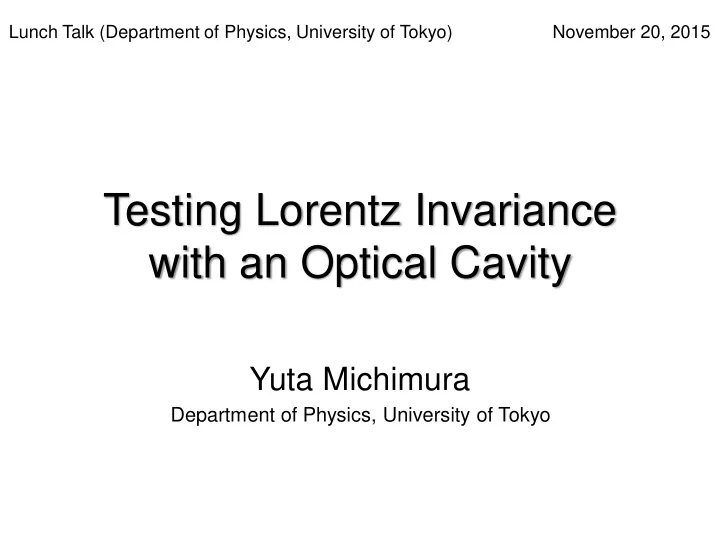

SLIDE 1

Testing Lorentz Invariance with an Optical Cavity

Yuta Michimura

Department of Physics, University of Tokyo

Lunch Talk (Department of Physics, University of Tokyo) November 20, 2015

slide-2
SLIDE 2
  • Assistant Professor(助教), Ando Group

from July 2014

  • Gravitational Waves
  • DECIGO Pathfinder

prototype experiment

  • KAGRA

main interferometer design & development

  • Test of Lorentz Invariance
  • anisotropy search in the speed of light

asymmetric optical ring cavity

  • “interferometry for fundamental physics”

macroscopic quantum mechanics, test of gravitational inverse square law, dark matter search etc……

Self Introduction

2

DECIGO Pathfinder KAGRA

  • ptical ring cavity
slide-3
SLIDE 3
  • Large-scale Cryogenic Gravitational wave Telescope

being built in Kamioka mine, Gifu

  • initial phase observation run in FY2015
  • room temperature
  • 3km Michelson
  • final phase observation run in ~ FY2017
  • cryogenic temperature (20K)
  • 3km RSE

KAGRA

3

iKAGRA (FY2015) bKAGRA (~ FY2017)

slide-4
SLIDE 4
  • inauguration
  • f initial stage

facility

  • mirror installation
  • ngoing
  • very exciting stage!

Recent KAGRA News

4

2015年11月6日 朝日新聞 2015.10.30

slide-5
SLIDE 5
  • LI could only be an approximate
  • test isotropy of the speed of light
  • two-way test (Michelson-Morley type)

has been tested to level

  • one-way test (our type)

tested to level

Test of Lorentz Invariance

5

an order of magnitude improvement

  • M. Nagel+, Nature Communications 6,8174 (2015)
slide-6
SLIDE 6
  • compare resonant frequencies of counter-

propagating modes of asymmetric optical ring cavity

Asymmetric Optical Ring Cavity

6

no violation CCW CW

no dielectric dielectric

Lorentz violation resonant

  • freq. shift

∝ LV

slide-7
SLIDE 7
  • double-pass configuration for null measurement

Method for Frequency Comparison

7

Laser counter-clockwise clockwise Lorentz violation signal frequency servo dielectric photo- diodes

slide-8
SLIDE 8
  • frequency comparison using double-pass setup
  • rotate and modulate LV signal

rotate

Experimental Setup

8

silicon

LV signal

collimator frequency servo vacuum enclosure (0.1-1kPa) fiber

turntable ring cavity

Laser

extract LV from amplitude

1550 nm

slide-9
SLIDE 9

Photo of the Optics

9

ring cavity PDs1 PDp1 PDs2 PDp2 collimator Inside vacuum enclosure (30cm×30cm×17cm)

slide-10
SLIDE 10

Photo of the Whole Setup

10

laser source vacuum enclosure + shielding (optics inside) turntable electrical cables 40 cm

slide-11
SLIDE 11
  • 12 sec / rotation, alternately

Rotation

11

slide-12
SLIDE 12

Observation Data

12

  • from July 2012 to October 2013
  • 393 days, 1.67 million rotations
  • duty cycle: 53% (64% after Oct 2012)
slide-13
SLIDE 13
  • demodulate data with and then

Data Analysis

13

sidereal X Y Z turntable Sun Earth

360 deg rotational symmetry

acquired LV signal demodulation amplitudes are modulated by sidereal frequency frequency

slide-14
SLIDE 14

Demodulation Amps

14

  • zero consistent at 2σ

no significant LV can be claimed at

average over 393 days 1 day data

slide-15
SLIDE 15
  • current noise level is limited by vibration noise from

rotation

  • semi-monolithic
  • ptical bench to

reduce vibration sensitivity

  • continuous rotation for more stable operation
  • aim to have reduced noise by ~ 1/100

Upgrade of the Apparatus

15

stationary when rotating

slide-16
SLIDE 16

Apparatus Comparison

16

turntable laser semi- monolithic

  • ptics

vacuum enclosure data logger AC power turntable laser non- monolithic

  • ptics

vacuum enclosure data logger AC power slip ring

2012 Model

  • non-monolithic optics
  • alternative rotation

New Model

  • semi-monolithic optics
  • continuous rotation
slide-17
SLIDE 17
  • assembly mostly done
  • stationary noise higher than before
  • investigation ongoing (scattering?)

Current Status of the New Model

17

work done by Jake Guscott (undergrad from U of Adelaide)

when rotating (old) stationary (old) stationary (new)

slide-18
SLIDE 18
  • compared the speed of light propagating in
  • pposite directions
  • using a double-pass optical ring cavity
  • put new limits on Lorentz violation in photons
  • currently developing an upgraded apparatus
  • Y. Michimura+, Phys. Rev. Lett. 110, 200401 (2013)
  • Y. Michimura+, Phys. Rev. D 88, 111101(R) (2013)
  • supported by JSPS科研費 若手A 15H05445

Summary

18
