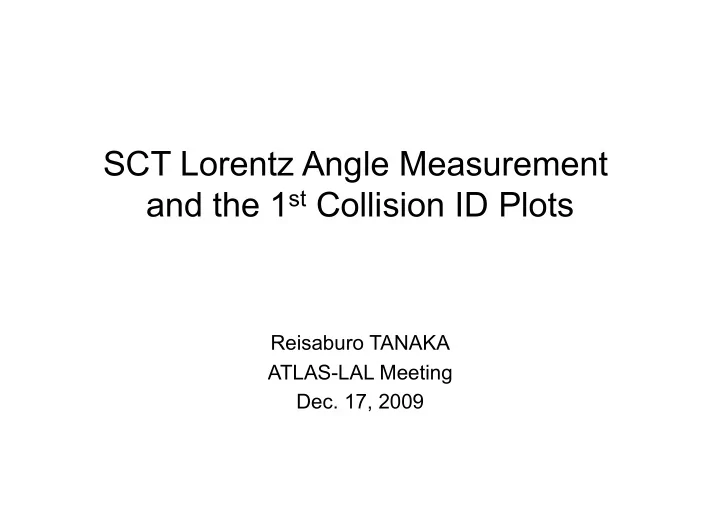

SCT Lorentz Angle Measurement and the 1st Collision ID Plots

Reisaburo TANAKA ATLAS-LAL Meeting

• Dec. 17, 2009

2009.12.17 SCT Lorentz angle measurement

2

ATL-COM-INDET-2009-039

Outline

• 1. SCT Digitization Model
• 2. Lorentz (Hall) Angle Measurement
• 3. Under-depleted Detector
• 4. ID Plots with the 1st Collision Data
• 5. After Irradiation
• 6. Summary

2009.12.17 SCT Lorentz angle measurement

3

• 1. SCT Digitization Model

ATLAS Inner Detector

内部飛跡検出器

SCT Barrel 2T Solenoid Field

2009.12.17

5

SCT

 4 barrel, 2x9 disk endcaps, |η|<2.5  2112 barrel SCT modules  80µm strip pitch, 768 strip daisy-chain  2x2 sensors with 40mrad stereo angle

SCT Digitization

2009.12.17 SCT Lorentz angle measurement Readout Amp Al strip SiO2 p implant n bulk MIP Landau-Vavilov distribution MPV(Median)=72(108) e-h pair/micron → Q=3.28(4.92) fC Reverse bias voltage Radiation damage

• n sensor

Crystal damage

SCT p-in-n (Pixel n-in-n)

Type inversion of bulk material n→p Depletion Drift Diffusion Capacitance Radiation damage

• n ABCD3T (DMILL)

Electric noise Trim DAC range/step Threshold non-uniformity Gain drop

6

Strip gap 80µm Depth 285µm

150V

Threshold 1 fC

Ramo (weighting) potential and induced current

2009.12.17 SCT Lorentz angle measurement

7

A B C D

e e h h

 V. Radeka, “Low Noise Techniques in Detectors,” Ann.Rev.Nucl.Part.Sci.38 (1988) 217-277.  H. Spieler ”Semiconductor Detector Systems,” Oxford Univ Press, 2005.

• H. Spieler

SCT (p-in-n) electron and hole drift in strip detector Strip detector signal for n-bulk device

VD=60V, Vbias=90V

(Pixel n-in-n) SCT p-in-n

Hole dominates Electron dominates

Total charge is the same.

Lorentz (Hall) angle model

2009.12.17

tanθL = µHB = rµdB µH : Hall mobility r : Hall factor ≈1 µd = vs /E c 1+ E /Ec

( )

β

[ ]

1/ β (drift mobility)

Parametrization:

• C. Jacoboni et al., Solid-State Electronics 20 (1977) 77-89.
• T. Lari, ATL-INDET-2001-004

Implemented into SCT Digitization S.Gadomski, ATL-SOFT-2001-005

Valid for T>250K, E along <111> crystallographic direction

ATL-INDET-2001-004

SCT Lorentz angle measurement

8

Electrons (n-in-n) Holes (p-in-n)

Bias voltage dependence

2009.12.17

ATL-INDET-2001-004

∂θL V,T

( )

∂V

150V ,273K

≈ −0.005 /V

tanθL = µHB = rµdB µd = vs /E c 1+ E /Ec

( )

β

[ ]

1/ β (drift mobility)

drift velocity saturation at high electric field → drop of "mobility” =v/E → drop of Lorentz angle

T.Lari PhD thesis 150V 450V 150V 450V

SCT Lorentz angle measurement

9

Doping and Temperature dependence

 LHC is not supposed to give effects

• n mobility due to doping concentration

increase by radiation. 1012 cm-3 at the beginning of LHC.  Mobility depends on temperature.

2009.12.17 SCT Lorentz angle measurement

∂θL V,T

( )

∂T

150V ,273K

≈ −0.027 /K

tanθL = µHB = rµdB µd = vs /E c 1+ E /Ec

( )

β

[ ]

1/ β (drift mobility) T.Lari PhD thesis

10

• 2. Lorentz (Hall) Angle Measurement

θ: incidence angle d: cluster size θL: Lorentz (Hall) angle a: depletion depth b: minimum cluster size σ: charge career diffusion

Lorentz Angle

2009.12.17

d = atanθ −tanθL + b

( θL=0 when B=0)

Cosmic ray Cosmic ray SCT Barrel

SCT Lorentz angle measurement

12

x y SCT module Incident particle Cluster Local incidence angle

Cosmic rays can traverse SCT module with large incidence angle.

θL θ

σ a d B

Incidence angle vs <cluster> width

2009.12.17 SCT Lorentz angle measurement

Charge sharing #strip(30°,60°,70°)=2.1,6.2,9.8 Q=1.0fC@90° incidence angle (80µm cross)

13 ?

Wide range plot

2009.12.17 SCT Lorentz angle measurement

atanθ − tanθL + b

( ) ⊗ Gauss(θ)

= atan ′ θ − tanθL + b

( )

1 2πσ exp − θ − ′ θ

( )

2

2σ 2         d ′ θ

θ −5σ θ +5σ

∫

14

B=2T B=0T <cluster>_min 1.134 ± 0.004 1.135 ± 0.006 Lorentz Angle -3.93 ± 0.03° 0.05 ± 0.05° Model prediction θL=-3.69 ± 0.26(syst.)°

2009.12.17 SCT Lorentz angle measurement

15

Systematics Checks  Lorentz angle fitting range  Upper/Lower half of SCT barrel  Axial/Stereo modules  Positive/Negative tracks  Different run period  Module bow effect → No major effects seen

Bias voltage dependence

2009.12.17

Nominal bias voltage at 150V

SCT Lorentz angle measurement

∂θL V,T

( )

∂V

150V ,273K

≈ −0.005 /V

16

SCT barrel module temperature

2009.12.17 SCT Lorentz angle measurement

Graham Beck SCT Software Meeting, Jan. 15, 2009 2008 running Hybrid <T>=+8.67℃ Sensor <T>=+5.0±1.0℃

17

Temperature dependence

2009.12.17

Bias voltage at 150V

SCT Lorentz angle measurement

∂θL V,T

( )

∂T

150V ,273K

≈ −0.027 /K

18

2009.12.17

Normalized at 150V, 273K. Straight line is the model prediction.

SCT Lorentz angle measurement

Magnetic field dependence

tanθL = µHB = rµdB

19

Magnetic field dependence

2009.12.17 SCT Lorentz angle measurement

20 Lorentz angle can be a Hall probe !

Solenoidal field drops by -1.5% at the edge of barrel SCT

• 3. Under-depleted Detector

09.12.17

22

Field Strength in the bulk

flat diode model uniform field model

• T. Kondo (KEK) 2009.11.27

SCT Operation with beam 1) "Super safe" : Barrel 5 V, Endcaps 20V 2) "Standby" : Barrel 20 V, Endcaps 20V … still efficiency~80%@1fC Thr. ! 3) "ON" : Barrel 150 V, Endcaps 150V VD = 64.8 ± 9.5V NIM A578 (2007)98-118.

TCAD simulation

Mathieu Benoit (LAL), Preliminary result.

2009.12.17 SCT Lorentz angle measurement

p-implant n-bulk

2250 6600 4425 2807 5263 7719

θL=4.15° θL=4.0° θL=4.6° θL=4.5° θL=3.8° θL=3.6°

−Ey = VB + VD d − 2VD d2 d − y

( )

Uniform flat diode model Current model agrees with exact calculation θL within 5% (syst. err.). <60µm from p-implant complicated. Note E-profile change after irradiation (type inversion).

23

SCT bias voltage scan

2009.12.17 SCT Lorentz angle measurement

24 Lorentz angle can be a thermometer !

Elias Coniavitis, Preliminary

SCT depletion depth measurement via Lorentz angle slope

2009.12.17 SCT Lorentz angle measurement

25

θL θ

σ a d B

Depletion depth ! a ∝ √Vbias

PDG2009

• 28. Particle Detectors

partial depletion full depletion Why data are not pointing towards the origin ?

Without Gauss. Conv. With Gauss. Conv.

Elias Coniavitis, Preliminary

• 4. ID Plots with the 1st Collision Data

2009.12.17 SCT Lorentz angle measurement

27

2009.12.17 SCT Lorentz angle measurement

28

Lorentz angle with collision data

2009.12.17 SCT Lorentz angle measurement

29

Pixel SCT

θL ≅ +12 degrees θL ≅ -4 degrees

2009.12.17 SCT Lorentz angle measurement

30

> 700 dead strips in Disk 2

2009.12.17 SCT Lorentz angle measurement

31

2009.12.17 SCT Lorentz angle measurement

32

2009.12.17 SCT Lorentz angle measurement

33

• 5. After Irradiation

2009.12.17 SCT Lorentz angle measurement

35

SCT Cooling TF, Taka Kondo

2009.12.17 SCT Lorentz angle measurement

36

SCT Cooling TF, Taka Kondo

2009.12.17 SCT Lorentz angle measurement

37

SCT Cooling TF, Taka Kondo

• 6. Summary

Lorentz (Hall) angle

 Lorentz angle is powerful tool to study the semiconductor detectors.  θL can be measured < 0.10° statistical precision.  Studied incidence angle, bias voltage, temperature, B dependence.

 Max. 20µm Lorentz shift but clearly visible.

 Data agree with the model which is put in SCT digitization.

 Needs further investigation for under-depleted detector.

To do lists

 SCT Digitization Model Tuning (Lorentz angle, cluster width, timing)

• Parameter update as functions of bias voltage, sensor temperature

and dose of irradiation (important !).

• Effect of irradiation for SCT, Pixel (IBL, sLHC).

2009.12.17 SCT Lorentz angle measurement

38

Back up

2009.12.17 SCT Lorentz angle measurement

39

2009.12.17

Min+-|fit range| fitting range

MC (-7°C,150V) Cosmic (5.0°C,150V)

40

SCT bias voltage scan [30-300]V

2009.12.17 SCT Lorentz angle measurement

41

Elias Coniavitis, Preliminary
