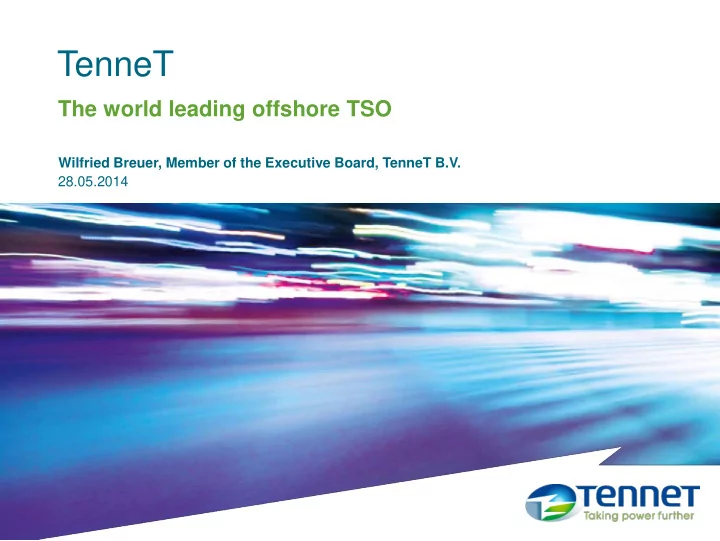

TenneT The world leading offshore TSO Wilfried Breuer, Member of - - PowerPoint PPT Presentation

28.05.2014

TenneT

The world leading offshore TSO

Wilfried Breuer, Member of the Executive Board, TenneT B.V.

TenneT – two TSOs, one company

Europe‘s first transnational TSO Connections to 10 TSOs – in the center of the European electricity market 20.997 km of ehv- and hv-lines 2.2 bn. € turn over in 2013 2.600 employees secure the power supply for 36 m. people Legal obligation to expand, operate and maintain the power grid on- and offshore

27.05.2014

Legal framework

§ 17 d EnWG „The TSO, in whose control area an OWF has to be connected to the

• nshore grid, is obliged to build and operate the grid connection according

to the offshore grid development plan.“ Legal obligation to connect OWF

27.05.2014

Current Situation – OWF in Germany

German renewable energy targets for offshore wind: 6.500 MW by 2020. As of today TenneT has awarded grid connection capacity of more than 7,1 GW. Among these are 9 DC-systems and 3 AC-systems. The draft Offshore Grid Development Plan (O-NEP) foresees 3 additional projects (2.700 MW) to be tendered until 2024. Only 3 OWF are in operation, 7 under construction and 3 officially approved and with final investment decision. TenneT is legally obliged to up-front services.

27.05.2014

~ ~ ~ ~ ~ ~ ~ ~ = ~

12-nm-zone

• Conv. Platform
• Switchgear
• Transformers
• Converter

OWF Platforms

• Transformers
• Shunt Reactors

AC Cables DC Cables

• Offshore
• Onshore

dikes Onshore AC Grid Wind Turbines

= ~

OWF TenneT

• Conv. Station
• Converter
• Transformers
• Switchgear

OWF 1 OWF 2

Possibilities of HVDC-Technology

16.05.2014

 optimised number of cable systems  standardised interface to OWFs  partial redundancy via parallel systems  cost efficient solution 

additional converter platform

HelWin beta platform site visit 5

Offshore grid connection projects

Riffgat

KS Diele KS Dörpen West UW Emden Borssum

BorWin2 BorWin1 BorWin4 HelWin1 HelWin2 DolWin2 DolWin1 DolWin3 alpha ventus BorWin3

UW Inhausen

Nordergründe

KS Büttel KS Emden/Ost UW Hagermarsch

SylWin1

Project Capacity (MW) Year of

• peration

In operation alpha ventus 60 2009 BorWin 1 400 2010 Riffgat 108 2014 Under construction/ awarded BorWin2 800 2015 BorWin3 900 2019 DolWin1 800 2014 DolWin2 900 2015 HelWin1 576 2014 HelWin2 690 2015 SylWin1 864 2015 Nordergründe 111 2016 DolWin3 900 2017 Ʃ built / awarded 7.109 In tender phase BorWin4 900 To be tendered until 2024 according to O-NEP2014 3 DC-connections 2.700

20.03.2014 Energiewende in Germany 6

16.05.2014 7 HelWin beta platform site visit

TenneT‘s vision for Wind op Zee

TenneT has experience in connecting OWF since 2007. As of today TenneT has awarded grid connection capacity of more than 7,1

• GW. The draft Offshore Grid Development Plan (O-NEP) foresees 3

additional projects to be tendered until 2024. TenneT has relevant competencies to connect OWF:

̵ Abilities to handle large offshore projects for more than 5 years ̵ Skills and proficiencies in large scale project organization ̵ Expertise and experience in planning, consenting, permitting and

• perating & maintaining grid connections

Based on TenneT‘s experience with connecting OWFs in Germany, TenneT suggests to be the designated Offshore TSO in the Netherlands as well. TenneT is the most experienced offshore network developer

Offshore grid connection

Schematic of a typical DC offshore grid connection

27.05.2014

direct current alternating current Converter station

• nshore converter

Bank

TenneT‘s scope OWF ‘s scope

ehv grid substation

27.05.2014

10

HelWin alpha

11

HelWin beta

TenneT is Europe´s first cross-border grid

• perator for electricity. With approximately

20.000 kilometres of (Extra) High Voltage lines and 36 million end users in the Netherlands and Germany we rank among the top five grid operators in Europe. Our focus is to develop a north-west European energy market and to integrate renewable energy. Taking power further www.tennet.eu
