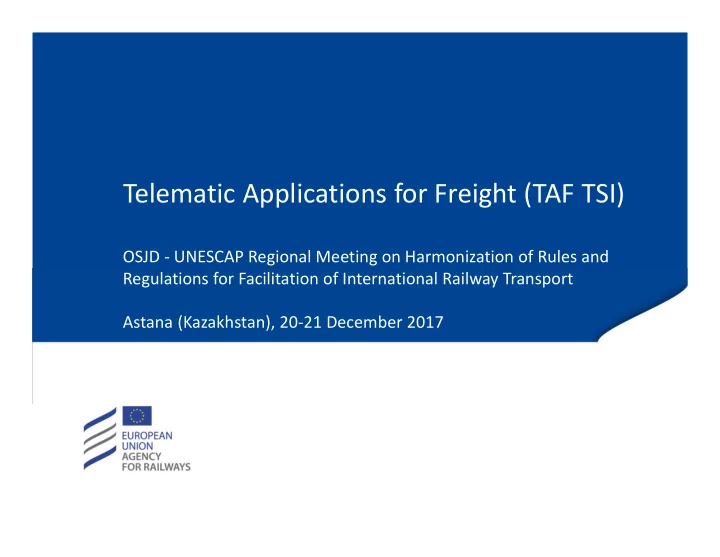

Telematic Applications for Freight (TAF TSI)

OSJD ‐ UNESCAP Regional Meeting on Harmonization of Rules and Regulations for Facilitation of International Railway Transport Astana (Kazakhstan), 20‐21 December 2017

slide-2
SLIDE 2

A full package of products

Legislative text Standard setting and maintenance Implementation monitoring IT implementers and users’ community TAF TSI

N° 2

slide-3
SLIDE 3

A full package of products

Legislative text Standard setting and maintenance Implementation monitoring IT implementers and users’ community TAF TSI

N° 3

slide-4
SLIDE 4

European Union Agency for Railways « to make the railway system work better for society »

Clients / Stakeholders Agency Actions

(against Annual Programming Document)

Strategic Priorities Simplified Vehicle Authorisation Regulatory framework harmonized for Safety Only 1 Train Control System in EU Simplified Access for Customers 1 2 3 4 Development

Interoperability Rules * Common Safety Methods Databases and Registers

Facilitate / Dissemination Monitoring / Review EC + DG MOVE Member States/ RISC European Parliament

Railway Undertakings (RU) Infrastructure Managers (IM) Wagon Keepers (WK) Manufacturers

National Safety Authorities National Investigation Bodies * TSI

M F D

4

slide-5
SLIDE 5

Content of TAF TSI

Wagon keeper function

Rolling Stock Reference Databases

Railway Undertaking function

Same as “Railway Undertaking ‐ Infrastructure Manager communication”

+

‐ Consignment Note data ‐ Shipment Estimated Time of Interchange / Arrival ‐ Wagon Movement

Railway Undertaking ‐ Infrastructure Manager communication

  • Infrastr. Manager:

Path Request ‐ Train Preparation ‐ Train Running Forecast ‐ Service Disruption Information ‐ Train Location ‐ Interchange Reporting ‐ Data Exchange for Quality Improvement Railway Undertaking: ‐ Path Request ‐ Train Preparation ‐ Train Running Forecast ‐ Service Disruption Information ‐ Train Location ‐ Interchange Reporting ‐ Data Exchange for Quality Improvement

Common Compo‐ nents for TAF TSI

Imple‐ men‐ tation Moni‐ toring

N° 5

slide-6
SLIDE 6

COMMISSION REGULATION (EU) No 1305/2014 of 11 December 2014 on the technical specification for interoperability relating to the telematics applications for freight subsystem of the rail system in the European Union and repealing the Regulation (EC) No 62/2006

Commission Regulation (EU) No 1305/2014: TSI TAF

TAF TSI Regulation

N° 6

slide-7
SLIDE 7

TAF TSI process

Consignment Note Wagon trip plan Path Request Train Preparation Train Running Forecast Wagon Movement Post‐Trip

  • Wagon loads
  • Wagon release
  • Price and

transit times

  • Wagon

status and location

  • Open

Access

  • One Stop

Shop

  • Train

Composi- tion

  • Train ready
  • Train

Running and forecast

  • Service

Disruption

  • To improve

the quality and producti- vity

TAF TSI published on EU Journal: COMMISSION REGULATION (EU) No 1305/2014

  • Estimated

Time of Arrival (ETA) or of Interchange (ETI)

  • Wagon

events

Planning… Operation… After…

4th ERA TAF TSI Regional Workshop (Italy, Slovenia and Croatia)

N° 7

slide-8
SLIDE 8
  • Chapter 1.3 of TAF TSI: Infrastructure Managers and Railway Undertakings,

Wagon Keepers, but also intermodal operators … and even freight Curstomers (shippers, consignors of goods, forwarders etc .)

Who ?

N° 8

slide-9
SLIDE 9

Why?

9

  • Alleviate non‐physical barriers allowing the adoption and Implementation
  • f inter‐operable IT systems in Trade & Transport (REBIS report).
  • Simplified Custom Procedures with EU partners.
  • Adoption of inter‐connected IT systems in transit operations.
  • Development – EU Rail Freight Corridors.
slide-10
SLIDE 10

TAF TSI – Communication RU‐IM

  • Exchange of data (process & protocol) between Railway Undertaking (RU)

and Infrastructure Manager (IM) :

  • Path Request
  • Train Preparation
  • Train Running Forecast
  • Service Disruption Information
  • Data exchange for
  • Quality Improvement

RU 1 RU 2 RU N

……….. ……

IM 1 IM 2 IM 3 IM N

N° 10

slide-11
SLIDE 11

TAF TSI – Exchange of Data RU – RU (Railway Undertaking)

  • Consignment Note Data, Shipment ETI/ETA, Wagon Movement and

Interchange Reporting

Wagon Keepers & Clients LRU’s (1, 2,..N)

N° 11

slide-12
SLIDE 12

A full package of products

Legislative text Standard setting and maintenance Implementation monitoring IT implementers and users’ community TAF TSI

N° 12

slide-13
SLIDE 13

Structure of TAF TSI – RU/IM‐communication (example)

RU/IM communication

Train Ready reporting Train Running reporting Train Forecast reporting Short Term Timetable Train Interruption reporting 4.2.14 4.2.15 4.2.15 4.2.17 4.2.16 TAF TSI ‐ ANNEX D.2: APPENDIX F ‐ TAF TSI DATA AND MESSAGE MODEL TAF TSI  Activity Area  TSI Ch.  Technical Document

N° 13

slide-14
SLIDE 14

Appendix I – Technical Documents

14

http://www.era.europa.eu/Document‐Register/Pages/Technical‐Documents.aspx

slide-15
SLIDE 15

A full package of products

Legislative text Standard setting and maintenance Implementation monitoring IT implementers and users’ community TAF TSI

N° 15

slide-16
SLIDE 16

Expected Benefits!

16

Expected benefits for Railway Companies:

  • 1 single communication system for all business cases an operator can find ‐>

Economies of Scale.

  • Improved communication between RU and IM (in terms of quality and speed)

‐> Process Coordination.

  • 1 single standardized way of working, providing cost savings through better

management quality system; establishment of homogeneous procedures; Reduction in system maintenance costs.

  • Standardized and Interoperable communication interfaces.
  • Participants can join a strong and committed TAF Users’ Community.

Regarding the value chain passengers / freight customers:

  • Access to more transparent railway products ‐> more efficient.
  • Monitoring becomes more transparent ‐> no "black box".
  • Quicker and better information delivery to freight customers and business

partners.

slide-17
SLIDE 17

Implementation TAF Masterplan

N° 17

4th ERA TAF TSI Regional Workshop (Italy, Slovenia and Croatia)

slide-18
SLIDE 18

Train Running Information function

4th ERA TAF TSI Regional Workshop (Italy, Slovenia and Croatia)

http://www.era.europa.eu/tools/TAFTSI/Pages/Home.aspx

N° 18

slide-19
SLIDE 19

A full package of products

Legislative text Standard setting and maintenance Implementation monitoring IT implementers and users’ community TAF TSI

N° 19

slide-20
SLIDE 20

TAF TSI in numbers

  • Freight company codes
  • Number of companies: 328
  • Train running information
  • Countries covered: 22
  • Number of trains processed: 1.600.000 per year
  • Number of messages exchanged: 163.000.000 per year
  • Consignment notes + Wagon event reporting
  • Number of companies: 16
  • 2.500.000 consignment note messages per year
  • 144.000.000 train run messages per year
  • Path request
  • Countries covered: 30
  • Number of companies: 166 RUs and 35 IMs
  • Number of messages exchanged: 2600 path dossiers per year

N° 20

slide-21
SLIDE 21

Available TAF TSI IT implementations

  • RNE

– TIS (http://tis.rne.eu/) – train running – PCS (http://pcs.rne.eu/ ‐ path request – Common Components for TAF TSI (http://ccs.rne.eu/) – location / company reference data

  • Raildata

– ORFEUS (http://www.raildata.coop/ORFEUS.htm) – eConsignment note – ISR (http://www.raildata.coop/ISR.htm) ‐ wagon movement

  • UIP

– RSRD² (https://www.rsrd2.eu) – rolling stock reference data

  • HitRail

– http://interoperability.hitrail.com – path request + train running

  • UNIFE

– http://www.unife.org/ – path request + train running

N° 21

slide-22
SLIDE 22

Architecture to Exchange Data?

  • Communication « Peer to peer » IP network ‐ Central Repository and an

individual Common Interface (CI)

22

slide-23
SLIDE 23

Useful Links!

23

  • TAF TSI Regulation EU 1305/2014: http://www.era.europa.eu/Document‐

Register/Pages/TAF‐TSI.aspx

  • TAF TSI Technical Documents: http://www.era.europa.eu/Document‐

Register/Pages/Technical‐Documents.aspx

  • TAF/TAP Reference Files (Company Codes and Primary Location Codes):

http://teleref.era.europa.eu/

  • TAP TSI GIS Interactive Implementation Maps:

http://www.era.europa.eu/tools/TAFTSI/Pages/Home.aspx

  • TAF TSI Master Plan: http://www.era.europa.eu/Document‐

Register/Documents/TAF‐TSI‐Master‐Plan.pdf

  • TAF and TAP RU/IM implementation Joint Sector Group:

http://taf‐jsg.info/

slide-24
SLIDE 24

Thank you very much European Union Agency for Railways

Mickael VARGA – Email: Mickael.varga@era.europa.eu TAF_TSI@era.europa.eu – Tel: +33 6 64300237 – Address: 120 rue Marc Lefrancq, F‐59300 Valenciennes, France

N° 24

slide-25
SLIDE 25

5th ERA TAF TSI Regional Workshop (Slovakia, Czech Republic and Hungary)

slide-26
SLIDE 26

Back‐Up Slides

N° 26

slide-27
SLIDE 27

Usesful terms from this presentation

Abbreviation / term Meaning

RU Railway Undertaking EC European Commission EU European Union IM Infrastructure Manager IP Internet Protocol RNE Rail Net Europe TID Train Identifier UIP International Union of Wagon Keepers UNIFE European Association of Rail Supply Industry WIMO Wagon and Intermodal Unit Operational Database WK Wagon keepers
