M.E.T S.r.l Viale Zanotti, 71 27027 GROPELLO CAIROLI (PV) ITALY Tel. +39 0382 814485 Fax +39 0382 814481 e-mail metsrl@metsrl.it DEGREASING MACHINES LS SERIES THE DEGREASING MACHINES LS SERIES HAVE BEEN DESIGNED FOR THE

slide-1
SLIDE 1

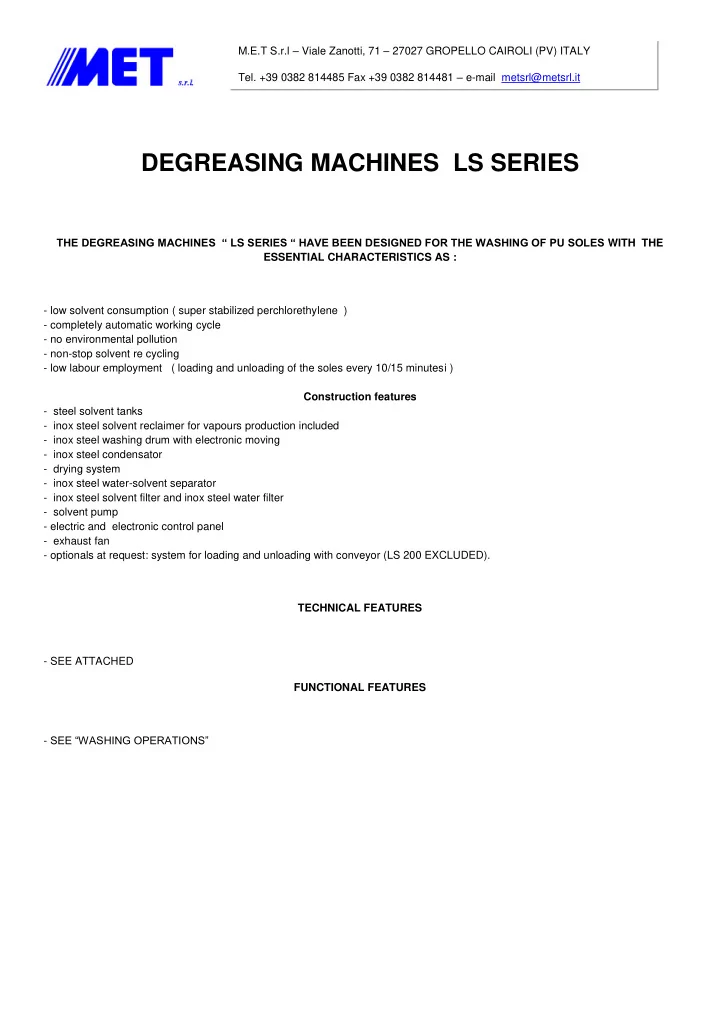

DEGREASING MACHINES LS SERIES

THE DEGREASING MACHINES “ LS SERIES “ HAVE BEEN DESIGNED FOR THE WASHING OF PU SOLES WITH THE ESSENTIAL CHARACTERISTICS AS :

  • low solvent consumption ( super stabilized perchlorethylene )
  • completely automatic working cycle
  • no environmental pollution
  • non-stop solvent re cycling
  • low labour employment ( loading and unloading of the soles every 10/15 minutesi )

Construction features

  • steel solvent tanks
  • inox steel solvent reclaimer for vapours production included
  • inox steel washing drum with electronic moving
  • inox steel condensator
  • drying system
  • inox steel water-solvent separator
  • inox steel solvent filter and inox steel water filter
  • solvent pump
  • electric and electronic control panel
  • exhaust fan
  • optionals at request: system for loading and unloading with conveyor (LS 200 EXCLUDED).

TECHNICAL FEATURES

  • SEE ATTACHED

FUNCTIONAL FEATURES

  • SEE “WASHING OPERATIONS”

M.E.T S.r.l – Viale Zanotti, 71 – 27027 GROPELLO CAIROLI (PV) ITALY

  • Tel. +39 0382 814485 Fax +39 0382 814481 – e-mail metsrl@metsrl.it
slide-2
SLIDE 2

LS 200 - LS 226 – LS 450 - LS 500 MODEL AND TECHNICAL DATA.

LS 200 LS 226 LS 450 LS 500 LS 200 LS 226 LS 450 LS 500

DRUM

Volume Lt 300 360 450 500 Diameter m/m 850 900 1061 Depth m/m 530 565 565 Speed rotation Rpm 13-150 13-150 13-150 13-150

ELECTRICAL POWER

Installed power KW 20 26,7 33 43 Inverter KW 1,5 1,5 1,5 2,2 Main motor KW 2,2 2,2 2,2 3,5 Fan motor KW 1 1,5 1,5 1,5 Solvent pump motor KW 0,55 0,55 0,55 1,1 Refrigerating compressor motor KW 1,8 2,6 3,0 3,6 Air compressor motor KW 0.37 0,37 0,37 0,37 Drying heaters KW 4 4,2 6,0 7,2 Still heaters KW 9 16 20 27

CONNECTIONS

Water inlet/outlet D. 1/2 “ 1/2 “ 1/2” 1/2 “ Air ATM. 6/8 6/8 6/8 6/8

TANKS

Capacity tank 1 Lt 190 195 195 175 Capacity tank 2 Lt 190 195 195 175 Capacity tank 3 Lt.

  • 245

STILL

Capacity Lt. 180 200 330 490

WEIGHT

Net weight Kg. 950 1230 1100 1870

OVERALL DIMENSIONS

. Depth m/m 1780 1780 1960 2325 Width m/m 1480 1480 1480 1700 Height m/m 2035 2180 2300 2350

VOLTAGE

Standard - three phases Volt/Hz 380/50 380/50 380/50 380/50 On request – three phases Volt/Hz 220/60 220/60 220/60 220/60

PRODUCTION

Pairs/hour 250-350 350-450 400-550 450-600

CHILLER AT USERS’ CHARGE

Kcal/hour 18.000 23.000 27.000 32.000

M.E.T S.r.l – Viale Zanotti, 71 – 27027 GROPELLO CAIROLI (PV) ITALY

  • Tel. +39 0382 814485 Fax +39 0382 814481 – e-mail metsrl@metsrl.it
slide-3
SLIDE 3

1780 1480 2035

slide-4
SLIDE 4

1780 x 1480 2180

LOADER/UNLOADER 1800 X 650

OPTIONAL

slide-5
SLIDE 5

1960 X 1480 2300 LOADER / UNLOADER 1800 X 650 OPTIONAL

slide-6
SLIDE 6

2325 1700 2305 1800 x 650

LOADER / UNLOADER OPTIONAL

slide-7
SLIDE 7

WASHING OPERATIONS

OPERATION 1 – LOADING TANKS

Pump Solvent drum

1 – open the gate valve 2 – switch on the machine 3 – press the button 11 - led lighted : valve release 4 – press the button 5 led lighted : the solvent goes to tank 1 5 – at full tank ( about 190 lts.) press the button 5 and the button 11 – led unlighted 6 – repeat the same operations to load the tank 2 – press the buttons 12 + 5 and the buttons 13 + 5 if scheduled tank 3 7 – at full tanks close the gate valve

1 1 1

SOLES WASHING 1 – on the keyboard choose the program : 2 programs for LS 200-LS226-LS450 3 programs for LS 500 2 – press the button START : stats the automatic washing cycle STEP 2 – drum loading

Solvent reclaimer drum filter Tank 1 Tank 2 Tank 1 Tank 2 Solvent reclaimer drum filter

STEP 3 – washing The solvent, by the pump, comes from tank 1 o 2 o 3 ( as per the selected program) to the rotating drum and starts the soles washing When the solvent arrives to the right level inside the drum the exit valve of the tank shut automatically; the filter valve opens for the solvent circulation and the solvent filtration to eliminate some impurities (flours and scraps of the soles) – – STEP 1 – valves opening for the pressure unloading into the machine DURING ALL THE STEPS THE DRUM TURNS BOTH CLOCKWISE AND COUNTERCLOCKWISE

Solvent reclaimer drum Tank 1 Tank 2

slide-8
SLIDE 8

At the end of the washing, the solvent entry valve shuts and the solvent entry valve of the solvent reclaimer opens. The solvent reclaimer start the cleaning of the solvent. The cleaned solvent goes to the selected tank automatically ( 1 o 2 o 3 ). STEP 4 – drum unloading

Solvent reclaimer drum filter Tank 1 Tank 2

STEP 6 and STEP 7 – DRYING AND COOLING Cooling battery Heater battery Electrical heaters Fan Water separator Air filter Drum Solvent reclaimer DRYING. With this operation the residual solvent inside the soles is recovered (80-90%). You may select the time of drying on the electronic panel. COOLING. At the end of the drying cycle starts the cooling cycle to eliminate all the solvent vapours inside the drum. You may select the time of cooling on the elctronic panel.
