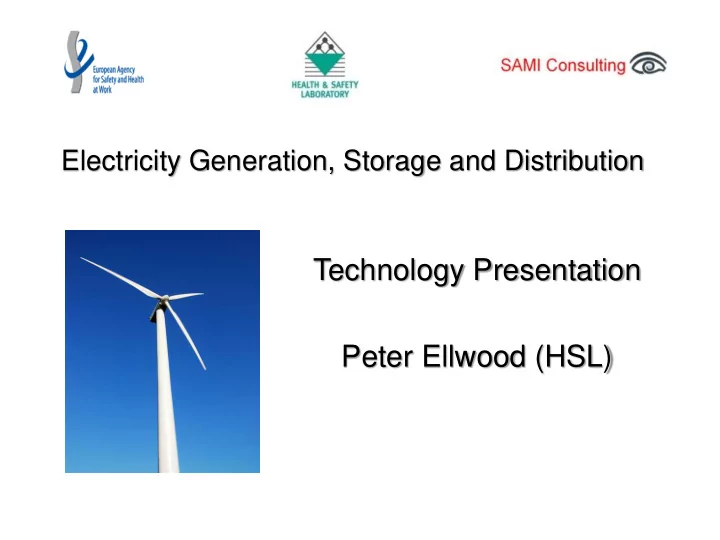

Electricity Generation, Storage and Distribution

Technology Presentation Peter Ellwood (HSL)

Scope

• Changing energy mix for electricity

generation

• Storage of electricity from renewable and

intermittent sources

• Distribution issues

2

3

EU Electricity Generation to 2050

4

Wind Energy

• Onshore -

commercial, community, micro

• Offshore - commercial

5

EU Wind Energy at the end of 2013

• Now 117.3 GW of installed wind energy capacity in the EU:

110.7 GW onshore and 6.6 GW offshore.

• 11,159 MW of capacity (worth between €13 bn and €18 bn)

was installed in the EU-28 during 2013, a decrease of 8% compared to 2012 installations.

• EU power sector continues to move away from fuel oil and

coal, with each technology continuing to decommission more than it installs.

• Wind power capacity installed by the end of 2013 would, in a

normal wind year, produce 257 TWh of electricity, enough to cover 8% of EU consumption – up from 7% at end 2012.

6

Future EU Wind Energy

• By 2020, EU wind power capacity of 230 GW,

190 GW onshore and 40 GW offshore.

• By 2030 , EU wind power capacity of 400 GW,

250 GW onshore and 150 GW offshore.

• Total output of 581 TWh (15.7%) by 2020,

1153.7 TWh (28.5%) by 2030 of consumption.

• Wind sector jobs up from 190,000 to 462,000 by

2020 and 480,000 by 2030.

7

Solar Power

• Domestic
• Commercial
• Concentrating Solar

Power

• New build
• Retrofit

8

Electricity Storage

• Batteries
• Electric vehicles
• Hydrogen
• Supercapacitors
• Pumped hydro
• Geological storage

(e.g. compressed air)

• Flywheels
• Liquid air

9

“Yes these ex-car batteries should be fine, no service record but never had any problem...” “No need for guarantees... I just need 20 units for the home system”

‘BONUS WORLD’ - TRANSPORT

Distributed Generation

• Solar
• Wind
• Fuel Cells
• Combined Heat

and Power

11

‘DEEP GREEN’ – ENERGY SYSTEMS Local bio-gas with livestock management Autonomous housing with micro- generation bio-mass landscapes with community power generation Integrated industrial ecology systems

Grid Technologies

• Accurate and

coordinated systems

• Power electronic

advances

• Smart meters
• Smart controllers
• Infrastructure

13

Exercise 2

• Consider Peter’s presentation and

discussions

• Agree a potential energy sector structure

(e.g. mix of generation, energy storage….etc.) and key energy technologies in your scenario

• Agree the key technology changes for now

and the associated operational issues

• Record on feedback form

14

Feedback form

15

Energy technology Technology changes Operational issues and other comments

20 MW deep water wind turbines Turbine size Grid connection Lack of offshore experience. New installation and maintenance issues

Feedback and discussion

16
