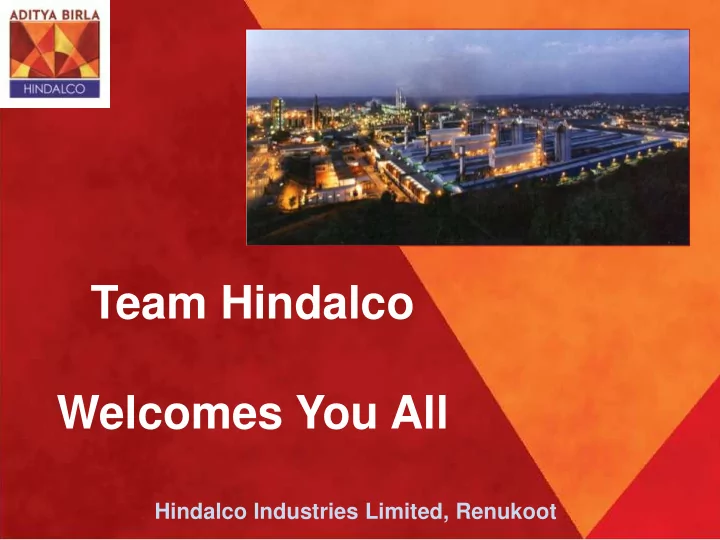

Team Hindalco Welcomes You All Hindalco Industries Limited, - - PowerPoint PPT Presentation

Team Hindalco Welcomes You All

Hindalco Industries Limited, Renukoot

Team Introduction

2

Vibhav Upadhyay Anuj Verma Vivek Agrawal

Aspect of Energy Saving



Ensuring Energy Security.



Climate Change Concerns.



Statutory requirement like PAT , RPO etc.

Methodology

 By Enhancing Energy Efficiency.  By Energy Conservation

Hindalco Industries Limited, Renukoot

3

To Reduce Pot Voltage at Renukut Smelter to Enhance Energy Efficiency

16 Nov 2016

4

Project Theme

INDEX

Hindalco Renukoot – Profile & Process introduction Background of the Project Concept of the Project Root cause Analysis and Approach adopted Project Savings & Economics Challenges faced in implementation Measurement and Verification

Hindalco Industries Limited, Renukoot

5

Hindalco, the flagship company of the Aditya Birla Group and industry leader in aluminium and copper has consolidated turnover of US$17 billion & having footprint in 13 countries outside India. It is fully integrated plant. Hindalco Renukoot: Profile

Hindalco Industries Limited, Renukoot

6

Finish Product Aluminium

Hindalco Renukoot : Fully Integrated Operations

Alumina

Bauxite Captive Power

THROUGH

7

Typical Cost of Aluminium Production

Smelter Power 40%

Store, potlini ng, misc. 4% AlF3 1% Depriciation 1% Net carbon 15% Alumina 35% wages 5%

8

Renukut Smelter

• Renukut smelter has 11 pot lines and 2138 Electrolytic cells

(pots). Annual Aluminum Production is 409 KT.

9

Process Description

ALUMINA HOPPER

ANODE (+) ANODE (+)

MOLTEN CRYOLITE BATH

MOLTEN ALUMINIUM

CATHODE BLOCK (-) POINT FEEDERS SiC BRICKS DIATHERM 23 INSULATION BRICKS CATHODE BUS BAR COLLECTOR BAR POT COVERS ALUMINA INSULATION FROZEN BATH CRUST TOE PLATE MONOLITHIC PASTE LINING DENSE FIRE BRICKS

2 AI2O3 + 3 C 4 AI + 3 CO2

ANODE RING BUS CALCIUM SILICATE INSULATION MOLTEN METAL

According to Faraday’s Law: Production = 8.052* Amperage*Current Efficiency

10

Project background

• Power Consumption

298 /   CE V kg kWh

4.420 4.440 4.460 4.480 4.500 4.520 4.540

Pot voltage, V

This project was taken to reduce pot voltage by 80 mv

11

Problem Diagnosis

12

Project Scoping

13

Approach

14

Project Methodology: Statistical analysis of process parameter

• Stability Test ( Run Chart)
• Process Capability
• Gage R & R Study
• Micro mapping & Process Mapping
• Regression Analysis

Cause and effect analysis

Macro Map

Pot Lining

• New pot shell
• Refractory lining

Pot baking

• Pot taken

in circuit Pot Loading

• Pot taken in
• peration

Alumina Feeding

• Installation of point

feeders and Micro Processor control Metal Tapping

• Metal tap out in

cruce Crust breaking

• Crust breaking
• Bath melting

Bath maintenance

• Solid bath addition

Anode changing

• Spent anode removal

Dust skimming

• New anode set
• Anode covering

Sampling

• Bath ratio, temperature
• Bath Level

measurement

• DC Power from Rectifier
• Anodes from carbon

plant

• Corrections
• Bath ratio balance

by adding AlF3 or Soda ash

• Bath maintenance
• Primary alumina from Alumina

plant

• Secondary alumina through DSS

15

Fish Bone Diagram

Team did round of brainstorming sessions to identify all potential causes using fishbone diagram. Total 18 X’s identified which further reduced to 10 using C&I matrix 16

17

• ACD
• Cathode Voltage drop
• Pot age
• Noise
• Alumina concentration
• Metal level
• Anode effect
• Bath Chemistry
• Clamp drop
• Diamond drop

Critical parameters

Regression Analysis

Correlation & regression analysis carried out to find out most critical parameters

18

Regression Analysis

• Series of DOE were carried out to find out the way to reach

at optimum pot voltage without affecting other critical parameters.

• A Solution Selection Matrix prepared to prioritize the

solution and different DOE (Design of Experiments)

• conducted. Finally an action plan made to reduce pot voltage.

.

19

Pot age ,ACD ,Noise ,CVD, Bath Chemistry

Problem Remedy

20

Voltage Reduction Plan

Problem Remedy

Noise

• 1. Noise limit for voltage reduction –Avg. noise value 0.002V/pot
• 2. Voltage will be reduced @ 0.01V/pot only

Age

• 1. Minimum voltage of 4.27 V with life 90 to <3000days.
• 2. High life (>3000 days) voltage 4.36 V(min)
• 3. New pot maintained upto 4.320 V/pot by 90 days of life.

21

Problem Remedy

CVD

• 1. Voltage of pots with high CVD is 4.35 (min)

Bath Chemistry 1. Bath Ratio target increased from 1.130 to 1.160 due to higher CaF2 content in bath 2. Maximum 0.06 V reduction in one week

22

ACD

• 1. No voltage reduction if pot is under high noise, low bath level,

metal left in the pot, and less current anodes

Control Plan

23

Monitoring parameters

• Metal Left
• High bath temperature Pots.
• High Bath Ratio Pots.
• Low Bath Level Pots.
• Anode Effect frequency.
• High search time ( higher Alumina content in bath) pots.
• Avg. Noise of the lines and No. of noisy pots.
• No. of pot failure

Monitoring of all these parameters and strategy change in between whenever deviations found.

Control plan for Improvement

24

• Formation of Standard Operating Practices.
• Extended trial in all pot lines before implementation
• Implemented in all pot lines
• An exhaustive monitoring system developed
• Any deviations were planned to be rectified within 8 hrs

Replication

25

Results

26

Tangible Results

July'15 Aug'15 Sep'15 Oct'15 Nov'15 Dec'15 Jan'201 6 Feb'16 Mar'16 Pot voltage 4.515 4.513 4.479 4.470 4.453 4.448 4.450 4.444 4.442 Volts/pot

Pot voltage

Strict follow up of action plan led to reduction in pot voltage

27

Tangible Results

4.400 4.420 4.440 4.460 4.480 4.500 4.520 4.540 July'15 Aug'15 Sep'15 Oct'15 Nov'15 Dec'15 Jan'2016 Feb'16 Mar'16 Volts/pot

Pot voltage

• Improvement in CTQ

28

Tangible Results

13800 13850 13900 13950 14000 14050 14100 14150 14200 14250 14300 July'15 Aug'15 Sep'15 Oct'15 Nov'15 Dec'15 Jan'2016 Feb'16 Mar'16

Power, kWh/T

• Improvement in Power consumption

29

Tangible Results

30

Power consumption reduced by 284 kWh/ T

• Enhance in process consistency also improved

metal purity

• Lowest Iron content and Silicon content in

aluminium.

• Increased Internal customer satisfaction

Intangible Results

31
