TDR Plots Elizabeth Worcester LBL PWG Meeting May 13, 2019 1 Intro Brief update with new plots since last week Plots unchanged from last week at the end 2 CPV Standard Exposures Changed colors b/c green and orange overlay looked

slide-1
SLIDE 1

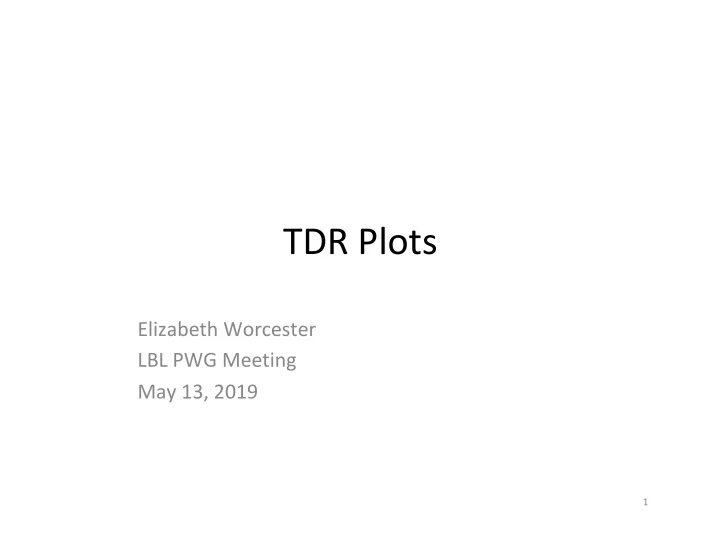

TDR Plots

Elizabeth Worcester LBL PWG Meeting May 13, 2019

1

slide-2
SLIDE 2

Intro

  • Brief update with new plots since last week
  • Plots unchanged from last week at the end

2

slide-3
SLIDE 3

CPV Standard Exposures

3

  • Changed colors b/c green

and orange overlay looked gross

  • Other plots using 7, 10, 15

year exposures have been changed to match

  • Combo of transparency and

hatching – open to suggestions!

  • Callum has developed an

algorithm to get a smooth median from throws and a true 1σ contour by fitting – implemented here

slide-4
SLIDE 4

MH Standard Exposures

  • Same style as CPV
  • Currently FD-only fit to

make sure script is working – ND-FD jobs are done, will update when hadd finishes

4

slide-5
SLIDE 5

δCP Resolution vs δCP

5

  • Smoothing algorithm

applied

slide-6
SLIDE 6

Resolutions vs. Exposure

6

Highest exposures still running – update when fits complete. Choppiness maybe due to low stats in throws but we need to check the fits.

slide-7
SLIDE 7

Resolutions vs. Exposure

7

Highest exposures still running – update when fits complete. Choppiness maybe due to low stats in throws but we need to check the fits.

slide-8
SLIDE 8

Octant

  • Width of band is

just a few dcp points – eventually should include more full scan of dcp space

  • Missing point at

sin2θ23 = 0.5 – will fix at some point

  • Sensitivity similar

to CDR

  • Octant w/ throws

are finishing up

8

slide-9
SLIDE 9

To Do

  • Address any feedback on formats shown today
  • Mass ordering standard exposure plots:

– Update to NDFD root files - available soon

  • Yellow/green statistical variations plots

– Make from throws, use same root files as nominal plots

  • Resolutions

– Update when last few exposure points finish – Check fits. Smoothing?

  • Octant

– Also make plot with throws for symmetry with other sensitivity results

  • Table of milestones

– Update CDR script; based on exposure plots already generated – in progress

  • Comparison plots with CDR-style analysis
  • Systematics variations plots

– Chris showing a pass at this today, will format his result to match other plots once he has a final version

  • Results section of TDR

– Largely done, adding plots as they become available

9

slide-10
SLIDE 10

Plots from last week follow

10

  • Updated bubble plots with new color scheme
  • Everything else unchanged
slide-11
SLIDE 11

CPV Exposure (Vary θ23)

11

slide-12
SLIDE 12

MH Exposure (Vary θ23)

12

slide-13
SLIDE 13

CPV Exposure (Vary θ13 Constraint)

13

slide-14
SLIDE 14

MH Exposure (Vary θ13 Constraint)

14

slide-15
SLIDE 15

2D Asimov Fits

15

slide-16
SLIDE 16

Variations on 2D Asimovs

16

slide-17
SLIDE 17

Variation in θ23

17

slide-18
SLIDE 18

Variation in θ13

18

slide-19
SLIDE 19

Variation in Δm2

32

19

slide-20
SLIDE 20

Documentation/Storage

  • I’m keeping the google doc updated as a

temporary clearinghouse as new plots become available:

– https://docs.google.com/document/d/1uOkefyk2- ChBxjWijX0JrG9z9m9Ci_Wm8zM_6XrW8iI/edit? usp=sharing

  • Scripts are in my Github:

– https://github.com/etworcester/2019tdrplot.git

  • Plots will go on approved plots page once final
