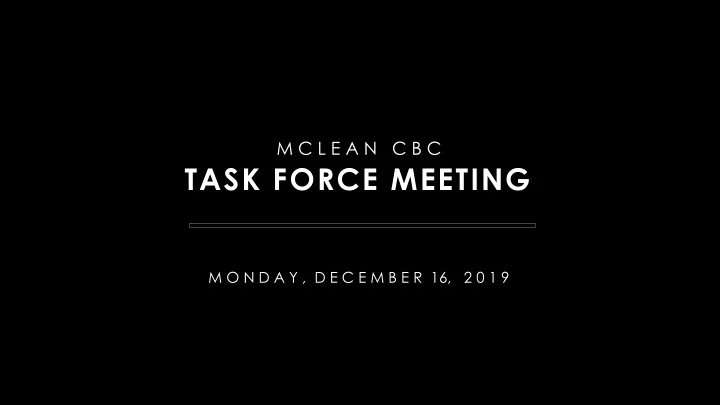

SLIDE 1

M C L E A N C B C

TASK FORCE MEETING

M O N D A Y , D E C E M B E R 16, 2 0 1 9

SLIDE 2

1. Administrative Items
2. Public Open Space in Center Zone (bonus density area)
3. Conceptual Street Cross-Sections
4. Building Zone Discussion
5. Residential Use in General Zone
6. Public Comment

TONIGHT’S AGENDA

Monday, December 16

SLIDE 3

Current Comprehensive Plan Amendment Timeline

*Timing of review depends on number and complexity of comments.

2019 2020

Task Force Discussions

REQUIRED TRAFFIC ANALYSIS TO VDOT*

PUBLIC HEARINGS Staff report JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC JAN FEB MAR APR MAY JUN Community Meeting

Review Draft Text

WE ARE HERE

SLIDE 4

Public Open Space/Park in Bonus Density Area

SLIDE 5

Workshop feedback: A meaningful and centrally- located open space is a critical component missing from today’s CBC.

Bonus Height Area

SLIDE 6

“Active open spaces are proven to deliver an excellent return on investment, often supplying far more benefits than they cost to construct. These benefits accrue to private development while effectively strengthening communities and opening

pportunities for all.”

Elizabeth Shreeve Principal, SWA Group; chair, ULI Sustainable Development Council

The Case of Open Space: Why the Real Estate Industry Should Invest in Parks and Open Spaces. Urban Land Institute, 2018.

SLIDE 7

Open Space – PRM (Planned Residential Multifamily) Zoning District Parcel sizes and required 20% open space

Example Parcel Sizes 20% Open Space Requirement 1 acre 43,560 SF 8,712 SF 0.2 acres 2 acres 87,120 SF 17,424 SF 0.4 acres 3 acres 130,680 SF 26,136 SF 0.6 acres 4 acres 174,240 SF 34,848 SF 0.8 acres 5 acres 217,800 SF 43,560 SF 1 acre 6 acres 261,360 SF 52,272 SF 1.2 acres 10 acres 435,600 SF 87,120 SF 2 acres

SLIDE 8

Urban Parks Framework

Streetsense Examples of Residential Developments

# of Multifamily Residential Units Site Area Estimated # of residents Recommended Amount of Urban Parkland 470 5.6 acres 823 1.2 acres 170 2.3 acres 298 0.5 acres 160 1.9 acres 280 0.4 acres

Part of the Comprehensive Plan (Policy Plan element)
Guides the provision of public parks in activity centers like McLean CBC
Acreage Standards

▪ 1.5 Acres/1,000 residents | 1.0 Acre/10,000 employees

SLIDE 9

Proposed Plan Language

Park/Open Space for Bonus Area

Public Open Space/Park – A minimum 2/3-acre public open space or park should be

provided. This space is envisioned as a public civic plaza, common green, or hybrid type.

The space should have the following core components:

Should be welcoming, visible from the public realm, and accessible for park users of

all ages and abilities;

Should have connections to surrounding pedestrian and bicycle infrastructure, with

access supported by wayfinding signage;

Provide a variety of seating options and shade elements;
Include an area designed for community gatherings such as farmer’s market, art

exhibitions, festivals, concerts, and other events;

Place(s) for unscheduled uses such as unstructured play should be included; and
Include focal points, which may include but are not limited to water features and

public art.

Include activity elements for park users to engage in physical or social activity

which may include but are not limited to shaded seating areas, gardens, amphitheaters, areas for unstructured play, and fitness courses.

SLIDE 10

Conceptual Street Cross-Sections

SLIDE 11

Old Dominion Drive Chain Bridge Road Beverly Road Elm Street

SLIDE 12

Old Dominion Drive

Note 1: Typical street cross sections are depicted. Although dimensions are noted, final street design will require accommodation of all applicable road design infrastructure. Additionally, final street designs may vary as necessary to address other design and engineering goals and requirements. Note 2: VDOT requires a 1-foot maintenance buffer at the back of the sidewalk or shared use path on the edge of the right-of-way. Note 3: Not to Scale. Interim (before moving curbs in) Ultimate (after moving curbs in)

incl.

8’ Shared Walkway

Incl. 1’ VDOT buffer

SLIDE 13

Chain Bridge Road

Note 1: Typical street cross sections are depicted. Although dimensions are noted, final street design will require accommodation of all applicable road design infrastructure. Additionally, final street designs may vary as necessary to address other design and engineering goals and requirements. Note 2: VDOT requires a 1-foot maintenance buffer at the back of the sidewalk or shared use path on the edge of the right-of-way. Note 3: Not to Scale.
