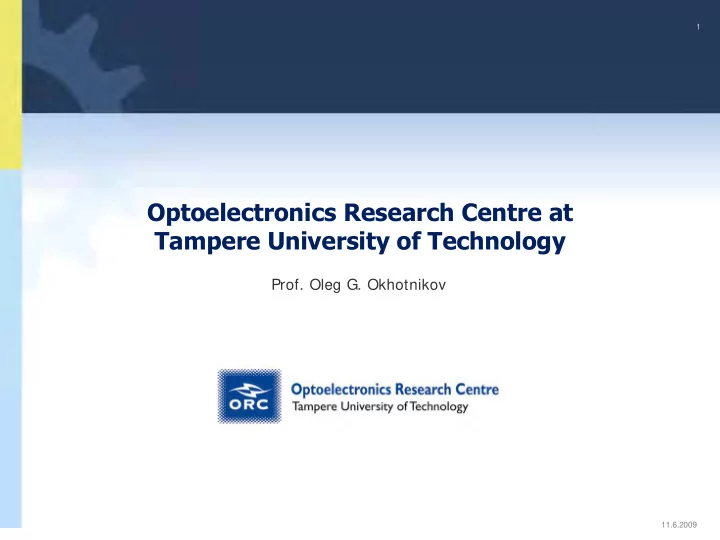

Optoelectronics Research Centre at Tampere University of Technology

• Prof. Oleg G. Okhotnikov

1 11.6.2009

2 11.6.2009

ORC – A cradle of photonics in Finland

65 employees (December 2008) Investments in scientific equipment: > €18 million Total funding = €25M during 2000-2008 23 research projects in 2008, revenue

€5.0 million (2008)

Co-operation with 40 international and 20 national partners

ORC has two divisions (i) Semiconductor physics & technology (ii) Ultra-fast & intense laser optics + Commercialization of research results

3 11.6.2009

From Research to Business: Spin-off companies

2000 2003 2004 1991 2008

Laser manufacturing industry has spun out from academic research

4 11.6.2009

Corelase

Fibre lasers

Modulight Telecom/Industrial

diode lasers

Coherent Finland

Non-telecom diode lasers

Laser manufacturing industry has spun out from academic research

Building a factory in 2008-2009

5 11.6.2009

Recent EU FP6 (STREP) Projects

NATAL:

Materials, equipment and processes for production of nano-photonic and nano- electronic devices. For development of OP-SDLs operating at 630 – 670 nm, 940 nm, 1040 nm and 1220 nm; development of frequency-doubled OP-SDLs emitting at 335 nm, 470 nm, 520 nm, and 615 nm (RGB light sources)

URANUS:

Ultra-fast technology for multicolor compact high-power fibre systems. For development of high power ultra-fast fibre lasers and SESAMs and PCFs; development of super-continuum fibre lasers

6 11.6.2009

New EU FP7 & National Projects

Fast-Dot (www.fast-dot.eu):

Compact Ultrafast Laser Sources Based On Novel Quantum Dot Structures

Lamp (TEKES):

Cost-effective Fiber Lasers for Material Processing

WIT (Academy):

Nonlinear Optics of Photonic Nanowires and Microstructured Nanotapers

7 11.6.2009 11/06/2009

Pump: 808 nm Gain mirror M1 BBO, 4-mm Copper mount Heat spreader RoC1=150 mm RoC2=200 mm RoC3=100 mm M2 M3 M3 M2 Glass etalon, 25-μm Pump: 808 nm Gain mirror M1 BBO, 4-mm Copper mount Heat spreader RoC1=150 mm RoC2=200 mm RoC3=100 mm M2 M3 M3 M2 Glass etalon, 25-μm

EU FP6

EU FP6 NATAL

An example: GaInNAs 615 nm OP-VECSEL with 2.7 W output (world record)

ORC (coordinator), Technical Univ. of Berlin, CTH (Sweden), IoP (Strathclyde), OSRAM (Germany), TOPTICA (Germany), OPTOCAP (UK), EpiCrystals (Finland) July 2005 – June 2008

8 11.6.2009

Fundamental, cw 940 nm – 3 W 1050 nm – 5 W 1220 nm – > 3 W (GaInNAs) 2030 nm – > 1 W (GaSb) Mode-locked by SESAMs 2 GHz, ps, 100 mW Frequency doubled, cw 615 nm, 2.7 W 470 nm, 700 mW

Heat sink Gain region Pump Heat spreader: diamond, SiC

EU FP6 NATAL - summary

9 11.6.2009

EU FP6 URANUS

FIANIUM’s high power MOPA

ORC (coordinator, Finland), INESC Porto, FIANIUM (UK), NKT (Denmark), STRATOPHASE (UK), CORELASE (FINLAND)

10 11.6.2009

EU FP6 URANUS (continued…)

Fianium’s SC laser CORELASE ps fiber laser

11 11.6.2009

Pump laser 980 nm Er- doped fibre laser Output

Simplified diagram SESAM Loop mirror

An example of using SESAM in a glass fibre laser

EU FP6 URANUS:

Ultra-fast optical pulses from fibre lasers using a SESAM as a cavity end-mirrors

Ultra-short-pulse train (SESAM inside). 1.55 m, Pout 0.5 W (average)

t < 500 fs

• 0.6
• 0.4
• 0.2

0.0 0.2 0.4 0.6 2 4 6 8 10

Autocorrelation intensity, normalized

Time delay, ps

89 fs Fiber laser record in 2007

peak power 100 kW

12 11.6.2009

EU FP6 URANUS:

Photonic crystal (PC) fibre laser: 8 W supercontinuum spectrum

Cooperation between ORC and NKT (Denmark) within EU FP6 URANUS, 2006 Width of the spectral range of 1 m Fibre laser (ORC / Fianium Ltd., UK) Photonic crystal fibre Supercontinuum output Light is effectively confined in the core

• f a PC fibre

Supercontinuum PC fibre laser

Laser source & amplifier + a PC fibre with zero dispersion at 1 m

13 11.6.2009

EU FP6 URANUS:

Tapered fibre laser: Concentration on visible light

(Cover page of Optics Express, Oct. 2005) Spectral width 200 nm, total power 40 mW, concentrated on the visible range 350 400 450 500 550 600 650

80mW 65mW 50mW 35mW 15mW 3mW

Intensity, 10dB/div. Wavelength, nm

0.9 μm waist diameter of a tapered fibre

20 cm white light

EU FP6 URANUS, 2006

14 11.6.2009

Semiconductor Quantum Dots Carbone Nanotubes Photonic crystal nanowire fibers

New materials for photonics at ORC

(a) (b)

15 Oma nimi ja esityksen aihe vaihdettava mastersivulla 11.6.2009

Single-walled Carbon Nanotube films for ultrafast ultrabroadband technology

1030 1040 1050 1060 1070

Intensity, 10dB/div. Wavelength, nm

• 4
• 2

2 4 0,0 0,2 0,4 0,6 0,8 1,0

Normalized amplitude Time, ps

(a) (b)

1540 1550 1560 1570 1580 1590 1600 1610

• 3
• 2
• 1

1 2 3 0,0 0,2 0,4 0,6 0,8 1,0

Normalized amplitude Time, ps

Intensity, 10 dB/div. Wavelength, nm

1960 1970 1980 1990 2000 2010 2020 2030

• 4
• 2

2 4 0,0 0,2 0,4 0,6 0,8 1,0

Normalized amplitude Time, ps

Intensity, 5 dB/div. Wavelength, nm (a) (b)

16 11.6.2009

600 W Power Scalable Single Mode Tapered Double Clad Fiber Laser

200 400 600 800 1000 1200 100 200 300 400 500 600

Output power, W Launched pump power (915nm), W NA 0.15, slope 63% NA 0.18, slope 51%

Now over 750 W!

17 11.6.2009

FAST-DOT EU Project

1 2 3 4 5 6 7 8 9 10 100 200 300 400 500

OC=0.2% OC=0.4% Output power (mW) Input pump power (W) Output characteristics. The curved mirror is used as an output coupler with different transmissions. With 1 % transmission the laser did not start lasing. Typical beam profile of the laser. (OC=0.4 %, Pout=364 mW). In vertical direction the M2 was below 1.1 and in horizontal direction it was ~1.2.

18 11.6.2009
