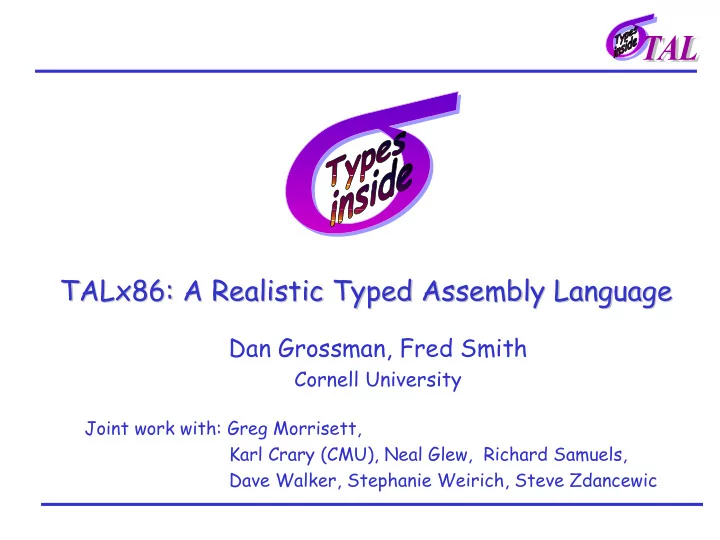

TALx86: A Realistic Typed Assembly Language TALx86: A Realistic Typed Assembly Language Dan Grossman, Fred Smith Cornell University Joint work with: Greg Morrisett, Karl Crary (CMU), Neal Glew, Richard Samuels, Dave Walker, Stephanie Weirich,


  1. TALx86: A Realistic Typed Assembly Language TALx86: A Realistic Typed Assembly Language Dan Grossman, Fred Smith Cornell University Joint work with: Greg Morrisett, Karl Crary (CMU), Neal Glew, Richard Samuels, Dave Walker, Stephanie Weirich, Steve Zdancewic

  2. Everyone wants extensibility: Everyone wants extensibility: • Web browser • applets, plug-ins • OS Kernel • packet filters, device drivers • “Active” networks • service routines • Databases • extensible ADTs 1 May 1999 2 www.cs.cornell.edu/talc

  3. The Language Approach The Language Approach Extension is written in a “safe” language: • Java, Modula-3, ML, Scheme • Key point: language provides abstractions • ADTs, closures, objects, modules, etc. • Can be used to build fine-grained capabilities Host ensures code respects abstractions: • Static checking (verification) • Inserting dynamic checks (code-rewriting) 1 May 1999 3 www.cs.cornell.edu/talc

  4. Example: Your Web Browser Example: Your Web Browser JVM verifier System Interface Low-Level IL Java Source Browser javac Optimizer JVM bytecode System Binary Binary 1 May 1999 4 www.cs.cornell.edu/talc

  5. JVM Pros & Cons JVM Pros & Cons Pros: • Portability • Hype: $, tools, libraries, books, training Cons: • Performance • unsatisfying, even with off-line compilation • Only really suitable for Java (or slight variants): • relatively high-level instructions tailored to Java • type system is Java specific • and... 1 May 1999 5 www.cs.cornell.edu/talc

  6. Large Trusted Computing Base Large Trusted Computing Base No complete JVM verifier System formal model Interface Must insert right Low-Level IL checks Browser Good code ⇒ Optimizer big optimizer ⇒ bugs in optimizer System Binary Lots of “native” methods Binary (i.e., not-safe code) 1 May 1999 6 www.cs.cornell.edu/talc

  7. Ideally: Ideally: trusted computing base System Your favorite verifier Interface language System Binary Low-Level IL optimizer machine code 1 May 1999 7 www.cs.cornell.edu/talc

  8. The Types Way The Types Way trusted computing base System Your safe verifier Interface language System Typed Binary Low-Level IL • Verifier is a type-checker Typed • Type system flexible and optimizer expressive • A useful instantiation of the TAL “proof carrying code” framework 1 May 1999 8 www.cs.cornell.edu/talc

  9. TALx86 in a Nutshell TALx86 in a Nutshell • Most of the IA32 80x86 flat model assembly language • Memory management primitives • Sound type system • Types for code, stacks, structs • Other advanced features • Future work (what we can’t do yet) 1 May 1999 9 www.cs.cornell.edu/talc

  10. TALx86 Basics: TALx86 Basics: Primitive types: (e.g., int) Code types: {r 1 : τ 1 ,…,r n : τ n } • “I’m code that requires register r i to have type τ i before you can jump to me.” • Code blocks are annotated with their types • Think pre-condition • Verify block assuming pre-condition 1 May 1999 10 www.cs.cornell.edu/talc

  11. Sample Loop Sample Loop C: TAL sketch: <n and retn addr as input> int sum(int n){ int s=0; sum: <type> while(!n) { <initialize s> s+=n; loop: <type> --n; <add to s, decrement n> } return n; test: <type> } <return if n is 0> 1 May 1999 11 www.cs.cornell.edu/talc

  12. Verification Verification sum: {ecx:int, ebx:{edx:int}} {ecx:int, ebx:{edx:int}, eax:int} mov eax,0 OK: sub-type of type labeling test jmp test loop:{ecx:int, ebx:{edx:int}, eax:int} {ecx:int, ebx:{edx:int}, eax:int} add eax,ecx {ecx:int, ebx:{edx:int}, eax:int} dec ecx OK: sub-type of type labeling next block test:{ecx:int, ebx:{edx:int}, eax:int} cmp ecx,0 {ecx:int, ebx:{edx:int}, eax:int} jne loop OK: sub-type of type labeling loop mov edx,eax {ecx:int, ebx:{edx:int}, eax:int, edx:int} OK: sub-type of {edx:int} -- type of ebx jmp ebx 1 May 1999 12 www.cs.cornell.edu/talc

  13. Stacks & Procedures Stacks & Procedures Stack Types (lists): σ ::= nil | τ :: σ | ρ where ρ is a stack type variable. Examples using C calling convention: int square(int); int mult(int,int); ∀ρ 1 {esp: τ 1 ::int:: ρ 1 } ∀ρ 2 {esp: τ 2 ::int::int:: ρ 2 } where where τ 1 ={eax: int, esp: int:: ρ 1 } τ 2 ={eax: int, esp: int::int:: ρ 2 } 1 May 1999 13 www.cs.cornell.edu/talc

  14. Stacks & Verification Stacks & Verification square: ∀ρ 1 {esp: τ 1 ::int:: ρ 1 } ρ 1 where τ 1 ={eax: int, esp: int:: ρ 1 } push [esp+4] push [esp+8] call mult [with ρ 2 = τ 1 ::int:: ρ 1 ] int τ aft ={eax:int, esp: int::int:: τ 1 ::int:: ρ 1 } add esp,8 τ 1 retn int mult: ∀ρ 2 {esp: τ 2 ::int::int:: ρ 2 } where τ 2 ={eax: int, esp: int::int:: ρ 2 } int {esp: τ 2 ::int::int:: τ 1 ::int:: ρ 1 } where τ 2 ={eax: int, esp: int::int:: τ 1 ::int:: ρ 1 } τ aft 1 May 1999 14 www.cs.cornell.edu/talc

  15. Important Properties Important Properties • Abstraction “Because the type of the rest of the stack is abstract the callee cannot read/write this portion of the stack” • Flexibility Can encode and enforce many calling conventions (stack shape on return, callee-save, tail calls, etc.) 1 May 1999 15 www.cs.cornell.edu/talc

  16. Callee- -Save Example Save Example Callee mult: ∀α ∀ρ 2 {ebp: α, esp: τ 2 ::int::int:: ρ 2 } where τ 2 ={ebp: α, eax: int, esp: int::int:: ρ 2 } 1 May 1999 16 www.cs.cornell.edu/talc

  17. Structs Structs • Goals: • Prevent reading uninitialized fields • Permit flexible scheduling of initialization • MALLOC “instruction” returns uninitialized record • Type of struct tracks initialization of fields • Example: {ecx: int} MALLOC eax,8 [int,int] ; eax : ^*[int u , int u ] mov [eax+0], ecx ; eax : ^*[int rw ,int u ] mov ecx, [eax+4] ; type error! 1 May 1999 17 www.cs.cornell.edu/talc

  18. Much, much more Much, much more • Arrays (see next slide) • Tagged Unions • Displays, Exceptions [TIC’98] • Static Data • Modules and Interfaces [POPL’99] • Run-time code generation [PEPM’99 Jim, Hornof] 1 May 1999 18 www.cs.cornell.edu/talc

  19. Mis- -features features Mis • MALLOC and garbage collection in trusted computing base [POPL’99] • No way to express aliasing • No array bounds check elimination [Walker] • Object/class support too primitive [Glew] 1 May 1999 19 www.cs.cornell.edu/talc

  20. Summary and Conclusions Summary and Conclusions • We can type real machine code Potential for performance + flexibility + safety • Challenge: Finding generally useful abstractions • Lots of work remains http://www.cs.cornell.edu/talc 1 May 1999 20 www.cs.cornell.edu/talc
