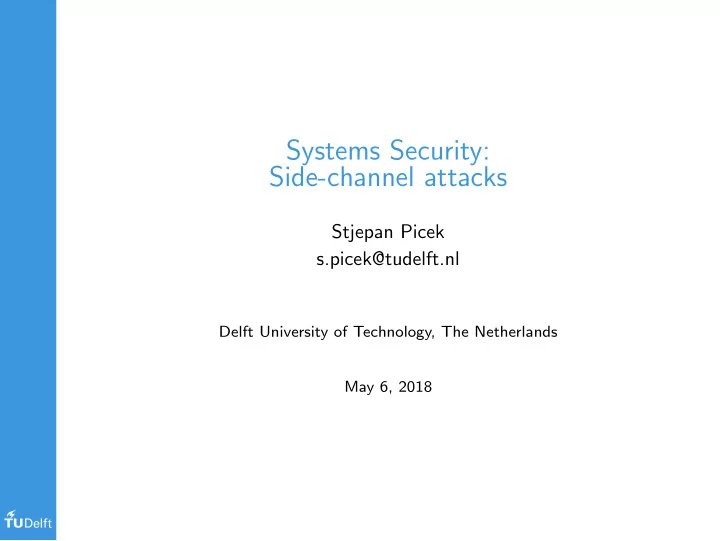

Systems Security: Side-channel attacks

Stjepan Picek s.picek@tudelft.nl

Delft University of Technology, The Netherlands May 6, 2018

Outline

1 Side-channels 2 Implementation Attacks 3 Side-channel Attacks 4 Fault Injection

2 / 48

Side-channels

Something that enables you to know something about something without directly observing that something.

3 / 48

Side-channels

4 / 48

Side-channels

Figure: https://www.strava.com/heatmap#3.10/-108.57419/44.95226/hot/all

5 / 48

Side-channels

6 / 48

Side-channels

7 / 48

Outline

1 Side-channels 2 Implementation Attacks 3 Side-channel Attacks 4 Fault Injection

8 / 48

Implementation Attacks

“Researchers have extracted information from nothing more than the reflection of a computer monitor off an eyeball or the sounds emanating from a printer.” - Scientific American, May 2009.

9 / 48

Cryptographic Theory vs Physical Reality

❼ Cryptographic algorithms are (supposed to be) theoretically

secure.

❼ Implementations lean in physical world.

10 / 48

Implementation Attack Categories

❼ Side-channel attacks. ❼ Faults. ❼ Microprobing.

11 / 48

Taxonomy of Implementation Attacks

❼ Active vs passive. ❼ Active:

1 Active: the key is recovered by exploiting some abnormal

behavior.

2 Insertion of signals.

❼ Passive:

1 The device operates within its specifications. 2 Reading hidden signals.

12 / 48

Implementation Attacks

Implementation attacks

Implementation attacks do not aim at the weaknesses of the algorithm, but on its implementation.

❼ Side-channel attacks (SCAs) are passive, non-invasive

attacks.

❼ SCAs represent one of the most powerful category of attacks

• n crypto devices.

13 / 48

Examples of Implementation Attacks

❼ KeeLoq: eavesdropping from up to 100 m. ❼ PS3 hack due to ECDSA implementation failed. ❼ Attacks on Mifare Classic, Atmel CryptoMemory. ❼ Spectre and Meltdown.

14 / 48

The Goals of Attackers

❼ Secret data. ❼ Location. ❼ Reverse engineering. ❼ Theoretical cryptanalysis. ❼ ...

15 / 48

Physical Security in the Beginning

❼ Tempest – already known in 1960s that computers generate

EM radiation that leaks information about the processed data.

❼ 1965: MI5 used a microphone positioned near the rotor

machine used by Egyptian embassy to deduce the positions of rotors.

❼ 1996: first academic publication on SCA – timing. ❼ 1997: Bellcore attack. ❼ 1999: first publication of SCA – power.

16 / 48

Outline

1 Side-channels 2 Implementation Attacks 3 Side-channel Attacks 4 Fault Injection

17 / 48

Power Analysis

❼ Direct attacks:

1 Simple Power Analysis – SPA. 2 Differential Power Analysis – DPA. 3 Correlation Power Analysis – CPA. 4 ...

❼ Two-stage attacks:

1 Template attack – TA. 2 Stochastic models. 3 Machine learning-based attacks. 4 ...

18 / 48

Simple Power Analysis

❼ Based on one or a few measurements. ❼ Visual inspection of measurements. ❼ Discovery of data independent but instruction dependent

properties.

❼ In symmetric crypto:

1 Number of rounds. 2 Memory access.

❼ In asymmetric crypto:

1 Key length. 2 Implementation details. 3 Key.

19 / 48

SPA

20 / 48

SPA

21 / 48

SPA

22 / 48

Assignment 1

❼ Learn/remind about DES, AES, RSA.

23 / 48

Differential Power Analysis

❼ Statistical analysis of measurements.

24 / 48

Assignment 2

❼ Implement DPA.

25 / 48

Correlation Power Analysis

❼ Write a leakage model for the power consumption. ❼ Obtain measurements of power consumption while device is

running encryption over different plaintexts.

❼ Attack subparts of the key (divide and conquer approach):

1 Consider all options for subkey. For each guess and trace, use

plaintext and guessed subkey to calculate power consumption according to the model.

2 Use the Pearson correlation to differentiate between the

modeled and actual power consumption.

3 Decide which subkey guess correlates best to the measured

traces. ❼ Combine the best subkey guesses to obtain the secret key.

26 / 48

Pearson’s Correlation

ρX,Y = cov(X,Y ) σxσy = E[(X − µx)(Y − µy)] √ E[(X − µx)2]E[(Y − µy)2] (1)

27 / 48

Leakage Models

❼ Recall, power has two components: static and dynamic. ❼ Static power is required to keep the device running and it

depends on the number of transistors inside the device.

❼ Dynamic power depends on data processing.

28 / 48

Leakage Models

❼ Transition = the Hamming distance model. ❼ Counts the number of transitions between 0 → 1 and 1 → 0. ❼ Typical model for ASIC. ❼ Requires j=knowledge of a previous (or succeeding) value. ❼ The Hamming weight model is typical on a precharged data

bus in a microcontroller.

29 / 48

The Distinguishers

❼ Difference of Means. ❼ T-test. ❼ Variance test. ❼ Pearson correlation. ❼ Spearman’s rank correlation. ❼ MIA. ❼ ...

30 / 48

Example

❼ Let us consider AES-128 where we use the Hamming weight

model.

❼ After the first S-box operation,

state = sbox[input XOR key] .

❼ Our modeled power consumption for one byte of plaintext p is

then hp = Hamming(sbox[inputp XOR key]) .

❼ How many key guesses do we need to do for each subkey? ❼ How many in total?

31 / 48

Profiled Attacks

❼ Profiled attacks have a prominent place as the most powerful

among side channel attacks.

❼ Within profiling phase the adversary estimates leakage models

for targeted intermediate computations, which are then exploited to extract secret information in the actual attack phase.

❼ Template Attack (TA) is the most powerful attack from the

information theoretic point of view.

❼ Some machine learning (ML) techniques also belong to the

profiled attacks.

32 / 48

Profiled Attacks

33 / 48

Profiled Attacks

❼ Two stage (profiled) attacks are more complicated than the

direct attacks.

❼ The attacker must have access to a copy of the device to be

attacked.

34 / 48

Template Attack

❼ Using the copy of device, record a large number of

measurements using different plaintexts and keys. We require information about every possible subkey value.

❼ Create a template of device’s operation. A template is a set of

probability distributions that describe what the power traces look like for many different keys.

❼ On device that is to be attacked, record a (small) number of

measurements (called attack traces) using different plaintexts.

❼ Apply the template to the attack traces. For each subkey,

record what value is the most likely to be the correct subkey.

35 / 48

Template Attack

❼ When using high-quality templates made from many traces, it

is possible to attack a system with a single trace.

❼ Template attack can become unstable if there are more points

• f interest than measurements per value.

36 / 48

Assignment 3

❼ Implement TA.

37 / 48

Machine Learning-based Attacks

❼ In symmetric crypto, machine learning-based attacks are

mostly supervised learning approaches.

❼ Up to now, various techniques have been used with great

success: SVM, Random Forest, Multi layer Perceptron, CNNs.

❼ The attack goes in two phases:

1 Train a model from the training set (measurements with

labels).

2 Apply the model to the testing set (measurements without

labels).

38 / 48

Reality Is More Complicated

❼ Pre-processing. ❼ Feature engineering. ❼ Model Selection. ❼ Hyper parameter optimization. ❼ Fighting with countermeasures. ❼ ...

39 / 48

Reality Is More Complicated

❼ Constraints for implementing countermeasures (software and

hardware).

❼ Optimization can make SCA easier. ❼ Trade-off between practical and academic attacks.

40 / 48

Outline

1 Side-channels 2 Implementation Attacks 3 Side-channel Attacks 4 Fault Injection

41 / 48

Fault Injection

❼ Alter the correct functioning of a system. ❼ Often called perturbation attacks. ❼ Fault injection is very hard (accuracy, reproducibility). ❼ The equipment is expensive.

42 / 48

Methods

❼ Variations in supply voltage. ❼ Variation in external clock. ❼ Change in temperature. ❼ White light. ❼ X-rays and ion beams.

43 / 48

Goals

❼ Insert computational fault (null key, wrong crypto result). ❼ Change software decision (force approval of wrong PIN,

enforce access rights).

❼ ...

44 / 48

Force Approval of Wrong PIN

45 / 48

Types of Fault Injection

❼ Non invasive: glitching (clock, power supply). ❼ Semi invasive: UV lights, laser, optical fault injection. ❼ Invasive: microprobing, FIB probing.

46 / 48

Differential Fault Analysis – DFA

❼ The attacker obtains a pair of ciphertexts derived by

encrypting the same plaintext.

❼ One is correct value and one is faulty. ❼ Two encryptions are identical up to the point where the fault

• ccurred.

❼ Two ciphertexts can be regarded as outputs of round reduced

ciphers where the inputs are unknown but show a small differential.

47 / 48

References

❼ Eric Brier, Christophe Clavier, and Francis Olivier. Correlation Power

Analysis with a Leakage Model. CHES 2004: Cryptographic Hardware and Embedded Systems - CHES 2004 pp 16-29.

❼ Suresh Chari, Josyula R. Rao, Pankaj Rohatgi. Template attacks. CHES

2002: Cryptographic Hardware and Embedded Systems - CHES 2002 pp 13-28.

❼ Mangard, Stefan, Oswald, Elisabeth, Popp, Thomas. Power Analysis

Attacks Revealing the Secrets of Smart Cards. Springer, 2007.
