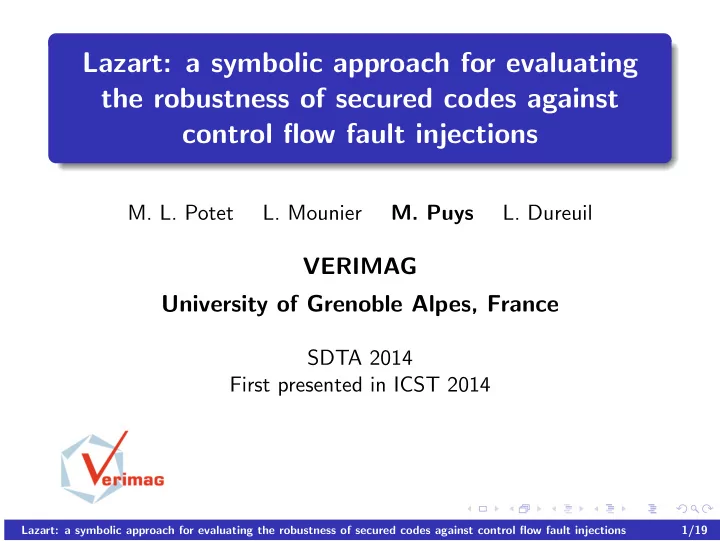

Lazart: a symbolic approach for evaluating the robustness of secured codes against control flow fault injections

• M. L. Potet
• L. Mounier
• M. Puys
• L. Dureuil

VERIMAG University of Grenoble Alpes, France

SDTA 2014 First presented in ICST 2014

Lazart: a symbolic approach for evaluating the robustness of secured codes against control flow fault injections 1/19

Outline

1 Context and Motivation 2 The Lazart Approach 3 A quick example 4 Conclusion and perspectives

Lazart: a symbolic approach for evaluating the robustness of secured codes against control flow fault injections 2/19

Context: smart card certification

Smart cards Pervasive : bank, health, phones, . . . (7 billions sold in 2012) Contain sensible data and applications ⇒ can be attacked! Smart card security Protections mechanisms added by manufacturers Well-defined certification process, prior to commercialization:

Security functional test Penetration test

Certification procedures include Physical testing on the device (black box) Code review and/or code analysis (white box)

Lazart: a symbolic approach for evaluating the robustness of secured codes against control flow fault injections 3/19

Effects of fault injection at the source level

1 int verify(char buffer [4]) 2 { 3 int i; 4 for(i = 0; i < 4; i++) 5 if(buffer[i] != pin[i]) { 6 authenticated = 0; 7 goto FAILURE; 8 } 9 authenticated = 1; 10 return EXIT_SUCCESS; 11 FAILURE : return EXIT_FAILURE; 12 } 1 MOV R3 , #01h 2 MOV R0 , #00h 3 WHILE: MOV A, R0 4 SUBB A, #04h 5 JZ END // exit loop 6 DO: 7 MOV R2 , [buffer+i] 8 MOV A, [pin+i] 9 SUBB A, R2 10 JZ SUCCESS 11 MOV R3 , #00h 12 JMP END 13 14 SUCCESS: INC R0 15 JMP WHILE 16 17 END: MOV authenticated , R3 18 RET

Lazart: a symbolic approach for evaluating the robustness of secured codes against control flow fault injections 4/19

Security Property and Fault Model

Security Property ֒ → Enforce or prevent the execution of specific instruction(s). ⇒ Attack Objective = set of basic blocks (not) to be reached Objectives of the analysis: Predict (or prove the absence of) possible attacks, for a given fault model Locate the“dangerous spots”in the code Evaluate the relevance of existing counter-measures Fault Model - Multiple faults Volatile control structure test inversion (e.g., if, while, etc.) ֒ → Encompass multiple binary-level attacks, e.g., NOP injection, modify flag or register value, . . .

Lazart: a symbolic approach for evaluating the robustness of secured codes against control flow fault injections 5/19
