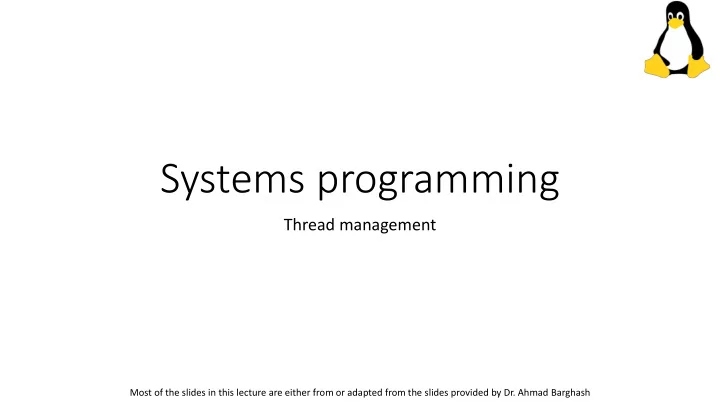

Systems programming

Thread management

Most of the slides in this lecture are either from or adapted from the slides provided by Dr. Ahmad Barghash

Threads

Thread Ya3ni 5ai6

A process, in the simplest terms, is an executing program. One or more threads run in the context

• f the process. A thread is the

basic unit to which the

• perating system allocates

processor time. A thread can execute any part of the process code, including parts currently being executed by another thread

Thread management in C

All C programs using pthreads need to include the pthread.h header file (i.e.: #include <pthread.h>). There are four steps for creating a basic threaded program:

• 1. Define thread reference variables
• 2. Create an entry point for the thread
• 3. Create the thread
• 4. Join everything back up

Defi fine thread reference variables

• The variable type pthread_t is a means of referencing threads.
• A pthread_t variable must exist for every created thread.

Example: pthread_t thread0;

Create an entry ry point for the thread

• The thread must point to a function for it to start execution.
• The function must return void * and take a single void *

argument. For example: void *my_entry_function(void *param);

A void pointer can hold address of any type and can be typcasted to any type

Create a thread

• Once the pthread_t variable has been defined and the entry point function

created, we can create the thread using pthread_create.

• Four arguments are needed:
• 1. a pointer to the pthread_t variable,
• 2. extra attribute (don’t worry about this for now – just set it to NULL)
• 3. a pointer to the function to call (ie: the name of the entry point)
• 4. The pointer being passed as the argument to the function.

Example: pthread_create(&thread0, NULL, my_entry_function, &param); If successful, the pthread_create() function returns a zero value. Otherwise, an error number is returned to indicate the error.

Jo Join every rything back up

• When the newly-created thread has finished doing it’s bits, we need

to join everything back up.

• This is done by the pthread_join function which takes two

parameters:

• 1. The pthread_t variable used when pthread_create was called

(not a pointer this time)

• 2. A pointer to the return value pointer (don’t worry about this for

now – just set it to NULL). Example: pthread_join(thread0, NULL);

All together

• #include <pthread.h>
• Define a worker function
• void *foo(void *args)
• Initialize pthread attribute to NULL
• Create a thread
• pthread t thread;
• pthread create(&thread, &attr, worker function, arg);
• Join everything back up
• Exit current thread
• pthread exit(status)

First example

#include <pthread.h> #include <stdio.h> /* this function is run by the second thread */ void *inc_x(void *x_void_ptr) { /* increment x to 100 */ int *x_ptr = (int *)x_void_ptr; while(++(*x_ptr) < 100); printf("x increment finished\n"); return NULL; } int main() { int x = 0, y = 0; printf("x: %d, y: %d\n", x, y); pthread_t inc_x_thread; if(pthread_create(&inc_x_thread, NULL, inc_x, &x)) { fprintf(stderr, "Error creating thread\n"); return 1; } while(++y < 100); printf("y increment finished\n"); if(pthread_join(inc_x_thread, NULL)) { fprintf(stderr, "Error joining thread\n"); return 2; } /* show the results - x is now 100 thanks to the second thread */ printf("x: %d, y: %d\n", x, y); return 0; } x: 0, y: 0 y increment finished x increment finished x: 100, y: 100
