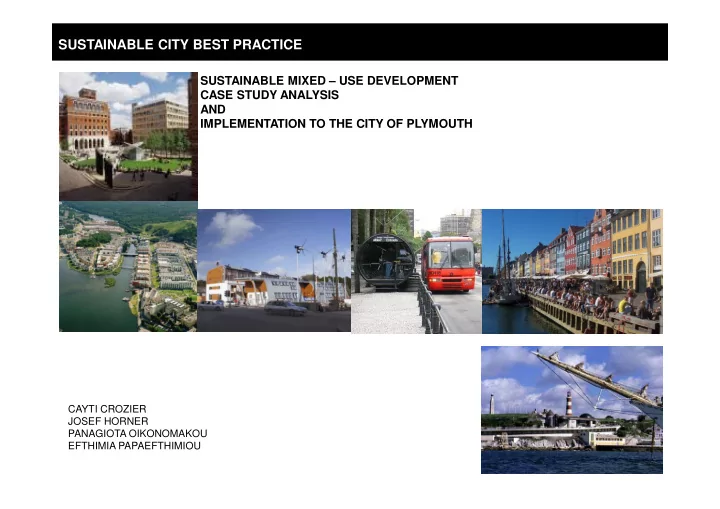

SUSTAINABLE CITY BEST PRACTICE

SUSTAINABLE MIXED – USE DEVELOPMENT CASE STUDY ANALYSIS AND IMPLEMENTATION TO THE CITY OF PLYMOUTH

CAYTI CROZIER JOSEF HORNER PANAGIOTA OIKONOMAKOU EFTHIMIA PAPAEFTHIMIOU

AIM OF THE ANALYSIS

“Methodological failings can always be traced to ideological errors.” Freire, P. (1970) PARTICIPATORY DESIGN MONEY HOLDERS’ VISION DESIGN STRATEGY

AIM OF THE ANALYSIS

CASE STUDIES NATIONAL / INTERNATIONAL POSSIBILITIES AMENITIES / RESTRICTIONS IMPLEMENTATION

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM BRINDLEY PLACE

ENVIRONMENTAL

BRINDLEY PLACE

• Housing provision
• Land costs
• High density
• Identity/materiality

SOCIAL ECONOMIC

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM BRINDLEY PLACE

HOUSING PROVISION City Centre Neighbourhood

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM BRINDLEY PLACE

LAND COSTS City Centre Royal London House, Armada Way. Size: 521sq ft Price/Rent: Leasehold £20,000 per annum. City Centre 50, Drake Circus. Size422sq ft Price/Rent: Leasehold £60,000 per annum. Diagram of land ownership in city centre Price/Rent: Leasehold £60,000 per annum.

Council owns all of the West End Property. Rents range from around 5000pa to 20000pa, depending on the size of the unit. Frankfort Gate and opposite the Market on Cornwall Street,

• wned by Plymouth Community Homes, rents similar to

West End. Rest of the City Centre owned by private companies but buildings are sited on ground owned by City Council. Drake Circus is owned by a private company and provides no direct money to Plymouth City Council.

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM BRINDLEY PLACE

HIGH DENSITY The 3D map shows us that there is little variation in heights throughout the city. The centre itself is very low density when we look at the ratio of building to void space. The commercial centre feels enclosed by the lack of punctuation through the ring road. The map also shoes just how much the road system dominated and divides the city as a whole (Plymouth Briefing Document, University of Plymouth School of Architecture & Design, Master

• f Architecture , 2010 – 2011).

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM BRINDLEY PLACE

IDENTITY / MATERIALITY

RED - SAND BRICK / CHEAP PORTLAND STONE / POSH RED BRICK RED BRICK PORTLAND STONE

CITY’S CONSISTENCY

HAMMARSBY SJOSTAD - SWEDEN

DESCRIPTION Formerly disused, polluted brown field site located to the south of Stockholm now a leading example of sustainable urban living. The vision is to create a mixed use environment based

• n sustainable resource usage whilst retaining and

enhancing the lakeside ecosystem.

ENVIRONMENTAL SOCIAL ECONOMIC

FOCUS

HAMMARSBY SJOSTAD - SWEDEN

STORM WATER COLLECTION

• TREATED WATER USED FOR DOMESTIC USE AND

HEATING AND COOLING WASTE DISPOSAL

• ENERGY IS EXTRACTED FROM 99% OF
• ENERGY IS EXTRACTED FROM 99% OF

DOMESTIC WASTE ENERGY

• RENEWABLE FUELS, BIOGAS PRODUCTION AND

REUSE OF WASTE HEAT

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM HAMMARSBY

PLYMOUTH CITY POTENTIAL

• Small Scale city
• Low Density – Lots of space for development
• Coastal Location
• Strong Wind
• Strong University Presence

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM HAMMARSBY

• Utilisation of the University Research

Department to advance and become an exemplary urban Model of Renewable Energy Generation

• Maximise the potential of the power of natural

Climatic conditions and location to generate energy

• Create waterside publically accessible
• Implementation of Best Practice Recycling
• Create waterside publically accessible

habitats to promote biodiversity and to aid flood risk whilst Improve social interaction

• Establish an eco – cycle which considers the

reuse of waste To be used as part of a cohesive holistic approach to energy Production, heating and cooling systems and waste management

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM JUBILEE WHARF

ENVIRONMENTAL

JUBILEE WHARF

• Environmentally aware building techniques
• Aims to reduce resource consumption
• Energy production
• Create good quality living environment

SOCIAL ECONOMIC

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM JUBILEE WHARF

Insulation

• Reduces Energy Consumption
• Easy to install in new buildings
• Difficult to apply in old existing

buildings

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM JUBILEE WHARF

Energy Generation

• Aeolian Park
• Location near the sea
• Higher wind speed
• More wind turbines
• High production of energy

and power and power

SOCIAL ECONOMIC ENVIRONMENTAL

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM JUBILEE WHARF

Solar Panels

• Photovoltaic Cells
• Takes a lot of energy
• Cost
• Climate
• Duration of use / Life

Water Use

• Rainwater Harvesting
• Economical source
• Simply to construct from

inexpensive materials

• Easy to install tanks

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM COPENHAGEN

COPENHAGEN

• Green infrastructure plan
• Transport links
• Cycling
• Traffic and Parking

ENVIRONMENTAL

PLYMOUTH

• Very Limited Residential Provision
• Poor transport linkage to suburbs and other transport hubs
• Car domination / reliance on car
• Poor cycling provision

SOCIAL ECONOMIC

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM COPENHAGEN

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM COPENHAGEN

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM COPENHAGEN

AIRPORT

North Prospect Pennycross St Budeaux Mannamead Eggbuckland Derriford Leigham Efford Laira Marsh Mills

CITY CENTRE TRAIN STATION

Stonehouse Devonport Keyham Laira Prince Rock

IMPLEMENTATION TO PLYMOUTH – LESSONS FROM COPENHAGEN
