SURFACE PHYSICS SURFACE PHYSICS OF OF TOPOLOGICAL INSULATORS TOPOLOGICAL INSULATORS MASSLESS ELECTRONS, MASSIVE IONS MASSLESS ELECTRONS, MASSIVE IONS MICHAEL EL-BATANOUNY MASSLESS MASSLESS versus MASSIVE MASSIVE Newtons second law F

SLIDE 1

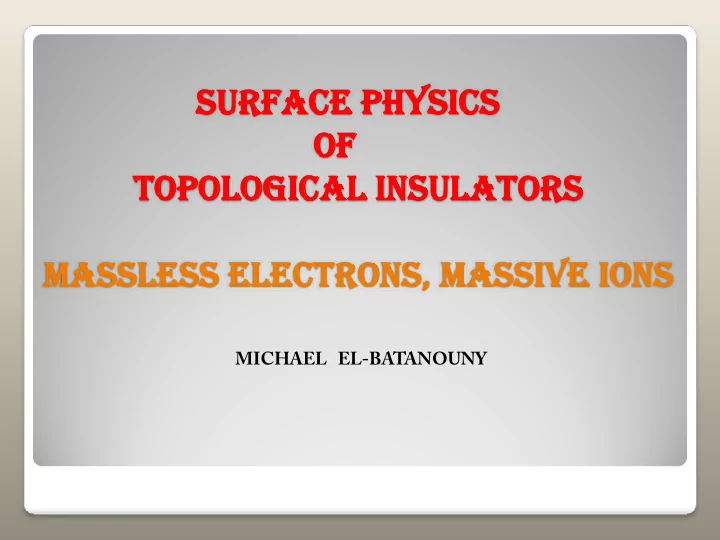

SURFACE PHYSICS SURFACE PHYSICS OF OF TOPOLOGICAL INSULATORS TOPOLOGICAL INSULATORS MASSLESS ELECTRONS, MASSIVE IONS MASSLESS ELECTRONS, MASSIVE IONS

MICHAEL EL-BATANOUNY

SLIDE 2

MASSLESS MASSLESS versus MASSIVE MASSIVE

SLIDE 3

Newton’s second law F = m a = 0 a ! E=

DIPERSION RELATION

SLIDE 4

SPECIAL FEATURES SPECIAL FEATURES OF OF DISPERSION DISPERSION RELATIONS RELATIONS OF OF ELECTRONS AND ELECTRONS AND IONS IONS IN IN SOLIDS SOLIDS

SLIDE 5

MOTION OF MOTION OF ATOMS (IONS) ATOMS (IONS)

SLIDE 6

PARTICLE CHAIN

PHONONS

SLIDE 7

SLIDE 8

SLIDE 9

MOTION OF ELECTRONS MOTION OF ELECTRONS

SLIDE 10

INSULATOR METAL

SLIDE 11

INSULATOR METAL

SLIDE 12

ELECTRONIC DISPERSION IN GRAPHENE

SLIDE 13

TOPOLOGICAL PROPERTIES

SLIDE 14

GAUSS BONNET

TOPOLOGICAL INVARIANTS

SLIDE 15

∫S k dA = 2 (1 – g ) Mod 2π

Gauss‐Bonnet Theorem

SLIDE 16

SLIDE 17

TOPOLOGICAL INSULATORS TOPOLOGICAL INSULATORS

SLIDE 18

TOPOLOGICAL INSULATOR v = 1

ORDINARY INSULATOR v = 0

BOUNDARY

SLIDE 19

SLIDE 20

DIRAC CONE

SLIDE 21

Dirac Cone ( Bi2Se 3)

SLIDE 22

ELECTRON-ION ELECTRON-ION INTERACTION INTERACTION

SLIDE 23

SLIDE 24

SURFACE PHONON SURFACE PHONON DISPERSIONS DISPERSIONS IN THE IN THE PRESENCE OF PRESENCE OF DIRAC FERMIONS DIRAC FERMIONS

SLIDE 25

SLIDE 26

DI RAC CONE

SLIDE 27

Rayleigh branch for hom ogeneous surface

SLIDE 28

SURFACE RAYLEIGH WAVES Seismic Waves

SLIDE 29

SLIDE 30

SLIDE 31
